2ACW8GP3209WRLS DIG D.LINE LCD IN/OUT W.S

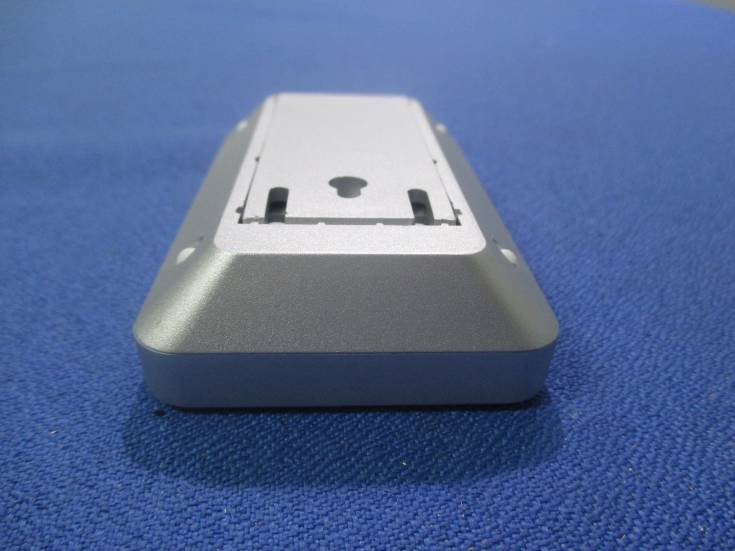

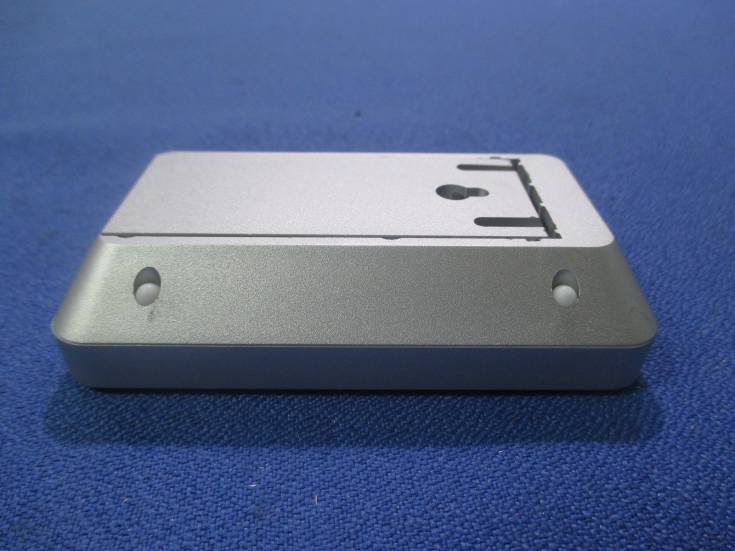

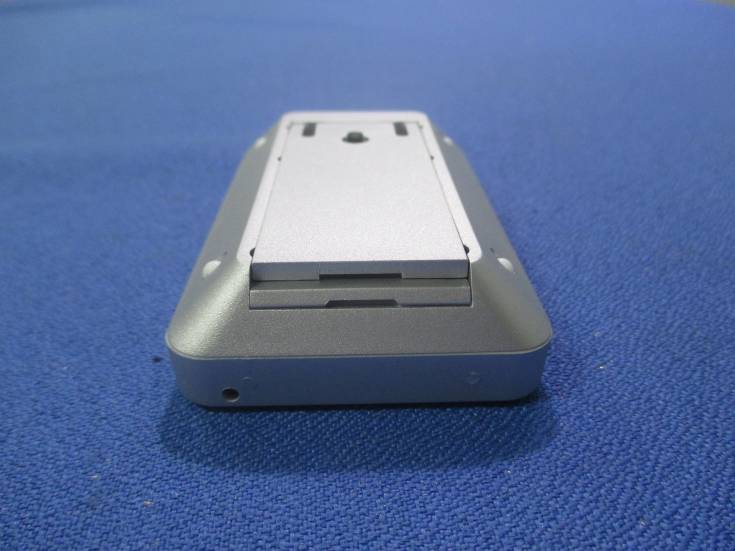

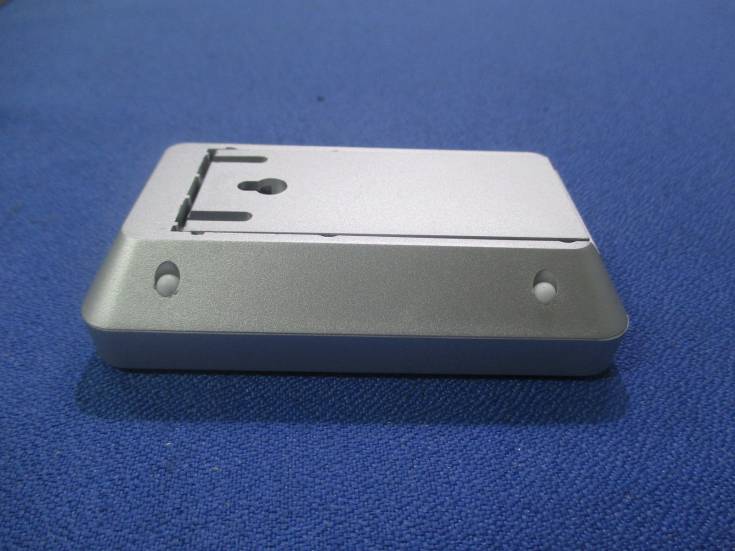

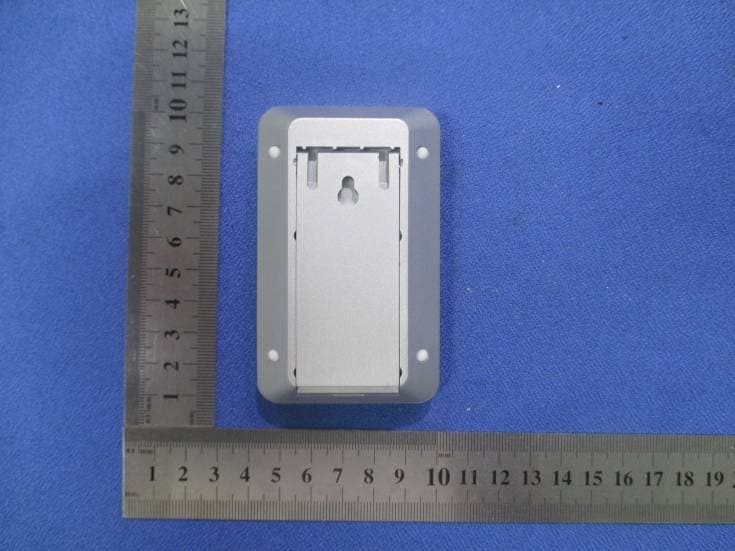

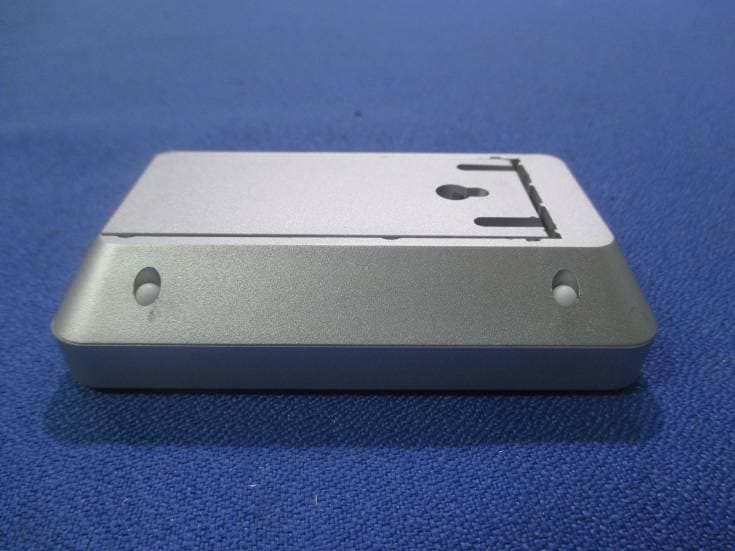

Instruction Manual BATTERY INSTALLATION The base unit operates on 2 AAA batteries and the remote sensor operates on 2 AAA batteries (batteries not included). Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni- cad, ni-mh, etc.) batteries. (Tip: Lithium batteries are recommended in extremely cold or hot locations.) IMPORTANT: Install batteries in the base unit first, then the remote sensor, otherwise the units’ transmissions may not properly connect. Place the base unit as close as possible to the remote sensor when installing batteries. Base Unit The battery compartment is located on the back of the unit. Remove the battery compartment door. Install (2) AAA size batteries into the battery compartment according to the polarity markings. Replace the battery compartment door. Remote Sensor The battery compartment is located under the table stand on the back of the unit. Pull up the table stand to access the battery compartment. Remove the 4 screws from the battery compartment cover (take care not to misplace the screws). Install (2) AAA size batteries into the battery compartment according to the polarity markings. Replace the battery compartment door and the screws. After Batteries are Installed: Allow 3 minutes for the base unit to read current temperature conditions and connect with the remote sensor. A transmission signal icon (“ ”) flashes on the base unit during this time. After 3 minutes, the transmission signal will flash when a signal is received from the remote sensor. The remote transmits temperatures once a minute. The red LED indicator light on the remote flashes when a signal is sent. Note: The outdoor temperature display on the base unit will display dashes (“--“) until the 1 st remote sensor signal is sent. TEMPERATURE READINGS The base unit displays the indoor temperature (“IN”) from its location. The remote unit transmits outdoor temperature (“OUT”) from its location back to the base unit. Press the “°C/°F” button on the base unit to switch between Fahrenheit or Celsius temperature displays. MAXIMUM/MINIMUM TEMPERATURE READINGS ● Press the “MAX/MIN” button once to display the maximum indoor and outdoor temperature readings since the unit was last reset. “MAX” will show on the LCD. ● Press the “MAX/MIN” button a second time to display the minimum indoor and outdoor temperature readings since the unit was last reset. “MIN” will show on the LCD. ● Press the “MAX/MIN” button a third time to see current indoor and outdoor temperatures. To clear the maximum and minimum readings: In either MAX or MIN mode, press and hold the “MAX/MIN” button for 2 seconds to clear both memories. The temperature displays show dashes “--” and the unit will begin to track new MAX and MIN readings. The memories will also reset when the base units’ batteries are removed. CLOCK SETTING The Clock display is located to the right of the Indoor Temperature display. 1. Press and hold the “SET” button for 2 seconds to enter Clock Setting Mode. The hour digit blinks. 2. Press the “+” button to change the hours. Press “SET” to confirm. The minute digits blink. 3. Press the “+” button to change the minutes. Press “SET” to confirm. “12” or “24” blinks in place of the minute digits. 4. Press “+” to toggle between 12 or 24 hour clock mode. Press “SET” to confirm. The hour and minute digits reappear. The clock is set. Notes: If no buttons are pressed within 30 seconds, the unit will automatically exit Clock Setting mode. Until a time has been set, the clock will count up the time since battery installation. DISPLAYING YOUR WEATHERGUIDE Base unit Pull the bottom of the Table Stand located on the back of the base unit to set it on a flat surface. Place the base unit indoors in a well-ventilated location away from direct sunlight. Remote sensor Pull the bottom of the Table Stand located on the back of the remote sensor to set it on a flat surface, or use the recessed keyhole on the back of the remote to hang on a wall using a nail or screw (not included). The transmission range of the remote sensor is 100 feet. The effective transmission range is vastly affected by obstacles such as walls, sheds, trees, etc. Try various set ups for the best results. Shorten the distance between the base and remote units when necessary. To get the most accurate readings and to prolong the life of your sensor, we recommend that you mount it out of direct sunlight and rain. Direct sunlight will heat the casing and inflate temperatures readings. Place the sensor in a dry, shaded area. Fog and mist will not affect the sensor, but large volumes of soaking rain may. To guard against this, we recommend that you mount it under the eve of your house, your garage or any other suitable place that will keep it out of direct sun and rain. Important: Though the remote unit is weather proof, it should be placed away from direct sunlight, rain, snow and should never be submerged in water. LOW BATTERY Remote sensor: replace the batteries when “” appears on the base unit. Base unit: replace the batteries if readings grow dim or irregular. Always replace all batteries in each unit at the same time; do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc.) batteries. NOTE: Please recycle or dispose of batteries per local regulations. WARNING: Batteries may pose a choking hazard. As with all small items, do not let children handle batteries. If swallowed, seek medical attention immediately. PRECAUTION: Do not dispose of batteries in fire. Batteries may explode or leak. Remove the batteries if the units will not be used for a long period of time. PROBLEM SOLVING 1. If the base unit does not receive a transmission from the remote sensor, the outdoor temperature display will show dashes. To correct this problem: a) Check that the remote is properly positioned, within the appropriate transmission range (100 feet). Transmissions are vastly affected by buildi…

Text truncated - open the document above for the full version.

FUZHOU SUNNY ELECTRONIC CO.,LTD. BLDG 52, JUYUANZHOU INDUSTRIAL GARDEN, 618 JINSHAN ROAD, FUZHOU, FUJIAN, CHINA TEL:+86-591-83849553-132 FAX: +86-591-83849559 DATE 08-08-2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ACW8GP3209 Product Name: WRLS DIG D.LINE LCD IN/OUT W.S Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 08-08-2014 By: Zhu Sufang Signature Printed Title: Manager On behalf of : FUZHOU SUNNY ELECTRONIC CO.,LTD. Telephone: +86-591-83849553-132

FCC ID Label Information 1. Label location: 2. FCC ID Label: FUZHOU SUNNY ELECTRONIC CO.,LTD. Model: GP3209 FCC ID: 2ACW8GP3209

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.231 Report Reference No......................: CTL1407221699-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Aug. 06, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: FUZHOU SUNNY ELECTRONIC CO.,LTD. Address.............................................: BLDG 52, JUYUANZHOU INDUSTRIAL GARDEN, 618 JINSHAN ROAD, FUZHOU, FUJIAN, CHINA Test specification: Standard ...........................................: FCC Part 15.231: Periodic operation in the band 40.66–40.70 MHz and above 70 MHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : WRLS DIG D.LINE LCD IN/OUT W.S Trade Mark .......................................: SUNNY Models/Type reference.....................: GP3209 Modulation .......................................: ASK Work Frequency...........................: 433.92MHz Antenna Type..............................: internal FCC ID .............................................: 2ACW8GP3209 Result................................................: Positive V1.0 Page 2 of 21 Report No.: CTL1407221699-WF T E S T R E P O R T Test Report No. : CTL1407221699-WF Aug. 06, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : WRLS DIG D.LINE LCD IN/OUT W.S Model /Type : GP3209 Applicant : FUZHOU SUNNY ELECTRONIC CO.,LTD. Address : BLDG 52, JUYUANZHOU INDUSTRIAL GARDEN, 618 JINSHAN ROAD, FUZHOU, FUJIAN, CHINA Manufacturer : FUZHOU SUNNY ELECTRONIC CO.,LTD. Address : BLDG 52, JUYUANZHOU INDUSTRIAL GARDEN, 618 JINSHAN ROAD, FUZHOU, FUJIAN, CHINA Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 21 Report No.: CTL1407221699-WF Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 5 2.6. Related Submittal(s) / Grant (s) 5 2.7. Modifications 5 2.8. Test Result Summary 5 3. TEST ENVIRONMENT............................................................... 6 3.1. Address of the test laboratory 6 3.2. Test Facility 6 3.3. Environmental conditions 6 3.4. Configuration of Tested System 6 3.5. Statement of the measurement uncertainty 7 3.6. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS ............................................. 9 4.1. Conducted Emissions Test 9 4.2. Radiated Emission Test 11 4.3. Occupied Bandwidth 14 4.4. Release Time Measurement 15 5. TEST SETUP PHOTOS OF THE EUT .......................................... 16 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 17 V1.0 Page 4 of 21 Report No.: CTL1407221699-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.231: Periodic operation in the band 40.66–40.70 MHz and above 70 MHz. ANSI C63.4-2009 V1.0 Page 5 of 21 Report No.: CTL1407221699-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : July 22, 2014 Testing commenced on : July 22, 2014 Testing concluded on : Aug. 06, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 3V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a remote control work at 433.92MHz. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode The EUT has been tested under typical operating condition. 2.5. EUT configuration The following peripheral devices and interface cables were connected during the measurement: o - supplied by the manufacturer ● - supplied by the lab 2.6. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: 2ACW8GP3209 filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. 2.7. Modifications No modifications were implemented to meet testing criteria. 2.8. Test Result Summary Test Item Test Requirement Standard Paragraph Result Radiated Emission FCC Part 15 Section 15.231(b) Pass Occupied Bandwidth FCC Part 15 Section 15.231(c) Pass Dwell Time FCC Part 15 Section 15.231(e) Pass V1.0 Page 6 of 21 Report No.: CTL1407221699-WF 3. TEST ENVIRONMENT 3.1. Address of the test laboratory Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China There is one 3m semi-anechoic chamber and two line…
