CT UNITE COMMUNICATION TECHNOLOGY LTD    VersionV1.0 Date 2013.11.02 MODEL NAME: ZK-7601 PRODUCT NAME :1T1R150Mbps WiFi Module      CT UNITE COMMUNICATION TECHNOLOGY LTD           :     6C !!!!!!!!!!!!!!!!!!!!!!!! "#$%&'()*+,-./012 The information contained herein is the exclusive property of ZK and shall not be distributed, reproduced or disclosed in whole or no in part without prior written permission of ZK CT UNITE COMMUNICATION TECHNOLOGY LTD DOCUMENT No : REG.DATE :2011.12.2 REV.NO : 1.5 REV.DATE :2011.12.2     MODEL NAME:  PAGE :2/9 1. Features ZK-7601 is the small size and low power module for IEEE 802.11b/g/n wireless LAN. ZK-7601 is based on Ralink MT7601/MT5370 solution. IEEE 802.11 b/g/n Dual Band WLAN infrastructure Size : 26.9mm x 12.9mm x 2.4mm 2.4GHzinternal PA Two stream spatial multiplexing up to 150Mbps ANT (1T1R) Use on-chip OTP (One-Time Programmable) USB 2.0 Supports drivers for Windows Vista, 2000, XP, Linux Security : WPA,WPA2,AES(TKIP) ,IEEE 802.1X • Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB 2. Ordering Information  ZK-7601Wi-Fi Module, 1T1R 3. Label markin ZK-7601 : 004TB5B00331   Model No Product Lot No. : 1110A0401  MAC Address BAR Code-11 : Year- 02 : Date  MAC Address No.- 11: Month- 01 : Manufactured - Revision No. : AProcess CT UNITE COMMUNICATION TECHNOLOGY LTD DOCUMENT No : REG.DATE :2011.12.2 REV.NO : 1.5 REV.DATE :2011.12.2     MODEL NAME :  PAGE :3/9 4. Block Diagram < Fig.1 Hardware Block Diagram > 5. Absolute Maximum Ratings Caution : The specifications in Table 1 define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device. ParameterMinMaxUnit Storage Temperature-10+80

Storage Humidity (40
)-90%% < Table 1 Absolute Maximum Ratings > . Other conditions 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture. 2) Store the modules where the temperature and relative humidity do not exceed 5 to 40
and 20 to 60%. 3) Assemble the modules within 6 months. Check the soldering ability in case of 6 months over. LAN PA Baseband RF receiver RF Transmitter USB System Control MAC/ Packet Buffer/ Encrption Engine Rf32G3INP/ Rf 32G3INN Rf 32G3INP/ Rf 32G3INN USB bus EEPROM/GPIO /LED Digital controlled RF CT UNITE COMMUNICATION TECHNOLOGY LTD DOCUMENT No : REG.DATE :2011.12.2 REV.NO : 1.5 REV.DATE :2011.12.2     MODEL NAME :  PAGE :4/9 5. Operating Conditions ParameterMinTypMax Unit Operating Temperature0-100 Operating Humidity--130% Supply Voltage1 VDD_3.3V2.73.34.0Vdc 6. Standard Test Conditions The Test for electrical specification shall be performed under the following condition unless otherwise specified. 1). Ambient condition Temperature :25± 5 . Humidity:65% 5% R.H. 2). Power supply voltages 3.3V (5%) input power at the Module 3). Current consumption over recommended range of supply voltage and operating conditions is like below. When it’s tested, it must be supplied more than 2 times of maximal current. CT UNITE COMMUNICATION TECHNOLOGY LTD DOCUMENT No : REG.DATE :2011.12.2 REV.NO : 1.5 REV.DATE :2011.12.2     MODEL NAME :  PAGE :5/9 7. Electrical Specifications 1) DC Characteristics Current ConsumptionMin.Typ.Max.Unit TX Mode ( MCS7)-95- Idle and Associated state-40- Radio disabled state-20- mA !"#$%%&'!()( 11Mbps mode unless otherwise specified) ItemsContents SpecificationIEEE802.11b ModeDSSS/CCK Channel frequency2400 ~ 2483 MHz Data rate 1,2,5.5,11Mbps TX CharacteristicsMin.Typ.Max.Unit Power Level161718dBm Spectrum Mask 1 st side lobes ( to fc ±11MHz)--43-30dBr 2 nd side lobes ( to fc ±22MHz)--58-50dBr Modulation Accuracy (EVM)-3030 % Power On/Off ramp-0.52.0Usec Freq. Tolerance-15-15ppm Chip Clock Freq. Tolerance-15-15ppm RX CharacteristicsMin.Typ.Max.Unit Minimum Input Level Sens (FER ≤ 8%)--88-76dBm Maximum Input Level (FER ≤ 8%)-10--dBm * Normal Condition : 25
, VDD=3.3/5V. CT UNITE COMMUNICATION TECHNOLOGY LTD DOCUMENT No : REG.DATE :2011.12.2 REV.NO : 1.5 REV.DATE :2011.12.2     MODEL NAME :  PAGE :6/9 3) RF Characteristics for IEEE802.11g( 54Mbps mode unless otherwise specified) ItemsContents SpecificationIEEE802.11g ModeOFDM Channel frequency2400 ~ 2483 MHz Data rate6,9,12,18,24,36,48,54Mbps TX CharacteristicsMin.Typ.Max.Unit Power Level 141516dBm Spectrum Mask at fc ±11MHz --32-20dBr at fc ±20MHz--43-28dBr at fc ≥ ± 30MHz--48-40dBr Constellation Error (EVM)--34-25dB Freq. Tolerance-15-15ppm Chip Clock Freq. Tolerance-15-15ppm RX Characteristics Min.Typ.Max.Unit Minimum Input Level Sens. (PER ≤ 10%)--75ppm Maximum Input Level (PER ≤ 10%)-20-ppm *Normal Condition : 25, VDD=3.3/5V CT UNITE COMMUNICATION TECHNOLOGY LTD DOCUMENT No : REG.DATE :2011.12.2 REV.NO : 1.5 REV.DATE :2011.12.2     MODEL NAME :  PAGE :7/9 3) RF Characteristics for IEEE802.11n( 54Mbps mode unless otherwise specified) ItemsContents SpecificationIEEE802.11n ModeOFDM Channel frequency2400 ~ 2483 MHz Data rate6,9,12,18,24,36,48,54Mbps TX CharacteristicsMin.Typ.Max.Unit Power Level 131415dBm Spectrum Mask at fc ±11MHz --32-20dBr at fc ±20MHz--43-28dBr at fc ≥ ± 30MHz--48-40dBr Constellation Error (EVM)--34-25dB Freq. Tolerance-15-15ppm Chip Clock Freq. Tolerance-15-15ppm RX Characteristics Min.Typ.Max.Unit Minimum Input Level Sens. (PER ≤ 10%)--75ppm Maximum Input Level (PER ≤ 10%)-20-ppm *Normal Condition : 25, VDD=3.3/5V CT UNITE COMMUNICATION TECHNOLOGY LTD DOCUMENT No : REG.DATE :2011.12.2 REV.NO : …

Text truncated - open the document above for the full version.

CT UNITE COMMUNICATION TECHNOLOGY LTD 6C, JIAJIAHAO COMMERCIAL BUILDING, YIYUAN ROAD, NORTH OF SHENNAN AVENUE, NANSHAN DISTRICT, SHENZHEN, CHINA TEL: +86-755-86630017 FAX: +86-755-86630076 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 August 22, 2014 Regarding to the Pubic Notice DA 00-1407 pertaining to PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL, CT UNITE COMMUNICATION TECHNOLOGY LTD would like to request modular approval for the submission FCC ID: 2ACWK7601. CT UNITE COMMUNICATION TECHNOLOGY LTD confirms that the product complies with numbered requirements identified below: Modular Approval is being requested for this device. The following statements detail these requirements and the manner in which the device meets them. The module has its own complete RF transceiver with internal antenna and reference oscillator. The module meets all of the technical specifications applicable to the frequency band of operation. 1. RF Shielding This BT module does have its own shielding. However, it is Modular Approval. 2. Buffered Modulation / Data Inputs This device has buffer modulation/data inputs. 3. Power Supply Regulation Power supply regulation is provided within the integrated circuit that regulates the control voltage to the RF and data circuitry. The maximum allowable voltage that can be used in the chip is 3.3VDC. The variable input voltage is therefore a voltage regulator. 4. Antenna Requirements The module uses a internal antenna which will be used on the end product has been tested. This device complies with the antenna requirement. 5.The modular transmitter must be tested in a stand-alone configuration Test data contained in this application is for the device tested as a stand alone device. Radiated spurious emissions data demonstrating compliance with the requirements of Part 15 of the FCC rules for intentional radiators has been provided. Please refer to the test report for details. 6. The modular transmitter must be labeled with its own FCC ID number The module itself is appropriately labeled with its own FCC ID. When the module is installed inside another device or in a casing, the exterior label will make reference to the enclosed module and its FCC ID. Refer to the label location and drawings contained within this application. The User Manual contain specific references for exterior end product label requirements, including the use of the wording “Contains Transmitter Module FCC ID: 2ACWK7601”. 7. Operating requirements The module has no serviceable parts. The Digital Electronic Device manufacturer has control to the module via the serial data for data transmission modes and data rates as well as predefined output power settings. This can be seen in the “Operation Description and User Manual” provided. apply Single module approval i The radio elements must have the radio frequency circuitry shielded. NO ii The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; YES ,All inputs to the modules are buffered through logic or microprocessor inputs. iii The module must contain power supply regulation on the module; YES, A low drop out regulator is used for modular power supply regulation. iv The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); YES , The module uses a internal antenna which will be used on the end product has been tested. This device complies with the antenna requirement. v The module must demonstrate compliance in a stand-alone configuration; YES, The device was tested with stand -alone configuration, the distance between module and other supporting equipment is larger than 10cm. vi The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); YES, The modular has a permanent fixed label, and below statement was listed in the Users Manual;The host device must be labelled to display the FCC ID of the module 'Contains FCC ID: 2ACWK7601' vii The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Yes, The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . limit CT UNITE COMMUNICATION TECHNOLOGY LTD 6C, JIAJIAHAO COMMERCIAL BUILDING, YIYUAN ROAD, NORTH OF SHENNAN AVENUE, NANSHAN DISTRICT, SHENZHEN, CHINA TEL: +86-755-86630017 FAX: +86-755-86630076 8. RF Exposure requirements The module meets the requirements for a any applicable as per FCC RF exposure requirements and requires a separation distances of 20cm between the radiating structure and human as reflected in the module’s User Manual. Sincerely, ------------------------ Li Yan/Manager viii The module must comply with RF exposure requirements Yes, Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE section of the test Reports Refer to modular installation manual,The modular comply with RF exposure requirement for mobile and fix use configuration, with the separation distance between the user and the device's radiating element is greater than 20 cm.

CT UNITE COMMUNICATION TECHNOLOGY LTD 6C, JIAJIAHAO COMMERCIAL BUILDING, YIYUAN ROAD, NORTH OF SHENNAN AVENUE, NANSHAN DISTRICT, SHENZHEN, CHINA TEL: +86-755-86630017 FAX: +86-755-86630076 DATE 08-20-2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ACWK7601 Product Name: Wifi Module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 08-20-2014 By: Li Yan Signature Printed Title: Manager On behalf of : CT UNITE COMMUNICATION TECHNOLOGY LTD Telephone: +86-755-86630017

CT UNITE COMMUNICATION TECHNOLOGY LTD 6C, JIAJIAHAO COMMERCIAL BUILDING, YIYUAN ROAD, NORTH OF SHENNAN AVENUE, NANSHAN DISTRICT, SHENZHEN, CHINA TEL: +86-755-86630017 FAX: +86-755-86630076 Series Models Description FCC ID: 2ACWK7601 Date: Aug. 20, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: Wifi Module) Models Name: Model: ZK-7601, ZK-5572, ZK-7603, ZK-7632, ZK-7662, ZK-8676, ZK-8266 have same electrical, PCB and BOM, only the model’s name and color are different for marketing requirements. Sincerely, Li Yan/ Manager

External Photos of EUT

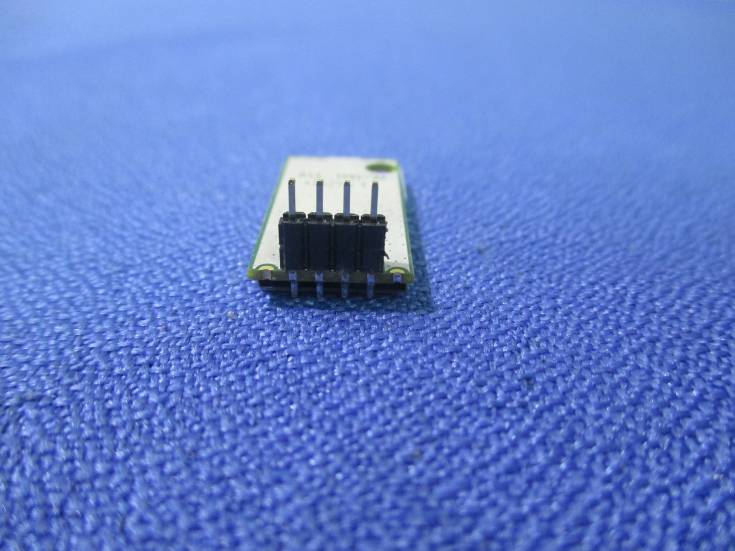

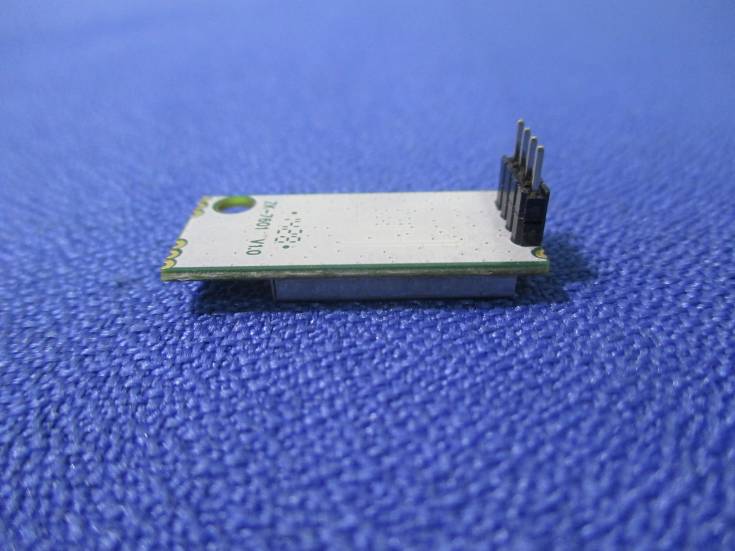

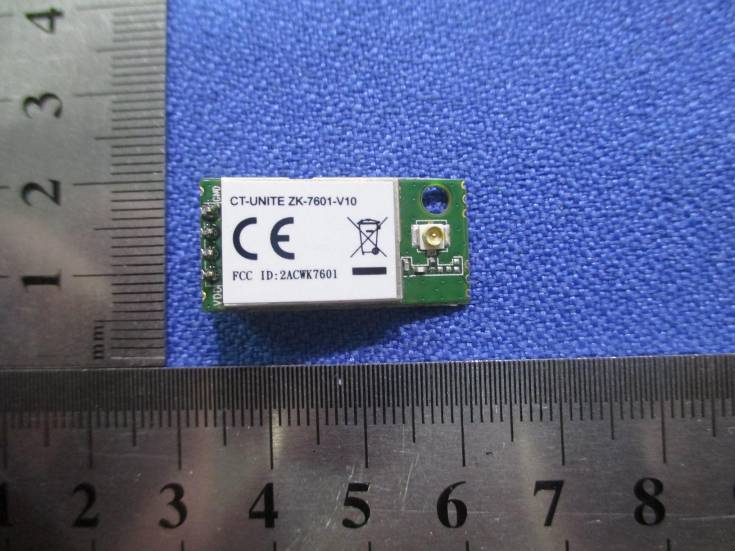

FCC ID Label Information 1. Label location: 2. FCC ID Label: CT UNITE ZK-7601 FCC ID: 2ACWK7601 FCC ID Label
