2ACWX-EN280BLUETOOTH SPEAKER

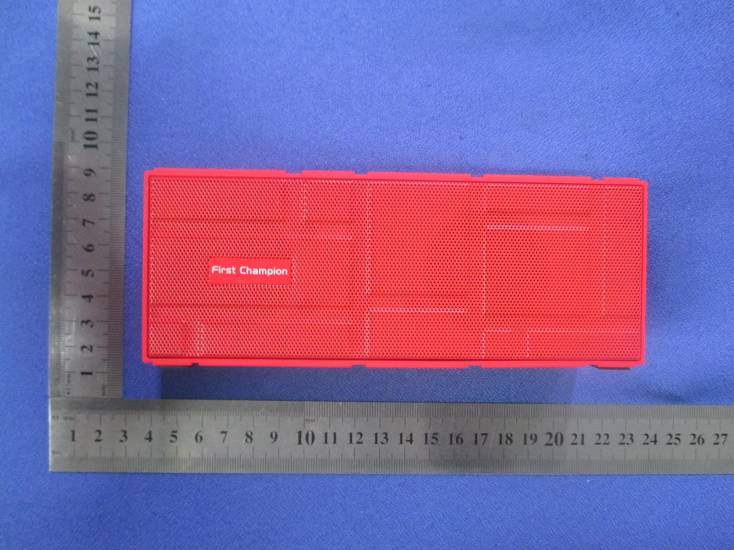

www.firstchampion.hk EN280 Manual ® Package Includes: Bluetooth Stereo Speaker - EN280 x 1 MicroUSB Cable x 1 AUX Cable x 1 User Manual x 1 Important: Features & Functions: Keep the speaker away from flinty environment: damp, dusty, reeky and so on. Keep the speaker away from water and other liquid. If it occurs, please use a soft cloth to dry it. Don’t use water or chemical liquid to clean it, please use a soft cloth to clean the surface of the speakers. Keep this product away from high temperature, baking or drying is not allowed Be sure the voltage for power ≤ 5V Keep this product away from hit of large external force. Keep the speaker away from strong magnetic. Don’t open and repair the speaker by yourself. Bluetooth Bluetooth transmission up to 10 metres range 2.0 Channel design with stereo sound High quality sound with powerful bass Mondrian style classic design Bulit-in microphone for incoming calls Press “Pause/Play” to answer or hang up the phone Built-in battery: 1200mAh Able to play music continuously up to 8 hours • • • • • • • • • • • • • • • • 1 Product Structure ON OFF AUX Line in microUSB Port Power ON / OFF 2 1 3 Volume - / Previous Song Play / Pause / Answer Phone Volume + / Next Song 5 4 6 2 Bluetooth Mode Function Key: Press one time, next song / Long press, increase volume Press one time, preview song / Long press, decrease volume Pause / Play Normal Bluetooth Connecting 1. 2. 3. Turn on the Bluetooth speaker Use your music device to search the Bluetooth Speaker Bluetooth - Speaker Name: “FC-EN280” Pair the speaker with your music device Once the Bluetooth speaker is successfully connected, you can play music and control your music devices through the function keys on the speaker. Bluetooth answer phone calls Decrease the volume Touch for answering the call / Touch for ending the call Increase the volume During playing music with your mobile phone, when a call comes, speaker will stop playing music. When talking ends, the speaker will be back to the former working task 33 AUX Mode Charging No matter power is on or off, you can charge the speaker by 1. Connecting with PC via USB cable provided 2. Using the wall adaptor DC 5V / 500mAh Red light turns on: Charging Red light turns off: Fully charged Charging the speaker Power on the speaker and plug in the AUX line in cable, the speaker will automatically switch to AUX mode. After the AUX cable is unplugged, the speaker will turn to Bluetooth mode. In AUX mode, function key is invalid. Switch to AUX mode LED indicator: ON OFF 14 Specifications CategoriesItems Description Bluetooth Audio Standard Profile Speaker Unit Rated Power Response Frequency S/N RATED IMP Frequency Connection Range THD Bluetooth 4.0 HSP/HFP, A2DP, AVRCP 40mm 3W + 3W 120Hz~18KHz ≥96 dB 4 Ω 2.4-2.48 GHz By hand Up to 10m ≤1% (1Khz/1W) Type Battery Capacity Charging Voltage AUX input DC-IN Input Gift box Size Speaker Size Speaker Weight Power Input Dimensions Li-Ion battery 1200mAh DC 5V 3.5mm AUX microUSB 173 x 78 x 101 mm 156 x 54 x 61 mm 355 grams 15 First Champion Technology Limited First Champion and the First Champion logo are trademarks of First Champion Technology Limited, registered in Hong Kong and other countries. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by First Champion Technology Limited is under license. All other brand names or trade names mentioned above are for identification purposes only and may be trademarks of their respective owner(s). ©2014 First Champion Technology Limited. All rights reserved. Unit 1810, 18/F, Nan Fung Commercial Centre,No.19 Lam Lok Street, Kowloon Bay, Hong Kong. Tel: (852) 3118 4962 Email: [email protected] www.firstchampion.hk Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by First Champion Technology Limited may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

First Champion Technology Limited Unit 1810, 18/F., Nan Fung Commercial Centre, 19 Lam Lok Street, Kowloon Bay, Hong Kong. TEL: (852)3118 4962 DATE 08-20-2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ACWX-EN280 Product Name: BLUETOOTH SPEAKER Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 08-20-2014 By: Sze Wong Kim Signature Printed Title: Manager On behalf of : First Champion Technology Limited Telephone: (852)3118-4962

First Champion Technology Limited Unit 1810, 18/F., Nan Fung Commercial Centre, 19 Lam Lok Street, Kowloon Bay, Hong Kong. TEL: (852)3118 4962 Series Models Description FCC ID: 2ACWX-EN280 Date: Aug. 20, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: BLUETOOTH SPEAKER) Models Name: Model: EN280, EN180 have same electrical, PCB and BOM, only the model’s name and color are different for marketing requirements. Sincerely, Sze Wong Kim/ Manager

First Champion Technology Limited Unit 1810, 18/F., Nan Fung Commercial Centre, 19 Lam Lok Street, Kowloon Bay, Hong Kong. TEL: (852)3118 4962 USB Port Statement FCC ID: 2ACWX-EN280 Date: Aug. 20, 2014 To whom it may concern: We, the undersigned, state that the device's (Model: EN280, EN180) USB port only used for charge, no any data transfer to PC. Sincerely, Sze Wong Kim/ Manager

FCC ID Label Information 1. Label location: 2. FCC ID Label: First Champion www. firstchampion.hk BLUETOOTH SPEAKER Model: EN280 Rated Output: 3W×2 Rated RMP: 4Ω Voltage Input: DC 5V FCC ID: 2ACWX-EN280 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 73.12dBuV/m @3m Ant gain 0dBi ;so Ant numeric gain=1 So pt={ [10 (73.12 /20) /10 6 x3] 2 /30x1 }x1000 mW = 0.006mW So ( 0.006mW/5mm)x √2.480GHz = 0.002 <3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.249 Report Reference No......................: CTL1407281763-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Aug. 18, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: First Champion Technology Limited Address.............................................: Unit 1810, 18/F., Nan Fung Commercial Centre, 19 Lam Lok Street, Kowloon Bay, Hong Kong Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : BLUETOOTH SPEAKER Trade Mark .......................................: First Champion Models/Type reference.....................: EN280, EN180 Modulation .......................................: FHSS Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2ACWX-EN280 Result................................................: Positive V1.0 Page 2 of 32 Report No.: CTL1407281763-WF T E S T R E P O R T Test Report No. :CTL1407281763-WF Aug. 18, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : BLUETOOTH SPEAKER Model /Type : EN280 Listed Modes : EN180 Difference Description : Only the color and model's name is different. Applicant : First Champion Technology Limited Address : Unit 1810, 18/F., Nan Fung Commercial Centre, 19 Lam Lok Street, Kowloon Bay, Hong Kong Manufacturer First Champion Technology Limited Address Unit 1810, 18/F., Nan Fung Commercial Centre, 19 Lam Lok Street, Kowloon Bay, Hong Kong Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 32 Report No.: CTL1407281763-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Radiated Emission Test 13 4.3.Band Edge Measurement 18 4.4.Occupied Bandwidth Measurement 22 5. ANTENNA REQUIREMENT ....................................................... 24 6.TEST SETUP PHOTOS OF THE EUT .......................................... 25 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 28 V1.0 Page 4 of 32 Report No.: CTL1407281763-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 32 Report No.: CTL1407281763-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Aug. 02, 2014 Testing commenced on : Aug. 02, 2014 Testing concluded on : Aug. 18, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a BLUETOOTH SPEAKER work at 2402~2480 MHz. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2456 01 2404 28 2458 02 2406 29 2460 03 2408 30 2462 04 2410 31 2464 05 2412 32 2466 06 2414 33 2468 07 2416 34 2470 08 2418 35 2472 09 2420 36 2474 10 2422 37 2476 11 2424 38 2478 12 2426 39 2480 13 2428 14 2430 15 2432 16 2434 17 2436 18 2438 19 2440 20 2442 21 2444 22 2446 23 2448 24 2450 25 2452 26 2454 Modulation: GFSK For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 32 Report No.: CTL1407281763-WF 2.4. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / TM4 Charging and keeping TX USB power by PC The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down position (X, Z axis). The follow…
