2ACYAV3NXP1Locker Lock V3+ and Locker Lock V3+HID

VECOS V3+ Lock Datasheet Rev 1.7 Technical information: Article number : AC17013/0 Description : VECOS Locker Lock Model no. : V3+ Input voltage : 27.0Vdc Idle power use : 0.4W Max power use : 7.6W (incl. USB charging) USB voltage : 5Vdc USB Max load : 1x1000mA or 2x500mA RFID Frequency : 13.56Mhz (NXP) FCC ID : 2ACYAV3NXP1, IC: 25896-V3NXP1 USB Protection : Max. limit and shortcut Operating temp. : -5 o C ... +45 o C Storage temp. : -30 o C ... +80 o C Humidity : 0% ... 85% non-condensing Housing : UL94-V0 Fire enclosure Environment : Indoor, Clean and dry Max. Height : 4000m [3280 ft] Max. torque : 2.0Nm (max screw force) Dimensions : 134 x 85 x 29mm (h x w x d) Safety & EMC : CE, cULus, FCC Part 15B Class B, : ICES-003 Class B, RoHS, REACH Mounting Lock : 4x DIN 965 M4 x 40 or : 4x DIN 7982 3.9 x 45 Mounting Slider : 2x DIN 7985 M5 x 16 or : 2x DIN 7891 3.9 x 16 Supported cards : NFC, ISO14443 A&B, Mifare, : ISO15693 and ISO18000-3M3 Included parts: - VECOS V3 Door Slider Optional parts: - Design LED indicator 16mm [0.16 inch] - Lock cable 0.50m [19.7 inch] Black - Lock cable 0.60m [23.6 inch] Red - Lock cable 1.00m [3.3 ft] Yellow - Lock cable 1.30m [4.3 ft] Green - Lock cable 1.80m [5.9 ft] Brown or Blue - Lock cable 2.30m [7.5 ft] Black - Lock cable 2.65m [8.7 ft] Red - Lock cable 3.00m [9.8 ft] Yellow - Lock cable 3.35m [11 ft] Green - Lock cable 3.70m [12.1 ft] Brown - Lock cable 5.00m [16.4 ft] Red - Lock cable 8.00m [26.2 ft] Yellow For USA & Canada: Only cables up to 3.05 m [10 feet] can be ordered. External interconnecting cables and wiring longer than 3.05 m [10 ft] can be sourced locally and they need to be regulated by the Canadian Electrical Code, Part I, CSA C22.1, and the National Electrical Code, NFPA 70. Warning: • Installation and servicing should be performed only by VECOS Europe B.V. qualified and experienced technicians to conform to all local codes and to maintain your warranty. Warranty is void when the Lock is opened. • The Lock may only be connected to the VECOS HUB V3- 24 controller. The cable needs to be a cULus Recognised cable with a min. gauge of 26 AWG, a voltage rating of 30 V and a temperature rating of -20 ⁰C ... + 60 ⁰C. The 6P6C RJ12 plugs on the cables needs to have gold flash on the contacts. • The HUB V3-24 may only be powered by one of the following cULus Recognized Power Supplies by Mean Well Enterprises Co., Ltd.: - HLG-185H-24TE10 - HLG-185H-24TE11 - HLG-480H-30TE10 - HLG-480H-30TE11 - HEP-185-24A - HEP-240-24A - HEP-320-24A Risk of electric shocks: Unprofessional installation and repairs can introduce great danger to the user of the equipment. • When the cable is damaged: Disconnect the Cable and Lock from the HUB V3-24 controller. • Repairs on the Lock may exclusively be performed by the manufacturer or a trained and VECOS Europe B.V. qualified person. • Only original parts as specified by the manufacturer may be used. The manufacturer guaranties only parts which fulfil the safety requirements. • A new cable may only be created and/or installed by a qualified technician. Use cases: VECOS V3+ Lock Datasheet Rev 1.7 Warning: This equipment is not intended for domestic use. Operation of this equipment in a residential environment could cause radio interference! Accessibility: When the Lock is assembled in the cabinet, the cable must not be accessible without specific tools and/or keys. Connect the wiring: The lock has 2 RJ12 connectors, both are identical: 1 - GND 2 - GND 3 - 24Vdc 4 - Block 5 - RS485-B 6 - RS485-A FCC and ISED Radiation Exposure Statement: This equipment complies with FCC and Canadian radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Cet équipement est conforme a RSS-102 limites énoncées pour un environnement non contrôlé. FCC and ISED Compliance statement: This device complies with part 15 of the FCC Rules and to RSS-210 of Innovation, Science and Economic Development Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Cet appareil se conforme aux normes RSS 210 exemptés de license d’Innovation, Sciences et Développement économique Canada. L’opération est soumis aux deux conditions suivantes: (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n’importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil. Les changements ou modifications n’ayant pas été expressément approuvés par la partie responsable de la conformité peuvent faire perdre à l’utilisateur l’autorisation de faire fonctionner le matériel. ISED EMC Declaration: This Class B digital apparatus complies with Canadian ICES- 003. Cet appareil numérique de Classe B est conforme à la norme Canadienne ICES-003. FCC Information to the user: This equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequent energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does not cause harmful interference to radio or television reception, which can be determine by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ▪ Reorient or relocate the r…

Text truncated - open the document above for the full version.

HW Installation manual Rev 3.15 VECOS Europe BV, Esp 237, 5633 AD EINDHOVEN, The Netherlands Page 1 of 17 Hardware Installation Manual Document that describes how to connect the different components of the VECOS Locker Management System. HW Installation manual Rev 3.15 VECOS Europe BV, Esp 237, 5633 AD EINDHOVEN, The Netherlands Page 2 of 17 0. Table of Contents 0. Table of Contents ------------------------------------------------------------------------------------------------------------------------------ 2 1. General information ------------------------------------------------------------------------------------------------------------------------ 3 1.1. Introduction. --------------------------------------------------------------------------------------------------------------------------- 3 1.2. Purpose of the manual -------------------------------------------------------------------------------------------------------------- 3 1.3. How to use the manual ------------------------------------------------------------------------------------------------------------- 3 1.4. The system consist of: -------------------------------------------------------------------------------------------------------------- 3 2. Power supply cabling ---------------------------------------------------------------------------------------------------------------------- 4 2.1. Extending the standard power cable length ----------------------------------------------------------------------------------- 6 2.2. Connect the Power Supply to the HUB ----------------------------------------------------------------------------------------- 7 3. Lock interconnection cabling ------------------------------------------------------------------------------------------------------------- 8 3.1. V3 Lock --------------------------------------------------------------------------------------------------------------------------------- 8 3.2. RJ-12 cables -------------------------------------------------------------------------------------------------------------------------- 8 3.3. V3 Controller connections ---------------------------------------------------------------------------------------------------------- 9 3.4. V3 Controller settings --------------------------------------------------------------------------------------------------------------- 9 4. Terminal cabling ---------------------------------------------------------------------------------------------------------------------------10 4.1. LBC 3.0 Terminal --------------------------------------------------------------------------------------------------------------------10 4.2. LBC 3.0 Key switch -----------------------------------------------------------------------------------------------------------------10 5. Maximum number of locks on 1 Power Supply -------------------------------------------------------------------------------------11 6. Example Technical locker ---------------------------------------------------------------------------------------------------------------12 7. V3/V3+ Default LED states --------------------------------------------------------------------------------------------------------------13 8. UL approved system components -----------------------------------------------------------------------------------------------------14 9. Compliance Statement about RF, Safety and EMC -------------------------------------------------------------------------------15 10. Wiring example -------------------------------------------------------------------------------------------------------------------------17 Revision History: v3.0 04-03-2020 First release for V3, the new Power Supplies and UL v3.1 06-04-2020 Limit to 3.05m for UL and add HEP power supplies v3.2 29-04-2020 Limit number of HUBs from 1 power source cable and lock temp. protection v3.3 30-04-2020 Fixed type number of the HLG power supplies v3.4 03-05-2020 Final version, reviewed and added v3.5 11-05-2020 Added max 24 locks restriction from power cable v3.6 14-05-2020 Added allowed products for UL Listed E513979 system v3.7 18-05-2020 Changed white power plug to 7A v3.8 08-09-2020 Added new cable article numbers (CULxxx) for USA & CAN v3.9 05-01-2021 Added V3/V3+ Default RGB status led description v3.10 01-02-2022 Added Singapore certification for V3+ v3.11 29-04-2022 Safety from Class A to Class B, article number updates, new logo, simplified number of locks calculations, added Power Connection Box v3.12 29-07-2022 Removed the HEP-480-24A PSU as the Power Connection Box is max 18A v3.13 30-08-2022 Power Supply text adjustments for UL approval (chapter 5 and 6) v3.14 12-09-2022 Added Taiwan NCC statement v3.15 21-11-2022 Updated CAN ICES and FCC ID’s to Class-B approvals and Malaysia approval HW Installation manual Rev 3.15 VECOS Europe BV, Esp 237, 5633 AD EINDHOVEN, The Netherlands Page 3 of 17 1. General information 1.1. Introduction. VECOS Europe B.V is a leading European company in security & efficiency solutions with its own hardware, firmware and software development. The company started in 1988 and is located in Eindhoven, The Netherlands. Releezme is the trademark name of VECOS Europe B.V. Locker Management System, consisting of a Hardware and Software part. 1.2. Purpose of the manual This is document is intended as a guide to ensure correct installation of the VECOS Locker Management System hardware. 1.3. How to use the manual This manual is designed to get you setting up the hardware the correct way. 1.4. The system consist of: 1. Colour Touchscreen Terminal Model no.: LBC 3.0 2. Lock Connection Box Model no.: HUB V3-24 3. VECOS Locker Lock Model no.: V3 4. VECOS Locker Lock Model no.: V3+ 5. VECOS Locker Lock Model no.: V3+HID 6. VECOS Locker Lock Model no.: V3+Legic 7. Power Connection Box 8. Power Supply see chapter 2 HW Installation manual Rev 3.15 VECOS Europe BV, Esp 237, 5633 AD EINDHOVEN, The Netherlands Page 4 of 17 2. Power supply cabling As Power Supplies used are the Mean…

Text truncated - open the document above for the full version.

Antenna Information Eindhoven, 01 December 2022 Description : Locker Lock V3+ and Locker Lock V3+HID FCC ID : 2ACYAV3NXP IC : 25896-V3NXP Applicant : VECOS Europe B.V. Brand : VECOS Models : V3+ and V3+HID Antenna : PCB integrated inductive loop  13.56 MHz antenna Type : Inductive coil antenna Dimensions : 17 by 58 mm Windings : 4 Antenna gain : 0 dBi VECOS Europe B.V. Carlo van den Heuvel, Product Manager

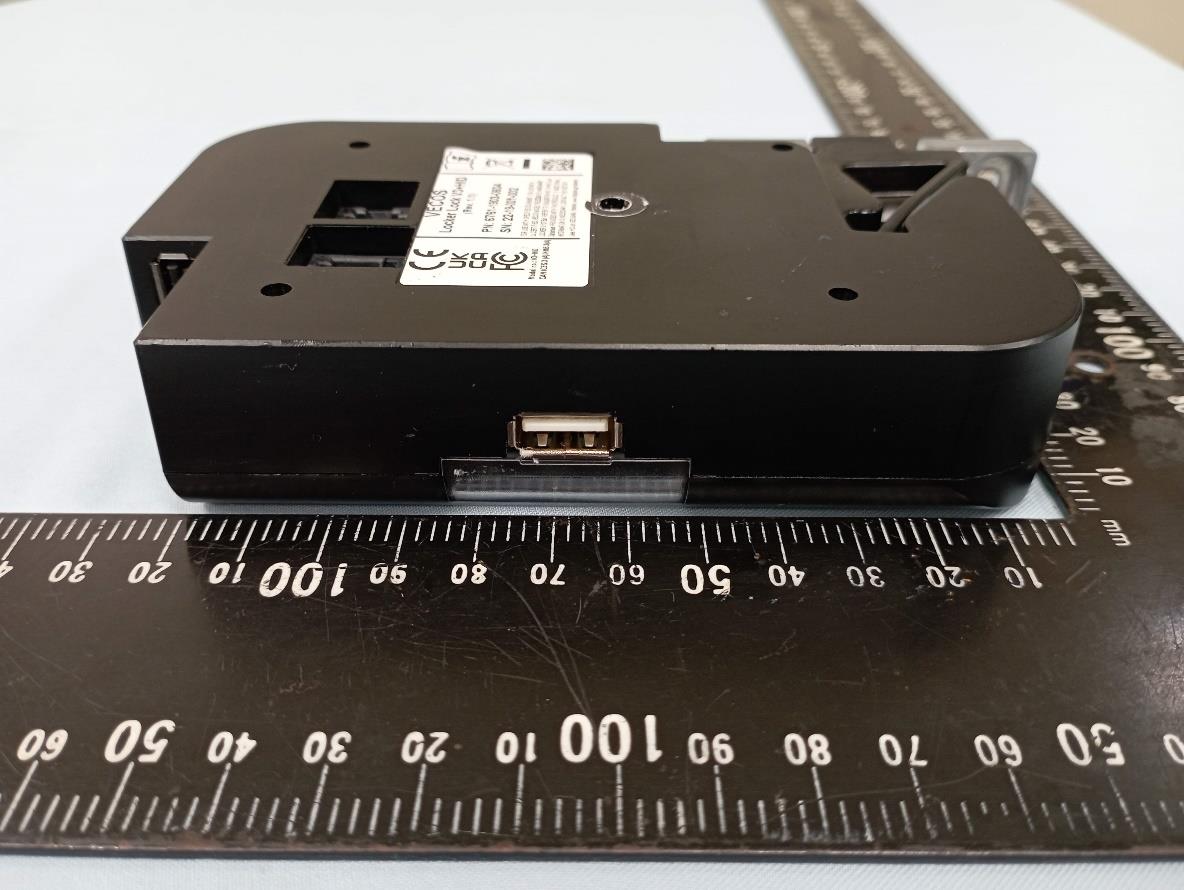

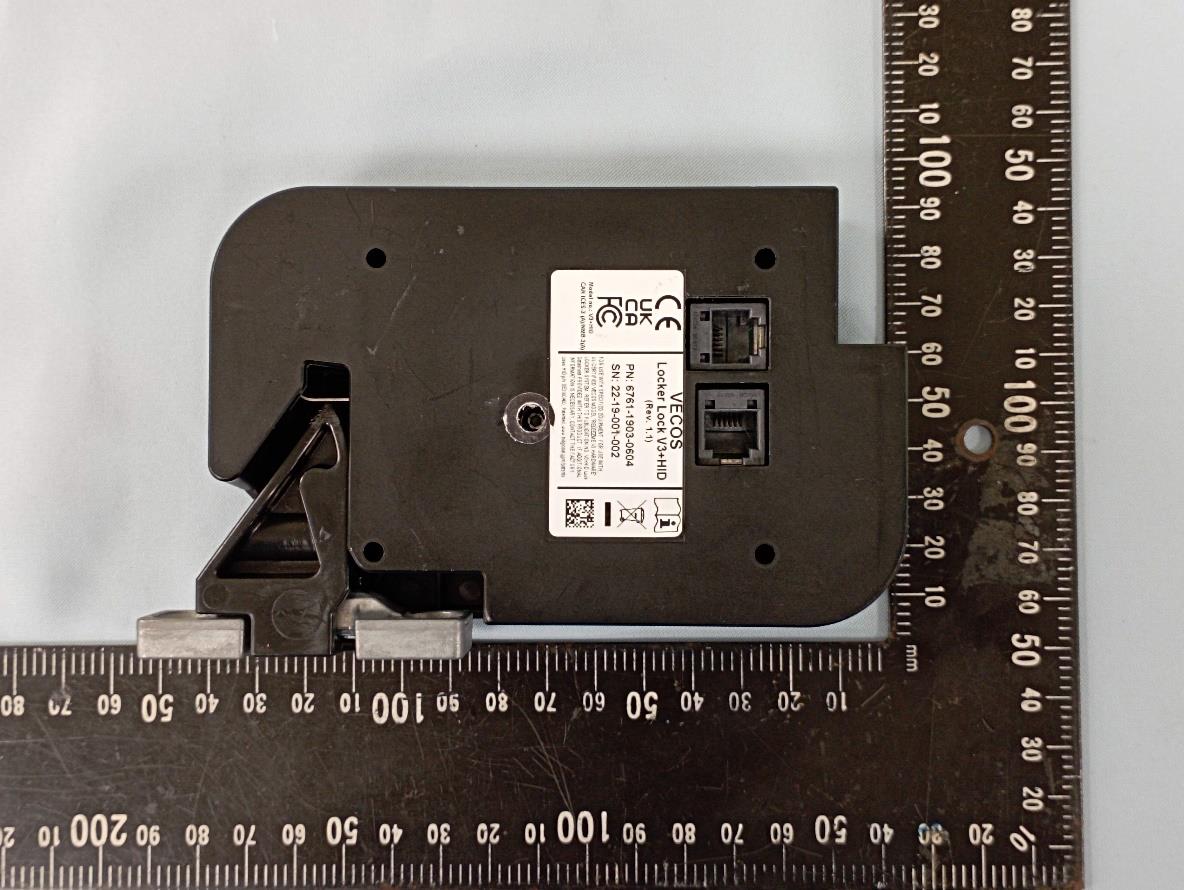

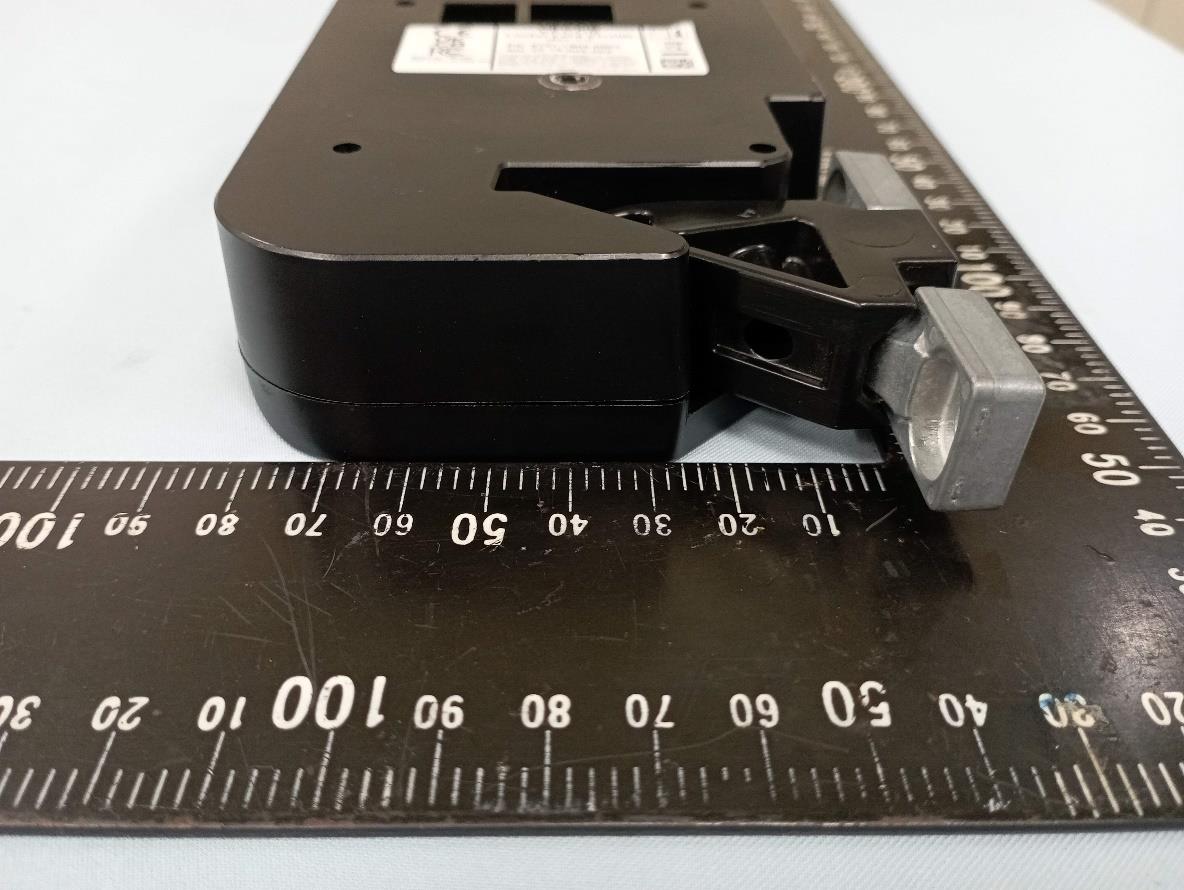

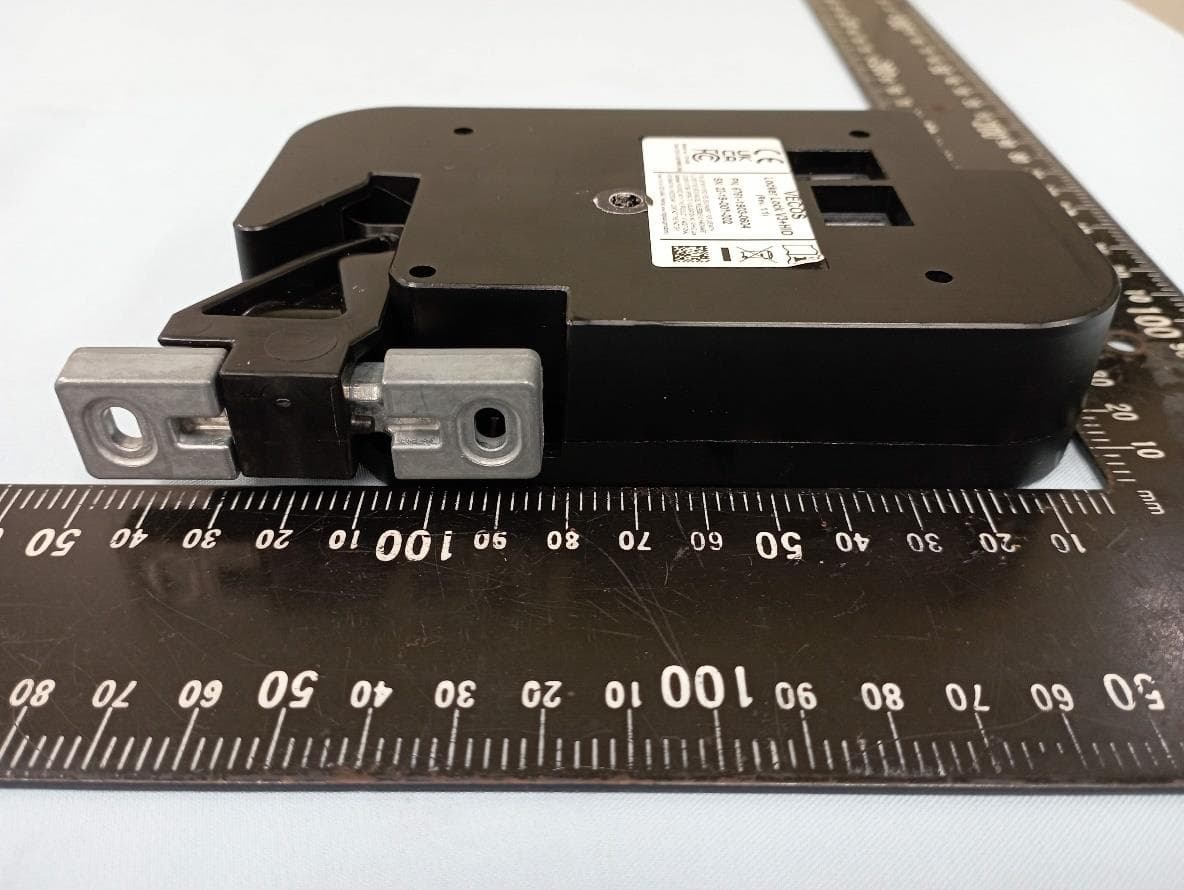

Appendix EP Photographs of EUT Page 1 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Model no. V3+ Appendix EP Photographs of EUT Page 2 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Appendix EP Photographs of EUT Page 3 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Appendix EP Photographs of EUT Page 9 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Model no. V3+HID Appendix EP Photographs of EUT Page 10 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Appendix EP Photographs of EUT Page 11 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID

Page 1 of 5 Locker Lock V3+ and Locker Lock V3+HID Models: V3+ and V3+HID Label Location and Label photographs Description of EUT: Manufacturer: Brand mark: Models: FCC ID: IC: Type of Service: Locker Lock V3+ and Locker Lock V3+HID Vecos Europe B.V. VECOS V3+ and V3+HID 2ACYAV3NXP1 25896-V3NXP1 New Application Page 2 of 5 Description of item Description of EUT : Locker Lock V3+ and Locker Lock V3+HID Models : V3+ and V3+HID Brand : VECOS FCC ID : 2ACYAV3NXP1 IC : 25896-V3NXP1 Type of service : New Application HVIN : V3+ and V3+HID Applicant information Applicant's representative : Carlo van den Heuvel Company : Vecos Europe B.V. Address : Esp 237 Postal code : 5633 AD City : Eindhoven Country : The Netherlands Telephone number : +31 (0)40 368 6030 01 December 2022 Description of EUT: Manufacturer: Brand mark: Models: FCC ID: IC: Type of Service: Locker Lock V3+ and Locker Lock V3+HID Vecos Europe B.V. VECOS V3+ and V3+HID 2ACYAV3NXP1 25896-V3NXP1 New Application Page 3 of 5 Table of contents 1 Location of the label .................................................................................................................................................................... 4 1.1 Locker Lock V3+ ................................................................................................................................................................ 4 1.2 Locker Lock V3+HID ......................................................................................................................................................... 4 2 Identification label ....................................................................................................................................................................... 5 2.1 Locker Lock V3+ ................................................................................................................................................................ 5 2.2 Locker Lock V3+HID ......................................................................................................................................................... 5 Description of EUT: Manufacturer: Brand mark: Models: FCC ID: IC: Type of Service: Locker Lock V3+ and Locker Lock V3+HID Vecos Europe B.V. VECOS V3+ and V3+HID 2ACYAV3NXP1 25896-V3NXP1 New Application Page 4 of 5 1 Location of the label 1.1 Locker Lock V3+ 1.2 Locker Lock V3+HID Description of EUT: Manufacturer: Brand mark: Models: FCC ID: IC: Type of Service: Locker Lock V3+ and Locker Lock V3+HID Vecos Europe B.V. VECOS V3+ and V3+HID 2ACYAV3NXP1 25896-V3NXP1 New Application Page 5 of 5 2 Identification label 2.1 Locker Lock V3+ 2.2 Locker Lock V3+HID

Appendix EP Photographs of EUT Page 4 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Model no. V3+ Appendix EP Photographs of EUT Page 5 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Appendix EP Photographs of EUT Page 6 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Appendix EP Photographs of EUT Page 7 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Antenna Appendix EP Photographs of EUT Page 8 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Appendix EP Photographs of EUT Page 12 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Model no. V3+HID Appendix EP Photographs of EUT Page 13 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Antenna Appendix EP Photographs of EUT Page 14 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID Appendix EP Photographs of EUT Page 15 of 24 CN225Q81 (P15C-RFID) 001 CN225Q81 (FCC-RFEXP) 001 CN22ZZAQ (RSS210-RFID) 001 CN22ZZAQ (ISED-RFEXP) 001 Product: Locker Lock V3+ and Locker Lock V3+HID Type Identification: V3+ and V3+HID

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN225Q81 (FCC-RFEXP) 001 Auftrags-Nr.: Order no.: 238545426 Seite 1 von 10 Page 1 of 10 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-07-11 Auftraggeber: Client: Vecos Europe B.V. Esp 237, 5633 AD Eindhoven, The Netherlands Prü fgegenstand: Test item: Locker Lock V3+ and Locker Lock V3+HID Bezeichnung / Typ-Nr.: Identification / Type no.: V3+ and V3+HID Auftrags-Inhalt: Order content: FCC Certification Prü fgrundlage: Test specification: IEEE Std C95.1 47 CFR §2.1093 47 CFR §1.1310 KDB 447498 D04 Wareneingangsdatum: Date of sample receipt: 2022-07-13 Prü fmuster-Nr.: Test sample no: A003299983-011 A003299983-013 Prü fzeitraum: Testing period: 2022-08-20 - 2022-11-11 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass zusammengestellt von: compiled by: Jack Wang genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-12-06 Ausstellungsdatum: Issue date: 2022-12-06 Stellung / Position: Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN225Q81 (FCC-RFEXP) 001 Seite 2 von 10 Page 2 of 10 Contents HISTORY OF THIS TEST REPORT .............................................................................. 3 1 GENERAL REMARKS ............................................................................................. 4 1.1 COMPLEMENTARY MATERIALS ............................................................................... 4 1.2 DECISION RULE OF CONFORMITY ........................................................................... 4 2 TEST SITES .......................................................................................................... 5 2.1 TEST FACILITIES ................................................................................................... 5 2.2 TEST FACILITY ...................................................................................................... 5 3 GENERAL PRODUCT INFORMATION ......................................................................... 6 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 6 3.2 RATINGS AND SYSTEM DETAILS ............................................................................. 6 4 RF EXPOSURE EVALUATION .................................................................................. 7 4.1 FCC RADIO FREQUENCY RADIATION EXPOSURE LIMITS .......................................... 7 4.1.1 Blanket 1 mW Blanket Exemption ............................................................................................. 7 4.1.2 MPE-based Exemption ............................................................................................................. 8 4.1.3 SAR-based Exemption .............................................................................................................. 9 5 EVALUATION RESULTS ........................................................................................ 10 5.1 CONCLUSION ...................................................................................................... 10 APPENDIX EP - PHOTOGRAPHS OF EUT Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN225Q81 (FCC-RFEXP) 001 Seite 3 von 10 Page 3 of 10 HISTORY OF THIS TEST REPORT Report No. Description Date Issued CN225Q81 (FCC-RFEXP) 001 Original Release 2022-12-06 Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN225Q81 (FCC-RFEXP) 001 Seite 4 von 10 Page 4 of 10 General Remarks Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix EP - Photographs of EUT Decision Rule of Conformity The decision rule of conformity of this test report is following the requirements of the requested standard in the quotation, and agreed among testing laboratory and manufacturer (applicant) to exclude the consideration of Measurement Uncertainty, unless it is required by the specific standard. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN225Q81 (FCC-RFEXP) 001 Seite 5 von 10 Page 5 of 10 Test Sites Test Facilities Taipei Testing Laboratories 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) Test Facility Taipei Testing Laboratories No.458-18, Sec. 2, Fenliao Rd., Linkou Dist., New Taipei City 244 Taiwan (R.O.C.) Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN225Q81 (FCC-RFEXP) 001 Seite 6 von 10 Page 6 of 10 General Product Information Product Function and Intended Use The EUT is a Locker …

Text truncated - open the document above for the full version.

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN225Q81 (P15C-RFID) 001 Auftrags-Nr.: Order no.: 238545426 Seite 1 von 25 Page 1 of 25 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-07-11 Auftraggeber: Client: Vecos Europe B.V. Esp 237, 5633 AD Eindhoven, The Netherlands Prü fgegenstand: Test item: Locker Lock V3+ and Locker Lock V3+HID Bezeichnung / Typ-Nr.: Identification / Type no.: V3+ and V3+HID Auftrags-Inhalt: Order content: FCC Part 15C Test report (RFID) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.225 Wareneingangsdatum: Date of sample receipt: 2022-07-13 Prü fmuster-Nr.: Test sample no: A003299983-011 A003299983-013 Prü fzeitraum: Testing period: 2022-08-20 - 2022-11-08 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass zusammengestellt von: compiled by: genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-12-06 Ausstellungsdatum: Issue date: 2022-12-06 Stellung / Position: Jack Wang Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: The EUT supports Tx function only. Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN225Q81 (P15C-RFID) 001 Seite 2 von 25 Page 2 of 25 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.203 Antenna Requirement Pass 5.1.2 15.225 (a)(b)(c) Field Strength of Fundamental Emissions Pass 5.1.3 15.225 (d) Radiated Spurious Emissions Pass 5.1.4 15.225 (e) Frequency Stability Pass 5.1.5 15.215 (c) 20 dB Bandwidth Pass 5.1.5 2.1049 99% Occupied Bandwidth Pass 5.2.1 15.207 Mains Conducted Emission Pass Note: Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN225Q81 (P15C-RFID) 001 Seite 3 von 25 Page 3 of 25 Contents HISTORY OF THIS TEST REPORT .............................................................................. 4 1. GENERAL REMARKS ............................................................................................. 5 1.1 COMPLEMENTARY MATERIALS ............................................................................... 5 1.2 DECISION RULE OF CONFORMITY ........................................................................... 5 2. TEST SITES .......................................................................................................... 6 2.1 TEST LABORATORY .............................................................................................. 6 2.2 TEST FACILITY ...................................................................................................... 6 2.3 TRACEABILITY ...................................................................................................... 7 2.4 CALIBRATION ....................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL PRODUCT INFORMATION ......................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 8 3.2 SYSTEM DETAILS AND RATINGS ............................................................................. 8 3.3 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 9 3.4 SUBMITTED DOCUMENTS ....................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ................................................................. 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION .......................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE............................................................... 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................. 11 4.4 TEST SETUP DIAGRAM .....................................................................…

Text truncated - open the document above for the full version.
