2ACYMFLFSremote control heated insole

Manual of Remote Control Heated Insole For optimal functioning ,please read the manual carefully before using the product. The heat insoles made by the newest Ortholite materials, with nice appearance, insulation, ventilation, comfort features. To ensure consistency, remote control stability, and appearance,the internal control system use high frequency RF wireless control.the heating material of carbon-fiber composites with the function of high efficiency and intensity .when heating , the carbon fabric material can promoting blood circulation. High-capacity polymer batteries can ensure the long time of heat preservation effect .for the heating element ,using good strength and high flexibility carbon fiber ,can avoid walking repeated bending problem of damage to the heating element . I. Need to match the insole with the remote control before use it. Choose a pair of insole and a remote control separated, press the ON button last 10 seconds, the red / orange / green light will flash in order. Then press an any button , matched over. II: Instructions 1. Before use this product, please fully charged the battery. plug in the adapter, the LED turn red light that indicates the battery is charging, when the battery fully charged, the red-light turn to green-light. 2. Press the H button on the remote control, the remote control LED flash once, then the insole LED turn red-light and last 3 seconds, the insole turn into the high-end model. 3. Press the M button on the remote control, remote control LED flash once, then the insole LED turn orange-light and last 3 seconds, the insole turn into the mid-end model. 4. Press the L button on the remote control, remote control LED flash once, then the insole LED turn green-light and last 3 seconds, the insole turn into the low-end model. 5. Press the ON button , remote control LED flash once, the LED off , insole stop working. III. If lost the remote control, please press the switch next to the charging port. 1. Press the switch last three seconds to start the insole, insoles LED on red light and last three seconds, insole work in the high-end model. 2. When the insole worked in high-end model, press the switch, insole LED on orange light and last three seconds , insole turn into the mid-end model. 3. When the insole worked in mid-end model, press the switch, insole LED on green light and last three seconds, insole turn into low-end model. 4. Press the switch again then the insole will work in high-end model, repeated cycles. 5. Press the switch last more than three seconds , LED light flash twice ,insole stop working. Heating parameters: High-end: 55°C±2°C, last about 3-4 hours. Mid-end: 50 °C±2°C, last about 4-5 hours. Low-end: 45 °C±2°C, last about 6-7 hours. NOTE : Insoles are suggested to be used between -20 °C ~ 60 °C range. Extreme temperature will influence the performance of lithium battery. Battery capacity lower rapidly in extreme cold weather! Insole Electrical parameters: Insole battery voltage: 3.7V Battery capacity insole: 1900ma Operating voltage range: 3.0V-4.2V Charging cut-off voltage: 4.2V Discharge cut-off voltage: 3.0V Battery life: more than 500 cycles Chargers parameters: Charging method: Constant current constant voltage (CC / CV) Charging temperature: 0 ~ 45 °C°C Input: AC/100-230V 40-60Hz Output: DC/4.2V 500ma * 2 Remote Control Electrical parameters: Insole battery voltage: 12V Battery capacity insole: 500ma Channel: 1 Channel RF frequency: 2.433GHz Modulation:ASK Battery life: 18 months FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Dongguan Fenglin Industry Co., Ltd. No.1,Tanxi New Village West Road,Shipai Village,Shipai Town,Dongguan,Guangdong, China Confidentiality Request Letter Page 1 of 1 Rev 2.0 08 14, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID: 2ACYMFLFS We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Shen Erjie/ Manager Contact information / address: No.1,Tanxi New Village West Road,Shipai Village,Shipai Town,Dongguan,Guangdong, China Telephone:(86) 0769-86338060 Fax:(86) 0769-86338060 E-Mail: [email protected]

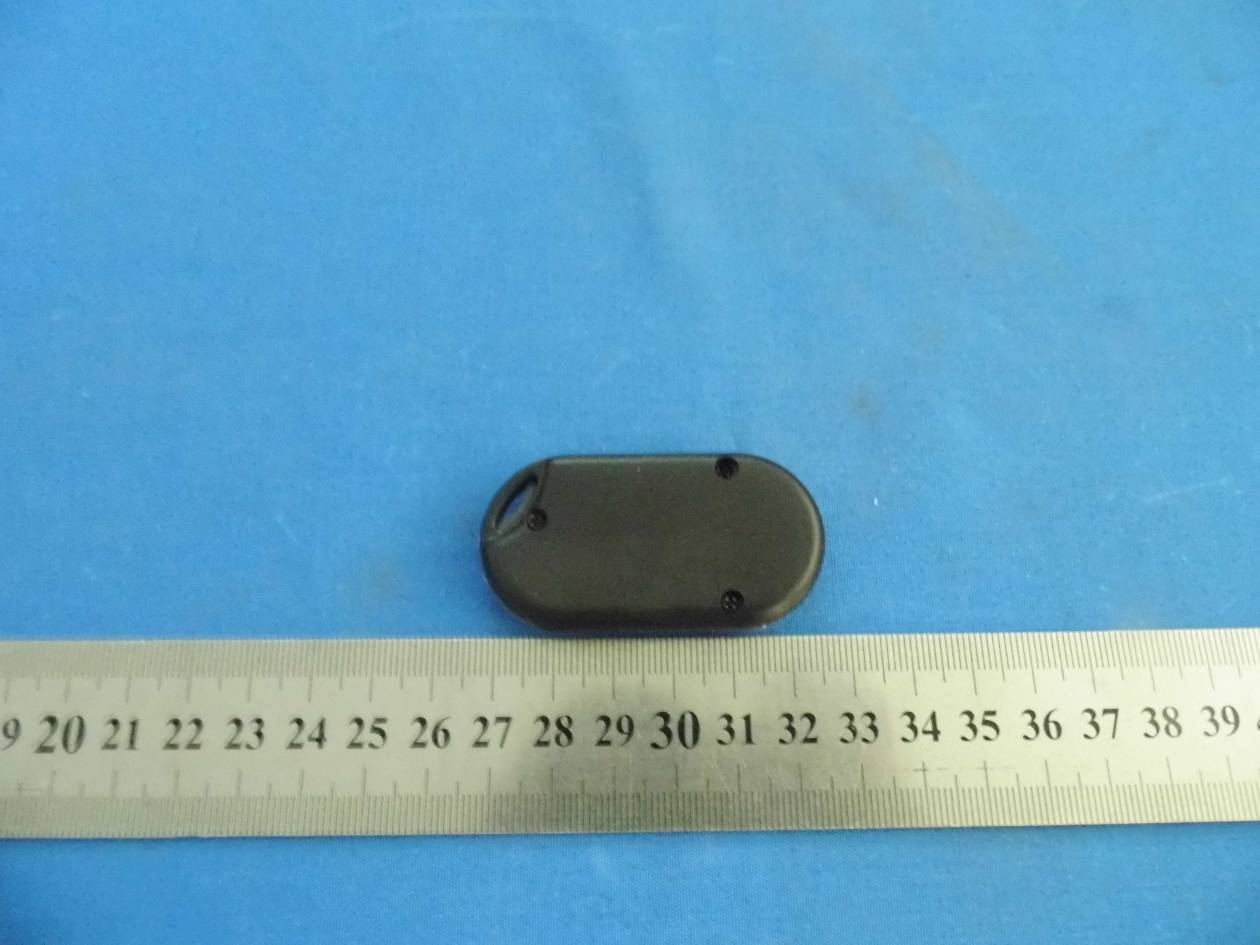

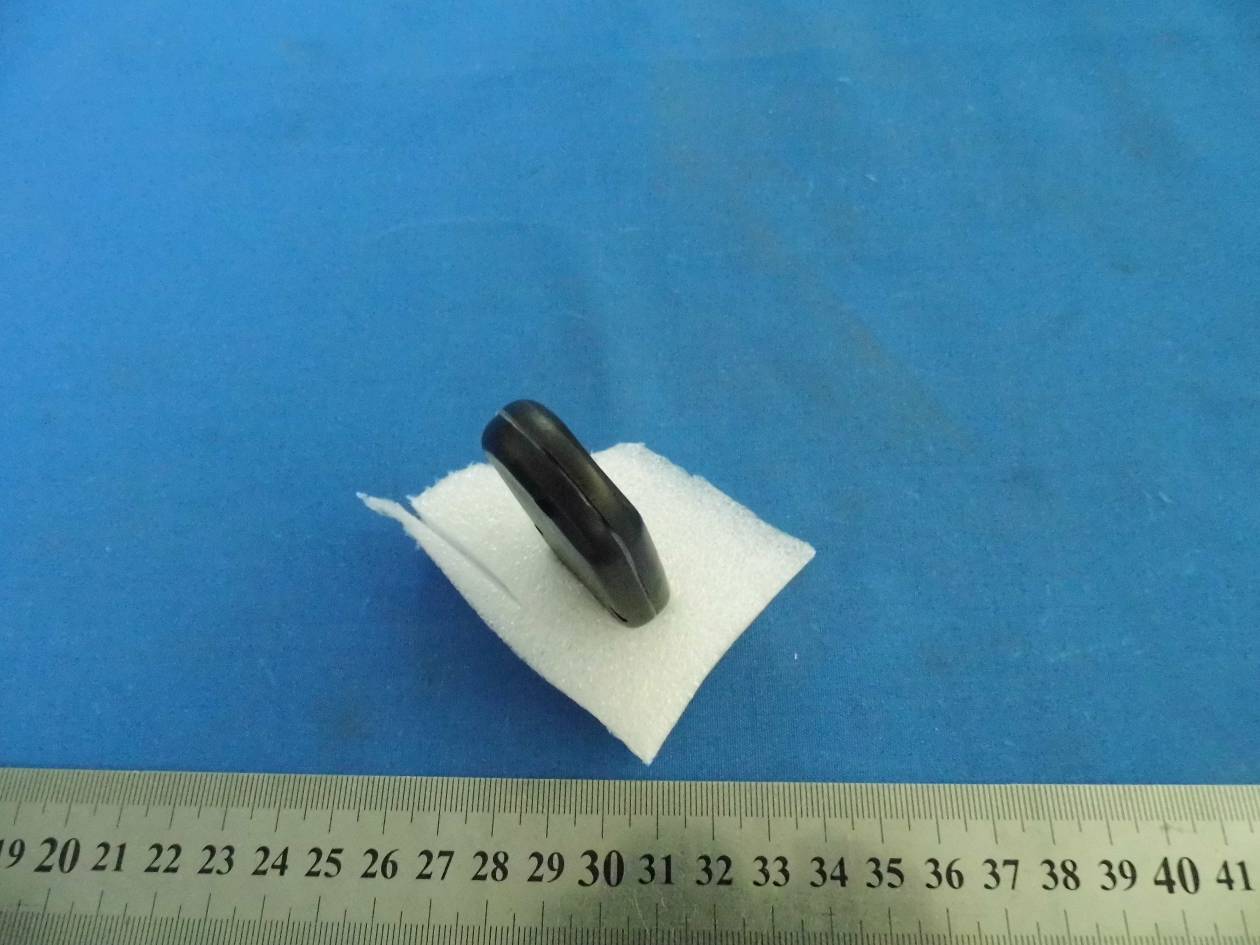

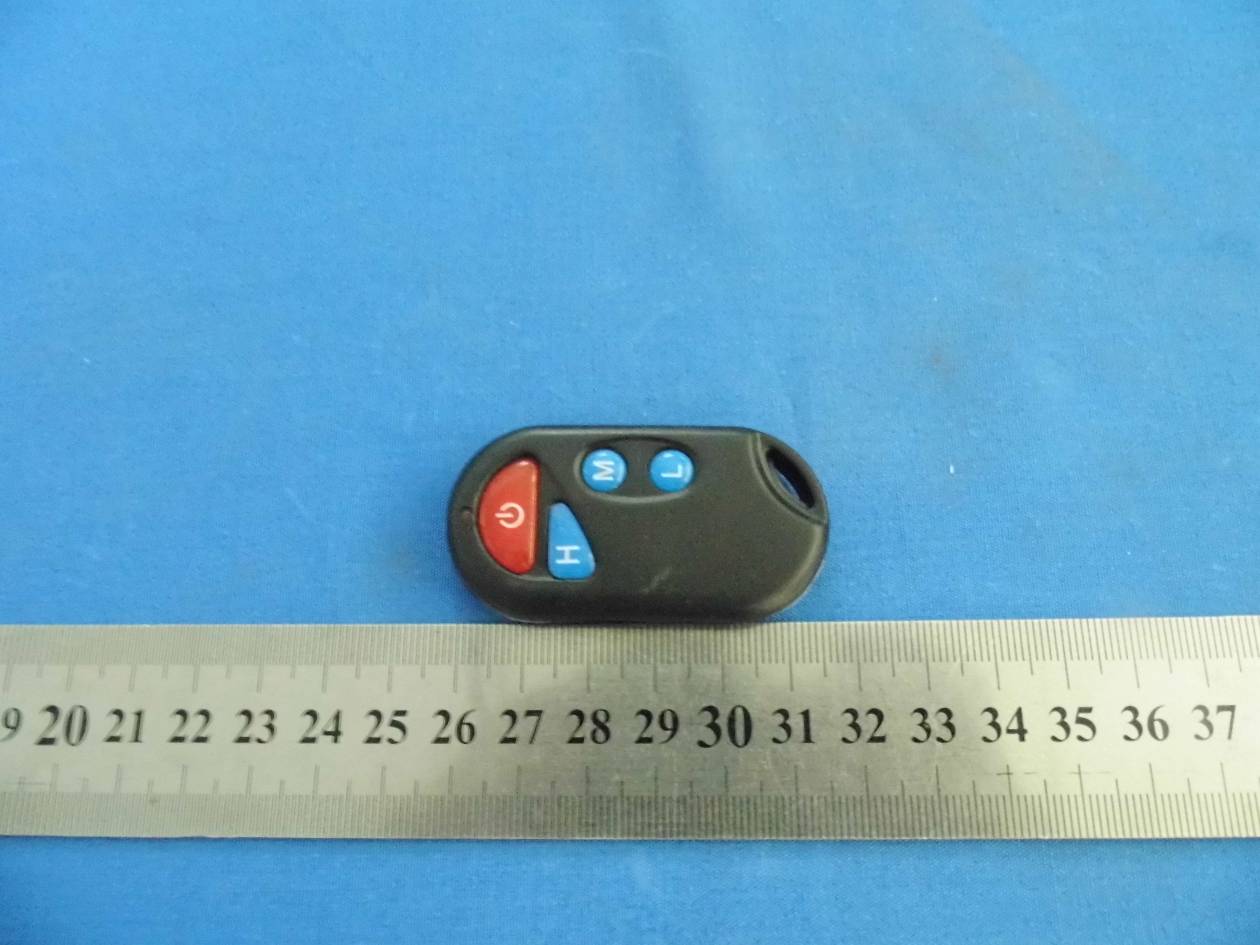

External Photo

FCC Certification Label FCC ID: 2ACYMFLFS Label Location on EUT label size:high 1cm, Wide:2 cm EUT View/ FCC ID Label Location

Internal Photo antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Dongguan Fenglin Industry Co., Ltd. No.1,Tanxi New Village West Road,Shipai Village,Shipai Town,Dongguan,Guangdong, China FCC ID: 2ACYMFLFS August 14, 2014 This Report Concerns: Original Report Equipment Type: remote control heated insole Test Engineer: Lisa Chen Report No.: BSL14071011Y-E0 Receive EUT Date/Test Date: August 10, 2014 / August 10 - August 14, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID: 2ACYMFLFS Page 2/22 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................13 7.5. Radiated Emission Test Result .......................................................................................14 8. BAND EDGE .............................................................................................................................19 8.1. Test Equipment ...............................................................................................................19 8.2. Test Procedure ................................................................................................................19 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................19 8.4. Band Edge Test Result ....................................................................................................20 9. 20-DB BANDWIDTH ...............................................................................................................21 9.1. Test Equipment ...............................................................................................................21 9.2. Test Procedure ................................................................................................................21 9.3. Limit................................................................................................................................21 9.4. Test Result /Plots ............................................................................................................21 FCC ID: 2ACYMFLFS Page 3/22 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. T…

Text truncated - open the document above for the full version.

Radiated emissions test
