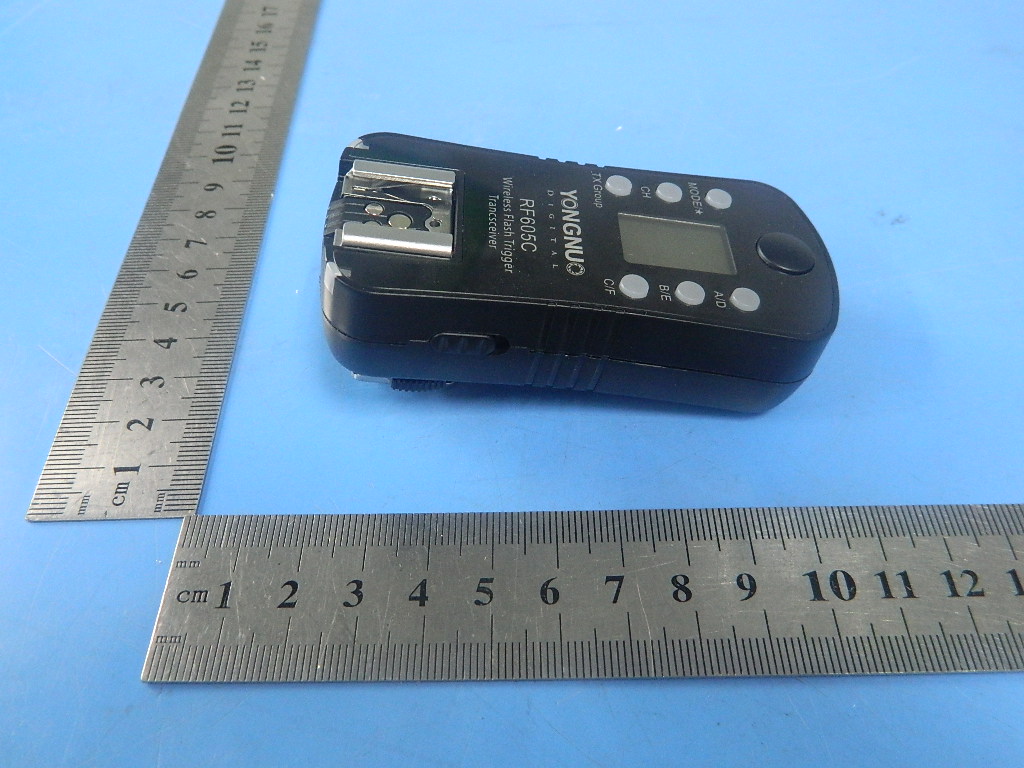

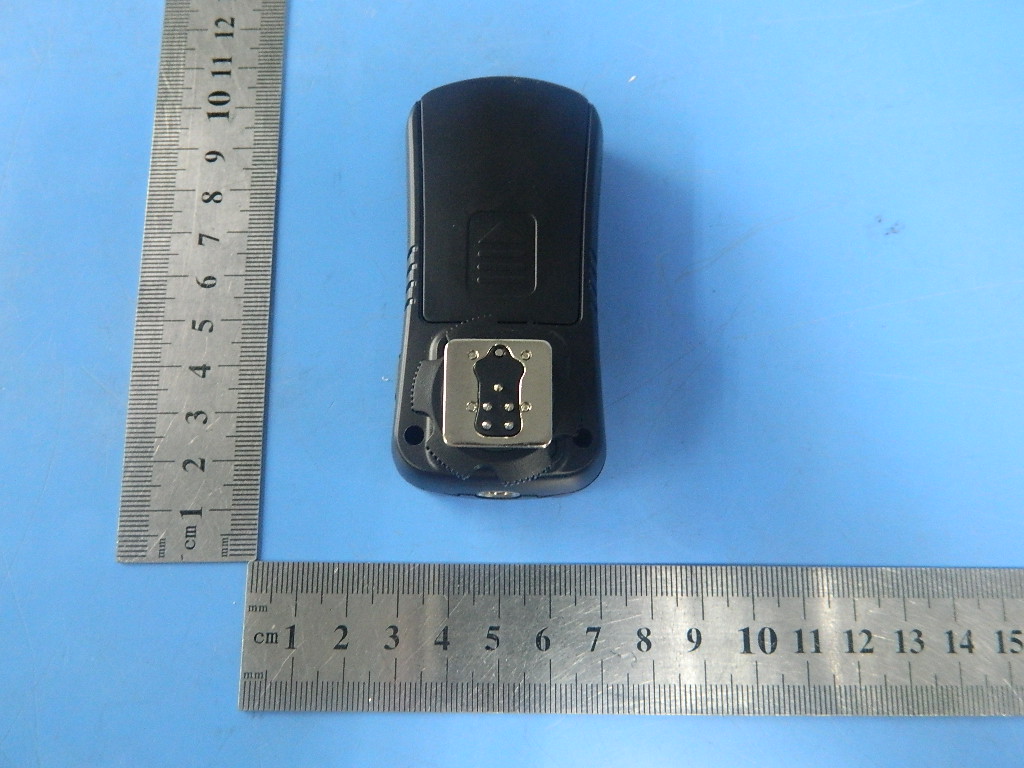

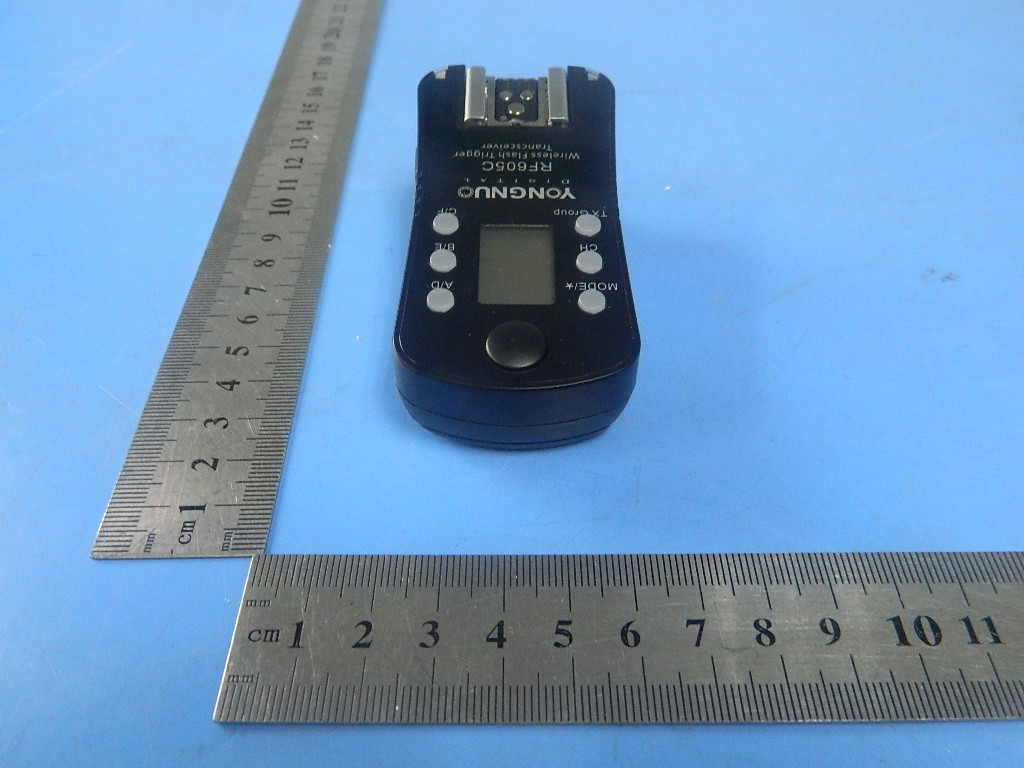

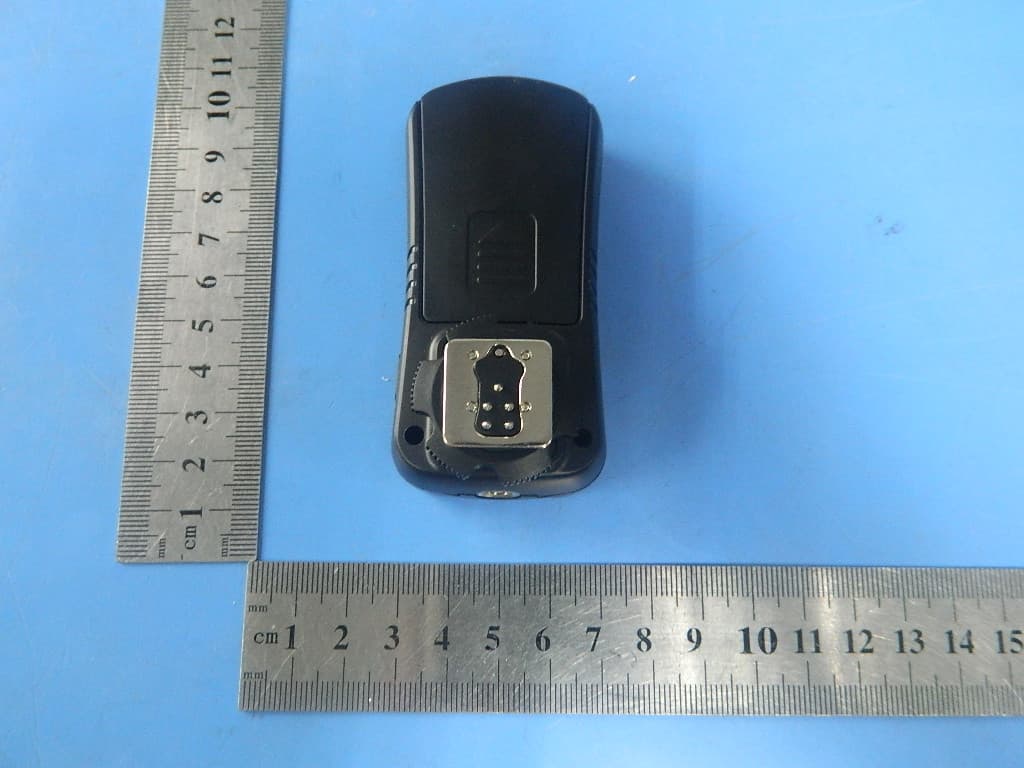

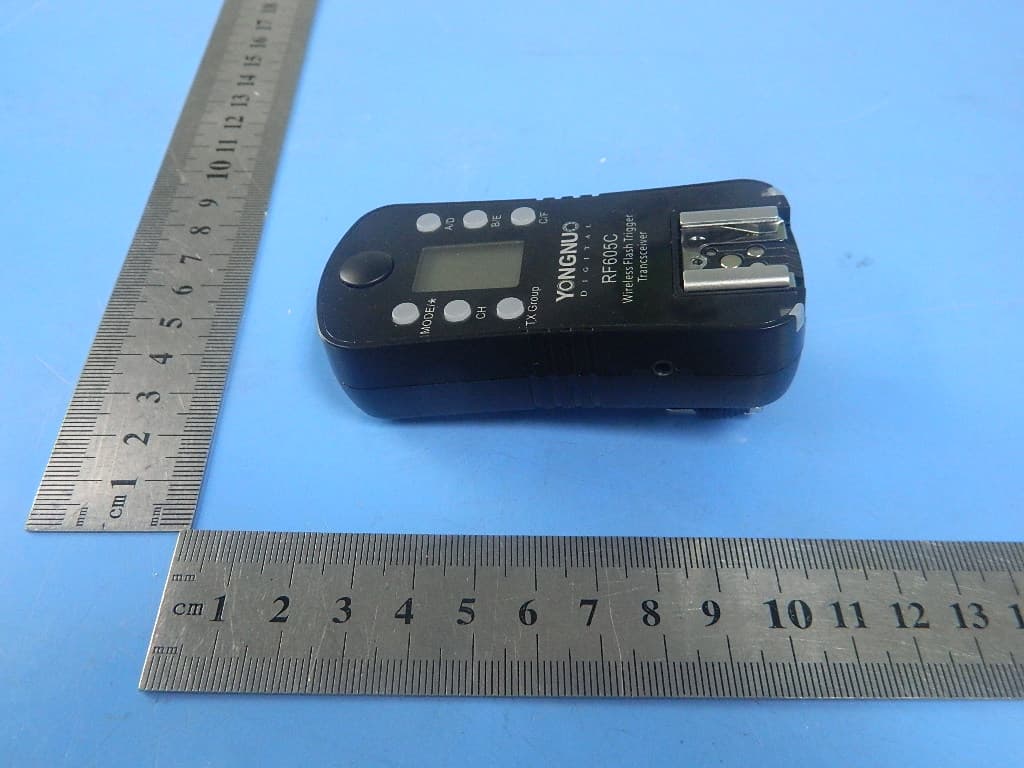

2ACYP-RF605CWireless Flash Trigger

Wireless Flash Trigger User Manual RF605 Thank you for purchasing YONGNUO products in advance. Please be sure to read and understand this user manual and the usage of camera and flash before using. This product is a wireless transceiver i n t e g r a t e d d e s i g n , f o r t h e c o n v e n i e n c e o f description, the product will named “transmitter ” when mounted on the camera hot shoe,named “receiver ”when mounted or connected to the flash. Contents Off-Camera Flash Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Preparation before using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Function extend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Names of RF605 Par ts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Button,display, indicator light Wireless triggering and testing - Shutter release function On-Top Flash Receiver Transmitter Product Features ŸRF-602/RF-603 two communication modes RF605 = RF602 +RF603 ŸTX/RX/TRX multiple working ways ŸA/B/C/D/E/F 6 groups (compatible with YN560-TX) ŸWireless shutter remote control ŸClear LCD screen display, shor tcut key operation Ÿ16 channels ŸCommunication range up to 100M Package Contents: RF605C or RF605N . . . . . . . . . . . . . . . . . . . . . . X2 LS-2.5 shutter connecting cable* . . . . . . X2 User Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . X1 *The shutter release cable type please refer to the packing shown. Optional component: LS-PC series flash cable LS-PC635 LS-PC PC/ ŸPlease purchase the additional shutter release cable or PC cable if necessar y. 1 Cautions 2 1. As this is an electronic product accessor y, some of the environment causes may affect the working. However this is hardly ever to get this situation, don't worr y. 2. Do not pull the wires and turn off the camera when connecting. 3. For a long time non-use, please turn the transceiver off and remove the batteries. 4. Do not put it in high temperature, such as a closed car under direct sunlight, the control panel and other high temperature areas. 5. Keep dr y, do not use wet hands contact with the product, the product must not be immersed in water or exposed to rain, and this may and this may lead to not work properly. 6. Do not used in the flammable occasion in violation of this warning may cause an explosion or fire. 7. Owing to this product include batter y, please operate it strictly according to related rules, other wise maybe cause explosion, fire or physical injur y. 8. Do not trigger the flash close to a person's eyes, it may impair the person's vision. RF605C is more suitable for the Canon cameras Names of RF605 Parts RF605N is more suitable for the Nikon cameras A-Hot shoe stand/Hot shoe contacts: install flash B-2.5mm shutter release socket C-Focus light (Green)/shutter indicator light (Red),in RF-603 TRX status, the AF-assist light will blink once in ever y 2 seconds. D-PC interface(output) E-Waken indicator (Green)/trigger indicator light (Red),in RF-602 RX , the trigger indicator light will blink once in ever y 2 seconds. F-Power switch: ON means turn on, while OFF means turn off G-Buttons and display (see below page) H-Multifunction button (see below page) I-Hot shoe fixed foot and contacts: mounted on the camera hot shoe J-Locking ring K-Batter y compar tment L-the batter y compar tment cover status 3 Button,display,indicator light 4 ButtonFunction Display/Indicator light Communication mode/Transmit- receive status button Long press to switch the communication mode RF-602/RF-603;Shor t press to switch the transmit-receive status RF-602 can use TX(transmit),RX(receive) St a t u s ; R F-6 0 3 c a n u s e T X (t r a n s m i t) , TRX(transmit-receive) status ChannelPress to setup the channel (1-16) Transmit grouping button Press the button to activate the transmit grouping button setting, then press the transmit-receive grouping button to turn on/off the transmitting group Transmit-receive grouping button Shor t press to turn on/off the A/B/C group, long press to turn on/off D/E/F group, the corresponding grouping indicator light on or off 【Multifunction Button】 In TX status:half press to waken the speedlite, full press the to test flash waken/ trigger focus/ shutter A/D B/E C/F 5 Preparation before using 1.Batter y Installation: Slide to open the batter y compar tment, install two AAA batteries(not included) for two transceivers according to the "+/-"direction shown. ŸThe low batter y Indicator( ) The low batter y indicator will blink when the batteries are low. Please replace the batter y. 2.Fix the transmitter on the hot shoe of the camera: Mount the transmitter on the hot shoe of the camera through the hot shoe mounting foot, then tight the locking screw. Suppor ts installing the flash on the transmitter (on-top flash， as the…

Text truncated - open the document above for the full version.

Shutter release function Connect the shutter connecting cable: need to use(or purchase additional)the corresponding type of the LS-2.5 series shutter connecting cable. As the picture 1 shown, use the shutter connecting cable to connect between the camera shutter socket and transceivers. 1.RF-602 mode: Suppor ts wireless shutter release, the transmitter set to “TX”stauts,the receiver set to “RX”. 2.RF-603 mode: Suppor ts wired shutter/wireless shutter release, all transceivers set to “TRX”stauts. ŸAs the picture 2 shown, half press the multifunction button on the transceiver(transmitter), the camera will focus. The focus light bright (Green),full press the button, the camera will shoot, meanwhile the shutter indicator light bright (Red). ŸIn RF-603 mode, single transceiver can be used as wired shutter release (as the picture 3 shown). 8 Picture1 Picture2 Picture3 Function extension 2 . W i re l e s s re m o te s h o o t i n g a n d s y n c t r i g g e r t h e f l a s h : M u l t i p l e R F 6 0 5 combination, it need LS-2.5 shutter connecting cable and multiple RF605 transmitters. To realize this function, all the transceivers need to set in RF-603"TRX" status. 1).Install one transceiver on the hot shoe of the camera, and connect the shutter socket with the shutter connecting cable to the camera. 2).Fix and install the receivers and flash. 3).Handhold one transceiver as remote control transmitter, full press the multifunction button to remote shooting, the flash will sync flash in triggering. 9 1.Use the PC interface to trigger other types of flashes: realize the function need to additional purchase the Yongnuo LS-PC series connecting cable according to different interfaces. ŸAs the picture shown, connect the receiver and flash through the PC cable, the flash will sync flash in triggering. 1.Unable to power on or wireless trigger the flash FMake sure the equipment with adequate power, the transceiver use the same channel and communication mode. FWhen set in TX status , press the testing button to test flash, in RX and TRX status could not test flash. FMake sure the flash is ready and the flash has set in manual (M) mode. FMake sure the transceiver, camera and flash in normal contact, or it will lead to triggering problem. 2.Unable to awake the flash FWhen using the non specialized transmitter, it need to half press the button of transmitter to awake the flash when the transmitter set in TX state. If the flash could not be awaken, it need to manual awake the flash or turn off the power saving mode. 3. The shutter could not be released FWhen par t of the cameras could not find the focus, it could not proceed to shoot even if receiving the shooting signal. The focus mode of camera should be adjusted to “M”. 10 Troubleshooting Type: FSK 2.4GHz wireless remote control system Transmission distance: 100m Channels:16 channels Group:6 Groups Shutter release: half-press, full-press Shutter interface: 2.5mm socket Studio flash light interface: standard PC socket Max Sync Speed: 1/320 second Batter y: AAA×2(3V ) Stand-by time: about 90 hours in TX status, about 30 hours in TRX (RX) status. Size : 85MM x 41MM x 35MM The functions of this user manual are based on test conditions of our company. Fur ther notice will not be given if the design and specifications change. The YONGNUO logo in this manual includes the registered trademark or trademark of Shenzhen Yongnuo Photography Equipment Co.,Ltd in China or/and other countries(regions).All other trademarks are the proper ty of their respective owners. Specification 11 FCC ID: 2ACYP‐RF605C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment。 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

November 14, 2014 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Alpha Product Testing Laboratory. Address: Building B, East Area of Nanchang Second Industrial, Zone, Gushu 2nd Road, Bao'anDistrict, Shenzhen 518126,P.R.China Person: Mark Zhu (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD. Address: B509 5/F, BUILDING 2, SAIGE SCIENCE AND TECHNOLOGY PARK, NORTH OF HUAQIANG ROAD, FUTIAN, SHENZHEN, CHINA . ( applicant name and address). Signature: Name Salas Li Position Manager Company Name SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD Address B509 5/F, BUILDING 2, SAIGE SCIENCE AND TECHNOLOGY PARK, NORTH OF HUAQIANG ROAD, FUTIAN, SHENZHEN, CHINA . Tel +86-755-83762448 Fax +86-755-83762765 Email [email protected]

November 14, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ACYP-RF605C____ Product Name: _ Wireless Flash Trigger _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics Long-term confidential • Block diagram Long-term confidential • Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Dated this: November 14, 2014 By: salas Li Title: Manager Company Name: SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD Telephone: +86-755-83762448 Fax: +86-755-83762765 Email: [email protected]

Differences Description We SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD state: Product name: Wireless Flash Trigger Model: RF605C，RF605N All model’s the function, software and electric circuit are the same , only with a product model named different. A total station in the list structure, circuit, component configuration is exactly the same as the models except for the OEM needs change model name Signature: Date: November 14, 2014 Name: salas Li Title: Manager Telephone: +86-755-83762448 Email: [email protected] Company: SHENZHEN YONGNUO PHOTOGRAPHIC EQUIPMENT CO., LTD Address: B509 5/F, BUILDING 2, SAIGE SCIENCE AND TECHNOLOGY PARK, NORTH OF HUAQIANG ROAD, FUTIAN, SHENZHEN, CHINA .

20mm 6mm FCC ID:2ACYP-RF605C

Label Location

ANTENNA

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Ant gain 2dBi ;so Ant numeric gain=1.585 Field strength = 89.76 dBuV/m @3m So EIRP={ [10 ( 89.76 /20) /10 6 x3] 2 /30x1.585 }x1000 mW = 0.18 mW So ( 0.18 mW/5mm)x √2.4295 GHz = 0.06 <3 Then SAR evaluation is not required
