SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Hunan ZTE ICT Technologies Co., Ltd. 2015/12/4 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Hunan ZTE ICT Technologies Co., Ltd.._____hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): (Product description: MID, model name: E10Q, E10G,E10H,E10K,E10P,E10T,E10S,E10Z) FCC ID : 2ACYS-E10Q Sincerely, Client’s signature Client’s name / title ： Xu Hong Contact information / address : 5F, ZTE ICT R&D Building, No.48 Cailun Rd. , High-Tech Development Zone, Hengyang, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template& Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 5.0 Hunan ZTE ICT Technologies Co., Ltd. 2015/12/4 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACYS-E10Q Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Tune up Procedure - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Xu Hong Contact information / address: 5F, ZTE ICT R&D Building, No.48 Cailun Rd. , High-Tech Development Zone, Hengyang, China

Hunan ZTE ICT Technologies Co.,Ltd. To：SIEMIC ,775 Montague Expressway, Milpitas, CA 95035,USA Declaration Letter Dear Sir， For our business issue and marketing requirement, we would like to list 8 model numbers on the FCC certificates and reports, as following: Model No.: E10Q, E10G,E10H,E10K,E10P,E10T,E10S,E10Z We declare that, all the model PCB ,Antenna and Appearanceshape , accessories are the same . The difference of these is listed as below: Main Model No Serial Model No Difference E10Q E10G,E10H,E10K,E10P,E10T,E10S, E10Z Different model name Thank you! Signature: Printed name/title: Xu Hong Address: 5F, ZTE ICT R&D Building, No.48 Cailun Rd. , High-Tech Development Zone, Hengyang, China

Hunan ZTE ICT Technologies Co., Ltd. WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : 2ACYS-E10Q Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement and FCC Part 15C requirement. Others Pls explain detail here. Company Name: Hunan ZTE ICT Technologies Co., Ltd. Address : 5F, ZTE ICT R&D Building, No.48 Cailun Rd. , High-Tech Development Zone, Hengyang, China Name / Title : Xu Hong Signature : Phone: 18646177702 Email : [email protected] Date :2015/12/4

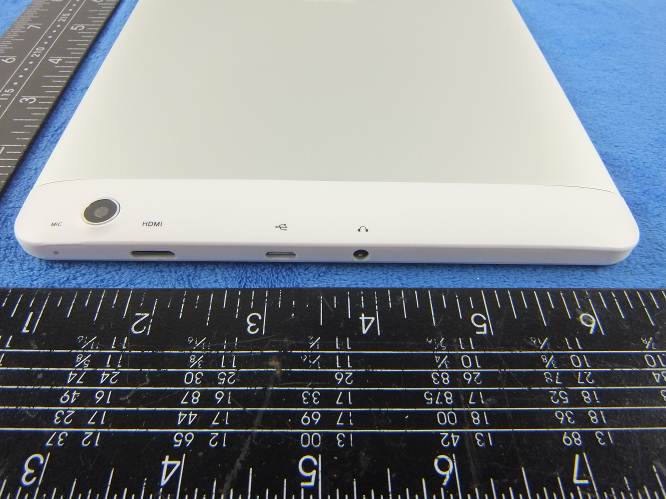

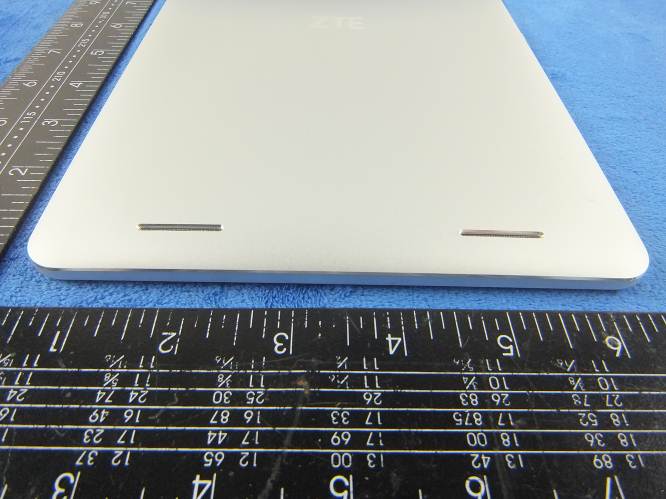

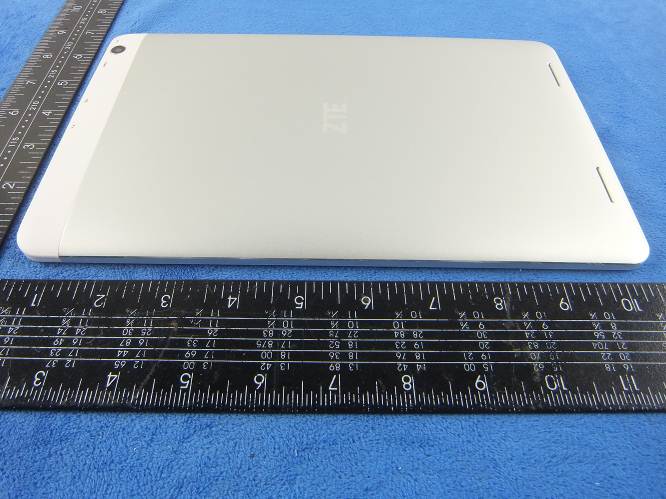

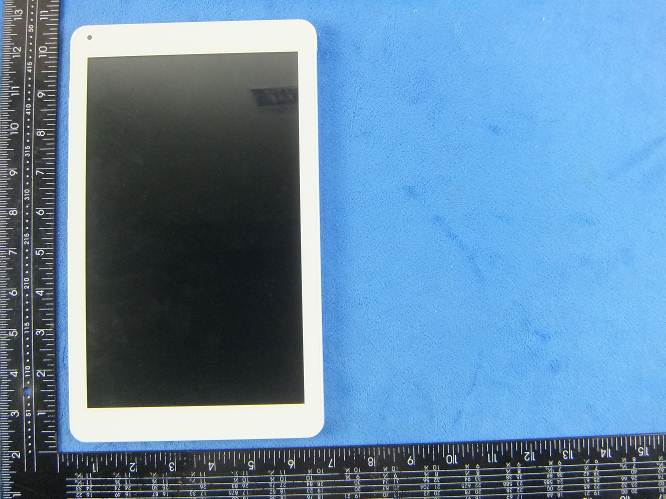

Test Report 15071087-FCC-E1 Page 20 of 30 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External Photo Whole Package - Top View Adapter - Front View EUT - Front View EUT - Rear View Test Report 15071087-FCC-E1 Page 21 of 30 EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

Lable location

Test Report 15071087-FCC-E1 Page 22 of 30 Annex B.ii. Photograph: EUT Internal Photo Cover Off - Top View 1 Cover Off - Top View 2 Battery - Front View Battery - Rear View Mainbard with Shielding - Front ViewMainbard without Shielding - Front View Test Report 15071087-FCC-E1 Page 23 of 30 Mainbard – Rear View LCD – Front View LCD – Rear View GSM/PCS/UMTS-FDD Antenna View WIFI/BT/BLE - Antenna View

RF EXPOSURE REPORT Report No.: 15071087-FCC-H2 Supersede Report No.: N/A Applicant Hunan ZTE ICT Technologies Co.,Ltd. Product Name MID Model No. E10Q Serial No. E10G,E10H,E10K,E10P,E10T,E10S,E10Z Test Standard FCC 2.1093:2014 Test Date November 24 to December 01, 2015 Issue Date December 17, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Winnie Zhang Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15071087-FCC-H2 Page 2 of 10 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15071087-FCC-H2 Page 3 of 10 This page has been left blank intentionally. Test Report 15071087-FCC-H2 Page 4 of 10 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. FCC §2.1093 - RADIOFREQUENCY RADIATION EXPOSURE EVALUATION: PORTABLE DEVICES. 8 5.1 RF EXPOSURE .......................................................................................................................................................... 8 5.2 TEST RESULT ........................................................................................................................................................... 9 Test Report 15071087-FCC-H2 Page 5 of 10 1. Report Revision History Report No. Report Version Description Issue Date 15071087-FCC-H2 NONE Original December 01, 2015 15071087-FCC-H2 V1 Update FCC ID December 17, 2015 2. Customer information Applicant Name Hunan ZTE ICT Technologies Co.,Ltd. Applicant Add 5F, ZTE ICT R&D Building, No.48 Cailun Rd. , High-Tech Development Zone, Hengyang, China Manufacturer Hunan ZTE ICT Technologies Co.,Ltd. Manufacturer Add 5F, ZTE ICT R&D Building, No.48 Cailun Rd. , High-Tech Development Zone, Hengyang, China 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’ an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report 15071087-FCC-H2 Page 6 of 10 4. Equipment under Test (EUT) Information Description of EUT: MID Main Model: E10Q Serial Model: E10G,E10H,E10K,E10P,E10T,E10S,E10Z Date EUT received: November 23, 2015 Test Date(s): November 24 to December 01, 2015 Antenna Gain: GSM850: -0.7 dBi PCS1900: -0.8 dBi UMTS-FDD Band V: -0.7 dBi UMTS-FDD Band II: -0.8 dBi Bluetooth/BLE: 1 dBi WIFI: 1 dBi GPS: 0 dBi Type of Modulation: GSM / GPRS: GMSK EGPRS: GMSK,8PSK UMTS-FDD: QPSK, 16QAM 802.11b/g/n: DSSS, OFDM Bluetooth: GFSK, π /4DQPSK, 8DPSK BLE: GFSK GPS:BPSK RF Operating Frequency (ies): GSM850 TX: 824.2 ~ 848.8 MHz; RX: 869.2 ~ 893.8 MHz PCS1900 TX: 1850.2 ~ 1909.8 MHz; RX: 1930.2 ~ 1989.8 MHz UMTS-FDD Band V TX: 826.4 ~ 846.6 MHz; RX: 871.4 ~ 891.6 MHz UMTS-FDD Band II TX:1852.4 ~ 1907.6 MHz; RX: 1932.4 ~ 1987.6 MHz WIFI:802.11b/g/n(20M): 2412-2462 MHz WIFI:802.11n(40M): 2422-2452 MHz Bluetooth& BLE: 2402-2480 MHz GPS RX:1575.42 MHz Test Report 15071087-FCC-H2 Page 7 of 10 Number of Channels: GSM 850: 124CH PCS1900: 299CH UMTS-FDD Band V : 102CH UMTS-FDD Band II : 277CH WIFI :802.11b/g/n(20M): 11CH WIFI :802.11n(40M): 7CH Bluetooth: 79CH BLE: 40CH GPS:1CH Port: Power Port, Earphone Port, USB Port, HDMI Port Input Power: Adapter: Model: SC/10WA050200US Input: AC 100-240V; 50/60Hz;0.5A Output: DC 5.0V,2.0A Battery: Spec:3.7V,7000mAh Trade Name : ZTE GPRS/EGPRS Multi-slot class 8/10/12 FCC ID: 2ACYS-E10Q Test Report 15071087-FCC-H2 Page 8 of 10 DFP/ 5. FCC §2.1093 - Radiofrequency radiation exposure evaluation: portable devices. 5.1 RF Exposure Standard Requirement: According to §15.247 (i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’ s guidelines. Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater th…

Text truncated - open the document above for the full version.

RF TEST REPORT Report No.: 15071087-FCC-R3 Supersede Report No.: N/A Applicant Hunan ZTE ICT Technologies Co.,Ltd. Product Name MID Model No. E10Q Serial No. E10G,E10H,E10K,E10P,E10T,E10S,E10Z Test Standard FCC Part 15.247: 2014, ANSI C63.10: 2013 Test Date November 24 to December 01, 2015 Issue Date December 17, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Winnie Zhang Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report No. 15071087-FCC-R3 Page 2 of 52 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report No. 15071087-FCC-R3 Page 3 of 52 This page has been left blank intentionally. Test Report No. 15071087-FCC-R3 Page 4 of 52 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 8 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 9 6.1 ANTENNA REQUIREMENT ..................................................................................................................................... 9 6.2 DTS (6 DB&20 DB) CHANNEL BANDWIDTH ..................................................................................................... 10 6.3 MAXIMUM OUTPUT POWER ............................................................................................................................... 16 6.4 POWER SPECTRAL DENSITY ............................................................................................................................. 20 6.5 BAND-EDGE & UNWANTED EMISSIONS INTO NON-RESTRICTED FREQUENCY BANDS ................. 24 6.6 AC POWER LINE CONDUCTED EMISSIONS ................................................................................................... 30 6.7 RADIATED SPURIOUS EMISSIONS ................................................................................................................... 36 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 41 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 42 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 47 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 51 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 52 Test Report No. 15071087-FCC-R3 Page 5 of 52 1. Report Revision History Report No. Report VersionDescription Issue Date 15071087-FCC-R3 NONE Original December 01, 2015 15071087-FCC-R3 V1 Update the KDB 558074 v03r02 to KDB 558074 v03r03 December 14, 2015 15071087-FCC-R3 V2 Update FCC ID December 17, 2015 2. Customer information Applicant Name Hunan ZTE ICT Technologies Co.,Ltd. Applicant Add 5F, ZTE ICT R&D Building, No.48 Cailun Rd. , High-Tech Development Zone, Hengyang, China Manufacturer Hunan ZTE ICT Technologies Co.,Ltd. Manufacturer Add 5F, ZTE ICT R&D Building, No.48 Cailun Rd. , High-Tech Development Zone, Hengyang, China 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’ an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report No. 15071087-FCC-R3 Page 6 of 52 4. Equipment under Test (EUT) Information Description of EUT: MID Main Model: E10Q Serial Model: E10G,E10H,E10K,E10P,E10T,E10S,E10Z Date EUT received: November 23, 2015 Test Date(s): November 24 to December 01, 2015 Equipment Category： DTS Antenna Gain: GSM850: -0.7 dBi PCS1900: -0.8 dBi UMTS-FDD Band V: -0.7 dBi UMTS-FDD Band II:…

Text truncated - open the document above for the full version.

RF TEST REPORT Report No.: 15071087-FCC-R4 Supersede Report No.: N/A Applicant Hunan ZTE ICT Technologies Co.,Ltd. Product Name MID Model No. E10Q Serial No. E10G,E10H,E10K,E10P,E10T,E10S,E10Z Test Standard FCC Part 15.247: 2014, ANSI C63.10: 2013 Test Date November 24 to December 01, 2015 Issue Date December 17, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Winnie Zhang Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report No. 15071087-FCC-R4 Page 2 of 41 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report No. 15071087-FCC-R4 Page 3 of 41 This page has been left blank intentionally. Test Report No. 15071087-FCC-R4 Page 4 of 41 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 8 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 9 6.1 ANTENNA REQUIREMENT ..................................................................................................................................... 9 6.2 DTS (6 DB) CHANNEL BANDWIDTH .................................................................................................................. 10 6.3 MAXIMUM OUTPUT POWER ............................................................................................................................... 12 6.4 POWER SPECTRAL DENSITY ............................................................................................................................. 14 6.5 BAND-EDGE & UNWANTED EMISSIONS INTO NON-RESTRICTED FREQUENCY BANDS ................. 16 6.6 AC POWER LINE CONDUCTED EMISSIONS ................................................................................................... 19 6.7 RADIATED SPURIOUS EMISSIONS ................................................................................................................... 25 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 30 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 31 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 36 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 40 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 41 Test Report No. 15071087-FCC-R4 Page 5 of 41 1. Report Revision History Report No. Report Version Description Issue Date 15071087-FCC-R4 NONE Original December 01, 2015 15071087-FCC-R4 V1 Update FCC ID December 17, 2015 2. Customer information Applicant Name Hunan ZTE ICT Technologies Co.,Ltd. Applicant Add 5F, ZTE ICT R&D Building, No.48 Cailun Rd. , High-Tech Development Zone, Hengyang, China Manufacturer Hunan ZTE ICT Technologies Co.,Ltd. Manufacturer Add 5F, ZTE ICT R&D Building, No.48 Cailun Rd. , High-Tech Development Zone, Hengyang, China 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’ an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report No. 15071087-FCC-R4 Page 6 of 41 4. Equipment under Test (EUT) Information Description of EUT: MID Main Model: E10Q Serial Model: E10G,E10H,E10K,E10P,E10T,E10S,E10Z Date EUT received: November 23, 2015 Test Date(s): November 24 to December 01, 2015 Equipment Category： DTS Antenna Gain: GSM850: -0.7 dBi PCS1900: -0.8 dBi UMTS-FDD Band V: -0.7 dBi UMTS-FDD Band II: -0.8 dBi Bluetooth/BLE: 1 dBi WIFI: 1 dBi GPS: 0 dBi Type of Modulation: GSM /…

Text truncated - open the document above for the full version.

Test Report No. 15071087-FCC-R3 Page 46 of 52 Annex B.iii. Photograph: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz

Test Report No. 15071087-FCC-R4 Page 35 of 41 Annex B.iii. Photograph: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz
