2ACZU-WSM100Self-powered Wireless Switch Module

Wuhan Linptech Co.,Ltd Battery-less | Wireless Self-Powered Wireless Switch Module WSM100 Page 1 VER0.5 Datasheet Of 1 May 2014 Self-powered Wireless Switch Module WSM 100 Datasheet WSM 100 is composed of a high efficient generating module and a RF transmitting module with low power consumption. The inner generating component can supply RF transmitting module with power, so that it can transmit radio message. WSM 100 can be used as a part of wall switch with one rocker or two rockers and even the single-cycle switch with four keys. Working with different receiver module, it can be applied to common switch for lighting, dimmer switch, contain-controlled switch and key-card switch. Basic Theory There is a magic generating component with high efficiency inside WSM 100, which can generate electricity by pressing the “generating bow”. Every time you press the “generating bow”, the inner generating component will generate electricity one time; Every time you release the “generating bow”, the “generating bow” and the inner generating component will go back to its original place automatically and generate electricity again. When the generation module generates one time, the RF module will transmit message one time. The message includes the information of the ID of the module. At the same time, the radio message includes the information of the bow’s action of “up” or “down”. Besides, it also includes the information of 4 contacts, which is used to identify different rocker by knowing which contact is pressed. Technical Data Power supply self-powered by inner generating module Antenna wired antenna, 19 cm Frequency 433.92 MHZ Transmitting power 10dBm Data rate 250Kbps Telegram content unique ID：32 bits Transmitting distance outdoor: > 80m，indoor：>30m Energy bow travel/Operating force 2.0mm / 7N Number of operations >50 000次 Module dimensions 40 * 40 * 11.2 mm Operating temperature -40°C -- 65°C FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Wuhan Linptech Co.,Ltd. Model Difference FCC ID: 2ACZU-WSM100 Model : WSM100, WSMxxx All the models are the same circuit and RF module, except the mode names. Regards, Client’s signature Signature Name: xiaoke chen Title: Manager Address: 13 floor, Huagong High-Tech Building, No.876, Luoyu Road, Hongshan District, Wuhan, Hubei, P.R. of China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Wuhan Linptech Co.,Ltd. 2014/8/19 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACZU-WSM100 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Name: xiaoke chen Title: Manager Address: 13 floor, Huagong High-Tech Building, No.876, Luoyu Road, Hongshan District, Wuhan, Hubei, P.R. of China

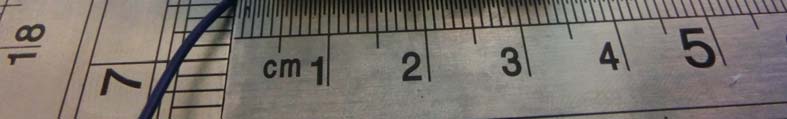

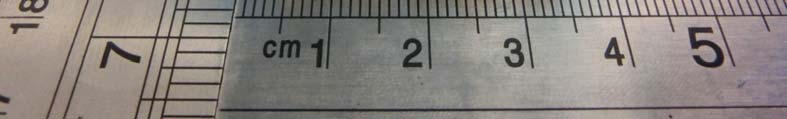

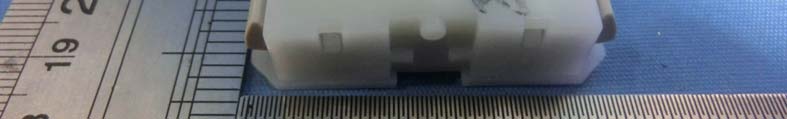

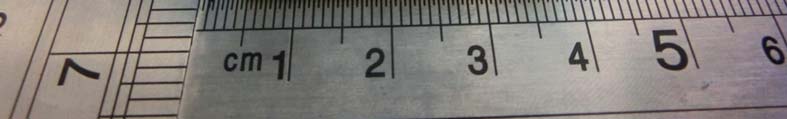

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 ANT Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

FCC ID LABELING AND LOCATION FCC ID Label Self-powered Wireless Switch Module Model NO.: WSM100 FCC ID: 2ACZU-WSM100 FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5

FCC RADIO TEST REPORT FCC ID:2ACZU-WSM100 Product： Self-powered Wireless Switch Module Trade Name： linptech Model Name： WSM100 Serial Model： WSMxxx Report No.： NTEK- 2014NT0724136F Prepared for Wuhan Linptech Co.,Ltd. 13 floor, Huagong High-Tech Building, No.876, Luoyu Road, Hongshan District, Wuhan, Hubei, P.R. of China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 26 Report No.: NTEK-2014NT0724136F ` TEST RESULT CERTIFICATION Applicant’s name................. : Wuhan Linptech Co.,Ltd. Address ................................. : 13 floor, Huagong High-Tech Building, No.876, Luoyu Road, Hongshan District, Wuhan, Hubei, P.R. of China Manufacture's Name............ : Wuhan Linptech Co.,Ltd. Address ................................. : 13 floor, Huagong High-Tech Building, No.876, Luoyu Road, Hongshan District, Wuhan, Hubei, P.R. of China Product description Product name ........................... : Self-powered Wireless Switch Module Model and/or type reference : WSM100 Serial Model： WSMxxx Standards............................. : FCC Part15.231:01 Oct. 2013 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 24 Jul. 2014 ~08 Aug. 2014 Date of Issue...........................................: 08 Aug. 2014 Test Result...............................................: Pass Testing Engineer : (Kyle Xu) Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 26 Report No.: NTEK-2014NT0724136F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 4 . EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 4.1.2 TEST PROCEDURE 13 4.1.3 DEVIATION FROM TEST STANDARD 13 4.1.4 TEST SETUP 13 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1 RADIATED EMISSION LIMITS 15 4.2.2 TEST PROCEDURE 16 4.2.3 DEVIATION FROM TEST STANDARD 16 4.2.4 TEST SETUP 17 4.2.5 TEST RESULTS (BELOW 30MHZ) 19 4.2.6 TEST RESULTS (BETWEEN 30 – 5000 MHZ) 20 4.2.7 DUTY CYCLE 21 5 . BANDWIDTH TEST 23 5.1 TEST PROCEDURE 23 5.2 DEVIATION FROM STANDARD 23 5.3 TEST SETUP 23 5.4 TEST RESULTS 24 6 . TRANSMITTER TIMEOUT 25 6.1 REQUIREMENTS 25 7 . EUT TEST PHOTO 26 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 26 Report No.: NTEK-2014NT0724136F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 26 Report No.: NTEK-2014NT0724136F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 26 Report No.: NTEK-2014NT0724136F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Self-powered Wireless Switch Module Trade Name linptech Model Name WSM100 Serial Model WSMxxx Model Difference All the models are the same circuit and RF module, except the model names. Product Description The EUT is a Self-powered Wireless Switch Module Product Type Remote Control Operation Frequency: 433.92MHz Modulation Type: GFSK Number Of Channel 1CH. Antenna Designation: Wire antenna Antenna Gain(Peak) 0.5 dBi Output Power: 90.51 dBuV/m Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Input: N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A Wire antenna N/A 0.5 Antenna Page 7 of 26 Report No.: NTEK-2014NT0724136F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mod…
