2AD2CEX-SM14Explosion proof smartphone EX-SM14

EX-SM14 – Quick Start Guide Table of contents 1. Safety instruction ........................................................ 35 2. Technical specifictions ................................................ 37 3. Notice of content and ownership ............................. 38 4. Your EX-SM14 Smartphone ....................................... 42 5. Getting started ............................................................ 49 6. Applications & widget ................................................ 54 7. Accessories in the box ................................................ 57 8. Common issues and solutions .................................. 60 9. Additional safety instructions ................................... 64 Read the safety instructions prior to operation ! EX-SM14 – Quick Start Guide 2 1. Safety instructions FCC: Conditions for safe use in Class I, Zone 1 1. Charging is only allowed in Safe Area ́s in combination with the provided USB charger and special USB cable with type number BC_EX-SM14_USB_cable_1. The supplied PSB05R-050Q(A)-R wall mount adapter has a temperature operating range of 0°C to 45°C. 2. Data transfer is only allowed in Safe Area ́s using the special USB cable. 3. Prior to operation it must be ensured that the outer material is not damaged in any way. A non functioning smartphone or a smartphone with a damaged body may not be used in a Class I, Zone 1. All compartments need to be closed during use in Class I, Zone 1. Repair Only the manufacturer is allowed to repair the device. Otherwise the warranty is void and the safe EX-SM14 – Quick Start Guide 3 operations of the device cannot be guaranteed. Defective devices can be send to: BCom Mobile B.V. EX-SM14 repair Veersteeg 15 4212LR Spijk Maintenance Maintenance, like replacing the battery, may only be carried out by the manufacturer. Taking the device into operation After(re-)installing the SIM card(s) it must be ensured that the rubber gasket in the SIM compartment is clean and undamaged. The compartment must be closed tightly using the two screws. The compartment with the USB and headphone connectors must be closed using the lid, prior to using the device in Class I, Zone 1, or close to water or dust. EX-SM14 – Quick Start Guide 4 2. Technical specifications
IP68 Waterproof (1.2 m deep, 40 min.)
4.5" High Impact Resistant LCD screen
Android 4.2 (Jelly Bean)
MT6589T 1.5 GHz Quad-Core processor
GSM 850/900/1800/1900 MHz
WCDMA/UMTS 850/1900MHz
Dual SIM: Dual-Standby / One-Talk
8.0 Mpx AF camera (incl. LED flash)
2.0 Mpx FF camera (front)
1 GB memory (RAM)
4 GB storage memory (1.7 GB free for end user)
Micro-SD slot (supports 32 GB max.)
Wi-Fi b/g/n with Tethering
Bluetooth 4.0
GPS / A-GPS / EPO
Accelerometer, Gyro, Compass, Auto light sensor
2200 mAh battery 3. Notice of content and ownership The manufacturer has reviewed the contents of this EX-SM14 – Quick Start Guide 5 documentation with regard to accuracy, but they may, nevertheless, contain errors or unintentional omissions. Bluetooth is a registered trademark of Bluetooth SIC, Inc. JAVA is a registered trademark of Sun Microsystems, Inc. Several functionalities described within this document refer to network services and require support by your network- or service provider. Please refer to either of them for specific information regarding these functionalities. This device may contain parts, technology or software upon which the export regulations and local laws of specific countries apply. Exporting, when in contradiction with local laws, is prohibited. Before using this device, please thoroughly acquaint yourself with the contents of the following "Safety and user instructions" and the chapter "Additional safety instructions". This symbol states that the device meets the European directives with regards to safety and electric interference. EX-SM14 – Quick Start Guide 6 Safety and user instructions SAFETY ON THE ROAD Adhere to local laws. Keep your hands available to operate the vehicle at all times. Your primary responsibility is road safety. EMERGENCY NUMBERS Have the smartphone switched on and functioning. Dial the emergency number and press the call-button. State your location. Do not terminate the call without permission. INTERFERENCE Every wireless device may be susceptible to electromagnetic disturbances that could influence performance. POWER DOWN IN HOSPITALS Switch off your device when near medical appliances. SOS EX-SM14 – Quick Start Guide 7 EXPANSIONS Only use approved expansions. Do not connect any incompatible products. POWER DOWN ABOARD AIRPLANES Wireless devices may cause electromagnetic disturbances in airplanes. CONNECTING TO OTHER DEVICES Is only permitted in Safe Area’s. SAVE THE ENVIRONMENT The battery must be recycled or disposed of properly according to local laws and regulations and always kept separate from household waste. BACK-UP COPIES Remember to make copies or written notes of important information, such as passwords or parameters of network providers. KEEP CHILDREN SAFE Keep every small item of the device, such as memory cards, out of reach of children. EX-SM14 – Quick Start Guide 8 • Prior to using this device for the first time, make yourself acquainted with all safety- and user instructions. • Keep this manual stored properly so that you may consult it easily at a later time. Carefully follow the notifications supplied within this manual. • Follow all instructions for use and operation carefully. • Before cleaning the device, unplug it from any and all electrical outlets. • To insert the SIM card and connect accessories, follow the instructions of your vendor and only use accessories that were recommended by the vendor of this device. Connections are only permitted in Safe Area’s. IP68 Your device is IP68 certified and therefore can be submerged in water for 40 minutes, 1.2 m deep. When you use the device in water deeper than 1.2 m, for more than 40 minutes, or open the device (except for i…

Text truncated - open the document above for the full version.

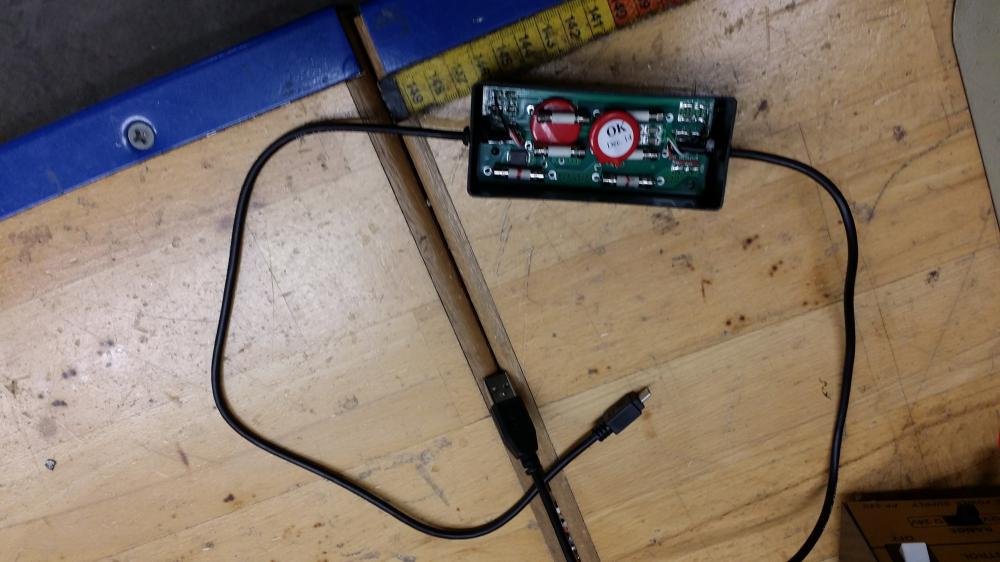

Subject: Label on EX-SM14 for FCC Date: 09-03-2015 Version: 3 Creator: Erwin File: Label SM14 for FCC with USB_Cable_1 versie 3 WITH POSITION.docx Page: 1/1 Label on EX-SM14 for FCC Label on BC_EX_SM14_USB_cable_1 for FCC (and CE)

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 GPS Antenna GSM&WCDMA Antenna BT&WIFI Antenna INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2

FCC SAR Test Report Report Format Version 5.0.0 Page No. : 1 of 40 Report No. : SA150608C11 Issued Date : Jul. 27, 2015 FCC SAR Test Report Report No. : SA150608C11 Applicant : TechNed Benelux BV Address : Veersteeg 15, 4212 LR Spijk, The Netherlands Product : Smart Phone FCC ID : 2AD2C-EX-SM14 Brand : TechNed Model No. : EX-SM14 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r03 / KDB 865664 D02 v01r01 KDB 248227 D01 v02r01 / KDB 447498 D01 v05r02 / KDB 648474 D04 v01r02 KDB 941225 D01 v03 / KDB 941225 D06 v02 Sample Received Date : Jun. 08, 2015 Date of Testing : Jul. 15, 2015 ~ Jul. 20, 2015 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Vera Huang / Specialist Approved By : Gordon Lin / Assistant Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Test Report Report Format Version 5.0.0 Page No. : 2 of 40 Report No. : SA150608C11 Issued Date : Jul. 27, 2015 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ............................................................................................................... 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot .................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure ................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 16 3.4.4 Spatial Peak SAR Evaluation .............................................................................................................…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report Format Version 5.0.0 Issued Date : Jul. 27, 2015 Report No. : SA150608C11 Appendix D. Photographs of EUT and Setup FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA150608C11 <Photographs of EUT> <Antenna Location> The separation distance for antenna to edge: Antenna To Top Side (mm) To Bottom Side (mm) To Left Side (mm) To Right Side (mm) WWAN 130 5 16 16 WLAN / BT 12 102 59 5 EUT Top Side EUT Bottom Side EUT Right Side EUT Left Side WLAN / BT Antenna <EUT Front View> WWAN Antenna FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA150608C11 <Photographs of SAR Setup> Right Cheek Right Tilted Left Cheek Left Tilted FCC SAR Test Report Report Format Version 5.0.0 Report No. : SA150608C11 Front Face of EUT with 1.0 cm Gap Rear Face of EUT with 1.0 cm Gap Left Side of EUT with 1.0 cm Gap Right Side of EUT with 1.0 cm Gap Bottom Side of EUT with 1.0 cm Gap

Report number: 20153885300-Ver 2.00 Page 1 of 69 Test Report for FCC 47 CFR part 22(H) and 24(E) Test Report no.: 20153885300-Ver 2.00 Date of Report: Sept 30 th . 2015 Number of pages: Page 1 of 69 Contact person: Amir Amininejad Testing laboratory: Telefication Edisonstraat 12a 6902 PK Zevenaar The Netherlands Tel. +31 316583180 Fax. +31 316583189 Client: TechNed Benelux Veersteeg 15 4212 LR Spijk The Netherlands Tel. +31 183631295 Fax.+31 1836 31778 Contact Person: M. Geluk Tested device(s): IP-68 mobile phone TechNet EX-SM14 Build number: EX0150_20141106_M312_SP BB ver.: MOLY.WR8.W1248.MD.WG.MP.V28.P1 (Detailed information for each device is listed in section 1). Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, ANSI/TIA-603-C-2004. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under “Test method and limit” Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 10 years at Telefication Netherland. Test Results: Accreditation: The results of the inspection are described on the following pages, where "conformity" in the Summary List means that test specification test purposes were verified and the tested device conforms to the applied standards. In cases where "declaration" is printed the required documents are available in the customer's documentation. This test result relates only to those tested devices mentioned in this document. Telefication is designated by the FCC as an Accredited Test Firm for compliance testing of equipment subject to Certification under Parts 15 & 18. The registration number is: 282250 Date of Signature: 30-09-2015 RF Test Laboratory Manager Amir Amininejad Report number: 20153885300-Ver 2.00 Page 2 of 69 1 Revision record sheet VERSION DATE REMARKS BY 2.00 2015 09 28 Added large plots in chapter 5.5 R,van Barneveld 1.50 2015 09 22 Full revision R,van Barneveld 1.00 2015 09 10 Version for first release. A. Amininejad 0.50 2015 06 17 Draft release for peer review A. Amininejad Report number: 20153885300-Ver 2.00 Page 3 of 69 Table of contents 1 REVISION RECORD SHEET ................................................................................................... 2 TABLE OF CONTENTS ................................................................................................................. 3 SUMMARY OF TEST RESULTS .................................................................................................... 5 2 GENERAL DESCRIPTION ....................................................................................................... 6 2.1 APPLICANT .............................................................................................................................. 6 2.2 MANUFACTURER ...................................................................................................................... 6 2.3 EQUIPMENT UNDER TEST (EUT)................................................................................................ 6 2.4 REFERENCES ........................................................................................................................... 6 2.5 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ......................................................... 7 2.6 MODIFICATION OF THE EUT ...................................................................................................... 7 2.7 TESTING LOCATION .................................................................................................................. 8 2.8 APPLICABLE STANDARDS ......................................................................................................... 8 2.9 OBSERVATIONS AND REMARKS: ................................................................................................ 8 2.10 CONCLUSIONS ....................................................................................................................... 9 3 TEST CONFIGURATION OF THE EUT (EQUIPMENT UNDER TEST) .................................. 10 3.1 TEST MODE ............................................................................................................................ 10 3.2 CONDUCTED TEST SETUP DIAGRAM ........................................................................................ 10 3.3 RADIATED TEST SETUP WITHIN A SEMI ANECHOIC CHAMBER (SAC) ......................................... 11 3.4 EQUIPMENT USED IN TEST CONFIGURATION .............................................................................. 12 3.5 EXPLANATION OF THE MEASUREMENT RESULTS FOR ALL CONDUCTED TEST ITEMS: ................... 14 4 TESTED CHANNELS ............................................................................................................. 14 4.1 WCDMA CHANNELS .............................................................................................................. 14 4.2 TESTED GSM CHANNELS ....................................................................................................... 14 5 TEST RESULTS ..................................................................................................................... 15 5.1 CONDUCTED OUTPUT POWER MEASUREMENT ......................................................................... 15 5.1.1 DESCRIPTION OF THE CONDUCTED OUTPUT POWER MEASUREMENT ...................................... 15 5.1.2 LIMIT .................................................................................................................................. 15 5.1.3 MEASURING INSTRUMENTS .................................................................................................. 15 5.1.4 TEST SETUP ........................................................................................................................ 15 5.1.5 TEST P…

Text truncated - open the document above for the full version.

Report number: 20153885300-Ver 2.00 Page 36 of 69 GSM channel 512, Occupied Bandwidth GSM channel 512, 26dB Bandwidth Report number: 20153885300-Ver 2.00 Page 37 of 69 GSM channel 661, Occupied Bandwidth GSM channel 661, 26dB Bandwidth Report number: 20153885300-Ver 2.00 Page 38 of 69 GSM channel 810, Occupied Bandwidth GSM channel 810, 26dB Bandwidth Report number: 20153885300-Ver 2.00 Page 39 of 69 5.3.7 Test results WCDMA WCDMA channel 9263, Occupied Bandwidth WCDMA channel 9263, 26dB Bandwidth Report number: 20153885300-Ver 2.00 Page 40 of 69 WCDMA channel 9400, Occupied Bandwidth WCDMA channel 9400, 26dB Bandwidth Report number: 20153885300-Ver 2.00 Page 41 of 69 WCDMA channel 9538, Occupied Bandwidth WCDMA channel 9538, 26dB Bandwidth Report number: 20153885300-Ver 2.00 Page 42 of 69 WCDMA channel 4132, Occupied Bandwidth WCDMA channel 4132, 26dB Bandwidth Report number: 20153885300-Ver 2.00 Page 43 of 69 WCDMA channel 4182, Occupied Bandwidth WCDMA channel 4182, 26dB Bandwidth Report number: 20153885300-Ver 2.00 Page 44 of 69 WCDMA channel 4233, Occupied Bandwidth WCDMA channel 4233, 26dB Bandwidth Report number: 20153885300-Ver 2.00 Page 45 of 69 5.3.8 Measurement uncertainties Technology Uncertainty GSM850 ± 1.3 kHz PCS1900 ± 1.3 kHz WCDMA ± 55.5 kHz Report number: 20153885300-Ver 2.00 Page 46 of 69 5.4 Frequency Stability Measurement 5.4.1 Description of Frequency Stability Measurement The frequency stability shall be measured by variation of ambient temperature and variation of primary supply voltage to ensure that the fundamental emission stays within the authorized frequency block. 5.4.2 Limit The frequency stability of the transmitter shall be maintained within ± 0,00025% (±2,5 ppm) of the centre frequency. 5.4.3 Measuring instruments The measuring instruments are listed in chapter 3.4 of this report. 5.4.4 Test setup Report number: 20153885300-Ver 2.00 Page 47 of 69 5.4.5 Test procedure for Temperature Variation 1) The EUT was set up in the thermal chamber and connected with the system simulator. 2) With Power off, the temperature was decreased to -30ºC and the EUT was stabilized before testing. Power was applied and the maximum change in frequency was recorded within one minute. 3) With Power off, the temperature was incremented in 10 ºC steps up to 50 ºC. The EUT was stabilized at each step for at least half an hour. Power was applied and the maximum frequency change was recorded within one minute. 5.4.6 Test procedure for Voltage variation 1) The EUT was placed in a temperature chamber at 25±5 ºC and connected with system simulator. 2) The power supply voltage attached to the EUT was varied from BEP (Battery End Point) to 115% of the nominal value measured at the input to the EUT. 3) The variation in frequency was measured for the worst case and recorded. Report number: 20153885300-Ver 2.00 Page 48 of 69 5.4.7 Test Result of Temperature variation Test results GSM and PCS Band GSM850 Mid channel 162 Frequency 836.6 MHz PCS1900 Mid channel 661 Frequency 1880 MHz Limit [ppm] ±2,5 Vnom= 4.0 [V] BEP < 3,6 V Temperature [ºC] GSM850 MHz GSM1900 MHz Frequency Dev.[Hz] Deviation [ppm] Frequency Dev.[Hz] Deviation [ppm] -30 5,75 0,007 -1,87 0,001 -20 2,45 0,003 -9,1 0,005 -10 8,52 0,010 -1,03 0,001 0 6,78 0,008 0,0 0,0 10 7,10 0,008 -0,39 0,0 20 (nom) 6,46 0,008 -10,01 0,005 30 9,36 0,011 -12,4 0,007 40 7,55 0,009 -1,23 0,001 50 9,36 0,011 -6,46 0,003 Test results WCDMA Band WCDMA Band II Mid channel 9400 Frequency 1880 MHz WCDMA Band V Mid channel 4182 Limit [ppm] ±2,5 Frequency 836,4 MHz Temperature [ºC] WCDMA Band II WCDMA Band V Frequency Dev,[Hz] Deviation [ppm] Frequency Dev,[Hz] Deviation [ppm] -30 5,48 0,003 8,33 0,01 -20 8,44 0,001 7,88 0,009 -10 -51,8 0,006 6,87 0,008 0 2,88 0,002 2,17 0,003 10 18,4 0,002 52,33 0,013 20 (nom) -5,25 0,003 3,8 0,005 30 16,5 0,009 -0,79 0,001 40 -6,07 0,003 3,03 0,004 50 -8,95 0,005 4,03 0,005 Report number: 20153885300-Ver 2.00 Page 49 of 69 5.4.8 Test Result of Voltage variation Band & Channel Mode Voltage [V] Frequency Dev. [Hz] Deviation [ppm] Limit (ppm) GSM850 Ch. :190 GSM BEP < 3,6 4,97 0,006 ±2,5 4,0 3,55 0,004 4,255 4,26 0,005 PCS1900 Ch.: 661 GSM BEP < 3,6 -10,72 0,006 4,0 -10,72 0,006 4,255 -8,85 0,005 WCDMA II Ch.: 9400 RMC 12,2 Kbps BEP < 3,6 26,17 0,014 4,0 -5,25 0,003 4,255 2,33 0,001 WCDMA V Ch.: 4182 RMC 12,2 Kbps BEP < 3,6 10,41 0,012 4,0 3,8 0,005 4,255 2,33 0,001 5.4.9 Measurement uncertainties Measurement uncertainties are within the 95% Confidence interval at= ± 0.011 [ppm] Report number: 20153885300-Ver 2.00 Page 50 of 69 5.5 Radiated spurious emissions / Band edge emissions 5.5.1 Limit The power of any emission outside of the authorized operating frequency ranges must be below the transmitting power (P) by a factor of at least 43 + 10 log(P) dB. 5.5.2 Measuring instruments The measuring instruments are listed in chapter 3.4 of this report. 5.5.3 Test setup As shown in chapter 3.3 of this report. 5.5.4 Test procedure As these tests are performed as radiated measurement, these are performed within the SAC chamber. These are mainly done at two attempts: a) For frequencies below 1 GHz utilizing a BiconiLog antenna. b) For frequencies above 1 GHz using a Horn antenna. The measurements are repeated for both horizontal and vertical orientation of the antenna pointing at the EUT placed on the centre of a turn table. Note 1: The graphics below represent radiated power levels calculated from the measured radiated field strength in the far field. This due to limitations of the spectrum analyzer. Note 2: For WCDMA band 2 high pass filter No. 15 is used, and for WCDMA band 5 high pass filter No. 16 is used. Note 3: To convert dBμV/m to dBm, see the conversion factors below are used. Above 1 GHz: EIRP (dBm) = E (dBμV/m) – 95.2(dBm). Below 1 GHz: ERP (dBm) = E (dBμV/m) – 97.3(dBm). Report number: 20153885300-Ver 2.00 Page 51 of 69 5.5.5 Test results GSM 850 Ch. 128, Horizontal pol, (0.03 < F < 1 GHz) A TDS PA PS DC * RBW 10 kHz SW…

Text truncated - open the document above for the full version.

Report number: 20153885300-Ver 2.00 Page 66 of 69 5.5.8 Test results WCDMA Band 5 2. 30 MHz to 1 GHz See plot in 5.5.6 Ch. 4132, Horizontal pol, (1 ≤ F < 9 GHz) Ch. 4132, Vertical pol, (1 ≤ F < 9 GHz) Report number: 20153885300-Ver 2.00 Page 67 of 69 Ch. 4182, Horizontal pol, (1 ≤ F < 9 GHz) Ch. 4182, Vertical pol, (1 ≤ F < 9 GHz) Report number: 20153885300-Ver 2.00 Page 68 of 69 Ch. 4233, Horizontal pol, (1 ≤ F < 9 GHz) Ch. 4233, Vertical pol, (1 ≤ F < 9 GHz) Band edge Since no Spurious emissions are found, as shown in the preceding graphs, band edge measurements were considered not to be necessary and therefore omitted. Report number: 20153885300-Ver 2.00 Page 69 of 69 Measurement uncertainties Horizontal polarization 30 – 200 MHz 4.5 dB 200 – 1000 MHz 3.6 dB 1 – 18 GHz 5.7 dB Vertical polarization 30 – 200 MHz 5.4 dB 200 – 1000 MHz 4.6 dB 1 – 18 GHz 5.7 dB This is the last page of this test report.

RF R&D Manager Ver. 1.0 30-09-2015 Amir Amininejad R&D Document 1 Copyright 2015. Telefication Photographs of the test Configuration For project 20153885 Status: v. 1.0 30-09-2015 Doc. Number: Author: Amininejad Amir Approver: Review team Function: RF R&D Lab Security: Filename: Document Location: K:\Laboratory\Projects\20153885 RF R&D Manager Ver. 1.0 30-09-2015 Amir Amininejad R&D Document 2 Copyright 2015. Telefication 1. Revision record sheet NOTE: The person who initiated the document or modified the document is responsible for maintaining this record sheet (in case of use please remove revision information) Revision Section number Page number Date Remark(s) issued by 0,5 30-09-2015 This is the draft ver. The document is currently under composition. AA 1.0 30-09-2015 The UE sample pictures are removed AA Approved ver. by : Amir Amininejad Function : Operational Manager RF Laboratory. Revision :1.0 Date : 30-09-2015 RF R&D Manager Ver. 1.0 30-09-2015 Amir Amininejad R&D Document 3 Copyright 2015. Telefication 2. Table of contents 1. Revision record sheet ....................................................................................................................... 2 2. Table of contents ............................................................................................................................... 3 3. Conducted Emission Test ................................................................................................................ 4 4. Radiated Emission Test setup ......................................................................................................... 5 5. Conducted RF Test setup ................................................................................................................. 6 RF R&D Manager Ver. 1.0 30-09-2015 Amir Amininejad R&D Document 4 Copyright 2015. Telefication 3. Conducted Emission Test RF R&D Manager Ver. 1.0 30-09-2015 Amir Amininejad R&D Document 5 Copyright 2015. Telefication 4. Radiated Emission Test setup RF R&D Manager Ver. 1.0 30-09-2015 Amir Amininejad R&D Document 6 Copyright 2015. Telefication 5. Conducted RF Test setup
