2AD2HDWAN150USERIES802.11b/g/n wireless ADSL Router

 802.11b/g/n wireless ADSL Router Model No.:DWA-N150USeries Ve r. : 1.0.0 ii FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/ TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1˅ This device may not cause harmful interference. 2˅ This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. N ote: This device include it's antenna must be more than 20 cm away from human body when using. 2 G/3G USB Modem (Data Card) or Dongle are not in the package of this device, and will be sold separately.

iii CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. 802.11b/g/n wireless ADSL Router DWA-N150USeries i Contents 1 Introduction .................................................................................................................. 1 2 Safety Precautions ....................................................................................................... 2 2.1 Features .......................................................................................................... 5 3 Hardware Connection .................................................................................................. 7 3.1 ADSL Connection ............................................................................................ 7 3.2 Broadband Connection.................................................................................... 8 3.3 3G WAN Connection ....................................................................................... 9 4 Router Configuration .................................................................................................. 10 4.1 TCP/IP Network Configuration ...................................................................... 10 4.2 Installation Guide ........................................................................................... 11 4.4 Status............................................................................................................. 13 4.4.1 Device Information ........................................................................ 13 4.4.2 ADSL Info. ..................................................................................... 15 4.4.3 Statistics ........................................................................................ 16 4.5 Quick Start ..................................................................................................... 17 4.6 Network Setup ............................................................................................... 20 4.6.1 WAN .............................................................................................. 20 4.6.2 LAN ............................................................................................... 29 4.6.3 Wireless......................................................................................... 38 4.7 Advanced Setting .......................................................................................... 50 4.7.1 Routing .......................................................................................... 50 4.7.2 NAT................................................................................................ 53 4.7.3 QoS ............................................................................................... 59 4.7.4 TR-069 .......................................................................................... 60 4.7.5 Virtual Port Group.......................................................................... 62 4.7.6 Management ................................................................................. 63 4.8 Access Management ..................................................................................... 64 4.8.1 IGMP ............................................................................................. 64 4.8.2 UPnP ............................................................................................. 65 4.8.3 SNMP ............................................................................................ 66 4.8.4 DNS ............................................................................................... 67 4.8.5 DynDNS ........................................................................................ 68 4.8.6 FTP Server .................................................................................... 70 4.8.7 USB Storage.................................................................................. 70 ii 4.9 Security Settings............................................................................................ 71 4.9.1 MAC Filter ................................…

Text truncated - open the document above for the full version.

DCOM Technology CO., LTD Room 8004, B/51, 2nd Dist. Shangtang Songzi Park, Minzhi, Longhua, Shenzhen, China TEL: +86-755-86539056 FAX: +86-755-86321443 DOC ATTESTATION LETTER FCC ID: 2AD2HDWAN150USERIES Date: Jan. 19, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the computer peripheral. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, Alex Zhu /Manager I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the computer peripheral. And FCC DOC will be got before sell. I understand the following FCC requirements: Model Name˖ DWA-N150USeries, DWA-N300USeries

DCOM Technology CO., LTD Room 8004, B/51, 2nd Dist. Shangtang Songzi Park, Minzhi, Longhua, Shenzhen, China TEL: +86-755-86539056 FAX: +86-755-86321443 DATE 01-19-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AD2HDWAN150USERIES Product Name: 802.11b/g/n wireless ADSL Router Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 01-19-2015 By: Alex Zhu Signature Printed Title: Manager On behalf of : DCOM Technology CO., LTD Telephone: +86-755-86539056

DCOM Technology CO., LTD Room 8004, B/51, 2nd Dist. Shangtang Songzi Park, Minzhi, Longhua, Shenzhen, China TEL: +86-755-86539056 FAX: +86-755-86321443 Series Models Description FCC ID: 2AD2HDWAN150USERIES Date: Jan. 16, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: 802.11b/g/n wireless ADSL Router) Models Name: DWA-N150USeries, DWA-N300USeries) have same electrical, PCB and BOM, only the model’s name and color are different for marketing requirements. Sincerely, Alex Zhu /Manager The device (Product Name: 802.11b/g/n wireless ADSL Router) Models Name: DWA-N150USeries, DWA-N300USeries) are electrically identical, only the model’s name and color are different for marketing requirements.

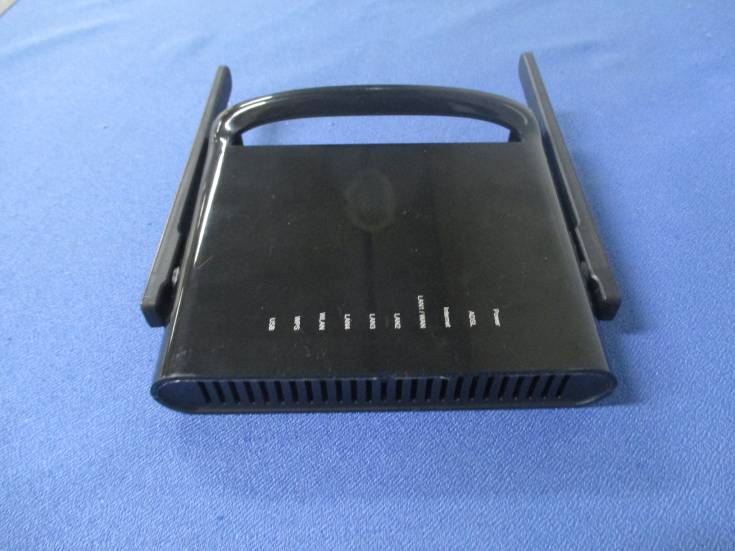

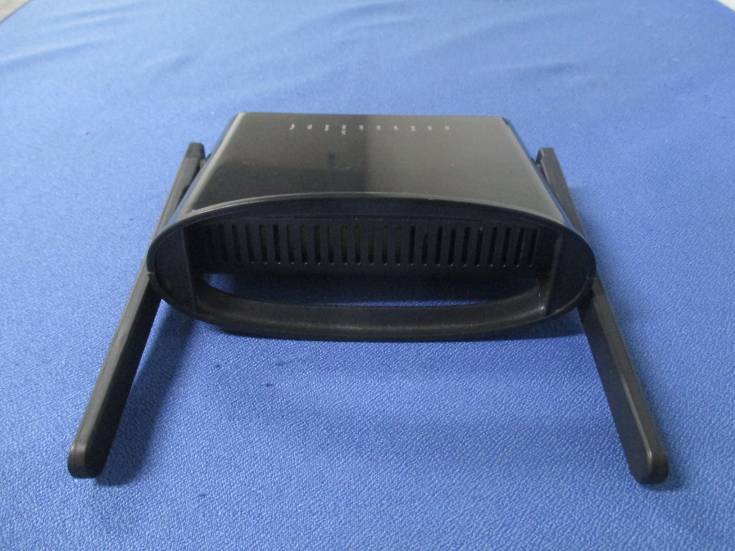

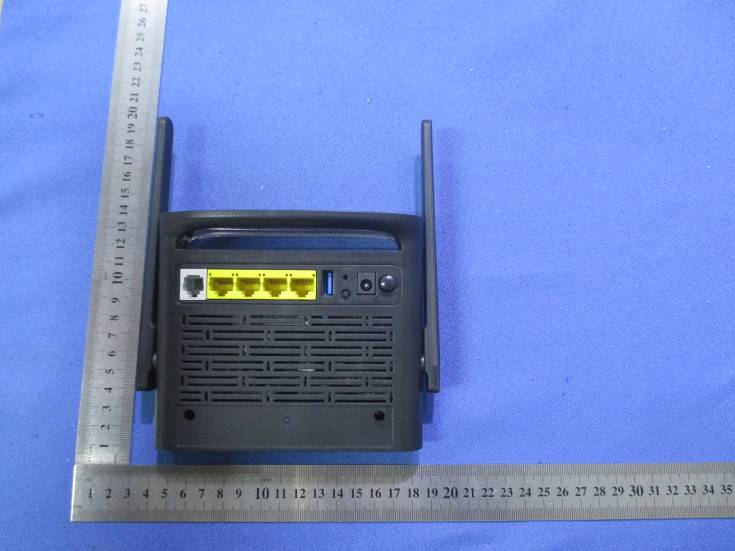

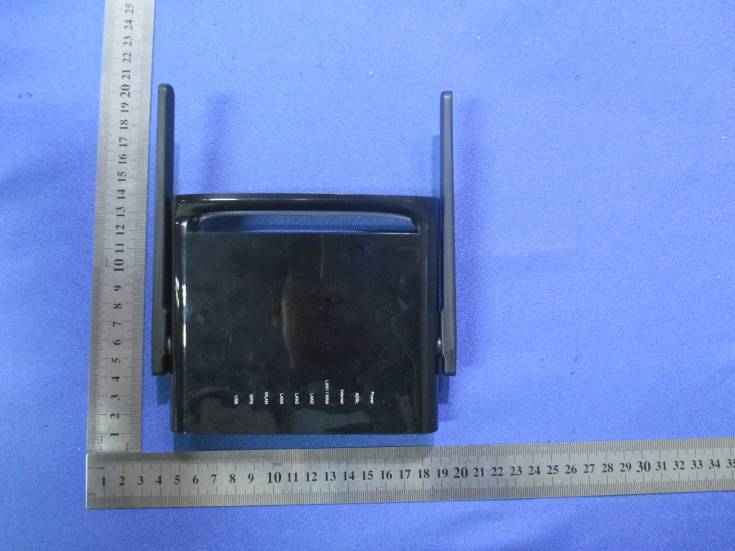

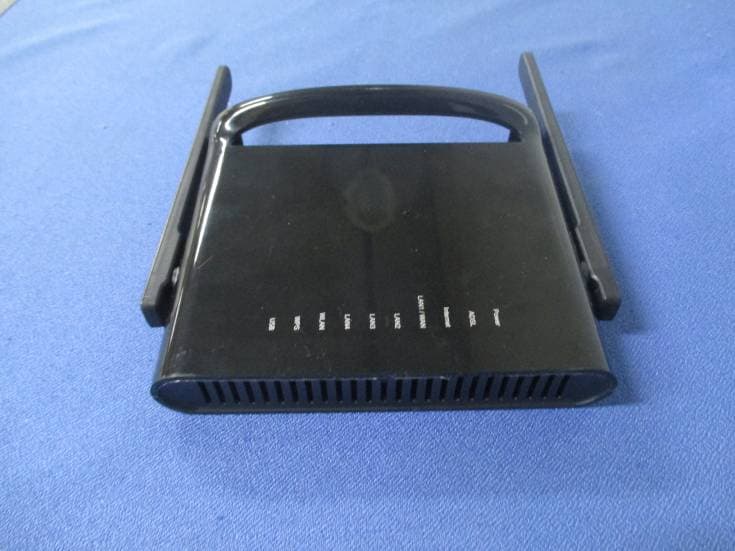

External Photos of EUT

FCC ID Label Information 1. Label location: 2. FCC ID Label: DCOM Technology CO., LTD 802.11b/g/n wireless ADSL Router Model: DWA-N150USeries FCC ID: 2AD2HDWAN150USERIES This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos of EUT

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No......................: CTL1412042914-WM FCC ID..............................................: Compiled by ( position+printed name+signature)..: File administrators Jennifer NI Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Jacky Chen Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Jan. 13, 2015 Test Laboratory Name ...................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: DCOM Technology Co., LTD Address.............................................: Room 8004, B/51, 2 nd Dist, Shangtang Songzi Park, Minzhi, Longhua, Shenzhen, China Test specification: Standard ...........................................: FCC Per 47 CFR 2.1091(b) TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader’s interpretation of the reproduced material due to its placement and context. Test item description .................... : 802.11b/g/n wireless ADSL Router FCC ID.......................................: 2AD2HDWAN150USERIES Trade Mark .......................................: N/A Model/Type reference.......................: DWA-N150Series, DWA-N300Series Modulation .......................................: 802.11b DSSS, 802.11g/n: OFDM Work Frequency Range....................: 802.11b/g/n(20MHz): 2412~2462MHz Antenna Type ...................................: MIMO Antenna Gain....................................: 5dBi Result................................................: Positive V1.0 Page 2 of 8 Report No.: CTL1412042914-WM Test Report Test Report No. : CTL1412042914-WM Jan. 13, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : 802.11b/g/n wireless ADSL Router Model /Type : DWA-N150Series Listed Modes : DWA-N300Series Difference Description : Only the color and model's name is different Applicant : DCOM Technology Co., LTD Address : Room 8004, B/51, 2 nd Dist, Shangtang Songzi Park, Minzhi, Longhua, Shenzhen, China Manufacturer : DCOM Technology Co., LTD Address : Room 8004, B/51, 2 nd Dist, Shangtang Songzi Park, Minzhi, Longhua, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 8 Report No.: CTL1412042914-WM Content 1. SUMMARY............................................................................. 4 1.1. EUT configuration 4 1.2. Equipment Under Test 4 1.3. Description of the test mode 4 1.4. NOTE 5 2. TEST ENVIRONMENT ............................................................... 5 2.1. Address of the test laboratory 6 2.2. Environmental conditions 6 2.3. Statement of the measurement uncertainty 6 3. METHOD OF MEASUREMENT..................................................... 7 V1.0 Page 4 of 8 Report No.: CTL1412042914-WM 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer o - supplied by the lab ● AC Adapter Manufacturer: DCOM Technology Co., LTD Model No.: JOD-120100 1.2. Equipment Under Test Power supply system utilised Power supply voltage : „ 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC o Other (specified in blank below) 1.3. Description of the test mode IEEE 802.11b/g/n(HT20): Thirteen channels are provided to the EUT, but only eleventh channels used for USA and Canada. Channel Frequency(MHz)ChannelFrequency(MHz) 1 241282447 2 241792452 3 2422102457 4 2427112462 5 2432 6 2437 7 2442 V1.0 Page 5 of 8 Report No.: CTL1412042914-WM 1.4. NOTE 1. The EUT is a WIFI-Speaker,The functions of the EUT listed as below: Test StandardsReference Report FCC Part 15 Subpart C (Section15.247) CTL1412042914-WF WLAN 802.11b/g, 802.11n FCC Per 47 CFR 2.1091(b) CTL1412042914-WM 2. The frequency bands used in this EUT are listed as follows: Frequency Band(MHz)2400-2483.55150-53505470-5725 5725-5850 802.11b √ － － － 802.11g √ － － － 802.11n(20MHz) √ － － － 3. The EUT incorporates a MIMO function,Physically,the EUT provides two completed transmitter and two completed receivers. Modulation Mode TX Function 802.11b 1TX 802.11g 1TX 802.11n (20MHz) 2TX V1.0 Page 6 of 8 Report No.: CTL1412042914-WM 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 The sites are constructed in conformance with the requirements of ANSI C6230, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed …

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Part 15.247 Report Reference No......................: CTL1412042914-WF Compiled by ( position+printed name+signature) .: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature) .: Test Engineer Tracy Qi Approved by ( position+printed name+signature) .: Manager Tracy Qi Date of issue.....................................: Jan. 13, 2015 Test Laboratory Name...................: Shenzhen CTL Testing Technology Co., Ltd. Address ............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: DCOM Technology Co., LTD Address ............................................: Room 8004, B/51, 2 nd Dist, Shangtang Songzi Park, Minzhi, Longhua, Shenzhen, China Test specification: Standard ...........................................: FCC Part 15.247: Operation within the bands 902–928 MHz, 2400– 2483.5 MHz, and 5725–5850 MHz. TRF Originator..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: 802.11b/g/n wireless ADSL Router FCC ID.......................................: 2AD2HDWAN150USERIES Trade Mark ....................................... : N/A Model/Type reference ......................: DWA-N150USeries, DWA-N300USeries Modulation .......................................: 802.11b DSSS, 802.11g/n: OFDM Work Frequency Range ...................: 802.11b/g/n(20MHz): 2412~2462MHz Antenna Type ................................... : Undetechtable Antenna Gain....................................: 5dBi Result ............................................... : Positive V1.0 Page 2 of 100 Report No.: CTL1412042914-WF T E S T R E P O R T Test Report No. : CTL1412042914-WF Jan. 13, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test: 802.11b/g/n wireless ADSL Router Model /Type : DWA-N150USeries Listed Modes : DWA-N300USeries Difference Description: Only the color and model's name is different Applicant : DCOM Technology Co., LTD Address : Room 8004, B/51, 2 nd Dist, Shangtang Songzi Park, Minzhi, Longhua, Shenzhen, China Manufacturer : DCOM Technology Co., LTD Address : Room 8004, B/51, 2 nd Dist, Shangtang Songzi Park, Minzhi, Longhua, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 100 Report No.: CTL1412042914-WF Contents 1. TEST STANDARDS................................................................. 4 2. SUMMARY............................................................................ 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 6 2.5. EUT configuration 6 2.6. NOTE 6 2.7. Related Submittal(s) / Grant (s) 6 2.8. Modifications 6 3. TEST ENVIRONMENT ............................................................. 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Duty Cycle 8 3.6. Statement of the measurement uncertainty 8 3.7. Equipments Used during the Test 9 3.8. Summary of Test Result 10 4. TEST CONDITIONS AND RESULTS.......................................... 11 4.1. Conducted Emissions Test 11 4.2. Radiated Emission Test 14 4.3. 6dB Bandwidth Measurement 21 4.4. Maximum Peak Output Power 31 4.5. Band Edge Measurement 32 4.6. Power Spectral Density Measurement 57 4.7. Spurious RF Conducted Emission 67 4.8. Antenna Requirement 91 5. TEST SETUP PHOTOS OF THE EUT ........................................ 92 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ..................... 94 V1.0 Page 4 of 100 Report No.: CTL1412042914-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices. ANSI C63.4-2009 KDB Publication No. 558074 D01 v03r02 Guidance on Measurements for Digital Transmission Systems V1.0 Page 5 of 100 Report No.: CTL1412042914-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Dec. 10, 2014 Testing commenced on : Dec. 10, 2014 Testing concluded on : Jan. 13, 2015 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ● 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ○ Other (specified in blank below) Description of the test mode IEEE 802.11b/g/n(HT20): Thirteen channels are provided to the EUT, but only eleventh channels used for USA and Canada. Channel Frequency(MHz)ChannelFrequency(MHz) 1 241282447 2 241792452 3 2422102457 4 2427112462 5 2432 6 2437 7 2442 2.3. Short description of the Equipment under Test (EUT) 802.11b/g/n wireless ADSL Router, support 802.11b/g/n. For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 100 Report No.: CTL1412042914-WF 2.4. EUT operation mode Test Mode: 1. The E…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
