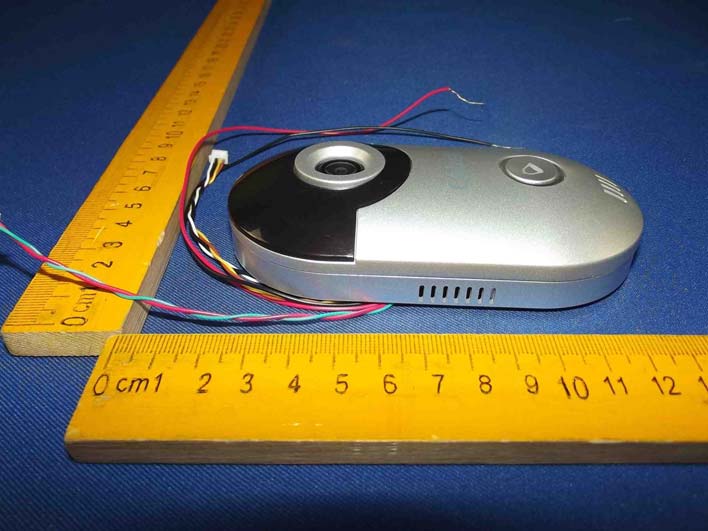

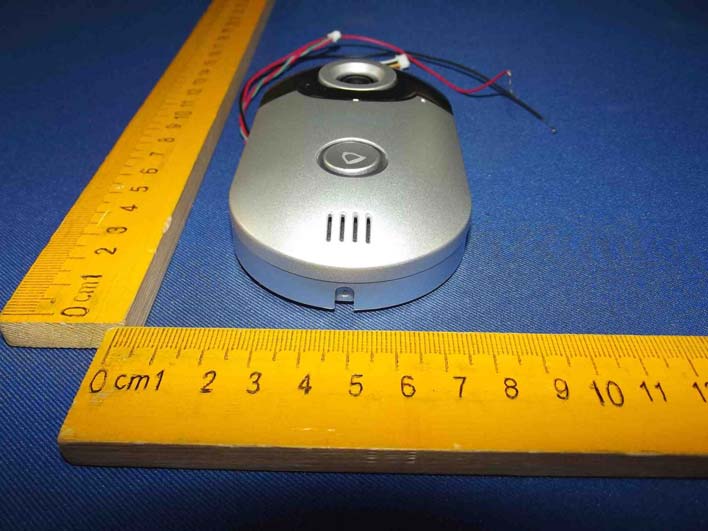

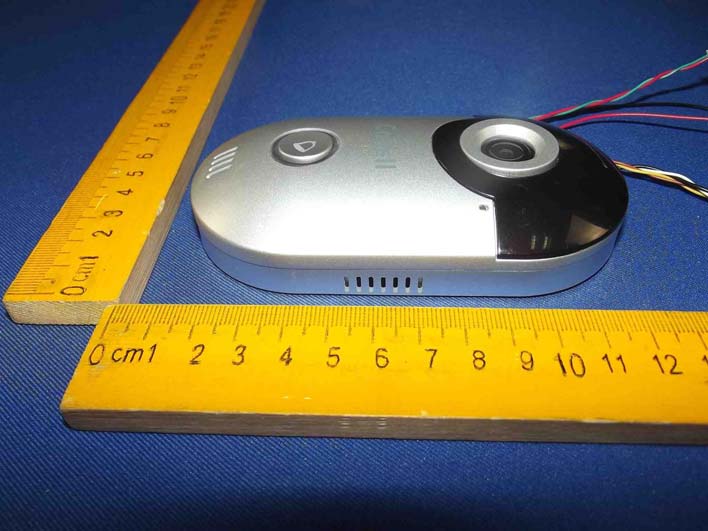

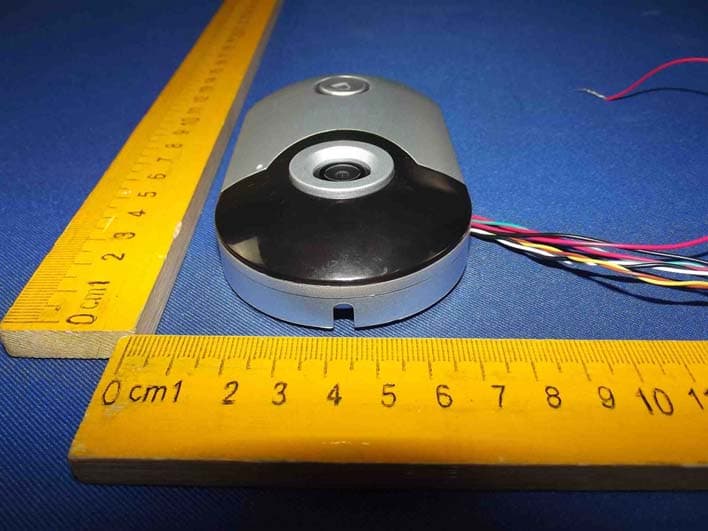

2AD2N-COBELLWi-Fi Doorbell

Cobell Installation Guide Wi-Fi Doorbell V1.0 Contents 1.Preface..............................................................................................................................3 1.1 Diagram...................................................................................................................3 1.2 Package..................................................................................................................4 2.Installation.........................................................................................................................4 2.1 Install the Bracket. ..................................................................................................4 2.2 Install the Doorbell..................................................................................................5 2.3 Power Line Connection ..........................................................................................5 2.4 Power On................................................................................................................6 3.Wi-Fi Connection Quick Guide .........................................................................................7 3.1 Install the APP ........................................................................................................7 3.2 Enter Setting Mode.................................................................................................7 3.3 Set the Wi-Fi Connection .......................................................................................7 3.3.1 Connect to the AP Host of Doorbell .............................................................7 3.3.2 Add the Doorbell on APP .............................................................................7 3.3.3 Set the Doorbell Connect to the Wi-Fi Router .............................................7 4.APP User Manual for Android...........................................................................................7 5.APP User Manual for iOS ...............................................................................................12 6.RF Bell Setting ................................................................................................................17 7.Color Box ........................................................................................................................17 8.Technical Support ...........................................................................................................18 1.Preface Thank you for using the Wi-Fi Doorbell.....Cobell. This is the new smart home wireless doorbell. It supports two way audio, motion detection, snapshots, recording and more. Please take a minute to carefully review these instructions. 1.1 Diagram Front Back 1. Power line, Support 12~24VAC or 12VDC / 0.5A 2. RJ45 interface connection cable(4 lines with pin) 3. Lock Relay connection cable(2 lines with pin) 4. 4 pcs IR LED inside 5. 2.5mm Lens 6. Microphone 7. Logo 8. Doorbell Button 9. Speaker 10. Bracket Hole 11. Cooling Aluminum Sheet 12. Reset Button 13. Bottom Screw Hole 1.2 Package 2. Installation Tools you may need: Pliers, Power Drill or Screw Driver, Wire Strippers, Insulation Tape. Statement: Drill two screw holes on the position that the doorbell will be installed, and put the rubber plug inside, punch a small hole for threading all the cables in advance. Note: The sample installation is on the wooden door, just FYI. 2.1 Install the Bracket. 1 2 3 4 Find the bracket in the package and mount it with the screws, please make sure it vertical. 2.2 Install the Doorbell 1 2 3 4 After the bracket is installed, put all the cables through the small hole, and install the doorbell on the bracket. Then install the screw at the bottom, please make sure it’s tight. 2.3 Power Line Connection Attention: 1. There is no positive or negative for the power line of the doorbell. 2. The Doorbell can only connect to low voltage power from 12~24VAC or 12VDC / 0.5A. 3. Please use insulation tape to keep the power line safely connected. 4. Connect the Power Line: 1. If you are using a doorbell chime with power supply via low voltage transformer, you can use the current cables of the transformer to connect the power line directly to the cables. It supports 12~24VAC. 2. If you are not using a doorbell chime, you can use the DC connector which is in the package and a 12VDC Power adapter (not included) to provide power. Refer to the picture below. Note: You have to buy the 12VDC adapter separately, normally amperage greater than 0.5A is ok. 2.4 Power On After the power line is connected, the device will power on. The doorbell button ring will turn on blue and the IR LED will light on if the environment is dark. 3.Wi-Fi Connection Quick Guide 3.1 Install the APP Please download and install the APP from Apple Store or Google Play to your smart phone or tablet first. The APP name is “Cobell”. 3.2 Enter Setting Mode After the doorbell power on, press the doorbell button for at least 3 seconds, it will change to the setting mode, the button will turn on blue and blink, voice prompt will be heard (Network Configuration Mode, Please Set it Done in 5 Minutes). Then we can start to set the Wi-Fi connection. 3.3 Set the Wi-Fi Connection 3.3.1 Connect to the AP Host of Doorbell Open the WLAN settings of your smart phone or tablet, refresh it, find out the Wi-Fi SSID of the doorbell, connect it. Note: This doorbell supports Wi-Fi AP host, default SSID is “Bell+ 6 digits”, password is blank. 3.3.2 Add the Doorbell on APP Run the APP on your smart phone or tablet, click to add a doorbell, the default username is admin, no password. Please follow the instruction(Details see Chapter 4 and 5). 3.3.3 Set the Doorbell Connect to the Wi-Fi Router 1.Click and select the “WiFi Settings” menu. 2.Select your Wi-Fi router SSID and enter the password. 3.If the setting is correct,the doorbell will restart and connect to the Wi-Fi router. Note: If the Wi-Fi …
