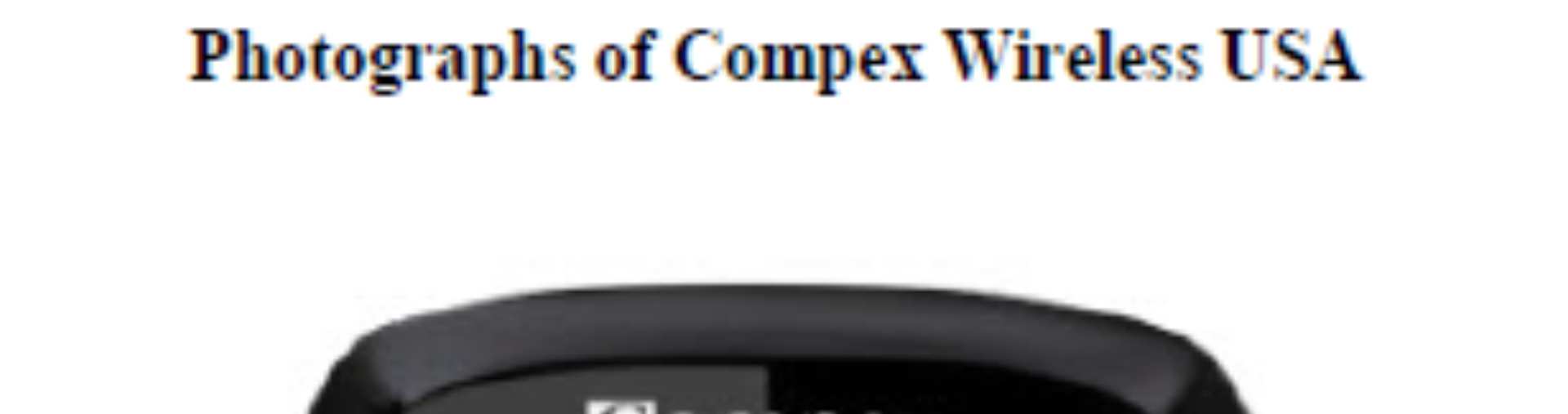

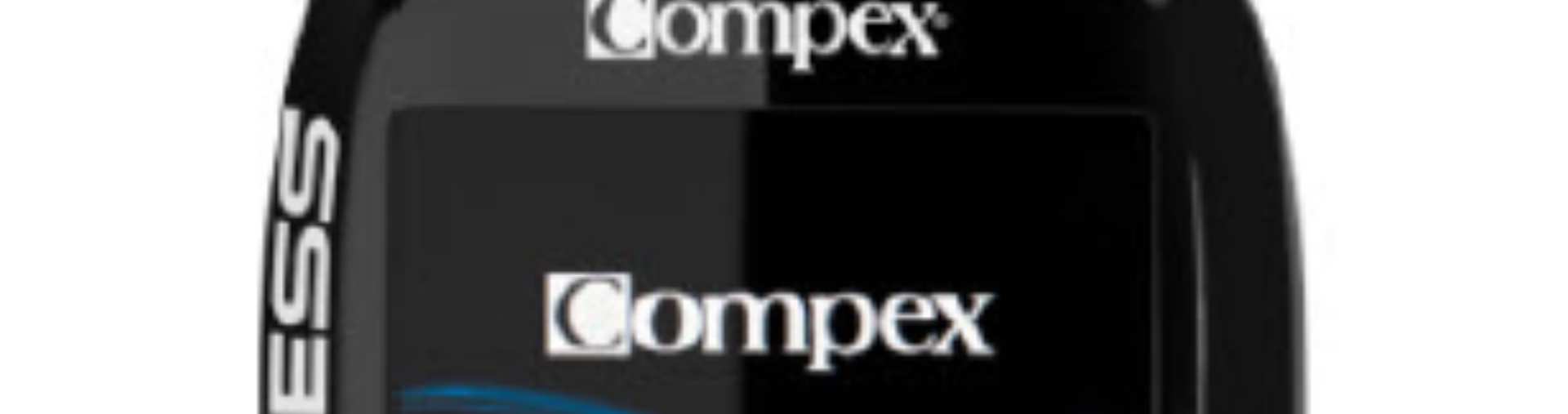

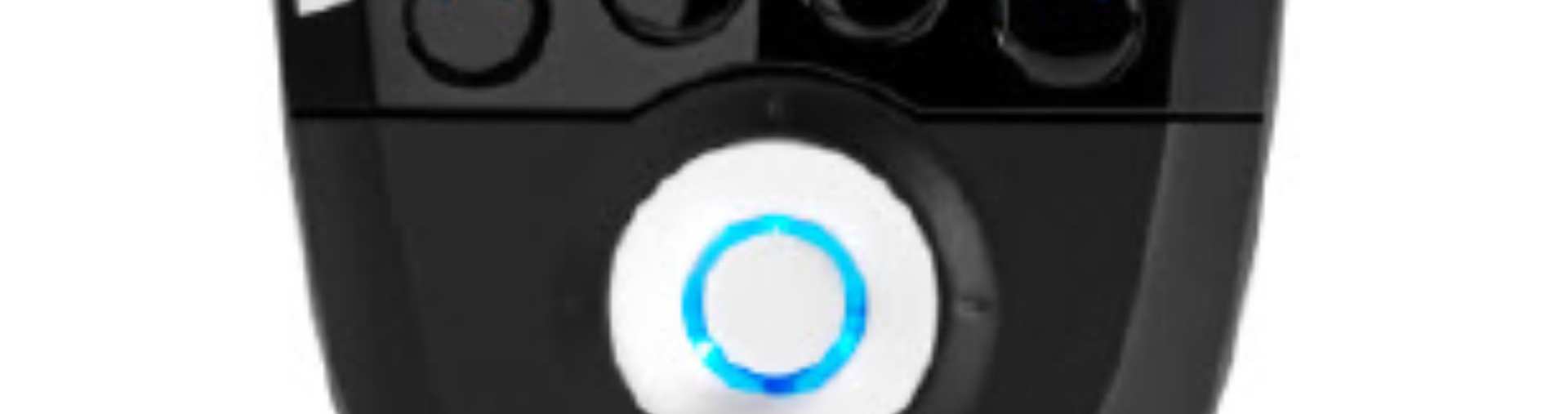

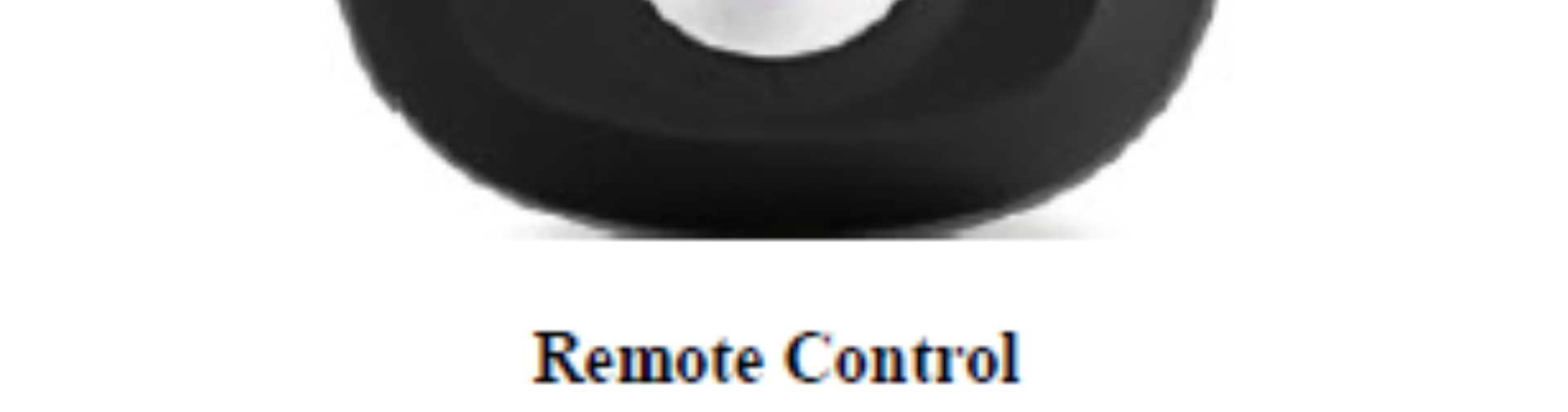

2AD2U-REMHHTFT24The Compex Wireless USA is a neuromuscular electrical stimulation (NMES) device used for muscle conditioning

English|Español|Français Insert image of Compex Wireless USA with Modules USER MANUAL INSTRUCTIONS TABLE OF CONTENTS Forward ......1 About Compex Wireless USA ......2 Precautionary Instructions ......2 Cautions. . . . . . . . . . . 3-5 Warnings . . . . . . . . . . 6-8 Dangers. . . . . . . . . . . 9 Indications for Use . . . . . . . . . . . 10 Contraindications . . . . . . . . . . . 10-11 Adverse Reactions . . . . . . . . . . 11 Contents ......12 Compex Wireless USA ......12-13 Accessories ......14 Introduction ......15 How Does Electrostimulation Work? ......15 Motor Nerve Stimulation (EMS) ......15 Benefits of Electrostimulation ......16 Safety Guide ......17-20 Who should not use the Compex Wireless USA ......17 Where never to apply electrodes ......18-19 Precautions when using electrodes ......20 Operation ......21 Preliminary Settings ......21 First Use ......21-22 Device Function ......23 Select a Program. ......25 Select Electrode Placement ......26 Turn on Modules ......26 How to Access Settings ......27 Start a Simulation Program ......29 Battery Level Indication ......34 Charging ......34-36 Programs ......37 Endurance ......37 TABLE OF CONTENTS Resistance ......37 Strength ......38 Explosive Strength ......38 Specialized Muscle Training Programs ......38 Potentiation ......38 Training Recovery ......39 Pre-Warmup ......39 Competition Recovery ......39 Muscle Relaxation ......39 Operational Guidelines. ......40-42 Usage Guidelines ......40 Choosing the Appropriate Work Program. ......40 Planning Stimulation Session ......40 Electrode Positions ......40 Stimulation Positions ......41 Adjusting Stimulation Energies ......42 Progression in the Levels ......42 TROUBLESHOOTING ......43-45 DEVICE MAINTENANCE ......46 Maintenance......46 Storage/Transport and Use ......46 Disposal ......46 Technical Specifications ......47 General Information ......47 Neurostimulation ......47 RF Data ......48 Standards ......50 Information about Electromagnetic Compatibility (EMC) ......50 Patents ......50 How to Get Help ......51 Specifications ......52 Description of Device Markings ......52 Output Waveform ......54 Output Specifications ......55 Warranty ......62 1 English Foreword This manual has been written for the owners and operators of the Compex® Wireless USA. It contains general instructions for operation, precautionary instructions, and maintenance recommendations. In order to obtain maximum life and efficiency from your Compex Wireless USA, and to assist in the proper operation of the unit, read and understand this manual thoroughly. The specifications put forth in this manual were in effect at the time of the publication. However, changes to these specifications may be made at any time without obligation on the part of DJO, LLC. Before starting any program, you should become acquainted with the shopcompex.com website to establish an appropriate training plan. The shopcompex.com website helps you take your first steps with the device. 2 About Compex Wireless USA PRECAUTIONARY INSTRUCTIONS The precautionary instructions found in this section and throughout this manual are indicated by specific symbols. Understand these symbols and their definitions before operating this equipment. The definitions of these symbols are as follows: Caution Text with a “CAUTION” indicator will explain possible safety infractions that could have the potential to cause minor to moderate injury or damage to equipment. Warning Text with a “WARNING” indicator will explain possible safety infractions that will potentially cause serious injury and equipment damage. Dangerous Voltage Text with a “Dangerous Voltage” indicator serves to inform the user of possible hazards resulting in the electrical charge delivered in certain program configurations of waveforms. BioHazardous materials Text with a “Biohazard” indicator serves to inform the user of possible hazards resulting in improper handling of components and accessories that have come in contact with bodily fluids. Danger Text with a “DANGER” indicator will explain possible safety infractions that are imminently hazardous situations that would result in death or serious injury. Explosion Hazard Text with an “Explosion Hazard” indicator will explain possible safety infractions if this equipment is used in the presence of flammable anesthetics. non-ionizing electromagnetic radiation Text with a “Non-Ionizing Electromagnetic Radiation” indicator informs the user of possible hazards resulting from elevated, potentially dangerous levels of non-ionizing radiation. Note: Throughout this manual, “NOTE” may be found. These Notes are helpful information to aid in the particular area or function being described. 3 English ABOUT Compex Wireless USA • Read, understand, and practice the precautionary and operating instructions found in this manual. Know the limitations and hazards associated with the treatment table. Observe any and all precautionary and operational decals placed on the unit. • DO NOT operate this unit in an environment where other devices are being used that intentionally radiate electromagnetic energy in an unshielded manner. Portable and mobile RF communications equipment can affect Medical Electrical Equipment. • This unit generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to other devices in the vicinity. However, there is no guarantee that interference will not occur in a particular installation. Harmful interference to other devices can be determined by turning this unit on and off. Try to correct the interference using one or more of the following: reorient or relocate the receiving device, increase the separation between the equipment, connect the unit to an outlet on a different circuit from that which the other device(s) are connected, and consult DJO, LLC for help. • NOTE: This equipment has been tested and found to comply with the limits for a Clas…

Text truncated - open the document above for the full version.

Please provide block diagram. A block diagram showing the frequency of all oscillators in the device. The signal path and frequency shall be indicated at each block. The tuning range(s) and intermediate frequency (ies) shall be indicated at each block. See nRF24LE1 Datasheet. Block diagram of the nRF24LE1 device: RF Transceiver part only block diagram: 1. Main (single) Oscillator: 16MHz 2. Air data rate: 2000 kbps 3. Frequency deviation: +/- 320 kHz

Top side of PCB to show what’s underneath the display and keypad, including bottom side of display and keypad

1 Operational Description 1.0 Operating Principle The principle of neuromuscular electrical stimulation (NMES) is to stimulate nerve fibers by means of electrical impulses transmitted by electrodes. The electrical pulses generated by the Compex® Wireless USA stimulate motor nerves to stimulate a muscular response. The quantity and benefits obtained depend on the stimulation parameters. In voluntary activity, the order for muscular work comes from the brain, which sends a command to the nerve fibers in the form of an electrical signal. This signal is then transmitted to the muscular fibers, which contract. The principle of NMES accurately reproduces the process that occurs during a voluntary contraction. The Compex® Wireless USA electrical impulses allow the triggering of action potentials on motoneurones of motor nerves (excitations). These excitations of motoneurones are transmitted to the muscle fibers via the motor endplate where they generate mechanical muscle fiber responses that correspond to muscle work. Depending on the parameters of the electrical impulses (pulse frequency, duration of contraction, duration of rest, and total session duration), different types of muscle work can be imposed on the stimulated muscles. The Compex® Wireless USA may therefore be considered a technique of muscle training. 2.0 System Description The Compex® Wireless USA system consists of the following components. A. 1 Remote Control B. 4 Stimulation Modules C. 1 Docking Station D. 1 Charger E. 2 Bags of Small Electrodes (5x5 cm; 2x2 inch) F. 2 Bags of Large Electrodes (5x10 cm; 2x4 inch - 2 snap connections) G. 2 Bags of Large Electrodes (5x10 cm; 2x4 inch -1 snap connection) H. 1 Carrying case I. 1 Instructions for Use J. 1 Quick Start Guide The remote control, stimulation modules, and electrodes are stored and shipped within the docking station. The relationship between the components and the user are illustrated in Figure 2.0 below. 2 Figure 2.0 User/Device Diagram 3.0 Remote Control Figure 3.0 Compex® Wireless USA Remote Control A – On/Off button (press briefly to switch on and press And hold longer than 2 seconds to switch off) B – 4 Multi-functions buttons: a.) Functions associated with the icons shown on the screen (e.g. info, main menu, electrode placement, etc.) b.) Selection of stimulation channel to increase or decrease the stimulation energy level C – Multi-directional pad (up-down-left-right) to select items. D – Validation button (to accept selected functions) E – Port for docking station connector 3 3.1 Remote Control General Description The remote control is the interface between the stimulation modules and the user. It sends and receives information to and from the modules via a wireless network. The remote control allows the user to navigate through the user interface (UI), select stimulation program or objectives, set desired options and control the four (4) module intensities independently. The remote control is powered by a rechargeable battery. 4.0 Stimulation Modules The Compex® Wireless USA stimulation module set is composed of 4 independent stimulation modules that are controlled via the remote control by a wireless connection. Each module is composed of two “pods” (1 battery “pod” and one stimulation “pod”) linked by an electrical connection (cable). Two proprietary Compex standard snap gel electrodes are also needed to connect each “pod” to the body. The modules are powered by a Lithium Polymer (LiPo) rechargeable 3.7[V] / ≥ 450 [mAh] battery. Figure 4.0 Stimulation Module One stimulation module is made of 2 “pods” with one electrical connection. Figure 4.1 Stimulation Pod Bottom View 4 Figure 4.2 Electrical impulses travel from one “pod” to the skin through gel electrodes. The loop is closed by the electrical connection between the “pods”. 5.0 Radio Frequency (RF) Communication The remote control and modules communicate through a wireless network. Networks from different remote controls do not interfere with each other. Broadcast range:  Up to 2 meters continuous transmission in a room  Up to 1 meter continuous transmission in a multi-sport gym (remote control and module shall be used in line of sight)  The Compex® Wireless USA is not intended to be used outdoors Figure 5.0 Module Charge Connections Gel electrode Stimulation Pod Battery Pod Cable 5 5.1 Stimulation Power Output Characteristics  Square, symmetrical, compensated waveforms, current controlled  Maximum current of an impulse: 120 mA under a charge (body load)  Impulse width: from 50 to 400 [us]  Maximum Energy output of: 120 2 400 = 5 760 000 [mA2μs]  Impulse frequency: from 1 to 150 Hz  In any case, the maximum power output is 1 Watt 5.2 Performance around the Maximum Power Limit The limitation around the maximum power shall be achieved by limiting the current intensity. The power shall increase normally up to the limit and then stop. Information/feedback given to the user: When the user reaches a limit, the intensity shall stop increasing and a visual feedback (icon, text, symbol on the remote) shall be given. Figure 5.1 Compex® Wireless USA Docking Station Figure 5.2 Docking Station During Charge Function 6 6.0 Compex® Wireless USA -Wireless Configuration 6.1 General Information The wireless protocol of the Compex® Wireless USA Device is a proprietary design of a Radio-Frequency protocol operating the 2.4 GHz ISM band. It is used to:  Send particular information from remote control to stimulation modules like stimulation settings (start/stop/increase intensity, decrease intensity, etc...)  Send particular information from stimulation modules to remote control, like current stimulation level and stimulation module subsystem status  Transfer binary data to stimulation modules (from 100[B] to more than 100 [kB])  Allow synchronization (clock sharing) from stimulation modules to remote control clocks. The wireless protocol is a proprietary design of a star network of up to 8 slaves for 1 master. Bidir…

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA 1 Compex Médical SA Larges Pièces A Ch. du Dévent CH-1024 Ecublens 2 RFN_MEZZ_A 02 10.03.201116:40:45 RFN_MEZZ_A02.SchDoc Title Size:Number: Date: File: Revision: SheetofTime: A3 Drawn By:FB/EE 15pF C1 15pF C2 16MHz X1 GND 100nF C3 VCC_nRF GND 100nF C8 33nF C7 GND GND VCC_nRF GND VCC_nRF GND 100nF C6 GND 33nF C13 22k R5 nRF24LE1F16Q32 P0.1 1 VDD 2 VSS 8 P0.3 7 P0.4 10 DEC1 3 DEC2 4 P0.5 11 P0.6 12 PROG 6 P0.7 13 VDD 9 P1.0 14 P1.1 15 P1.2 16 P1.3 17 P1.4 18 P1.5 28 P1.6 29 RESET 19 VDD_PA 20 ANT1 21 ANT2 22 VSS 23 VDD 24 IREF 25 VSS 26 VDD 27 XC1 30 XC2 31 P0.0 32 nRF24LE1 P0.2 5 GND_DIE 33 U1 10K R16 GND 1.5pF C4 GNDGND 4.7nH L1 3.3nH LRC2 MSCK MMISO /Reset MMOSI RiAoIRQ_F MCSN GND 2.2nF C10 10pF C9 GND OCITO SSCKOCITCK / SMOSIOCITMS / SMISOOCITDI / SCSNOCITDO Pad _m Z = 50 Ohm 1 TP2 Die Pad GND UART / TXD UART / RXD PROG 6.8nH L2 1pF C5 GND 0.3pF LRC1 LRC3 1 2 3 4 5 6 7 8 P7 Header, 8-Pin 1 2 3 4 5 6 7 8 P9 Header, 8-Pin GND Vin VCC_nRF MLB-160808-0030PQ L4 1uF C11 GND 100nF C12 GND RiAoIRQ TOP_STIM SPI_RF_CS SPI_RF_CLK SPI_RF_MISO SPI_RF_MOSI GND LED_R 100R R7 100R R8 10pF C14 10pF C15 GNDGND 100R R13 100R R14 100R R15 100R R17 100R R18 10pF C18 10pF C19 10pF C20 10pF C21 10pF C22 GNDGNDGNDGNDGND /Reset PROG SSCK OCITMS / SMISO OCITDI / SCSN OCITDO OCITO 1 2 3 4 5 6 7 8 9 10 P8 RF_PROG OCITCK / SMOSI VCC_nRF GND MSCK MSCK MMISO MMOSI MCSN TOP_STIM_F 1 2 3 4 G R KPB-3025ESGC D1 VinVin 1 3 2 Q1 MMBT2222 1 3 2 Q2 MMBT2222 68R R2 GNDGND 1K R1 1 3 2 Q3 MMBT2222 1 3 2 Q4 MMBT2222 68R R4 GNDGND 1K R3 47K R6 GND 470R R11 470R R12 1234 P10 Header 2x2 47K R19 GND RF_TXDRF_RXD GND GND /Reset /Reset 1 P2 1 P4 1 P3 1 P5 1 P6 1 P1 GND 1 TP1 3V 1 2 Not mounted JP1 Jumper DBG1 1 TP3 LED_G LED_R 100R R9 100R R10 10pF C16 10pF C17 GNDGND LED_G VCC_nRF 12 3 MMBZ6V8DAD2 1 3 2 4 KP1 100nF C23 6.8nH L3 Assembly Variant =[No Variations] AN1 Designator Revision.SchDoc _PCB RFN_MEZZ_A02 _ST1 Sticker 15 x 5 mm 33nF C24 CO0PCB CO0ST1 PIAN101 COAN1 PIC101PIC102 COC1 PIC201PIC202 COC2 PIC301 PIC302 COC3 PIC401PIC402 COC4 PIC501 PIC502 COC5 PIC601 PIC602 COC6 PIC701 PIC702 COC7 PIC801 PIC802 COC8 PIC901 PIC902 COC9 PIC1001 PIC1002 COC10 PIC1101 PIC1102 COC11 PIC1201 PIC1202 COC12 PIC1301 PIC1302 COC13 PIC1401 PIC1402 COC14 PIC1501 PIC1502 COC15 PIC1601 PIC1602 COC16 PIC1701 PIC1702 COC17 PIC1801 PIC1802 COC18 PIC1901 PIC1902 COC19 PIC2001 PIC2002 COC20 PIC2101 PIC2102 COC21 PIC2201 PIC2202 COC22 PIC2301 PIC2302 COC23 PIC2401 PIC2402 COC24 PID101 PID102 PID103 PID104 COD1 PID201PID202 PID203 COD2 PIJP101 PIJP102 COJP1 PIKP101PIKP102 PIKP103PIKP104 COKP1 PIL101PIL102 COL1 PIL201 PIL202 COL2 PIL301PIL302 COL3 PIL401PIL402 COL4 PILRC101PILRC102 COLRC1 PILRC201 PILRC202 COLRC2 PILRC301 PILRC302 COLRC3 PIP101 COP1 PIP201 COP2 PIP301 COP3 PIP401 COP4 PIP501 COP5 PIP601 COP6 PIP701 PIP702 PIP703 PIP704 PIP705 PIP706 PIP707 PIP708 COP7 PIP801 PIP802 PIP803 PIP804 PIP805 PIP806 PIP807 PIP808 PIP809 PIP8010 COP8 PIP901 PIP902 PIP903 PIP904 PIP905 PIP906 PIP907 PIP908 COP9 PIP1001PIP1002PIP1003PIP1004 COP10 PIQ101 PIQ102 PIQ103 COQ1 PIQ201 PIQ202 PIQ203 COQ2 PIQ301 PIQ302 PIQ303 COQ3 PIQ401 PIQ402 PIQ403 COQ4 PIR101PIR102 COR1 PIR201 PIR202 COR2 PIR301PIR302 COR3 PIR401 PIR402 COR4 PIR501PIR502 COR5 PIR601 PIR602 COR6 PIR701PIR702 COR7 PIR801PIR802 COR8 PIR901PIR902 COR9 PIR1001PIR1002 COR10 PIR1101 PIR1102 COR11 PIR1201 PIR1202 COR12 PIR1301PIR1302 COR13 PIR1401PIR1402 COR14 PIR1501PIR1502 COR15 PIR1601 PIR1602 COR16 PIR1701PIR1702 COR17 PIR1801PIR1802 COR18 PIR1901 PIR1902 COR19 PITP101 COTP1 PITP201 COTP2 PITP301 COTP3 PIU101 PIU102 PIU103 PIU104 PIU105 PIU106 PIU107 PIU108 PIU109PIU1010PIU1011PIU1012PIU1013PIU1014PIU1015PIU1016 PIU1017 PIU1018 PIU1019 PIU1020 PIU1021 PIU1022 PIU1023 PIU1024 PIU1025PIU1026PIU1027PIU1028PIU1029PIU1030PIU1031PIU1032 PIU1033 COU1 PIX101 PIX103 COX1 PIC1402 PIJP101 PIP806 PIR601 PIR701 PIU1019 NL0Reset PIL401 PIP707 NL3V PITP101 PIU101 NLDBG1 PIC101 PIC201 PIC302 PIC502 PIC601PIC701PIC801 PIC901PIC1001 PIC1102 PIC1201 PIC1301 PIC1401PIC1501PIC1601PIC1701 PIC1801PIC1901PIC2001PIC2101PIC2201 PIC2302 PIC2401 PID203 PIJP102 PIKP101PIKP102 PILRC202PILRC302 PIP101 PIP201 PIP301 PIP401 PIP501 PIP601 PIP701 PIP708 PIP8010 PIP901 PIP908 PIP1001 PIQ202 PIQ402 PIR201 PIR401 PIR502 PIR1601 PIR1902 PIU108 PIU1023 PIU1026 PIU1033 PIX102 PIX104 PIC1702 PIR302 PIR1001 NLLED0G PIC1602 PIR102 PIR901 NLLED0R PIC1902 PIR1401 PIU1032 NLMCSN PIC2102 PIR1701 PIU1029 NLMMISO PIC2202 PIR1801 PIU1028 NLMMOSI PIC2002 PIR1501 PIU1018 NLMSCK PIR501 PIU1025 PIQ302 PIQ401 PIR402 PIQ301 PIQ403 PIR301 PIQ102 PIQ201 PIR202 PIQ101 PIQ203 PIR101 PIP1002 PIP706PIR702 PIP703PIR902 PIP702PIR1002 PIL202 PIL302 PIU1021 PIL101 PIL201 PIU1022 PIKP103PIKP104 PIP902 PID104 PIQ303 PID102 PIQ103 PIC902PIC1002 PIL301 PIU1020 PIC702 PIU104 PIC602 PIU103 PIC402PIL102PIC401 PIC501 PILRC101 PILRC201 PITP201 PIC202 PIU1031 PIX101 PIC102 PIU1030 PIX103 PIAN101 PILRC102 PILRC301 PIP805 PIU1013 NLOCITCK 0 SMOSI PIP804 PIU1015 NLOCITDI 0 SCSN PIP802 PITP301 PIU1016 NLOCITDO PIP807 PIU1014 NLOCITMS 0 SMISO PIP809 PIU1017 NLOCITO PIC2402 PIP803 PIR1602 PIU106 NLPROG PID201 PIP1004 PIR1101 PIR1901 NLRF0RXD PID202 PIP1003 PIR1201 NLRF0TXD PIP705PIR802 NLRiAoIRQ PIC1502 PIR801 PIU1012 NLRiAoIRQ0F PIP905PIR1502 NLSPI0RF0CLK PIP906PIR1402 NLSPI0RF0CS PIP904PIR1702 NLSPI0RF0MISO PIP903PIR1802 NLSPI0RF0MOSI PIP808 PIU1011 NLSSCK PIP907PIR1302 NLTOP0STIM PIC1802 PIR1301 PIU105 NLTOP0STIM0F PIR1102 PIU1010 NLUART 0 RXD PIR1202 PIU107 NLUART 0 TXD PIC301 PIC802 PIC1101 PIC1202 PIC1302 PIC2301 PIL402 PIP801 PIR602 PIU102 PIU109 PIU1024 PIU1027 PID101PID103 PIP704 1 1 2 2 3 3 4 4 DD CC BB AA 2 Compex Médical SA Larges Pièces A Ch. du Dévent CH-1024 Ecublens 2 Revision MEZZ_A 02 10.03.201116:40:45 Revision.SchDoc Title Size:Number: Date: File: Revision: SheetofTime: A4 Drawn By:E.Egloff DateRevisionPageDescriptionDone 5.8.2010RFN_MEZZ1Manage RevisionYES 5.8.2010RFN_MEZZ1Change Manufacturer and Model for P8 (now Male head…

Text truncated - open the document above for the full version.

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Non-Specific EMC Report Shell Rev. July 2013Page 1 of 30 DJO LLC 00300 EMC TEST REPORT Report Number: 102011503ATL-001 Project Number: G102011503 Report Issue Date: May 6, 2015 Product Designation: Model tested: Wireless Professional Manufacturer Declared Equivalent Product Designations: Model not tested: SP8.0, SP6.0, Fit5.0 and Wireless USA Standards: CFR47 FCC Part 15 Subpart C:2015 Section 15.205, 15.209, 15.215, 15.249 CFR47 FCC Part 15 Subpart B:2015 Section 15.109 Industry Canada RSS-210 Issue 8 December 2010, Annex A2.9 Industry Canada RSS-GEN Issue 4 November 2014 Tested by:Client: Intertek Testing Services NA, Inc. 1950 Evergreen Blvd, Suite 100 Duluth, GA 30096 USA DJO LLC 1430 Decision Street Vista, CA 92081 USA Report prepared byReport reviewed by Mary Sampson/Senior Project EngineerKrishna Vemuri/Senior Staff Engineer Intertek Report Number: 102011503ATL-001Issued: 05/06/2015 Non-Specific EMC Report Shell Rev. July 2013Page 2 of 30 DJO LLC Wireless Professional 1Introduction and Conclusion The tests indicated in section 2.0 were performed on the product constructed as described in section 4.0. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test Method, a list of the actual Test Equipment Used, documentation Photos, Results and raw Data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complieswith the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. 2Test Summary SectionTest full nameResult 3Client Information 4Description of Equipment Under Test 5System Setup and Method 6 Fundamental Frequency Radiated Emissions (47CFR Part 15 Subpart C: 2015 Section 15.249 RSS-210 Issue 8 Dec 2010 Annex A2.9) Pass -- AC Mains Conducted Emissions (Battery Powered Device) N/A 7 Transmitter Spurious Radiated Emissions (47CFR Part 15 Subpart C: 2015 Section 15.249, 15.209, 15.205 RSS-210 Issue 8 Dec 2010 Annex A2.9) Pass 8 Duty Cycle (47CFR Part 15 Subpart A: 2015 Section 15.35(c) RSS-GEN Issue 4: Nov 2014 Section 6.10) Pass 9 20 dB Bandwidth (47CFR Part 15 Subpart C: 2015 Section 15.215 RSS-GEN Issue 4:Nov 2014 Section 6.6) Pass 10 Bandedge (Band Edge (47CFR FCC Part 15 Subpart C: 2015 Section 15.215(c), 15.249(d); RSS-210 Issue 8: Dec 2010 Annex A2.9) Pass 11 Digital Parts Emissions (47CFR Part 15 Subpart B: 2015 Section 15.109 RSS-GEN Issue 4:Nov 2014 Section 6.6 Pass 12 13 RF Exposure(47CFR Part 2 Subpart J:2015 Section 2.1091; RSS- 102 Issue 4 Mar 2010 Section 2.5.1) Revision History Pass Intertek Report Number: 102011503ATL-001Issued: 05/06/2015 Non-Specific EMC Report Shell Rev. July 2013Page 3 of 30 DJO LLC Wireless Professional 3Client Information This EUT was tested at the request of: Client:DJO LLC 1430 Decision Street Vista, CA 92081 USA Contact:Mark Stavro Telephone: (760) 734-3551 Fax:(760) 734-5694 Email:[email protected] 4Description of Equipment Under Test Manufacturer:DJO LLC 1430 Decision Street Vista, CA 92081 USA Equipment Under Test DescriptionManufacturerModel NumberSerial Number Wireless Professional Remote Controller DJO00300YNP000712 Receive Date:10/15/2014 Received Condition:Good Type:Production Description of Equipment Under Test (provided by client) The Wireless Professional Remote Controller is a muscle stimulator which uses wireless communication to control up to four muscle stimulators. The Wireless Pro can be used by a healthy person for the purposes of pain relief, muscle conditioning, muscle warmup and muscle recovery. Per the client, the Compex Wireless Professional Remote Controller, SP8.0, SP6.0, Fit5.0 and Wireless USA all use the same radio board and transmitter protocol, the only difference is the color and firmware. Equipment Under Test Power Configuration Rated VoltageRated CurrentRated FrequencyNumber of Phases 3.7 Vdc1500 mAh Max Charging = 1.5 A N/AN/A Operating modes of the EUT: No.Descriptions of EUT Exercising 1Continuous transmission 2Idle Software used by the EUT: No.Descriptions of EUT Exercising 1Firmware version: 0209x1DC5F303 Intertek Report Number: 102011503ATL-001Issued: 05/06/2015 Non-Specific EMC Report Shell Rev. July 2013Page 4 of 30 DJO LLC Wireless Professional 5System Setup and Method Cables IDDescriptionLength (m) ShieldingFerritesTermination None Support Equipment DescriptionManufacturerModel NumberSerial Number None 5.1Method: Configuration as required by CFR47 FCC Part 15 Subpart C:2015 Sections 15.205, 15.209, 15.215, 15.249, Industry Canada RSS-210 Issue 8 December 2010, Annex A2.9, Industry Canada RSS-GEN Issue 4 November 2014, and ANSI C63.10-2013. 5.2EUT Block Diagram: Remote Controller Intertek Report Number: 102011503ATL-001Issued: 05/06/2015 Non-Specific EMC Report Shell Rev. July 2013Page 5 of 30 DJO LLC Wireless Professional 6Fundamental Frequency Radiated Emissions 6.1Method Tests are performed in …

Text truncated - open the document above for the full version.

NOTE: Bo identical. oth devices sh The only diff hown in the te ference is the est setup pho e color. otos, internal and external l exhibits are electrically
