2AD34-PADBOT10PadBot

Guangzhou Inbot Technology Ltd. Room1221, Huagang Commercial Building, No.140, West Zhongshan Ave, Tianhe District, Guangzhou, China DATE 01-23-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AD34-PADBOT10 Product Name: PadBot Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 01-23-2015 By: Zheng Danping Signature Printed Title: Manager On behalf of : Guangzhou Inbot Technology Ltd. Telephone: +86-20-38456676

FCC ID Label Information 1. Label location: 2. FCC ID Label: Guangzhou Inbot Technology Ltd. PadBot Model: PadBot1.0 FCC ID: 2AD34-PADBOT10 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCCID Label Location

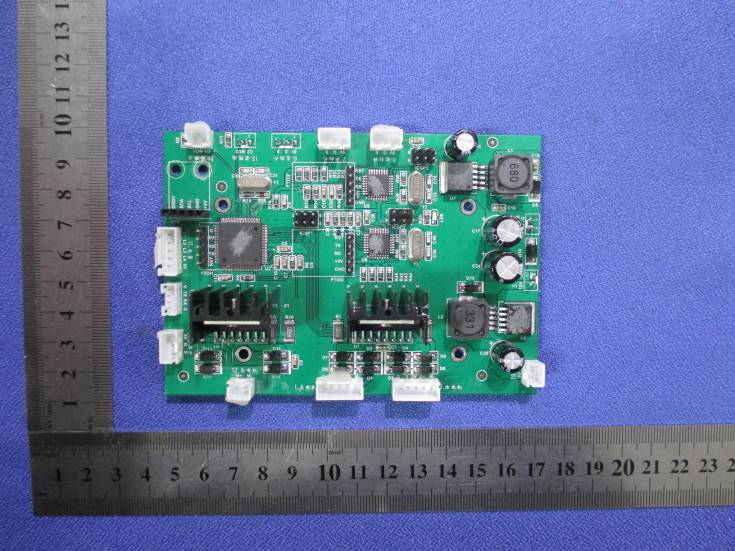

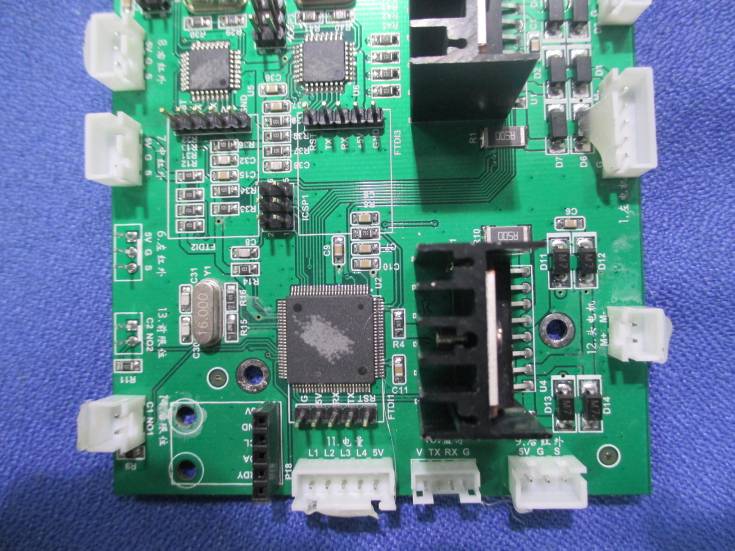

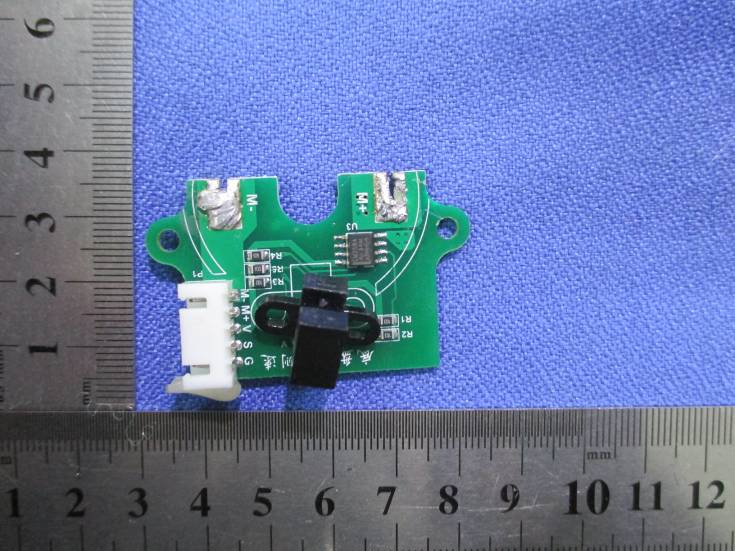

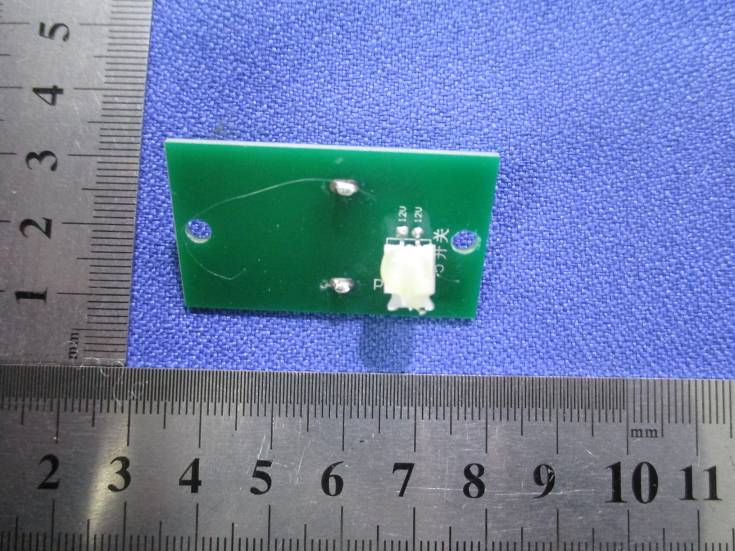

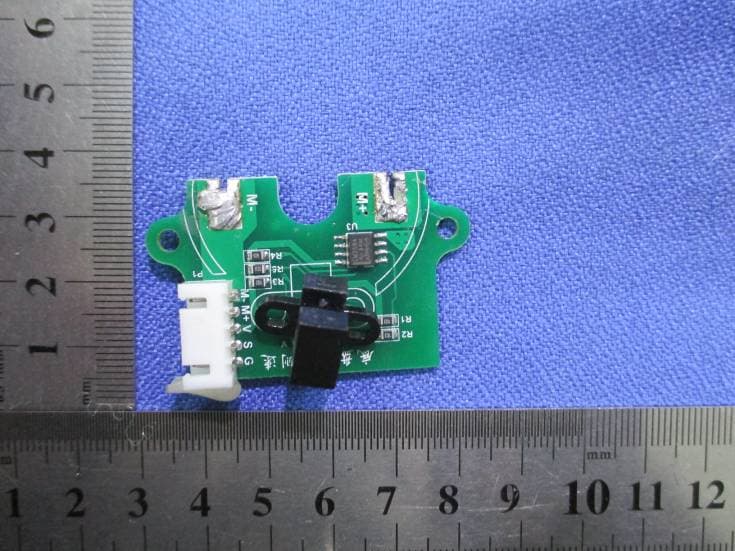

Internal Photos of EUT

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 96.61 dBuV/m @3m Ant gain 0dBi; so Ant numeric gain=1 So pt={ [10 (96.61 /20) /10 6 x3] 2 /30x1 }x1000 mW = 1.4 mW So ( 1.4 mW/5mm)x √2.402GHz = 0.43 <3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No......................: CTL1412223091-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Jan. 24, 2015 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: Guangzhou Inbot Technology Ltd. Address.............................................: Room1221, Huagang Commercial Building, No.140, West Zhongshan Ave, Tianhe District, Guangzhou, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : PadBot Trade Mark .......................................: PADBOT Models/Type reference.....................: PadBot1.0 Modulation .......................................: GFSK Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2AD34-PADBOT10 Result................................................: Positive V1.0 Page 2 of 53 Report No.: CTL1412223091-WF T E S T R E P O R T Test Report No. :CTL1412223091-WF Jan. 24, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : PadBot Model /Type : PadBot1.0 Applicant : Guangzhou Inbot Technology Ltd. Address : Room1221, Huagang Commercial Building, No.140, West Zhongshan Ave, Tianhe District, Guangzhou, China Manufacturer Guangzhou Inbot Technology Ltd. Address Room1221, Huagang Commercial Building, No.140, West Zhongshan Ave, Tianhe District, Guangzhou, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 53 Report No.: CTL1412223091-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Fundamental Emissions 14 4.3.Transmitter Radiated Unwanted Emissions 15 4.4.Band Edge Measurement 31 4.5.Occupied Bandwidth Measurement 40 5. ANTENNA REQUIREMENT ....................................................... 42 6.TEST SETUP PHOTOS OF THE EUT .......................................... 43 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 45 V1.0 Page 4 of 53 Report No.: CTL1412223091-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 53 Report No.: CTL1412223091-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Jan. 13, 2015 Testing commenced on : Jan. 14, 2015 Testing concluded on : Jan. 24, 2015 2.2.Equipment Under Test Power supply system utilised Power supply voltage : ƽ 120V / 60 Hz o 115V / 60Hz ƽ 12 .6 V DCo 24 V DC o Other (specified in blank below) 2.3. Short description of the Equipment under Test (EUT) The EUT is a PadBot work at 2402~2480 MHz support Bluetooth 4.0. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 20 2442 01 2404 21 2444 02 2406 22 2446 03 2408 23 2448 04 2410 24 2450 05 2412 25 2452 06 2414 26 2454 07 2416 27 2456 08 2418 28 2458 09 2420 29 2460 10 2422 30 2462 11 2424 31 2464 12 2426 32 2466 13 2428 33 2468 14 2430 34 2470 15 2432 35 2472 16 2434 36 2474 17 2436 37 2476 18 2438 38 2478 19 2440 39 2480 Modulation: GFSK For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 53 Report No.: CTL1412223091-WF 2.4. EUT operation mode Test Mode(TM) Description Remark TM1 Bottom Channel Transmitting / TM2 Middle Channel Transmitting / TM3 Top Channel Transmitting / The field strength of radiation emission was measured in the following position: EUT stand-up position (Y axis), lie-down position (X, Z axis). The following data show only with the worst case setup. Data of the worst mode is reported by this report. 2.5. EUT con…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
