RF_160, Issue 03 Declaration of Authorization We Name: METEC ELECTRONICS CO., LTD. Address: Building D, No. 4 Industrial Zone of Shasan Village, Shajing Town, Bao’an District, Shenzhen, China Country: China Declare that: Name Representative of agent: Agent Company name: Shenzhen WST Testing Technology Co., Ltd. Address: 1F,No.9 Building,TGK Science & Technology ParkYangtian Rd., NO.72 Bao'an Dist. City: Shenzhen Country: China is authorized to apply for Certification of the following product(s): Product description: MULTIMEDIA SPEAKER Type designation: TSME24 BLK, EM-1071FT Trademark: on our behalf. Date: 2015-8-28 City: Shenzhen Name: Su Chuan Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: SHENZHEN BEYEAR APPLIANCE CO., LTD. Address : Building D, No. 4 Industrial Zone of Shasan Village, Shajing Town, Bao’an District City: Shenzhen Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AD38TSME24BLK Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2015-08-28 Name and signature of applicant: Su Chuan Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

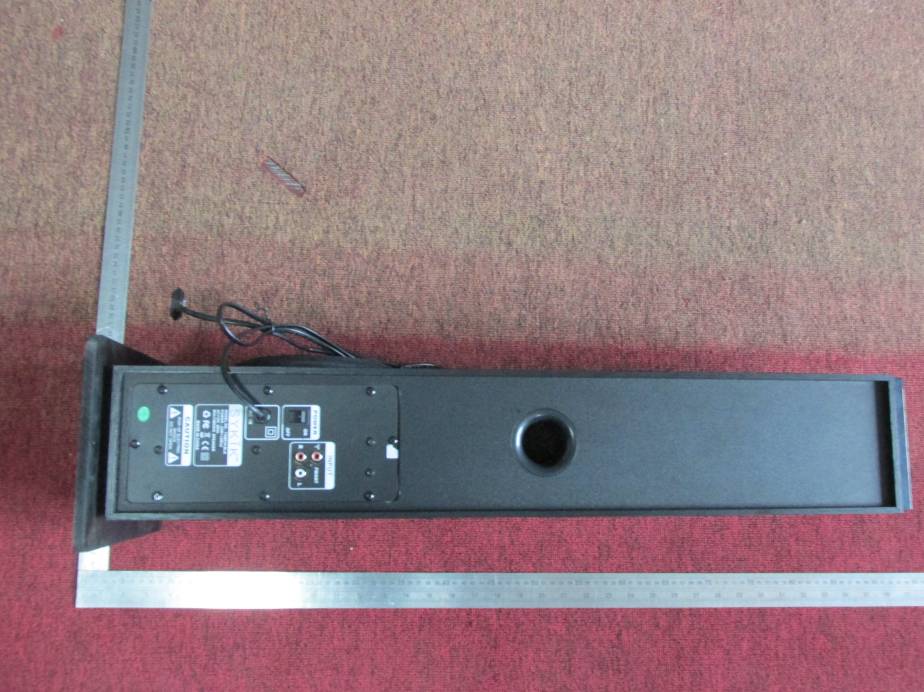

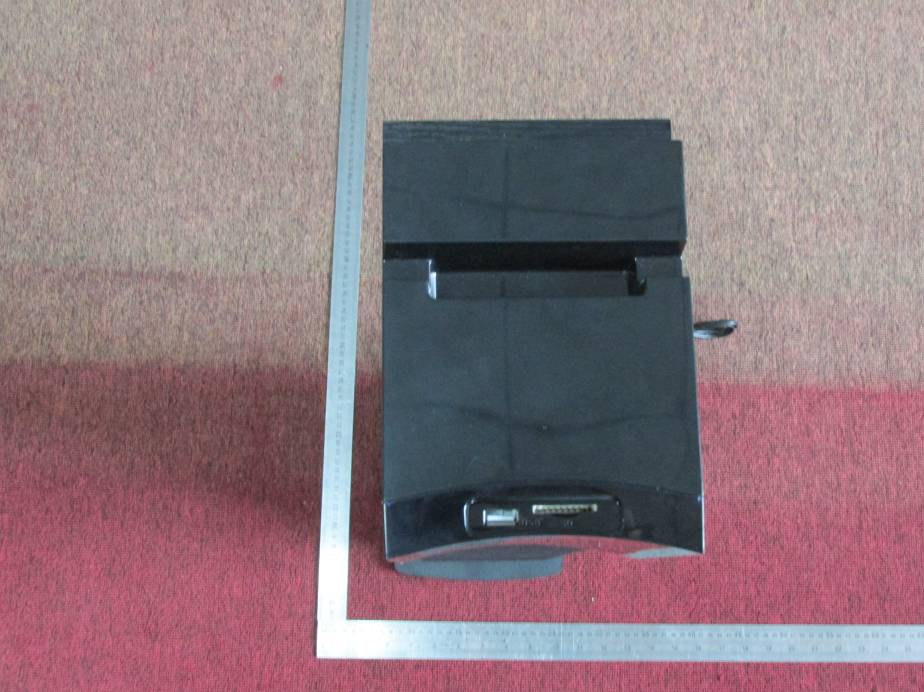

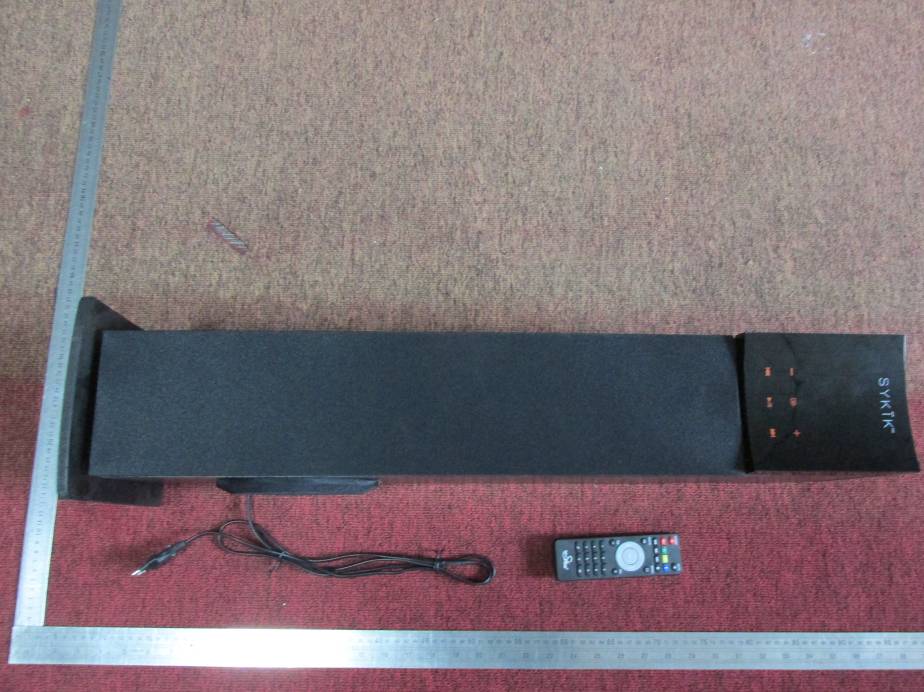

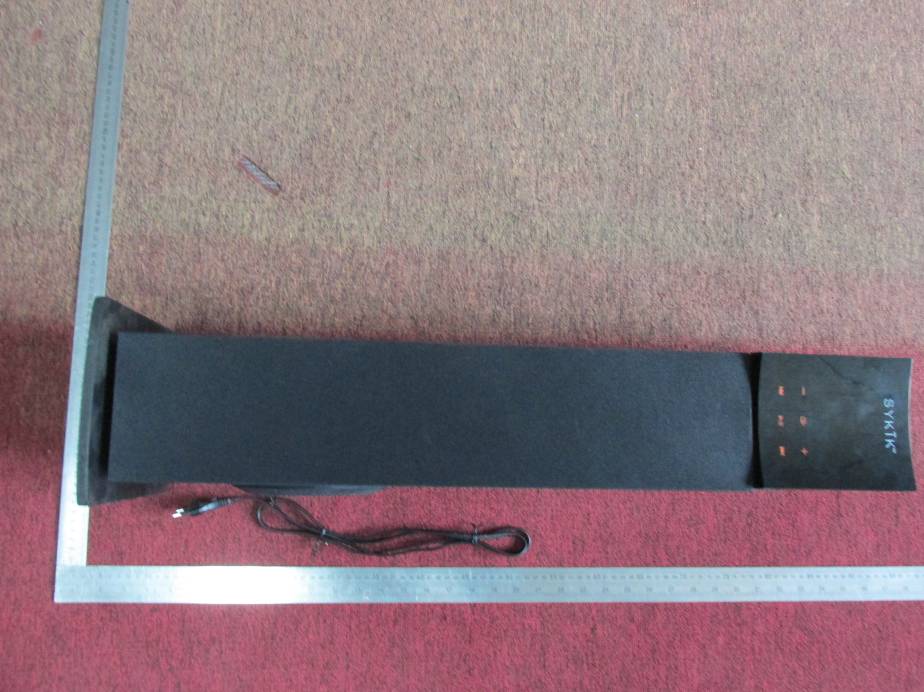

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT

Internal photograph of EUT Internal photograph of EUT PCB photograph of EUT PCB photograph of EUT PCB photograph of EUT PCB photograph of EUT PCB photograph of EUT PCB photograph of EUT PCB photograph of EUT

Page 1 RF Exposure Evaluation For Model : TSME24 BLK, EM-1071FT Equipment Type : MULTIMEDIA SPEAKER Report Number : FCC15080104 FCC ID : 2AD38TSME24BLK Standards : FCC Part 15 OET Bulletin 65, Supplement C (01-01) IEEE C95.1 RF Exposure 1 Maximum Permissible exposure (MPE) For human exposure in controlled environment to electromagnetic energy at radio frequencies from 3 kHz to 300 GHz, the MPE, in terms of rms electric (E) and magnetic (H) field strengths, the equivalent planewave free-space power densities (S) and the induced currents (I) in the body that can be associated with exposure to such fields or contact with objects exposure to such fields, is given in Table 1 as a function of frequency. Exposure associated with a controlled environment includes exposure that may be incurred by persons who are aware of the potential for exposure sa a concomitant of employment, exposure of other cognizant individuals, or exposure that is the incidental result of passage through areas where analysis shows the exposure levels may be above those shown in Table 2, but do not exceed those in Table1. Report No.: FCC15080104 Date of issued:18 August, 2015 Page 2 of 4 Report No.: FCC15080104 Date of issued:18 August, 2015 Page 3 of 4 2 Equations for Predicting RF Fields Calculations can be made to predict RF field strength and power density levels around typical RF sources. The Formula is as below: 2 4 PG S R  where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Report No.: FCC15080104 Date of issued:18 August, 2015 Page 4 of 4 3 Calculation Result of Maximum conducted Power The antenna of this product, under normal use condition, is at least 20cm away from the body of the user Item Frequency Band (MHz) Max Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) BT 2402~2480 0.45 1.00 20 0.00022 1.6 Due to the max power density is less than limit, therefore, there is not required for SAR evaluation. More details refer to the test report. ——END OF REPORT——

FCC Report Application Purpose : Original grant Applicant Name: : METEC ELECTRONICS CO., LTD. FCC ID : 2AD38TSME24BLK Equipment Type : MULTIMEDIA SPEAKER Model Name : TSME24 BLK, EM-1071FT Report Number : FCC15080104 Standard(S) : FCC Part 15 Subpart C Date Of Receipt : August 10, 2015 Date Of Issue : August 18, 2015 Test By : ( Fall Ma) Reviewed By : ( Robie Chen) Authorized by : ( Michal Ling) Prepared by : Shenzhen WST Testing Technology Co., Ltd. 1F,No.9 Building,TGK Science & Technology ParkYangtian Rd., NO.72 Bao'an Dist.,GuangDong,China Page 2 of 74 Report No.: FCC15080104 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / August 18, 2015Valid Original Report Page 3 of 74 Report No.: FCC15080104 Table of Contents Page 1. GENERAL INFORMATION 6 2. TEST DESCRIPTION 8 2.1 MEASUREMENT UNCERTAINTY 8 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 2.4 CONFIGURATION OF SYSTEM UNDER TEST 10 2.5 PERIPHERALS EQUIPMENT LIST 10 2.6 DESCRIPTION OF SUPPORT UNITS (CONDUCTED MODE) 11 3. SUMMARY OF TEST RESULTS 12 4. MEASUREMENT INSTRUMENTS 13 5. EMC EMISSION TEST 14 5.1 CONDUCTED EMISSION MEASUREMENT 14 5.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 5.1.2 TEST PROCEDURE 15 5.1.3 DEVIATION FROM TEST STANDARD 15 5.1.4 TEST SETUP 15 5.1.5 EUT OPERATING CONDITIONS 15 5.1.6 TEST RESULTS 16 5.2 RADIATED EMISSION MEASUREMENT 18 5.2.1 RADIATED EMISSION LIMITS 18 5.2.2 TEST PROCEDURE 19 5.2.3 DEVIATION FROM TEST STANDARD 19 5.2.4 TEST SETUP 20 5.2.5 EUT OPERATING CONDITIONS 21 5.2.5.1 RESULTS (BELOW 30 MHZ) 22 5.2.5.2 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 23 5.2.5.3 TEST RESULTS(1GHZ TO 25GHZ) 25 5.3 CONDUCTED SPURIOUS EMISSION MEASUREMENT 33 5.3.1 CONDUCTED SPURIOUS EMISSION LIMITS 33 5.3.2 TEST PROCEDURE 33 5.3.3 DEVIATION FROM STANDARD 33 5.3.4 TEST SETUP 33 5.3.5 EUT OPERATION CONDITIONS 33 5.3.6 TEST RESULTS 34 6. NUMBER OF HOPPING CHANNEL Page 4 of 74 Report No.: FCC15080104 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 42 6.2 TEST PROCEDURE 42 6.3 DEVIATION FROM STANDARD 42 6.4 TEST SETUP 42 6.5 EUT OPERATION CONDITIONS 42 6.6 TEST RESULTS 43 7. AVERAGE TIME OF OCCUPANCY 7.1 APPLIED PROCEDURES / LIMIT 44 7.2 TEST PROCEDURE 44 7.3 DEVIATION FROM STANDARD 44 7.4 TEST SETUP 45 7.5 EUT OPERATION CONDITIONS 45 7.6 TEST RESULTS 46 8. HOPPING CHANNEL SEPARATION MEASUREMENT 8.1 APPLIED PROCEDURES / LIMIT 48 8.2 TEST PROCEDURE 48 8.3 DEVIATION FROM STANDARD 48 8.4 TEST SETUP 48 8.5 EUT OPERATION CONDITIONS 48 8.6 TEST RESULTS 49 9. BANDWIDTH TEST 9.1 APPLIED PROCEDURES / LIMIT 55 9.2 TEST PROCEDURE 55 9.3 DEVIATION FROM STANDARD 55 9.4 TEST SETUP 55 9.5 EUT OPERATION CONDITIONS 55 9.6 TEST RESULTS 56 10. PEAK OUTPUT POWER TEST 10.1 APPLIED PROCEDURES / LIMIT 62 10.2 TEST PROCEDURE 62 10.3 DEVIATION FROM STANDARD 62 10.4 TEST SETUP 62 10.5 EUT OPERATION CONDITIONS 62 10.6 TEST RESULTS 63 11. ANTENNA APPLICATION 64 12. EUT TEST PHOTO 65 Page 5 of 74 Report No.: FCC15080104 Table of Contents Page 13. PHOTOGRAPHS OF EUT 67 Page 6 of 74 Report No.: FCC15080104 1. GENERAL INFORMATION GENERAL DESCRIPTION OF EUT Test Model TSME24 BLK Derivative Model Name EM-1071FT Model difference All models are identical in circuitry and electrical, mechanical and physical construction, only different on model name, color and size. All tests are carried out on TSME24 BLK. Applicant METEC ELECTRONICS CO., LTD. Address Building D, No. 4 Industrial Zone of Shasan Village, Shajing Town, Bao’an District, Shenzhen, China Manufacturer SHENZHEN BEYEAR APPLIANCE CO., LTD. Address Building D, No. 4 Industrial Zone of Shasan Village, Shajing Town, Bao’an District, Shenzhen, China Equipment Type MULTIMEDIA SPEAKER Brand Name Hardware version: EM-1071-2-CON-DATE141218 94V0 VER:1.0 Software version: VER1.0.0 Extreme Temp. Tolerance -10 to +50°C°C Operating Voltage Input: AC 120V 60Hz Operating Frequency 2402-2480MHz Channels 79 Channel Spacing 1MHz Modulation Type GFSK, π/4-DQPSK, 8-DPSK Version 2.1+EDR Antenna Type: PCB Antenna Antenna gain: 1.0dBi Data of receipt August 10, 2015 Date of test August 10, 2015 to August 18, 2015 Deviation None Condition of Te s t S a m p l e Normal Page 7 of 74 Report No.: FCC15080104 We hereby certify that: The above equipment was tested by Shenzhen WST Testing Technology Co., Ltd. Registration Number: 939433 The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C 63.4:2009. The sample tested as described in this report is in compliance with the FCC Rules Part15 Subpart C. The test results of this report relate only to the tested sample identified in this report. Page 8 of 74 Report No.: FCC15080104 2. TEST DESCRIPTION 2.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±3.2dB 2 RF power, conducted ±0.16dB 3 Spurious emissions, conducted ±0.21dB 4 All emissions, radiated(<1G) ±4.7dB 5 All emissions, radiated(>1G) ±4.7dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 9 of 74 Report No.: FCC15080104 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 CH00 Mode 2 CH39 Mode 3 CH78 Mode 4 Normal Hopping For Conducted Emission Final Test Mode Description Mode 4 Normal Hopping For Radiated Emission Final Test Mode Description Mode 1 CH00 Mode 2 CH39 Mode 3 CH78 Note: (1) The measurements are performed at the highest, middle, lowest available channels. (2)The data rate w…
