2AD3LGGG2-TWSTilt and Temperature Wireless Door Sensor

- DO NOT let children use the GOGOGATE product and app without adult supervision. - ONLY Operate your GOGOGATE device when you are in clear view of your garage or gate and you have verified that there are no objects obstructing the operation of the door. ALWAYS wait for garage door or gate to be completely closed. - NEVER operate the remote access feature of your GoGoGate without ensuring that there is an adult physically present in front of the door or gate validating that it is safe to start the remote operation of your device Read instructions carefully before beginning Please make sure your garage door is closed before you start installation. The GoGogate product and our wireless door sensors are meant to be used with garage door openers equiped with photo-eye safety sensors (manufactured after 1993). These sensors are normally found at the bottom of your garage door and avoid accidental closing of your garage door if an object or person is on the path of the door. WIRELESS DOOR SENSOR INSTALLATION GUIDE Step 1Step 2 Open the sensor’s batteries’ compartment to include the provided AAA batteries (x2). Place the batteries as per picture indications. Finally, close the compartment. Note: write down and store in a safe location the 4 digit code located on the front of your sensor. TO PREVENT SERIOUS INJURY OR DEATH FROM MOVING GARAGE DOORS OR GATES: Attach your wireless sensors to your garage door as per drawing below. Place the sensors on the upper part of your garage door wall. PLACE THE SENSOR IN THE UPPER PART OF YOUR GARAGE WITH RED LED LIGHT FACING DOWN. (LEFT OR RIGHT SIDE) ID:1234 ID:1234 GGG2-TWS-001SPECS 2.4 Ghz 50 m or 150 ft (open space) Between -10ºC and 70ºC AAA (x2) 1.5 years Clamshell CE - FCC Frequency Range Operating Temperature Battery type Battery life span Packaging Certification Main sensor’s features: • Remotely monitor if garage door is open or closed • Check garage door temperature in ºC/ºF • Receive real time alerts on your Smartphone • Easy to install tilt sensor with double sided tapes • Tilt switch broken when garage door opens. • Monitor sensor’s battery status for prompt replacement • Keep track of all garage door events in a built-in calendar of events 70 mm Lenght 24 mm Height 27 mm width ID:1234 SIDE VIEWBACK VIEWBACK VIEWBACK VIEWFRONT VIEW Make sure you place the sensor with the “TOP” label facing the garage door ceiling. Place on the wall with the double-sided fastening strip. Step 3 ID:1234 Still having issues. No problem. Download our user manual in our website www.gogogate.com or contact us at: [email protected] Regulatory notices REMSOL has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device complies with FCCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guar- antee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

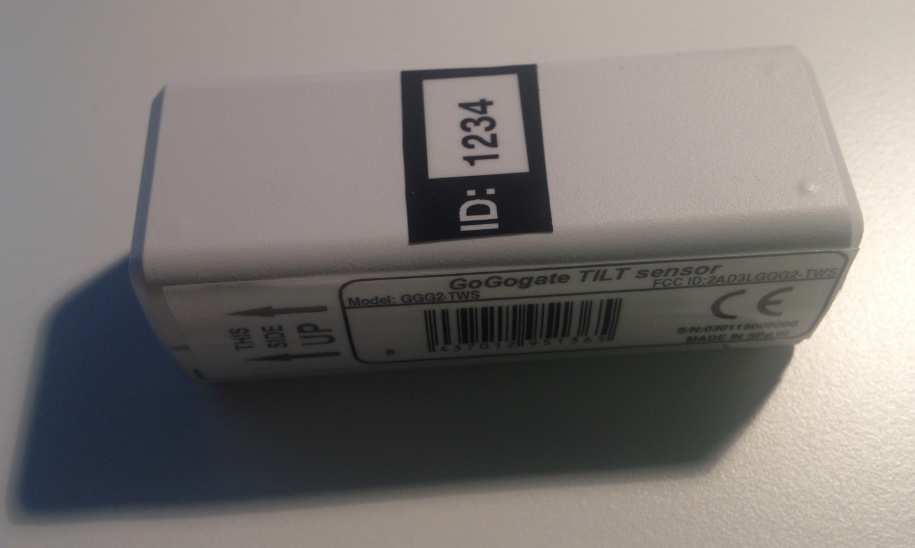

REMSOL EUROPE S.L. GGG2-TWS EXTERNAL PICTURES REMSOL EUROPE S.L. GGG2-TWS REMSOL EUROPE S.L. GGG2-TWS

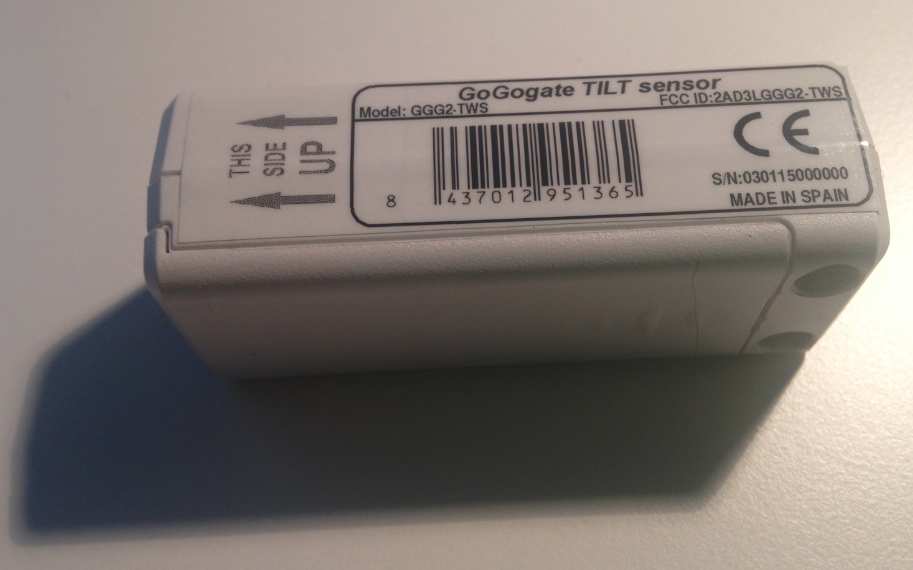

REMSOL EUROPE S.L. GGG2-TWS LABEL DESIGN

REMSOL EUROPE S.L. GGG2-TWS INTERNAL PICTURES REMSOL EUROPE S.L. GGG2-TWS

REMSOL EUROPE S.L. RF Exposure TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Date: February 9, 2015 ATTN: Reviewing Engineer RF exposure information for the equipment Tilt and Temperature Wireless Door Sensor (FCC ID: 2AD3LGGG2-TWS) Model: GGG2-TWS 1. Introduction : The device GGG2-TWS (FCC ID: 2AD3LGGG2-TWS) is a Tilt and Temperature Wireless Door Sensor designed to be used in mobile exposure conditions. This product integrates a transmitter operated in the 2.4 GHz frequency band. 2. Output power considerations : Transmitter: 78.39 dBμV/m at 3m. 3. Compliance criteria : Transmitter is deeded to comply with FCC § 2.1091 requirements as the output power of the device meets the conditions specified in section 4.3.1 (SAR test exclusion) considerations of the document “KDB 447498 D01 General RF Exposure Guidance v05r02”: Frequency Average field strength (dBμV/m) Average output power (mW) Evalutation distance per KDB 447498 D01 General RF Exposure Guidance v05r02 - 4.3.1 (mm) SAR Test Exclusion Thresholds per KDB 447498 D01 General RF Exposure Guidance v05r02 - 4.3.1 - 1) (mW) SAR Test Exclusion Thresholds per KDB 447498 D01 General RF Exposure Guidance v05r02 - 4.3.1 - 1) 2400 MHz 78,39 0,013 5 10 COMPLIANT Sincerely, __________________________ By: Mr. Joan Llopart Masana Title: CEO Company: REMSOL EUROPE S.L. Telephone: +34938994162 e-mail: [email protected]

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 44727RRF.001 Page 1 of 20 2015-02-06 FCC LISTED, REGISTRATION NUMBER: 720267 Informe de ensayo nº: Test report No: NIE: 44727RRF.001 Test report USA FCC Part 15.249 & 15.209 Radio Frequency Devices. Operation within the bands 902 - 928 MHz, 2400 -2483.5 MHz, 5725 - 5875 MHz, and 24.0 – 24.25 GHz. Identificación del objeto ensayado ...................... : Identification of item tested Wireless sensor. Marca ................................................................... : Trade GoGogate Modelo y/o referencia tipo .................................. : Model and /or type reference GGG2-TWS Other identification of the product .................... : Commercial name: TILT AND TEMPERATURE WIRELESS SENSOR FCC ID: 2AD3LGGG2-TWS Final HW version ................................................ : V1 Final SW version ................................................. : V1 Serial number ...................................................... : 1 Características ..................................................... : Features Worldwide 2.4 GHz ISM band operation. Indoor use. Range 50 m. Battery type 2 x AAA cell. Dimensions (mm) (W x L x H): 27 x 70 x 24. Door status detection: TILT Peticionario ......................................................... : Applicant REMSOL EUROPE S.L. PONENT nº 8. Sant Pau de Ordal. 08739. Barcelona. SPAIN. CIF: B66104704 Contact person: Joan Llopart Masana Telephone: +34 938994162 / e-mail: [email protected] Método de ensayo solicitado, norma ................... : Test method requested, standard USA FCC Part 15.249 (10-1-13 Edition). USA FCC Part 15.209 (10-1-13 Edition). ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices. Resultado .............................................................. : Summary IN COMPLIANCE Aprobado por (nombre / cargo y firma) ........... : Approved by (name / position & signature) A. Llamas RF Lab. Manager Fecha de realización ........................................... : Date of issue 2015-02-06 Formato de informe No. ...................................... : Report template No FDT08_15 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 44727RRF.001 Page 2 of 20 2015-02-06 Index Competences and guarantees ......................................................................................................................... 3 General conditions ......................................................................................................................................... 3 Uncertainty .................................................................................................................................................... 3 Usage of samples ........................................................................................................................................... 3 Test sample description ................................................................................................................................. 4 Test samples supplier .................................................................................................................................... 4 Testing period ................................................................................................................................................ 4 Environmental conditions .............................................................................................................................. 4 Remarks and comments ................................................................................................................................. 5 Testing verdicts ............................................................................................................................................. 6 Appendix A – Test result ............................................................................................................................... 7 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 44727RRF.001 Page 3 of 20 2015-02-06 Competences and guarantees AT4 wireless is a laboratory with a measurement facility in compliance with the requirements of Section 2.948 of the FCC rules and has been added to the list of facilities whose measurements data will be accepted in conjuction with applications for Certification under Parts 15 or 18 of the Commission's Rules. Registration Number: 720267. In order to assure the traceability to other national and international laboratories, AT4 wireless has a calibration and maintenance program for its measurement equipment. AT4 wireless guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated on the report and, it is based on the knowledge and technical facilities available at AT4 wireless at the time of performance of the test. AT4 wireless is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of AT4 wireless. General conditions 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or competent Authorities. …

Text truncated - open the document above for the full version.

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 39383RRF.001 Page 1 of 5 2015-02-06 Appendix B - Photographs AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 39383RRF.001 Page 2 of 5 2015-02-06 EQUIPMENT VIEW AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 39383RRF.001 Page 3 of 5 2015-02-06 GENERAL SET-UP FOR RADIATED MEASUREMENTS AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 39383RRF.001 Page 4 of 5 2015-02-06 TEST SET-UP FOR RADIATED MEASUREMENTS BELOW 1 GHz AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 39383RRF.001 Page 5 of 5 2015-02-06 TEST SET-UP FOR RADIATED MEASUREMENTES ABOVE 1GHz
