Runqia Toys Factory Agent Authorization C ompany: Runqia Toys Factory A ddress: Chenghai District Shantou City, Guangdong Province, Shanotu, China P roduct Name: Remote control car series M odel Number(s): RQ2068 P roduct Description: Remote control car series We author ize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We dec lare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Mar. 27, 2020 Name: JIEYU CHEN Title: SALES MANAGER Company: Runqia Toys Factory

FCC ID LABEL: Ca. 5mm x 10mm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: 2AD4V-RQ2068

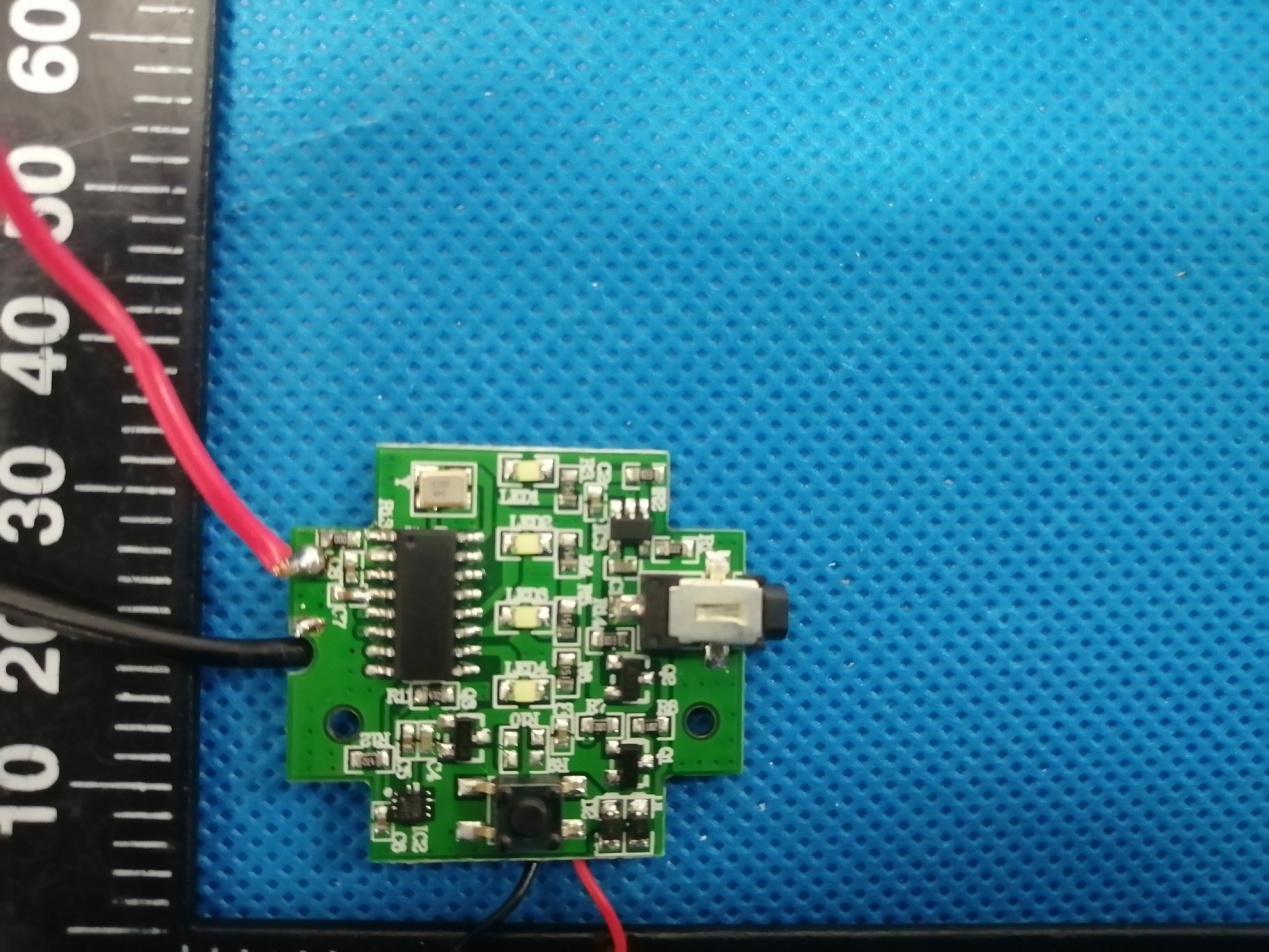

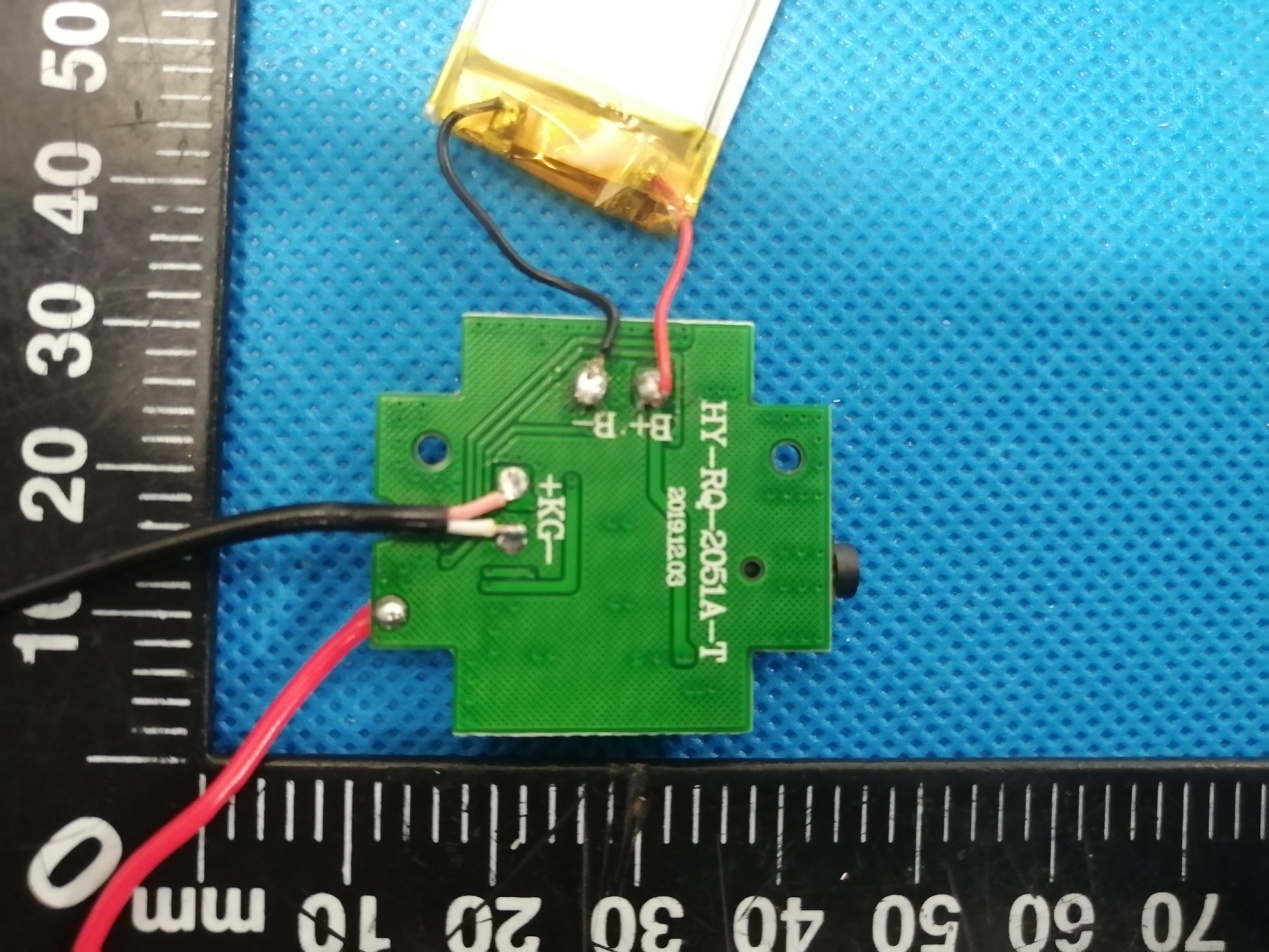

Annex B Internal Photos Report No.: HK2003170340-E Page 1 of 2 2.4g Antenna Report No.: HK2003170340-E Page 2 of 2

Page 1 of 26 Report No.: HK2003170340-E FCC TEST REPORT Test report On Behalf of Runqia Toys Factory For Remote control car series Model No.: RQ2068 FCC ID: 2AD4V-RQ2068 Prepared for : Runqia Toys Factory Chenghai District Shantou City, Guangdong Province, Shanotu, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Mar. 11, 2020 ~ Mar. 20, 2020 Date of Report: Mar. 20, 2020 Report Number: HK2003170340-E Page 2 of 26 Report No.: HK2003170340-E TEST RESULT CERTIFICATION Applicant’s name ................. : Runqia Toys Factory Address ................................. : Chenghai District Shantou City, Guangdong Province, Shanotu, China Manufacture's Name ............ : Runqia Toys Factory Address ................................. : Chenghai District Shantou City, Guangdong Province, Shanotu, China Product description Trade Mark: N/A Product name ........................... : Remote control car series Model and/or type reference : RQ2068 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Mar. 11, 2020 ~ Mar. 20, 2020 Date of Issue ........................................... : Mar. 20, 2020 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 26 Report No.: HK2003170340-E Table of Contents Page 1 . TEST SUMMARY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 Carrier Frequency of Channels 6 2.3 Operation of EUT during testing 6 2.4 DESCRIPTION OF TEST SETUP 6 2.5 MEASUREMENT INSTRUMENTS LIST 7 3 . CONDUCTED EMISSIONS TEST 8 3.1 Conducted Power Line Emission Limit 8 3.2 Test Setup 8 3.3 Test Procedure 8 3.4 Test Result 9 4 RADIATED EMISSION TEST 11 4.1 Radiation Limit 11 4.2 Test Setup 11 4.3 Test Procedure 12 4.4 Test Result 12 5 BAND EDGE 18 5.1 Limits 18 5.2 Test Procedure 18 5.3 Test Result 19 6 OCCUPIED BANDWIDTH MEASUREMENT 21 6.1 Test Setup 21 6.2 Test Procedure 21 6.3 Measurement Equipment Used 21 6.4 Test Result 21 7 ANTENNA REQUIREMENT 23 8 PHOTOGRAPH OF TEST 24 8.1 Radiated Emission 24 8.2 Conducted Emission 25 9 PHOTOS OF THE EUT 26 Page 4 of 26 Report No.: HK2003170340-E 1. TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS DESCRIPTION OF TEST RESULT CONDUCTED EMISSIONS TEST §15.207 COMPLIANT RADIATED EMISSION TEST §15.249 (a) (d)/ §15.209 COMPLIANT BAND EDGE §15.249 (a) (d)/ §15.209 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT §15.215 (c) COMPLIANT ANTENNA REQUIREMENT §15.203 COMPLIANT 1.2 TEST FACILITY Te s t F i r m ： Shenzhen HUAK Testing Technology Co., Ltd. Address ： 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China 1.3 MEASUREMENT UNCERTAINTY Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.23dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 4.42dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.06dB, k=2 Page 5 of 26 Report No.: HK2003170340-E 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Remote control car series Model Name RQ2068 Serial Model N/A Model Difference N/A FCC ID 2AD4V-RQ2068 Antenna Type internal Antenna Antenna Gain 1.5dBi Equipment Remote control car series BT Operation frequency 2405MHz, 2433MHz 2465MHz, 2475MHz Number of Channels 4CH Modulation Type GFSK Power Source DC 5V from USB or DC 3.7V from Battery Power Rating DC 5V from USB or DC 3.7V from Battery Page 6 of 26 Report No.: HK2003170340-E 2.2 Carrier Frequency of Channels Channel Frequency(MHz) Channel Frequency(MHz) 1 2405 3 2465 2 2433 4 2475 2.3 Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Low Channel: 2405MHz Middle Channel: 2440MHz High Channel: 2475MHz 2.4 DESCRIPTION OF TEST SETUP Operation of EUT during conducted testing and Radiation testing: AC Main Operation of EUT during Above1GHz Radiation testing: ● Adapter information Model: HW- 259200CHQ Input: 100-240V~, 50/60Hz, 0.5A Output: 5VDC, 2A The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. The worst case is X position Adapter EUT EUT Page 7 of 26 Report No.: HK2003170340-E 2.5 MEASUREMENT INSTRUMENTS LIST Item Equipment Manufacturer Model No.Serial No. Last Cal. Cal. Interval 1. L.I.S.N. Artificial Mains Network R&S ENV216 HKE-002 Dec. 26, 2019 1 Year 2. Receiver R&S ESCI 7 HKE-010 Dec. 26, 2019 1 Year 3. RF automatic control unit Tonscend JS0806-2 HKE-060 Dec. 26, 2019 1 Year 4. Spectrum analyzer R&S FSP40 HKE-025 Dec. 26, 2019 1 Year 5. Spectrum analyzer Agilent N9020A HKE-048 Dec. 26, 2019 1 Year 6. Preamplifier Schwarzbeck BBV 9743HKE-006 Dec. 26, 2019 1 Year 7. EMI Test Receiver Rohde & SchwarzESCI 7 HKE-010 Dec. 26, 201…
