2AD6ECH-206Bluetooth Speaker

BT Disco Ball Speaker Item: SC-1406BT Please read these instructions thoroughly before use and retain for future reference. Instructions for use Please read all instructions carefully Getting started Remove the speaker from the box Remove any packaging from the product Place the packaging inside the box and store for safekeeping In the box Disco ball speaker AUX cable, USB charging cable Instruction manual Features - Can be used with any BT device. - Can also be used with all MP3 players or devices with a headphone socket. - Built in microphone for hands free use with BT devices. - 1x3W stereo speakers. - Built in Lithium rechargeable battery. Product Diagram 1. LED Indicator 2. Multi-function button (MFB) Volume Increase Button / Next Track Volume Decrease Button / Previous Track 3. Power ON/OFF button 4. USB Charging Port 5. AUX-in Jack 6. TF card slot 7. USB flash disk jack 8. Speaker 9. Disco ball light 10. Built-in Microphone Instructions for use (BT pairing) Turn ON the unit. You would now hear a Beep tone and “BT mode” from speaker, that the speaker is pairing with the last device. The Blue LED flashes quickly and the disco ball light bright. Turn on the BT function on your BT Device (Mobile Phone or Tablet). Please refer to manufacturer’s instructions for instructions on enabling BT on your device. Once you have turned on BT on your device, select the device “ SC-1406BT” from the list of available BT devices. If required, enter the password ‘0000’ to confirm to pairing. Once paired successfully, you can hear a BiBi and the blue LED will bright. The speaker will remember this device and will pair automatically when the device’s BT is activated and in range. You do not need to re-pair any previously connected devices. If you want to pair it with a new device please follow the steps outlined above. Please Note • Not all devices have the same operation. Please refer to your device’s user’s manual for further information. Listening to Music Once the speaker is paired with your device you can stream music wirelessly through the speaker. Should you encounter any problems while streaming please refer your device’s user manual for further information. Control Functions Function Operation Button Increase Volume Playing music Toward the left scroll the MFB button and keep will increase the Volume Next Track Playing music Toward the left scroll the MFB button once will next track Decrease Volume Playing music Toward the right scroll the MFB button and keep will decrease the Volume Previous Track Playing music Toward the right scroll the MFB button once will previous track Pause Playing music A short press on the MFB button will pause the music Play/Pausing Playing music A short press on the MFB button will restart the music Disco ball light On/Off A Short press on the MFB button twice Change mode BT/RD/TF/AU X/USB A Long press on the MFB button can change the mode (Note: Above mentioned functions can be used in BT/TF/USB mode only. In Aux mode, you need to control through your source device. ) An indication tone will alert you when the volume is adjusted to the maximum level. Listening to MP3 music on an SD/USB After the speaker is turned on, insert the SD card to the SD card slot or insert the USB disk to the USB jack, Press the MFB button to select SD card / USB drive mode, the LED flash slowly. The control function please reference above mentioned functions list. Listening to the Radio After the speaker is turned on, Press the MFB button to select FM Radio mode 1) A long press on the MFB button 2 second, FM radio will automatic searching and can automatically save 50 units. 2) A short press on the Next track & Previous track button to select the desire radio station. 3) Press the Increase volume & Decrease volume button to adjust the speaker to the desired volume level Instructions for use (AUX cable) You may also connect any device with a headphone socket using the 3.5mm audio cable (included). Connect this cable to your headphone socket of your device and to the AUX Jack (4). Making a phone call with the device in BT mode Basic operation Function Operation Button Answer A Call Incoming Call Press the MFB once to answer an incoming call. Reject a call Incoming Call Lone press the MFB button until a indication tone heard End a call Incoming Call After your phone conversation, Short press the MFB button Increase Volume During a call Toward the left scroll the MFB button and keep will increase the Volume Decrease Volume During a call Toward the right scroll the MFB button and keep will decrease the Volume Charging Instructions The speaker comes with a built in rechargeable battery. Connect the Micro USB cable to a computer USB port and the other plug to the charging Micro USB port of the speaker. The Red LED illuminates while the speaker is charging. It takes around 4 hours for the unit to fully charge. When the battery is fully charged the red LED will switch off. Cleaning & Maintenance Please use soft cloth to clean the speaker and do not attempt to disassemble the speaker. Do's and Don’ts • Do not expose the speaker to liquid, moisture or humidity to avoid the product’s internal circuit being affected. • Don’t use abrasive cleaning solvents to clean the speaker. • Do not expose the speaker to extremely high or low temperature as this will shorten the life of electronic devices, destroy the battery or distort certain plastic parts. • Don’t dispose of the speaker in a fire as it will result in an explosion. • Don’t expose the speaker to contact with sharp objects as this will cause scratches and damage. • Don’t let the speaker drop on to the floor. The internal circuitry might get damaged. • Don’t attempt to disassemble the speaker as it may get damaged if you are not professional. Specifications BT specification BT 2.1+EDR Operating distance 10 meters (max.) Speaker power 1 x 3W Dimensions 70 X 70 X 125 mm Guidelines for protection of the environment This appliance should not be put into …

Text truncated - open the document above for the full version.

Shenzhen The 3rd Eye Technology Co., Ltd. No. 1209, 12th Floor, Baoyuan Huafeng Economy Headquarters Building, Xixiang Street, Baoan District, Shenzhen, Guangdong, China DATE 01-30-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AD6ECH-206 Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 01-30-2015 By: Sunny Chen Signature Printed Title: Manager On behalf of : Shenzhen The 3rd Eye Technology Co., Ltd. Telephone: +86-755-86259106

Shenzhen The 3rd Eye Technology Co., Ltd. No. 1209, 12th Floor, Baoyuan Huafeng Economy Headquarters Building, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Series Models Description FCC ID: 2AD6ECH-206 Date: Jan. 30, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: Bluetooth Speaker) Models Name: CH-206, LK-B098, DP-1805, SC-1406BT, 100252, iZound X-2, BT-054, SP-083, DC-1080) have same electrical, PCB and BOM, only the model’s name and color are different for marketing requirements. Sincerely, Sunny Chen/Manager The device (Product Name: Bluetooth Speaker) Models Name: CH-206, LK-B098, DP-1805, SC-1406BT, 100252, iZound X-2, BT-054, SP-083, DC-1080) are electrically identical, only the model’s name and color are different for marketing requirements.

Shenzhen The 3rd Eye Technology Co., Ltd. No. 1209, 12th Floor, Baoyuan Huafeng Economy Headquarters Building, Xixiang Street, Baoan District, Shenzhen, Guangdong, China USB Port Statement FCC ID: 2AD6ECH-206 Date: Jan. 30, 2015 To whom it may concern: We, the undersigned, state that the device's (Model: CH-206, LK-B098, DP-1805, SC-1406BT, 100252, iZound X-2, BT-054, SP-083, DC-1080) USB port only used for charge, no any data transfer to PC. Sincerely, Sunny Chen/Manager

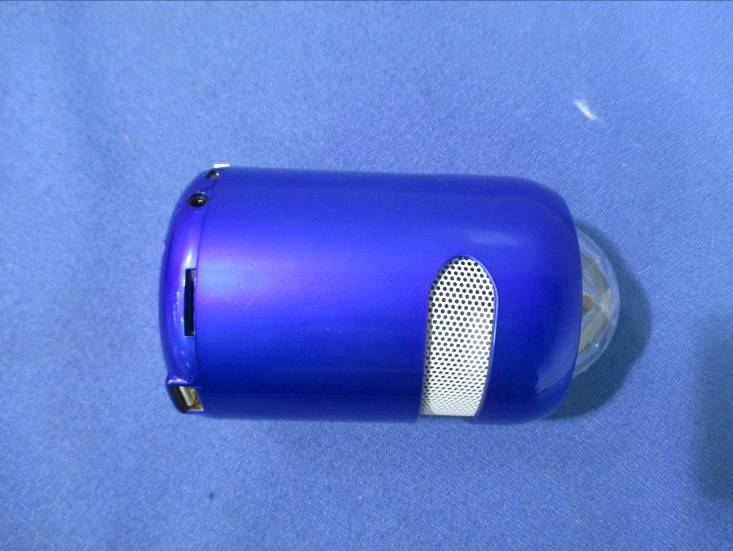

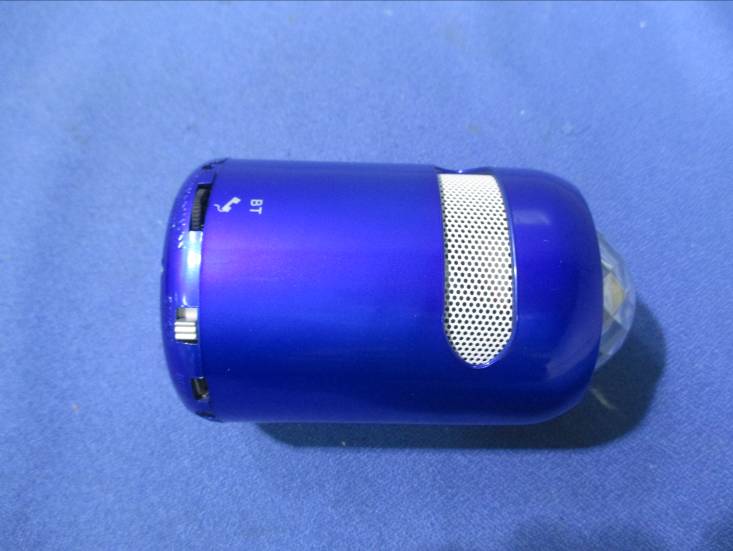

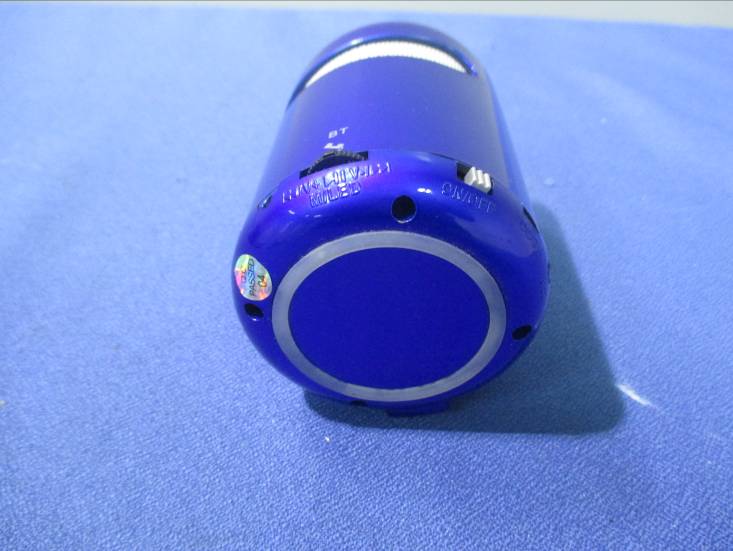

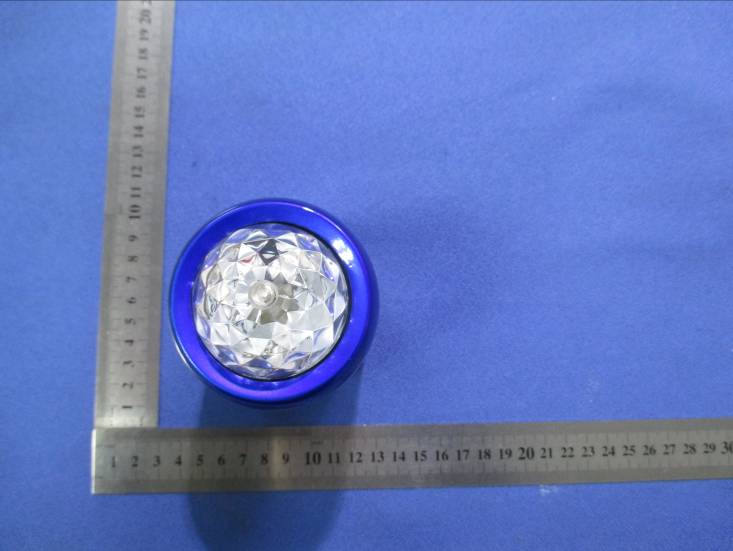

External Photos of EUT

FCC ID Label Information 1. Label location: 2. FCC ID Label: Shenzhen The 3rd Eye Technology Co., Ltd. Bluetooth Speaker Model: CH-206 FCC ID: 2AD6ECH-206 FCCID Label Location

Internal Photos of EUT

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 94.04 dBuV/m @3m Ant gain 0dBi; so Ant numeric gain=1 So pt={ [10 (94.04 /20) /10 6 x3] 2 /30X1 }x1000 mW =0.8 mW So ( 0.8mW/5mm)x √2.480 GHz = 0.3 <3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No......................: CTL1501040003-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Happy Guo Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Jan. 29, 2015 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: Shenzhen The 3rd Eye Technology Co., Ltd. Address.............................................: No. 1209, 12 th Floor, Baoyuan Huafeng Economy Headquarters Building, Xixiang Ave., Laodong Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Bluetooth Speaker Trade Mark .......................................: N/A Models/Type reference.....................: CH-206, LK-B098, DP-1805, SC-1406BT, 100252, iZound X-2, BT-054, SP-083, DC-1080 Modulation .......................................: FHSS Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2AD6ECH-206 Result................................................: Positive V1.0 Page 2 of 48 Report No.: CTL1501040003-WF T E S T R E P O R T Test Report No. :CTL1501040003-WF Jan. 29, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Bluetooth Speaker Model /Type : CH-206 Listed Modes LK-B098, DP-1805, SC-1406BT, 100252, iZound X-2, BT-054, SP-083, DC-1080 Difference Description Only the color and model's name is different Applicant : Shenzhen The 3rd Eye Technology Co., Ltd. Address : No. 1209, 12 th Floor, Baoyuan Huafeng Economy Headquarters Building, Xixiang Ave., Laodong Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Manufacturer Shenzhen The 3rd Eye Technology Co., Ltd. Address No. 1209, 12 th Floor, Baoyuan Huafeng Economy Headquarters Building, Xixiang Ave., Laodong Community, Xixiang Street, Baoan District, Shenzhen, Guangdong, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 48 Report No.: CTL1501040003-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Fundamental Emissions 14 4.3.Transmitter Radiated Unwanted Emissions 15 4.4.Band Edge Measurement 31 4.5.Occupied Bandwidth Measurement 40 5. ANTENNA REQUIREMENT ....................................................... 42 6.TEST SETUP PHOTOS OF THE EUT .......................................... 43 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 45 V1.0 Page 4 of 48 Report No.: CTL1501040003-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 48 Report No.: CTL1501040003-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Jan. 04, 2015 Testing commenced on : Jan. 04, 2015 Testing concluded on : Jan. 29, 2015 2.2.Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a Bluetooth Speaker work at 2402~2480 MHz support Bluetooth 2.1+EDR. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
