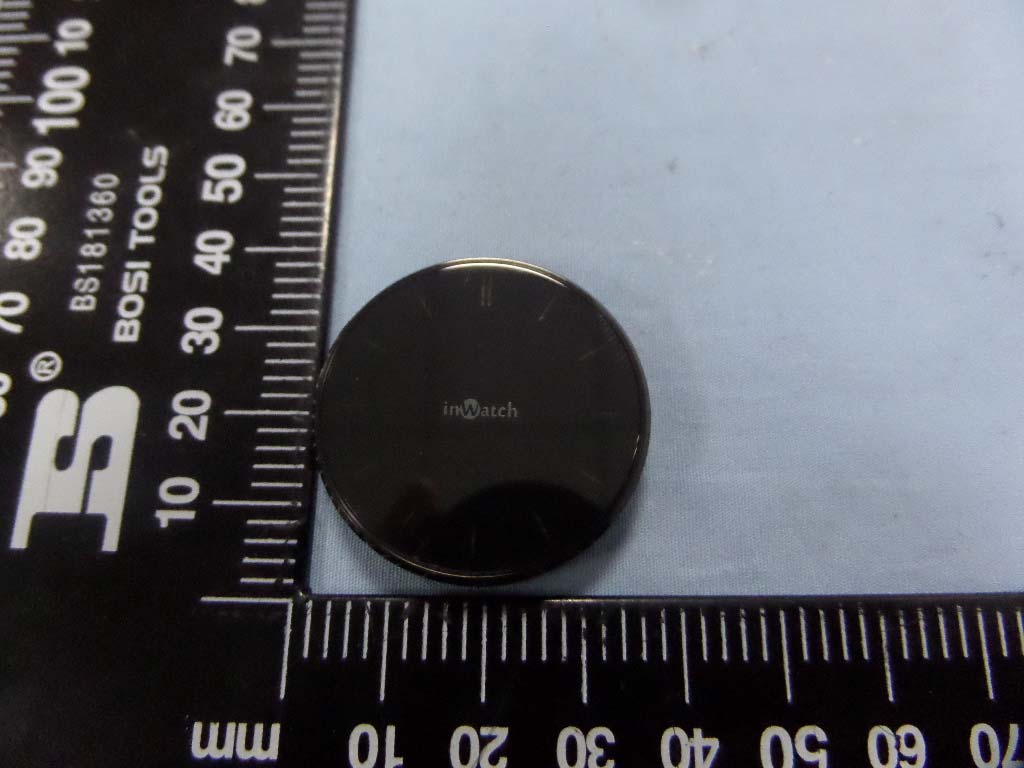

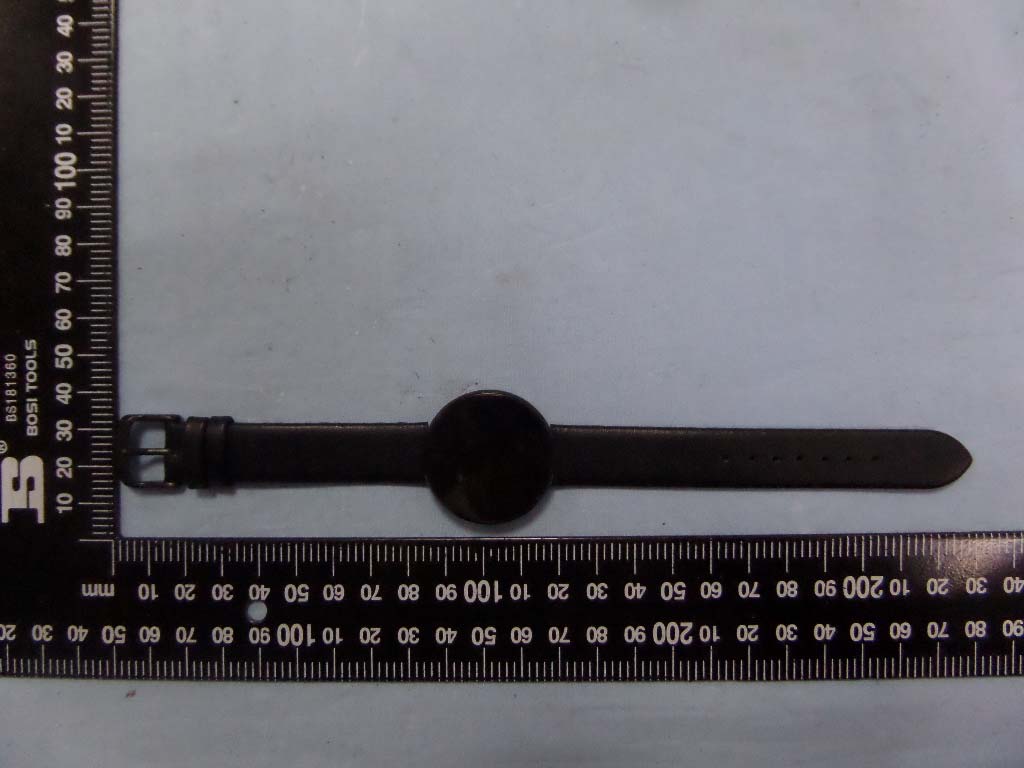

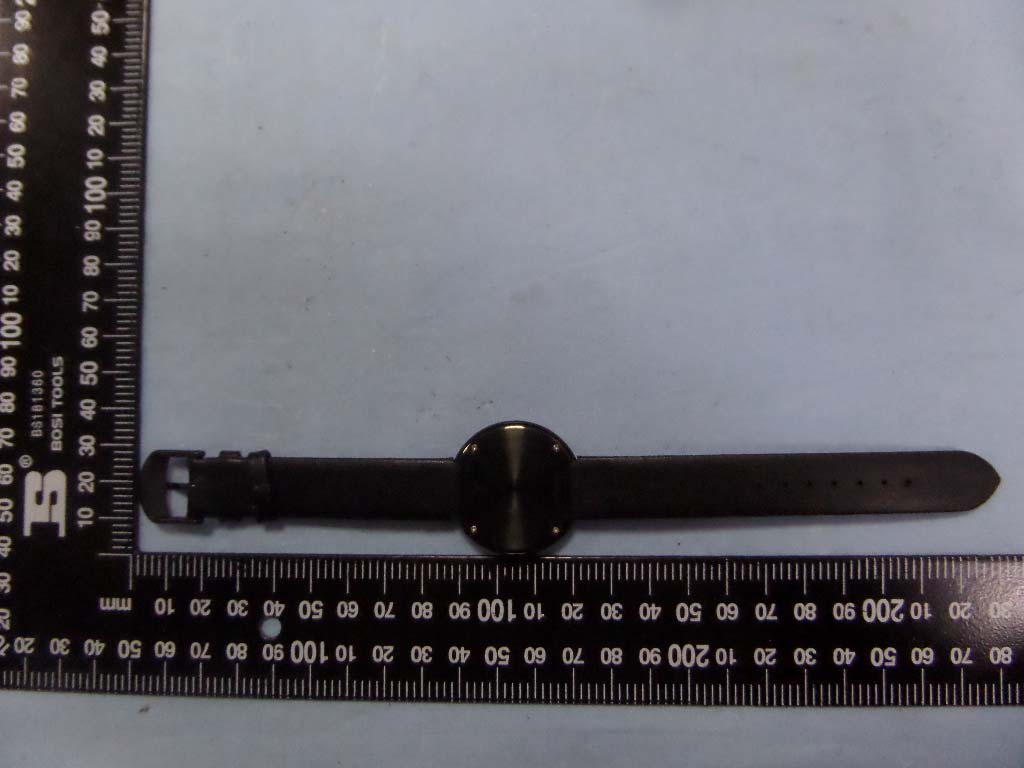

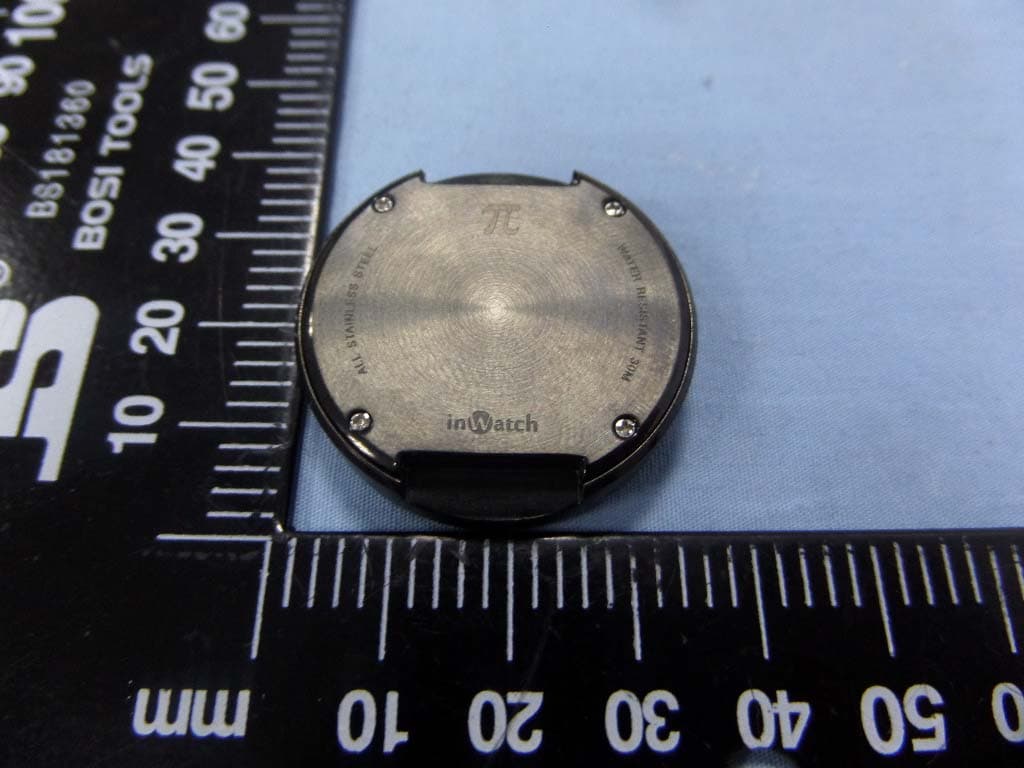

Shenzhen inWatch technology Co., Ltd Model: Pi001 REPORT NO.: STR15018300I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Shenzhen inWatch technology Co., Ltd Model: Pi001 REPORT NO.: STR15018300I FCC PART 15.247 EUT View 3 EUT View 4

Shenzhen inWatch technology Co., Ltd Model: Pi001 REPORT NO.: STR15018300I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AD6NPI001 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen inWatch technology Co., Ltd Model: Pi001 REPORT NO.: STR15018300I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2AD6NPI001 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen inWatch technology Co., Ltd Model: Pi001 REPORT NO.: STR15018300I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 BT Antenna Shenzhen inWatch technology Co., Ltd Model: Pi001 REPORT NO.: STR15018300I FCC PART 15.247 Solder Board-Component View 1 Solder Board-Component View 2

RF Exposure Requirements Product Description: inWatch π Model No.: Pi001 FCC ID: 2AD6NPI001 According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth (BLE) Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: -7.613dBm Maximum Output Power: 0.173mW Limit: 10mW Source-based time-averaged output power is 0.173mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Shenzhen inWatch technology Co., Ltd Model: Pi001 REPORT NO.: STR15018300I PAGE 1 OF 32 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Shenzhen inWatch technology Co., Ltd A 3F, No3 Building, Huangguan Technic Park, No.21 Tairan 9 Road, Futian District, Shenzhen, China FCC ID: 2AD6NPI001 FCC Rule(s): FCC Part 15.247 Product Description: inWatch π Tested Model: Pi001 Report No.: STR15018300I Tested Date: 2015-01-30 to 2015-04-14 Issued Date: 2015-04-14 Tested By: Jong Wang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Shenzhen inWatch technology Co., Ltd Model: Pi001 REPORT NO.: STR15018300I PAGE 2 OF 32 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 5.3 TEST PROCEDURE ................................................................................................................................................... 9 5.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 13 6.1 STANDARD APPLICABLE ....................................................................................................................................... 13 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 13 6.3 TEST PROCEDURE ................................................................................................................................................. 13 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 13 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. RF OUTPUT POWER ............................................................................................................................................ 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 8. FIELD STRENGTH OF SPURIOUS EMISSIONS …

Text truncated - open the document above for the full version.

Shenzhen inWatch technology Co., Ltd Model: Pi001 REPORT NO.: STR15018300I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Shenzhen inWatch technology Co., Ltd Model: Pi001 REPORT NO.: STR15018300I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
