2AD6S-KRBISBentley Infotainment System(BIS)

KR-BIS INSTRUCTION MANUAL IVI Head Unit, 9.7" Screen, Media Box Bentley Infotainment System (BIS) 1 Safety Precautions Never expose this unit, amplifier or speakers to moisture or water to prevent electric sparks or fire. Do not change the fuse on the power cord without professional guidance. Using an improper fuse may cause damage to this unit or even cause fire. Please contact your nearest dealer if one of the following is experienced: (a). Water or other objects enter the unit. (b). There is smoke. (c). Peculiar smell. Only connect the unit to a 12-volt power supply with negative grounding. Never install this unit where operating it may impair safe driving conditions. Thank you for purchasing this product. Please read through these operating instructions so you will know how to operate your model properly. Please keep this manual in a safe place for future reference. To ensure safe driving, please adjust the volume to a safe and comfortable level in case of emergency situations. 2 1. Never disassemble or adjust the unit without professional guidance. For further details, please consult an authorised service provider or dealer. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to clean. Using a rough cloth and non-neutral detergent such as alcohol to clean may scratch or discolour the monitor. 3. If the unit does not function normally , please refer to the troubleshooting guide of this manual. If no relevant information is found, please contact your dealer or Service Center. 4. If you have parked the car in hot or cold weather for a long time, please wait until the temperature in the car becomes normal before operating the unit. 5. Using the car heater in a low temperature environment may result in moisture collecting inside the unit. DO NOT use the unit in this condition. Eject the disc and wipe off the moisture on the disc. If the unit does not work after a few hours, please contact the service center. 6. Do not drop or bang the LCD monitor as this will damage it. 7. To prevent damage to the screen, avoid touching it with sharp objects. 8. Graphic illustrations are used to provide a clear demonstration and an easy way to understand how to operate this unit. 9. Only operate the unit as described in this manual. Inappropriate operation will void the guarantee. Safety Precautions 3 Front Panel Basic Operation 1 POWER button Switch on/off device 2 HOME/Voice Control button Call up main menu Activate voice control 3 Airconditioner buttons 4 Navigation shortcut button 5 BACK button Return to previous menu 6 Rotary-knob 7 Touch screen 4 Basic Operation Power On / Off Press the [ ] knob on the bottom left of the unit. The unit starts and the current mode status appears in the LCD. Press and hold the [ ] knob to power off the unit. Volume Adjustment To increase or decrease the volume level, rotate the [ ] knob on the front panel. Mute Press [ ] button to mute the volume from the unit. Press again to restore the volume. Adjusting the volume or using any of the audio setup features cancels the mute function. Playing Source Selection Press the [ ] button on the front panel to enter main menu. The playing modes are displayed on the screen. 1. Enter Main Menu (in playing mode) 2. Source List Touch a icon to select corresponding mode. Flip left to show more icons. 3. Status Bar 4. Clock 5. Enter Radio Menu 6. Enter Media Menu 7. Enter Phone Menu 8. Enter Navigation Menu 9. Enter Sound Menu 10. Aircondition 1 3 2 5 6 7 8 9 10 5 Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. ProblemCauseCorrective action Unit can not power on Unit fuse blown.Install new fuse with correct rating. Car battery fuse blown.Install new fuse with correct rating. Illegal operationReset the unit. No/low audio output Improper audio output connection. Check wiring and correct. Volume set too low.Increase volume level. Speakers damaged.Replace speakers. Heavily biased volume balance. Adjust the channel balance to center position. Speaker wiring is in contact with metal part of car. Insulate all speaker wiring connections. Poor sound quality or distortion Speaker power rating does not match unit. Replace speakers. Wrong connections.Check wiring and correct. Speaker is shorted.Check wiring and correct. Unit resets itself when engine is off Incorrect connection between ACC and BATT. Check wiring and correct. 6 FunctionOperation Frequency Range Bluetooth2402 to 2480MHz Wi-Fi 5150 to 5250 MHz 5725 to 5825 MHz GNSS1559 to 1610 MHz Broadcast Sound Receivers AM(According to Market) Receiver Only: 0x0=EU -- range: 531KHz~1602; step: 9KHz 0x1=NAFTA -- range: 530KHz~1710; step: 10KHz 0x2=ROW -- range: 531KHz~1602; step: 9KHz FM: 87.5 to 108 MHz (Receiver Only) DAB: 174MHz - 240MHz (Receiver Only) Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user. BEELLTPTBGESLUROCZFR HUSIDKHRMTSKDEITNLFI EECYATSEIELVPLUK Operations in the 5.15-5.25GHz band are restricted to vehicle usage only. FunctionOperation Frequency RangeMax Output Power Bluetooth BR/EDR2400 to 2483.5MHz7.5±2 Bluetooth BLE2400 to 2483.5MHz7±2 Wi-Fi5150 to 5250 MHz15±2 5725 to 5850 MHz12±2 Specification Reference Supply Voltage .................................................................. 12V(DC) Operating Voltage Range .............................................................. 9 - 16V(DC) Max Operating Current ...............................................................................15A Screen Size ..........................................................................................9.7 inch Operating Temperature..............................................................-20°C ~ +60°C Storing Temperature ................................................................. -30°C ~ +80°C Operating Humidity ..................................…

Text truncated - open the document above for the full version.

Rev1/26/2023 KraemerAutomotiveSystemsGmbH FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024-7-16 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing FCCID:2AD6S-KRBIS FRN:0024186561 [KraemerAutomotiveSystemsGmbH](“theapplicant”)certifiesthattheequipmentforwhich authorizationissoughtisnot“covered”equipmentprohibitedfromreceivinganequipment authorizationpursuanttosection2.903oftheFCCrules. Sincerely, Rev1/26/2023 KraemerAutomotiveSystemsGmbH FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024-7-16 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing FCCID:2AD6S-KRBIS FRN:0024186561 [KraemerAutomotiveSystemsGmbH](“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,theapplicantisnotidentifiedontheCoveredList(asaspecificallynamedentityoranyofits subsidiariesoraffiliates)asanentityproducing“covered” equipment. Sincerely,

Rev1/26/2023 KraemerAutomotiveSystemsGmbH FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date:07-16-2024 Ref:AttestationStatementsPart2.911(d)(7)Filing FCCID:2AD6S-KRBIS FRN:0024186561 [KraemerAutomotiveSystemsGmbH](“theapplicant”)certifiesthat,asofthedateofthefilingofthe application,[BentleyMotors,Inc]isourdesignatedU.S.agentforserviceofprocessfortheabove referencedFCCID.[KraemerAutomotiveSystemsGmbH]acceptstomaintainanagentfornolessthan oneyearafterthegranteehasterminatedallmarketingandimportationortheconclusionofany Commission-relatedproceedinginvolvingtheequipment. [BentleyMotors,Inc]accepts,asofthedateofthefilingoftheapplication,theobligationofthe designatedU.S.agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: FRN:0035680560 Name:BentleyMotors,Inc Address:1950OpportunityWaySuite1500Reston,VA20190UnitedStates ContactPerson:ChristopherWDailey Tel.:(248)464-1160 Email:[email protected] Sincerely, [KraemerAutomotiveSystemsGmbH][BentleyMotors,Inc] [ Hans-PeterSchmidt ] ChristopherWDailey

Rev11/20/07 KraemerAutomotiveSystemsGmbH FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2AD6S-KRBIS PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName BlockBlock Schematicssch OperationalDescriptionOperationdescriptiion Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. Sincerely,

KraemerAutomotiveSystemsGmbH Wedeclarethatthemax.antennagainforthefrequencyband5180-5240MHzis 2.58dBi,5745-5825MHzis3.66dBi.Thedetalinformationpleaserefertheantenna spec. Regards,

KraemerAutomotiveSystemsGmbH FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Date:2024-7-16 SUBJECT:FCCID:2AD6S-KRBIS ToWhomItMayConcern: We,theundersigned,herebyauthorizeSabrina.wangatGRGMetrology&TestGroupCo., Ltd.onourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment. AnyandallactscarriedoutbyGRGMetrology&TestGroupCo.,Ltd.onourbehalfshall havethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards,

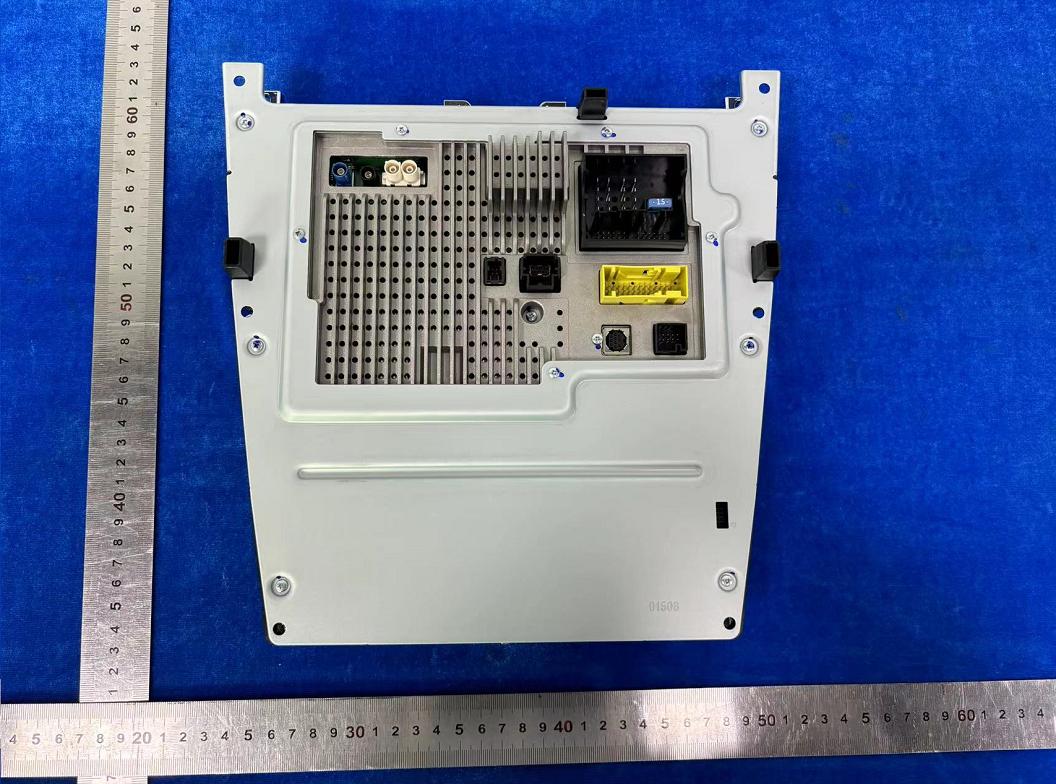

Report No.: E202309059135-01-21 Page 1 of 3 APPENDIX B. PHOTOGRAPH OF THE EUT External Photos of EUT KR-BIS EUT-1 EUT-2 ReportNo.: E20 2309059135-01-21 Page 2 of 3 EUT-3 EUT-4 ReportNo.: E20 2309059135-01-21 Page 3 of 3 EUT-5 EUT-6 -----------End of Report-----------

FCC ID: 2AD6S-KRBIS IC: 25077-KRBIS CMIIT ID: XXXXXXXXXX Designed and developed in Germany KRÄMER AUTOMOTIVE SYSTEMS GMBH Obere Wässere 6-8 72764 Reutlingen Germany Made in China Part numbers: 4W0035017 | 4W0035017A 4W0035017B | 4W0035017C Model:KR-BIS SN:XXXXXXXX000001 Date/制造日期:2024.05.22 制造商：惠州华阳通用电子有限公司 注意事項:小心電擊的危險！請勿自行打開！ 使用過度恐傷害視力。 XXXXXXXX United Arab Emirates Identification No 10R-06 XXXX This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The digital apparatus complies with Canadian CAN ICES3 (B)/NMB3(B). Operations in the 5.15-5.25GHz band are restricted to indoor usage only 标贴位置 4W0035017 22.08.2023 Krämer Automotive Systems GmbH L72906 1270720314200 RNS Upgrade - RoW Made in China 10R-05 XXXX S/N: HM5102A000001 Obere Wässere 6-8, D-72764 Reutlingen, Germany SW:V00.00.01 HW:V0.1

Report No.: E202309059135-01-21 Page 1 of 24 APPENDIX B. PHOTOGRAPH OF THE EUT Internal Photos of EUT KR-BIS EUT-1 EUT-2 Report No.: E202309059135-01-21 Page 2 of 24 EUT-3 EUT-4 Report No.: E202309059135-01-21 Page 3 of 24 EUT-5 EUT-6 Report No.: E202309059135-01-21 Page 4 of 24 EUT-7 EUT-8 Report No.: E202309059135-01-21 Page 5 of 24 EUT-9 EUT-10 Report No.: E202309059135-01-21 Page 6 of 24 EUT-11 EUT-12 Report No.: E202309059135-01-21 Page 7 of 24 EUT-13 EUT-14 Report No.: E202309059135-01-21 Page 8 of 24 EUT-15 EUT-16 Report No.: E202309059135-01-21 Page 9 of 24 EUT-17 EUT-18 Report No.: E202309059135-01-21 Page 10 of 24 EUT-19 EUT-20 Report No.: E202309059135-01-21 Page 11 of 24 EUT-21 EUT-22 Report No.: E202309059135-01-21 Page 12 of 24 EUT-23 EUT-24 Report No.: E202309059135-01-21 Page 13 of 24 EUT-25 EUT-26 Report No.: E202309059135-01-21 Page 14 of 24 EUT-27 EUT-28 Report No.: E202309059135-01-21 Page 15 of 24 EUT-29 EUT-30 Report No.: E202309059135-01-21 Page 16 of 24 EUT-31 EUT-32 Report No.: E202309059135-01-21 Page 17 of 24 EUT-33 EUT-34 Report No.: E202309059135-01-21 Page 18 of 24 EUT-35 EUT-36 Report No.: E202309059135-01-21 Page 19 of 24 EUT-37 EUT-38 Report No.: E202309059135-01-21 Page 20 of 24 EUT-39 EUT-40 Report No.: E202309059135-01-21 Page 21 of 24 EUT-41 EUT-42 Report No.: E202309059135-01-21 Page 22 of 24 EUT-43 EUT-44 BLE&BT&WiFi RF IC Report No.: E202309059135-01-21 Page 23 of 24 EUT-45 EUT-46 Report No.: E202309059135-01-21 Page 24 of 24 EUT-47 EUT-48 ----------- End of Report ----------- BLE&BT Antenna WiFi Antenna

Page 1 of 11 Test Report Verified code: Report No.: E202309059135-01-9 Customer: Kräemer Automotive Systems GmbH Address: Obere Wässere 6-8 72764 Reutlingen Germany Sample Name: Bentley Infotainment System(BIS) Sample Model: KR-BIS Receive Sample Date: Sep.22,2023 Test Date: Nov.28,2023 ~ May.10,2024 Reference Document: 47 CFR, FCC Part 2.1091 Radio frequency radiation exposure evaluation: mobile devices Test Result: Pass Prepared by: Reviewed by: Approved by: Chen Xiaocong Wu Haoting Xiao Liang GRG METROLOGY & TEST GROUP CO., LTD. Issued Date: GRG METROLOGY & TEST GROUP CO., LTD. Address: No.163,Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, China Tel：（+86）400-602-0999 FAX：（+86）020-38698685 Web：http://www.grgtest.com 653833 2024-07-24 Report No.: E202309059135-01-9 Page 2 of 11 Statement 1. The report is invalid without "special seal for inspection and testing"; some copies are invalid; The report is invalid if it is altered or missing; The report is invalid without the signature of the person who prepared, reviewed and approved it. 2. The sample information is provided by the client and responsible for its authenticity; The content of the report is only valid for the samples sent this time. 3. When there are reports in both Chinese and English, the Chinese version will prevail when the language problems are inconsistent. 4. If there is any objection concerning the report, please inform us within 15 days from the date of receiving the report. 5. This testing report is only for scientific research, teaching, internal quality control, etc. ——Blank space below this page—— Report No.: E202309059135-01-9 Page 3 of 11 TABLE OF CONTENTS 1. GENERAL DESCRIPTION OF EUT............................................................................................................. 5 1.1 APPLICANT ................................................................................................................................... 5 1.2 MANUFACTURER ........................................................................................................................ 5 1.3 FACTORY ...................................................................................................................................... 5 1.4 BASIC DESCRIPTIONOF EQUIPMENTUNDER TEST ............................................................. 5 2. LABORATORY .............................................................................................................................................. 7 2.1 LABORATORY .............................................................................................................................. 7 2.2 ACCREDITATIONS ...................................................................................................................... 7 3. LIMITS FOR GENERAL POPULATION/UNCONTROLLEDEXPOSURE ............................................... 8 4. CALCULATION METHOD .......................................................................................................................... 9 5. ESTIMATION RESULT .............................................................................................................................. 10 5.1 MEASUREMENT RESULTS ...................................................................................................... 10 6. CONCLUSION ............................................................................................................................................. 11 ——Blank space below this page—— Report No.: E202309059135-01-9 Page 4 of 11 REPORT ISSUED HISTORY Report Version Report No. Description Compile Date 1.0 E202309059135-01-9 Original Issue 2024-05-23 ——Blank space below this page—— Report No.: E202309059135-01-9 Page 5 of 11 1. GENERAL DESCRIPTION OF EUT 1.1 APPLICANT Name: Kräemer Automotive Systems GmbH Address: Obere Wässere 6-8 72764 Reutlingen Germany 1.2 MANUFACTURER Name: Kräemer Automotive Systems GmbH Address: Obere Wässere 6-8 72764 Reutlingen Germany 1.3 FACTORY Name : Huizhou Foryou General Electronics Co., Ltd. Address : No.2 District A, Foryou Industry Park, No. 1 North Shangxia Road, Dongjiang Hi tech Industry Park, 516005 Huizhou city, Guangdong Province, China(PROC) 1.4 BASIC DESCRIPTIONOF EQUIPMENTUNDER TEST Equipment: Bentley Infotainment System(BIS) Model No.: KR-BIS Trade Mark: BENTLEY FCC ID: 2AD6S-KRBIS Power supply: DC 12V, 15A Frequency Band: 5180MHz-5240MHz & 5745MHz~5825MHz for IEEE 802.11a/n HT20/ac VHT20; 5190MHz-5230MHz & 5755MHz~5795MHz for IEEE 802.11n HT40/ac VHT40; 5210MHz & 5775MHz for IEEE 802.11ac VHT80 2402MHz - 2480MHz for Bluetooth LE with 1M 2402MHz - 2480MHz for Bluetooth GFSK, Pi/4DQPSK, 8DPSK Transmit Power: Bluetooth LE for 1Mbps:4.32dBm Bluetooth for GFSK:4.10dBm Bluetooth for Pi/4DQPSK:6.21dBm Bluetooth for 8DPSK:6.65dBm U-NII-1: 9.28dBm for IEEE 802.11a 8.93dBm for IEEE 802.11n HT20 9.31dBm for IEEE 802.11acVHT20 9.54dBm for IEEE 802.11n HT40 9.31dBm for IEEE 802.11acVHT40 8.25dBm for IEEE 802.11ac VHT80 U-NII-3: 9.08dBm for IEEE 802.11a 8.06dBm for IEEE 802.11n HT20 7.97dBm for IEEE 802.11acVHT20 Report No.: E202309059135-01-9 Page 6 of 11 8.46dBm for IEEE 802.11n HT40 8.28dBm for IEEE 802.11acVHT40 8.15dBm for IEEE 802.11ac VHT80 Modulation type: GFSK for Bluetooth LE, GFSK&Pi/4DQPSK&8DPSK for Bluetooth, OFDM for IEEE 802.11a/n/ac mode Antenna Specification: Bluetooth LE: Antenna 1: 2.47dBi gain (Max) Bluetooth: Antenna 1: 2.47dBi gain (Max) 5G WIFI: 5150MHz – 5250MHz Antenna 2: 2.58dBi gain (Max) 5G WIFI: 5725MHz – 5850MHz Antenna 2: 3.66dBi gain (Max) Temperature Range: -20°C ~ 60°C Hardware Version: V0.1 Software Version: V00.00.01 Sample No: E202309059135-01-0001, E202309059135-01-0003 Note: The EUT antenna gain is provided by the applicant. This report is made solely on the basis of such data and/or information. We accept no responsibility for the authenticity and completeness of the above data and information and the validity of the results and/or conclusions. …

Text truncated - open the document above for the full version.

Page 1 of 143 Test Report Verified code: Report No.: E202309059135-01-8 Customer: Kräemer Automotive Systems GmbH Address: Obere Wässere 6-8 72764 Reutlingen Germany Sample Name: Bentley Infotainment System(BIS) Sample Model: KR-BIS Receive Sample Date: Sep.22,2023 Test Date: Nov.28,2023 ~ May.10,2024 Reference Document: 47 CFR, FCC Parts 15 Subpart E Unlicensed National Information Infrastructure Devices Test Result: Pass Prepared by: Reviewed by: Approved by: Chen Xiaocong Wu Haoting Xiao Liang GRG METROLOGY & TEST GROUP CO., LTD. Issued Date: GRG METROLOGY & TEST GROUP CO., LTD. Address: No.163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, China Tel：（+86）400-602-0999 FAX：（+86）020-38698685 Web：http://www.grgtest.com 713816 2024-07-24 Report No.: E202309059135-01-8 Page 2 of 143 Statement 1. The report is invalid without "special seal for inspection and testing"; some copies are invalid; The report is invalid if it is altered or missing; The report is invalid without the signature of the person who prepared, reviewed and approved it. 2. The sample information is provided by the client and responsible for its authenticity; The content of the report is only valid for the samples sent this time. 3. When there are reports in both Chinese and English, the Chinese version will prevail when the language problems are inconsistent. 4. If there is any objection concerning the report, please inform us within 15 days from the date of receiving the report. 5. This testing report is only for scientific research, teaching, internal quality control, etc. ——Blank space below this page—— Report No.: E202309059135-01-8 Page 3 of 143 Table of Contents 1. TEST RESULT SUMMARY .......................................................................................................................... 6 2. GENERAL DESCRIPTION OF EUT............................................................................................................. 7 2.1 APPLICANT ................................................................................................................................... 7 2.2 MANUFACTURER ........................................................................................................................ 7 2.3 FACTORY ...................................................................................................................................... 7 2.4 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ........................................................... 7 2.5 CHANNEL LIST AND POWER SETTING .................................................................................. 9 2.6 TEST OPERATION MODE ........................................................................................................... 9 2.7 LOCAL SUPPORTIVEINSTRUMENTS ..................................................................................... 10 2.8 CONFIGURATION OF SYSTEM UNDER TEST ...................................................................... 10 2.9 DUTY CYCLE .............................................................................................................................. 11 3. LABORATORY AND ACCREDITATIONS AND MEASUREMENT UNCERTAINTY ........................ 14 3.1 LABORATORY ............................................................................................................................ 14 3.2 ACCREDITATIONS .................................................................................................................... 14 3.3 MEASUREMENT UNCERTAINTY ........................................................................................... 15 4. LIST OF USED TEST EQUIPMENT AT GRGT ........................................................................................ 16 5. UNWANTED EMISSIONS .......................................................................................................................... 18 5.1 LIMITS .......................................................................................................................................... 18 5.2 TEST PROCEDURES .................................................................................................................. 19 5.3 TEST SETUP ................................................................................................................................ 21 5.4 DATA SAMPLE ........................................................................................................................... 22 5.5 TEST RESULTS ........................................................................................................................... 24 6. RESTRICTED BANDS OF OPERATION ................................................................................................... 55 6.1 LIMITS .......................................................................................................................................... 55 6.2 TEST PROCEDURES .................................................................................................................. 55 6.3 TEST SETUP ................................................................................................................................ 56 6.4 TEST RESULTS ........................................................................................................................... 57 7. 6dB BANDWIDTH & 26dB BANDWIDTH & 99% OCCUPIED BANDWIDTH ..................................... 91 7.1 LIMITS .......................................................................................................................................... 91 7.2 TEST PROCEDURES .................................................................................................................. 91 7.3 TEST SETUP ................................................................................................................................ 92 7.4 TEST RESULTS ......................................................................................…

Text truncated - open the document above for the full version.

Report No.: E202309059135-01-8 Page 72 of 143 IEEE 802.11n HT40 mode ANT2 Highest Channel Frequency 5230MHz Environment: 24.3°C/56%RH/101.0kPa Voltage: DC 12V Tested By: Zhang Zishan Date: 2024-05-10 Detector mode: Peak Polarity: Horizontal Detector mode: Peak Polarity: Vertical No. Frequency Reading Level Factor Limit Margin Height Angle Pole Comment MHz dBμV/m dBμV/m dB dBuV/m dB cm ° 1 5118.5550 52.51 48.86 -3.65 74.00 25.14 100 248 Horizontal / 2 5150.0000 45.34 41.41 -3.93 68.30 26.89 100 234 Horizontal / 3 5243.7150 96.59 93.04 -3.55 68.30 -24.74 100 72 Horizontal No limit 1 5144.5250 48.23 44.18 -4.05 74.00 29.82 100 285 Vertical / 2 5150.0000 45.30 41.17 -4.13 68.30 27.13 200 75 Vertical / 3 5247.2150 97.24 93.26 -3.98 68.30 -24.96 200 237 Vertical No limit Report No.: E202309059135-01-8 Page 73 of 143 IEEE 802.11n HT40 mode ANT2 Highest Channel Frequency 5230MHz Environment: 24.3°C/56%RH/101.0kPa Voltage: DC 12V Tested By: Zhang Zishan Date: 2024-05-10 Detector mode: Average Polarity: Horizontal Detector mode: Average Polarity: Vertical No. Frequency Reading Level Factor Limit Margin Height Angle Pole Comment MHz dBμV/m dBμV/m dB dBuV/m dB cm ° 1 5109.7700 35.37 31.80 -3.57 54.00 22.20 100 278 Horizontal / 2 5150.0000 34.92 30.99 -3.93 54.00 23.01 100 45 Horizontal / 3 5239.6900 87.66 84.15 -3.51 - - 100 254 Horizontal No limit 1 5116.5600 35.55 31.92 -3.63 54.00 22.08 200 360 Vertical / 2 5150.0000 35.14 31.01 -4.13 54.00 22.99 200 203 Vertical / 3 5239.6200 88.74 84.85 -3.89 - - 100 130 Vertical No limit Report No.: E202309059135-01-8 Page 74 of 143 IEEE 802.11n HT40 mode ANT2 Lowest Channel Frequency 5755MHz Environment: 24.3°C/56%RH/101.0kPa Voltage: DC 12V Tested By: Zhang Zishan Date: 2024-05-10 Detector mode: Peak Polarity: Horizontal Detector mode: Peak Polarity: Vertical No. Frequency Reading Level Factor Limit Margin Height Angle Pole Comment MHz dBμV/m dBμV/m dB dBuV/m dB cm ° 1 5749.8300 93.66 90.99 -2.67 122.20 31.21 100 100 Horizontal / 1 5741.2550 94.64 91.81 -2.83 122.20 30.39 100 291 Vertical / Report No.: E202309059135-01-8 Page 75 of 143 IEEE 802.11n HT40 mode ANT2 Lowest Channel Frequency 5795MHz Environment: 24.3°C/56%RH/101.0kPa Voltage: DC 12V Tested By: Zhang Zishan Date: 2024-05-10 Detector mode: Peak Polarity: Horizontal Detector mode: Peak Polarity: Vertical No. Frequency Reading Level Factor Limit Margin Height Angle Pole Comment MHz dBμV/m dBμV/m dB dBuV/m dB cm ° 1 5789.8600 94.55 91.71 -2.84 122.20 30.49 100 100 Horizontal / 1 5809.7575 94.56 91.52 -3.04 122.20 30.68 100 85 Vertical / Report No.: E202309059135-01-8 Page 76 of 143 IEEE 802.11ac VHT20 mode ANT2 Highest Channel Frequency 5180MHz Environment: 24.3°C/56%RH/101.0kPa Voltage: DC 12V Tested By: Zhang Zishan Date: 2024-05-10 Detector mode: Peak Polarity: Horizontal Detector mode: Peak Polarity: Vertical No. Frequency Reading Level Factor Limit Margin Height Angle Pole Comment MHz dBμV/m dBμV/m dB dBuV/m dB cm ° 1 5147.8350 56.49 52.58 -3.91 74.00 21.42 100 89 Horizontal / 2 5150.0000 48.63 44.70 -3.93 68.30 23.60 100 89 Horizontal / 3 5174.7500 97.64 94.14 -3.50 68.30 -25.84 100 89 Horizontal No limit 1 5148.6050 57.28 53.17 -4.11 74.00 20.83 100 271 Vertical / 2 5150.0000 47.13 43.00 -4.13 68.30 25.30 100 271 Vertical / 3 5184.1650 98.14 94.53 -3.61 68.30 -26.23 200 304 Vertical No limit Report No.: E202309059135-01-8 Page 77 of 143 IEEE 802.11ac VHT20 mode ANT2 Highest Channel Frequency 5180MHz Environment: 24.3°C/56%RH/101.0kPa Voltage: DC 12V Tested By: Zhang Zishan Date: 2024-05-10 Detector mode: Average Polarity: Horizontal Detector mode: Average Polarity: Vertical No. Frequency Reading Level Factor Limit Margin Height Angle Pole Comment MHz dBμV/m dBμV/m dB dBuV/m dB cm ° 1 5149.1100 40.82 36.90 -3.92 54.00 17.10 200 165 Horizontal / 2 5150.0000 38.59 34.66 -3.93 54.00 19.34 200 165 Horizontal / 3 5185.8600 90.21 86.90 -3.31 - - 200 165 Horizontal No limit 1 5117.7500 35.46 31.82 -3.64 54.00 22.18 100 268 Vertical / 2 5150.0000 43.50 39.37 -4.13 54.00 14.63 100 108 Vertical / 3 5173.1200 91.55 87.77 -3.78 - - 100 120 Vertical No limit Report No.: E202309059135-01-8 Page 78 of 143 IEEE 802.11ac VHT20 mode ANT2 Lowest Channel Frequency 5240MHz Environment: 24.3°C/56%RH/101.0kPa Voltage: DC 12V Tested By: Zhang Zishan Date: 2024-05-10 Detector mode: Peak Polarity: Horizontal Detector mode: Peak Polarity: Vertical No. Frequency Reading Level Factor Limit Margin Height Angle Pole Comment MHz dBμV/m dBμV/m dB dBuV/m dB cm ° 1 5100.3200 60.70 57.22 -3.48 74.00 16.78 200 165 Horizontal / 2 5150.0000 46.40 42.47 -3.93 68.30 25.83 200 69 Horizontal / 3 5235.2800 101.40 97.94 -3.46 68.30 -29.64 100 73 Horizontal No limit 1 5114.4950 47.99 44.39 -3.60 74.00 29.61 100 86 Vertical / 2 5150.0000 45.13 41.00 -4.13 68.30 27.30 200 75 Vertical / 3 5235.4200 101.83 98.00 -3.83 68.30 -29.70 200 292 Vertical No limit Report No.: E202309059135-01-8 Page 79 of 143 IEEE 802.11ac VHT20 mode ANT2 Highest Channel Frequency 5240MHz Environment: 24.3°C/56%RH/101.0kPa Voltage: DC 12V Tested By: Zhang Zishan Date: 2024-05-10 Detector mode: Average Polarity: Horizontal Detector mode: Average Polarity: Vertical No. Frequency Reading Level Factor Limit Margin Height Angle Pole Comment MHz dBμV/m dBμV/m dB dBuV/m dB cm ° 1 5114.0400 36.46 32.85 -3.61 54.00 21.15 200 19 Horiz…

Text truncated - open the document above for the full version.
