GMS50T User Manual Electrical DC Power Input: 6-32V Internal rechargeable Battery: 3.7V Power Consumption: 70mA@12V average [email protected] sleep Cell Modem Quad Band: 850/900/1800/1900MHz GPRS Multi-Slot Class 10/8 GPRS Mobile Station Class B Compliant to GSM phase 2/2 F -Class 4 (2W@850/900 MHz) -Class 1 (1W@1800/1900MHz) HSPA/UMTS: All Bands HSPA data rate: 5.6Mbps upload 7.2Mbps download HSPA Fall back: EDGE/GPRS/GSM Quad band EDGE MCS1-MCS9 3GPD Release 6 GPS SiRF Star IV chip solution 48 PRN Channels Super Sensitivity: Tracking -163 dBm Acquisition -148 dBm Active Jammer remover Self –Assisted CGEE Accuracy <2.5m CEP I/O Internal Cell and GPS antennas SIM internal Access Two inputs and one output rd One RS232 for 3 part device connections Environmental Working Temperature: -30C° to 75C° Storage Temperature: -40C° to 85C° Humility: 95% RH @50C non condensing Shock and Vibration: SAE J1455 Water Proof housing: IP67 Mechanical Dimension: 158x74x25MM Weight: 280g Optional Accessories External Iridium Modem Trailer Cargo sensor Trailer Door Sensor Certifications Fully Certified: FCC, IC, CE, PTCRB Carrier Approval www.telem2m.com e Telitek Wireless Inc. 1001 Denison Street Suite 202 Markham Ontario L3R 2Z6 Canada Toll Free: +1 877 333 6386 Fax: +1 905 766 4544 Email: [email protected] TELITEK WIRELESS INC. IS A TURN KEY TELEMATICS AND M2M SOLUTIONS PROVIDER, CUSTOMERIZED HARDWARE, FIRMWARE AND SOFTWARE DEVELOPMENT AVAILABLE AS YOUR REQUEST. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: ̈Reorient or relocate the receiving antenna. ̈Increase the separation between the equipment and receiver. ̈Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ̈Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons.

Telitek Wireless Inc. Date: 2015-3-20 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2AD7A-1508 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. Parts List 5. Tune-up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Name：Phil Yang Title: R&D Director Company name: Telitek Wireless Inc. Tel.：001-4169306601 Fax：+1 905 766 4544

2AD7A-1508

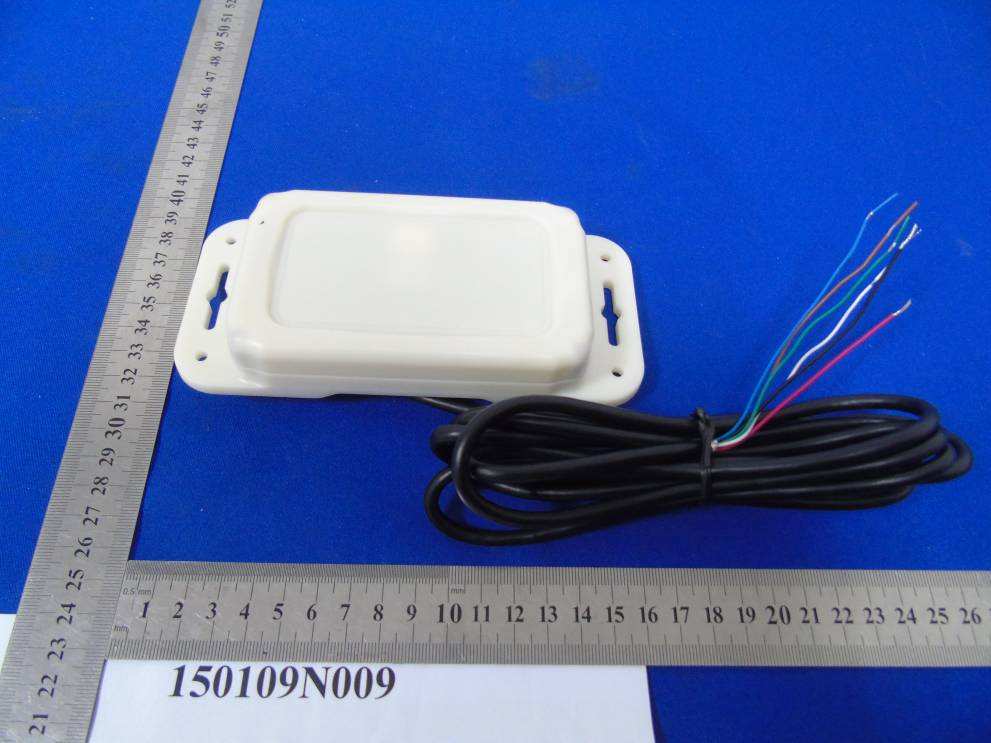

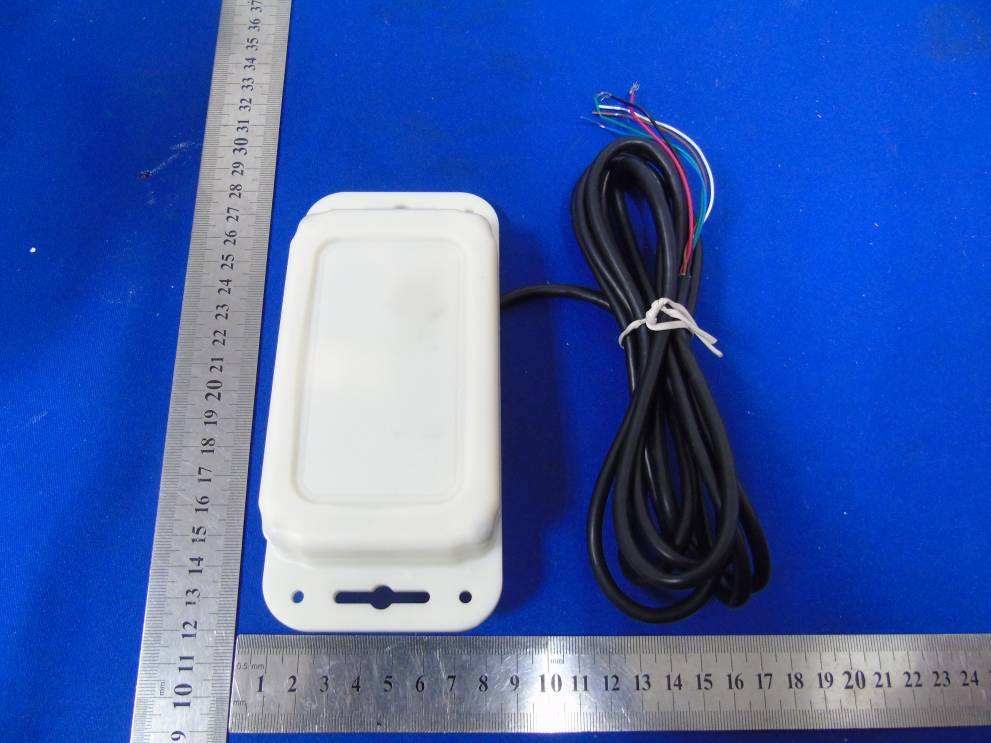

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Reference No.: 150109N009 PHOTOGRAPHS OF THE EUT GMS 50 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Reference No.: 150109N009 GMS 50T Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Reference No.: 150109N009
