2AD99B00A6IP Video Indoor Station

VERSION 1.0, MIN. HW 1.0 A1103 / A1104 Page 2-17 Installation Manual IP Video Indoor Station 2 INSTALLATION MANUAL Read these instructions carefully before starting to use any components. Keep the manual so you can refer to it at a later date if required. If you hand over the device to other persons for use, please hand over the operating manual as well. You can always find the most up-to-date version of the installation manual on www.doorbird.com/ support To make things easier we use the term “device” for the product “DoorBird IP Video Indoor Station A1101” and “mobile device” for a smartphone or tablet. Liability Every care has been taken in the preparation of this document. Please inform Bird Home Automation GmbH of any inaccuracies or omissions. Bird Home Automation GmbH cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Bird Home Automation GmbH makes no warranty of any kind with regard to the content of this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Bird Home Automation GmbH shall neither be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material. This product is only to be used for its intended purpose. Equipment Modifications This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no components that require service by the user. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals. Symbols used Caution: Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Danger: Indicates a hazardous situation which, if not avoided, will result in death or serious injury. Warning: Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Notice: Indicates a situation which, if not avoided, could result in damage to property. Note: Indicates useful information which helps in getting the most out of the product. NOTICE Important: Indicates significant information which is essential for the product to function correctly. IC Statement This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic DevelopmentCanada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The term “IC: “ before the certification/registration number only signifies that the Industry Canada technical specifications were met. This product meets the applicable Industry Canada technical specifications. Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d’Innovation, Sciences etDéveloppement économique Canada. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pasproduire de brouillage,et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme auxCNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1)L’appareil ne doit pas produire de brouillage; 2)L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre lefonctionnement. This transmitter must not be co-located or operating in conjunction with any other antenna ortransmitter. This equipment should be installed and operated with a minimum distance of 20centimeters between the radiator and your body. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu’aucune autre antenne ouémetteur. Cet équipementdevrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful ENGLISH 3 interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your …

Text truncated - open the document above for the full version.

Rev 1/26/2023 Bird Home Automation GmbH Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 4-18-2026 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID ：2AD99B00A6 Applicant FRN: 0024354078 [Bird Home Automation GmbH] certifies that, as of the date of the filing of the application, [FCC US Agent, LLC] is our designated U.S. agent for service of process for the above referenced FCC ID. [Bird Home Automation GmbH] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [FCC US Agent, LLC] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Bird Home Automation GmbH FCC US Agent, LLC Sascha Keller Tim Payne

(Bird Home Automation GmbH) (2026.4.20) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for(FCC ID: 2AD99B00A6) [Bird Home Automation GmbH] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Sascha Keller (Bird Home Automation GmbH) (2026.4.20) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2AD99B00A6) [Bird Home Automation GmbH] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Sascha Keller

Bird Home Automation GmbH 2026.4.20 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: IP Video Indoor Station MODEL : A1103 FCC ID: 2AD99B00A6 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Sascha Keller / Project manager Contact information / address: Uhlandstr. 165,10719 Berlin, Germany

Bird Home Automation GmbH 2026.4.20 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: IP Video Indoor Station MODEL : A1103 FCC ID: 2AD99B00A6 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Sascha Keller / Project manager Contact information / address: Uhlandstr. 165,10719 Berlin, Germany

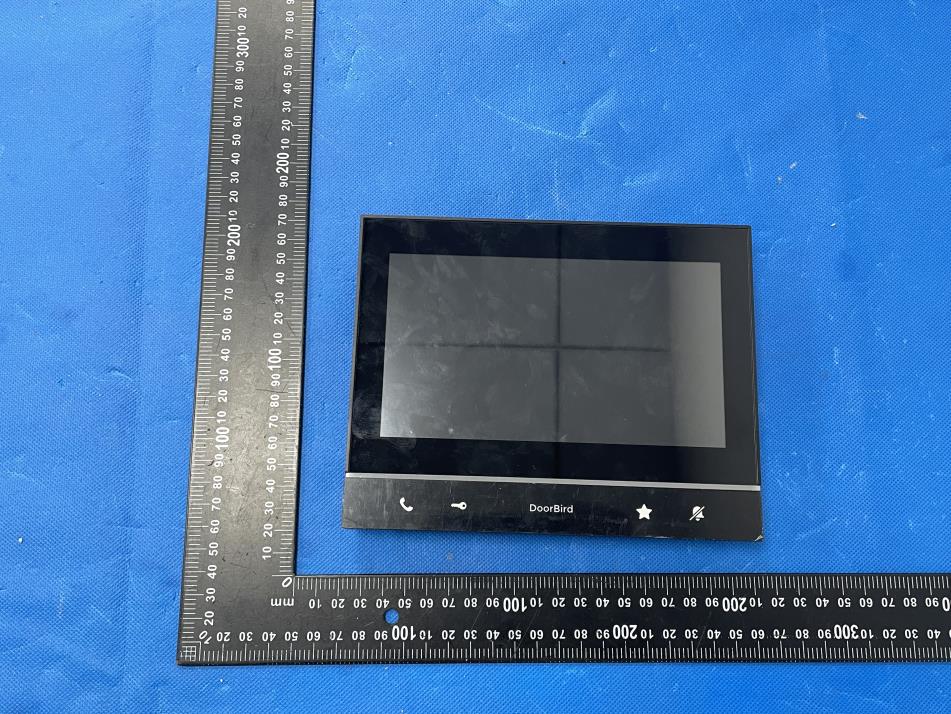

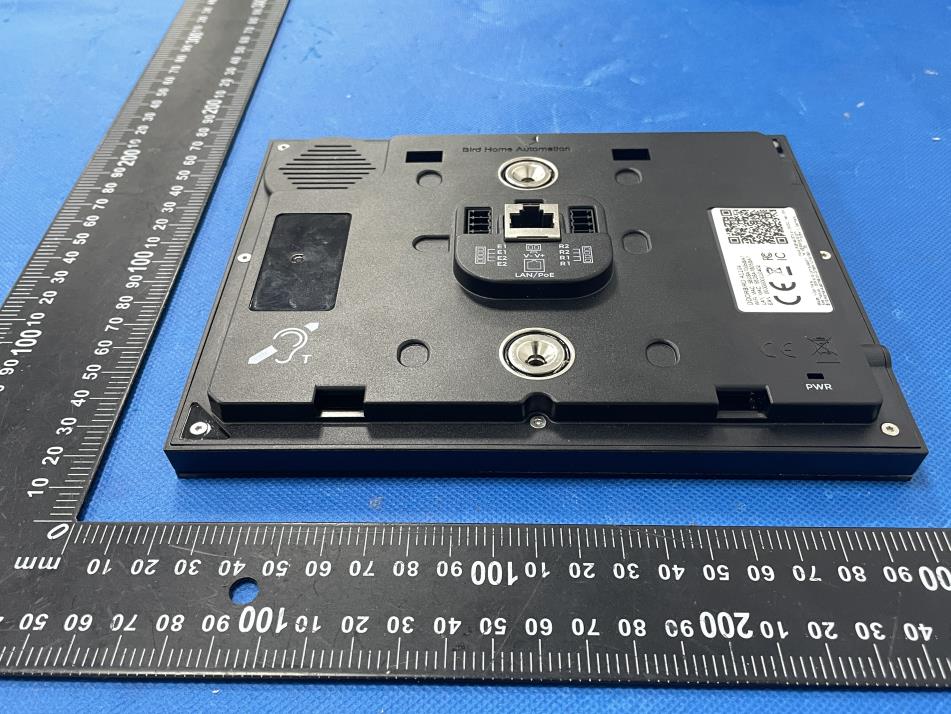

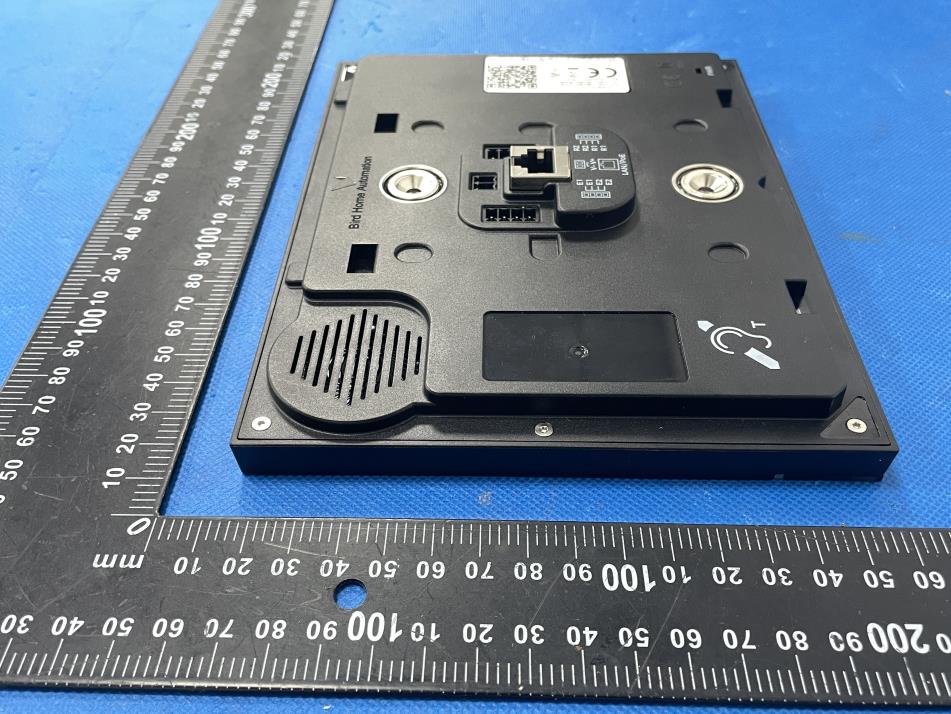

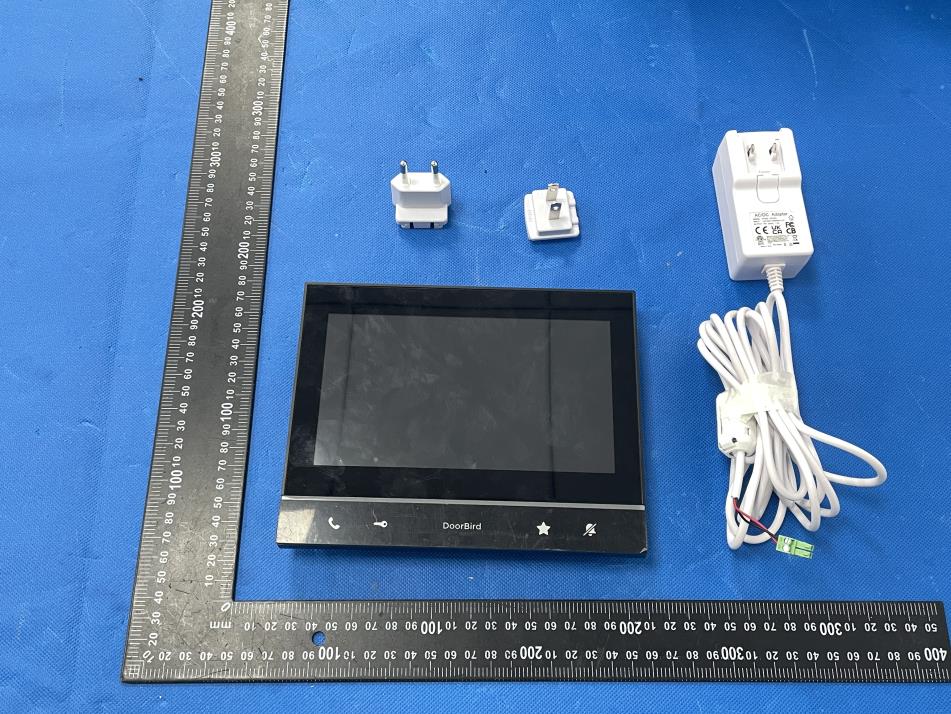

External Photos

Size:25*10mm Model: A1103 HVIN: A1103 IC : 20208-B00A6 FCC ID: 2AD99B00A6 Label location

Internal Photos Antenna

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. MPE Report Report No.:STS2603404H01 Issued for Bird Home Automation GmbH Uhlandstr. 165,10719 Berlin, Germany Product Name: IP Video Indoor Station Brand Name: DoorBird Model Name: A1103 Series Model(s): N/A FCC ID: 2AD99B00A6 Test Standard: FCC 47CFR §2.1091 Page 2 of 7 Report No.: STS2603404H01 TEST REPORT Applicant’s Name ................. : Bird Home Automation GmbH Address ................................. : Uhlandstr. 165,10719 Berlin, Germany Manufacturer's Name ........... : Bird Home Automation GmbH Address ................................. : Uhlandstr. 165,10719 Berlin, Germany Product Description Product Name ........................ : IP Video Indoor Station Brand Name .......................... : DoorBird Model Name .......................... : A1103 Series Model(s) ...................... : N/A Test Standards ..................... : FCC 47CFR §2.1091 447498 D01 Interim General RF Exposure Guidance v06 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 13 Oct. 2025 Date (s) of performance of tests ............. : 13 Oct. 2025 to 17 Apr. 2026 Date of Issue .......................................... : 17 Apr. 2026 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 7 Report No.: STS2603404H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 5 2. FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 7 Page 4 of 7 Report No.: STS2603404H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 17 Apr. 2026 STS2603404H01 ALL Initial Issue Page 5 of 7 Report No.: STS2603404H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name IP Video Indoor Station Brand Name DoorBird Model Name A1103 Series Model(s) N/A Model Difference N/A Product Description The EUT is IP Video Indoor Station Operation Frequency: 802.11b/g/n 20: 2412~2462 MHz 802.11n40:2422~2452MHz Modulation Type: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11b/g/n Support SISO Bit Rate of Transmitter: 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n(20MHz): 65/58.5/52/39/26/19.5/13/6.5Mbps 802.11n(40MHz): 135/121.5/108/81/54/40.5/37/13.5Mbps Number of Channel: 802.11b/g/n20: 11CH 802.11n40: 7CH Antenna Type: Internal antenna Antenna Gain (dBi): 2 Power Rating DC 15V from adapter/ DC 48 V from POE Adapter MODEL: UT20S-150100I INPUT: 100-240V~50/60Hz 0.4A OUTPUT: DC 15V 1.0A Battery N/A Hardware Version N/A Software Version N/A 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 Page 6 of 7 Report No.: STS2603404H01 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 3.0-30 1842/f 4.89/f *(900/f²) 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1.34-30 824/f 2.19/f *(180f²) 1500 – 100000 -- -- 1.0 F= Frequency in MHz Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. Page 7 of 7 Report No.: STS2603404H01 2.3 TEST RESULT Tune up Mode Detector Tune up Power 2.4G WIFI Peak 12±1dBm Note: 1. The Maxinum power is less than the limit, complies with the exemption requirements. 2. The Bluetooth and WLAN can’t simultaneous transmission at the same time. 3. ERP = EIRP - 2.15 ※※※※※END OF THE REPORT※※※※※ Protocol Fre. (GHz) Separati on distance (cm) Max Tune up power (dBm) ANT Gain (dBi) Max EIRP (dBm) Max EIRP (mW) Power Density (mW/cm²) Limit (mW/ cm²) Ratio Result 2.4G WIFI 2.402 20 13 2 15 31.62 0.0063 1 0.0063 Pass

產 品 規 格 書 Specification for Approval 客戶 (Customer): Customer Part No.: Product Description: Lynwave Part No.: 客戶簽核 (Customer Approval) 客戶承認 Customer Approval 核准 (Authorized) 檢驗 (Approved) 日期： 年 月日 內部簽核 (Signature) 日期： 2022 年 04 月 14 日 Approved by Checked by Tested by YungMing Lisa Wei Zero Chen 綠億科技股份有限公司 Lynwave Technology Ltd. Taiwan: 新北市樹林區學成路 655 號 5 樓 5 F., No.655, Xuecheng Rd., Shulin Dist., New Taipei City 238701, Taiwan Tel: 02-35018700 Fax: 02-35019833 E- mail: [email protected] F-2-001-T6a 產品規格書 Birdhome ALC120-051022-00 2.4GHz PCB Antenna ALC120-051022-00 Contents Item Description Page 1 2 3 4 5~7 1 .Cover 2.Contents 3.Specification 4.Drawing 5.Test Report 6 .Others 7 ~32 Specification Frequency (MHz)2400 ~2500 Peak Gain (dBi)2.0 VSWR2.0 : 1 Power (Watts)1 Impedance (Ohms)50 Dimension (mm)35 x 6 x 0.6 Weight (g)0.68 ConnectorIPEX Cable length (mm)100 Operating Temp (⁰C)-40⁰C ~ +85⁰C Wireless Connected World ALC120-051022-00 802.11 b/g/n AP/Router embedded antenna http://www.lynwave.com Tel: +886 2 35018700 Mail: [email protected] 1 Features •Singleband IEEE 802.11 b/g/n standard •Case mounting •High efficiency •Quick integration Mechanical Dimensions 2.4 GHz Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 14-1-10QMTS2.E330731 - Polymeric Materials - Filament-wound Tubing, Industrial Laminates, Vulcanized Fi... 1/3database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=QMTS2.E330731&cc... QMTS2.E330731 Polymeric Materials - Filament-wound Tubing, Industrial Laminates, Vulcanized Fiber, and Materials for Use in Fabricating Recognized Printed Wiring Boards - Component For enhanced search functionality, please visit UL's iQ™ Family of Databases. Click on a product designation for complete information. Page Bottom Polymeric Materials - Filament-wound Tubing, Industrial Laminates, Vulcanized Fiber, and Materials for Use in Fabricating Recognized Printed Wiring Boards - Component See General Information for Polymeric Materials - Filament-wound Tubing, Industrial Laminates, Vulcanized Fiber, and Materials for Use in Fabricating Recognized Printed Wiring Boards - Component GOLDENMAX INTERNATIONAL TECHNOLOGY (ZHUHAI) LTDE330731 8 QINSHI RD QINSHI INDUSTRIAL PARK SANZAO TOWN JINWAN DIST ZHUHAI, GUANGDONG 519040 CHINA Industrial laminates: Build upR.T.I.H Mtl Dsg ANSI TypeColor Min Thk (mm) Flame Class Elec (°C) Mech (°C) H W I H A I V T R C T I Meets 746E DSR Industrial laminates, furnished as sheets, rods or tubes. GDM-C3, ILM-C3 CEM-3NC (WT)0.63V-0130140024-Yes 1.6V-01301400243Yes GDM-R1, ILM-R1 FR-4NC,YL0.38V-0130130034-Yes 0.63V-0130140034-Yes 1.40V-01301400243Yes Industrial laminates. GF432FR-4NC (YL)0.38V-013013000--Yes 0.63V-013014000--Yes 1.40V-013014000-3Yes Ultrathin build ups: Build UpLaminatePrepreg Mtl Dsg ANSI Type Min Thk (mm) TI Elec TI Mech Mtl Dsg Thk (mic) TI Elec Mtl Dsg Thk (mic) TI Elec Ultrathin industrial laminates and bonding layers, furnished in sheet form, for use in multilayer printed wiring boards where the thickness is built up to the minimum specified. GDM-U1, ILM- U1 FR-40.38130130GDM-U1, ILM-U1 100120GDM-P1, ILM-P1 100120 14-1-10QMTS2.E330731 - Polymeric Materials - Filament-wound Tubing, Industrial Laminates, Vulcanized Fi... 2/3database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=QMTS2.E330731&cc... 0.63130140GDM-U1, ILM-U1 100120GDM-P1, ILM-P1 100120 GF432FR-40.38130130GF432155120GF432-PP7590 0.63130140GF432155120GF432-PP7590 Metal clad industrial laminates: Bld upClad Cond ThkMaxMaxSolder Lts Metal Clad Dsg Lam- inate Dsg Pre- preg Dsg ANSI Type Min Thk (mm) Min Ext (mic) Max Ext (mic) Max Int (mic) Area Dia (mm) Flame Class Oper Temp (°C) Temp (°C) Time (sec) Metal clad multilayer package (mass laminate) with internal circuitry and solid copper on outside surfaces, furnished as sheets. GDM-ML1, ILM-ML1 GDM- U1, ILM- U1 GDM- P1, ILM-P1 FR-40.38171026850.8V-013028820 Metal clad industrial laminates for use in multilayer printed wiring boards with copper on one or both sides, furnished as sheets. GDM-U1, ILM-U1 GDM- U1, ILM- U1 GDM- P1- ILM-P1 FR-40.38171026850.8V-013028820 Metal clad industrial laminates for use in multilayer printed wiring boards with copper on one or both sides. GF432GF432GF432- PP FR-40.38171026850.8V-013028820 Metal clad industrial laminates for use in single layer printed wiring boards with copper on one or both sides, furnished as sheets. GDM-C3, ILM-C3 GDM- C3, ILM- C3 -CEM- 3 0.6317102-12.7V-013028810 GDM-R1, ILM-R1 GDM- R1, ILM- R1 -FR-40.3817102-50.8V-013028820 Metal clad industrial laminates for use in single layer printed wiring boards with copper on one or both sides. GF432GF432-FR-40.3817102-50.8V-013028820 Marking: Company name or trademark , and material designation on container or wrapper. Last Updated on 2013-10-31 14-1-10QMTS2.E330731 - Polymeric Materials - Filament-wound Tubing, Industrial Laminates, Vulcanized Fi... 3/3database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/showpage.html?name=QMTS2.E330731&cc... Questions?Print this pageTerms of UsePage Top 2014 UL LLC When the UL Leaf Mark is on the product, or when the word "Environment" is included in the UL Mark, please search the UL Environment database for additional information regarding this product's certification. The appearance of a company's name or product in this database does not in itself assure that products so identified have been manufactured under UL's Follow-Up Service. Only those products bearing the UL Mark should be considered to be Certified and covered under UL's Follow-U…

Text truncated - open the document above for the full version.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2603404W01 Issued for Bird Home Automation GmbH Uhlandstr. 165,10719 Berlin, Germany Product Name: IP Video Indoor Station Brand Name: DoorBird Model Name: A1103 Series Model(s): N/A FCC ID: 2AD99B00A6 Test Standards: FCC Part15.247 Page 2 of 76 Report No.: STS2603404W01 TEST REPORT Applicant’s Name ................. : Bird Home Automation GmbH Address ................................. : Uhlandstr. 165,10719 Berlin, Germany Manufacturer's Name ........... : Bird Home Automation GmbH Address ................................. : Uhlandstr. 165,10719 Berlin, Germany Product Description Product Name ........................ : IP Video Indoor Station Brand Name ........................... : DoorBird Model Name .......................... : A1103 Series Model(s) .................... : N/A Standards ............................. : FCC Part 15.247 Test Procedure........................: ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 13 Oct. 2025 Date (s) of performance of tests ............. : 13 Oct. 2025 to 17 Apr. 2026 Date of Issue .......................................... : 17 Apr. 2026 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 76 Report No.: STS2603404W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 11 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION MEASUREMENT 18 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 31 4.1 LIMIT 31 4.2 TEST PROCEDURE 31 4.3 DEVIATION FROM STANDARD 31 4.4 TEST SETUP 31 4.5 EUT OPERATION CONDITIONS 31 4.6 TEST RESULTS 31 5. POWER SPECTRAL DENSITY TEST 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 DEVIATION FROM STANDARD 32 5.4 TEST SETUP 32 5.5 EUT OPERATION CONDITIONS 32 5.6 TEST RESULTS 32 6. BANDWIDTH TEST 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 DEVIATION FROM STANDARD 33 6.4 TEST SETUP 33 6.5 EUT OPERATION CONDITIONS 33 Page 4 of 76 Report No.: STS2603404W01 Table of Contents Page 6.6 TEST RESULTS 33 7. PEAK OUTPUT POWER TEST 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 7.3 DEVIATION FROM STANDARD 34 7.4 TEST SETUP 34 7.5 EUT OPERATION CONDITIONS 34 7.6 TEST RESULTS 34 8. ANTENNA REQUIREMENT 35 8.1 STANDARD REQUIREMENT 35 8.2 EUT ANTENNA 35 APPENDIX 1-TEST DATA 36 APPENDIX 2-PHOTOS OF TEST SETUP 76 Page 5 of 76 Report No.: STS2603404W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 17 Apr. 2026 STS2603404W01 ALL Initial Issue Page 6 of 76 Report No.: STS2603404W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 76 Report No.: STS2603404W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.751dB 2 Unwanted Emissions, conducted ±2.888dB 3 All emissions, radiated 9K-30MHz ±2.48dB 4 All emissions, radiated 30M-1GHz ±2.52dB 5 All emissions, radiated 1G-18GHz ±3.48dB 6 All emissions, radiated>18GHz ±4.18dB 7 Conducted Emission (9KHz-150KHz) ±2.48dB 8 Conducted Emission (150KHz-30MHz) ±2.52dB 9 Occupied Channel Bandwidth ±3.6% 10 Power Spectral Density, conducted ±1.214dB 11 Duty Cycle ±3.2% Page 8 of 76 Report No.: STS2603404W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name IP Video Indoor Station Brand Name DoorBird Model Name A1103 Series Model(s) N/A Model Difference N/A Product Description The EUT is a IP Video Indoor Station Operation Frequency: 802.11b/g/n 20: 2412~2462 MHz 802.11n40:2422~2452MHz Modulation Type: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11b/g/n Support SISO Bit Rate of Transmitter: 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n(20MHz): 65/58.5/52/39/26/19.5/13/6.5Mbps 802.11n(40MHz): 135/121.…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2AD99B00A6 Conducted emissions 30MHz-1GHz Page 2 of 2 FCC ID: 2AD99B00A6 Spurious emissions
