2AD9OZSP101Zuli Smartplug

SMARTPLUG USER GUIDE 2 TABLE OF CONTENTS Welcome The Hardware Setup Features Zuli Presence Introduction Calibration Settings FAQs Specifications Safety Other 3 Welcome to Zuli! Inside the packaging, you’ll find a Quick Start Guide with some basic information. The Zuli Smartplug is Bluetooth Smart enabled and can be controlled from an iPhone (4s or later) and iPod Touch (5 or later). Each Zuli Smartplug gives you on/off control of appliances, dimming control of lamps, energy usage monitoring, scheduling and, Zuli Presence, which adapts to your preferences as you move throughout your home. WELCOME 4 THE HARDWARE Receptacles: Plug in a lamp or other appliance in here. Button: Physical On/Off switch and used for factory reset (page 26) Vent: This is a heat vent for the dimming circuit. DO NOT STICK ANYTHING INSIDE. LED logo: This logo has multiple color and blinking states that mean different things. See Specifications (page 24) to learn more. Prongs: Plug this end into any 120V North American outlet to power the Smartplug. 5 SETUP Setting up your Smartplug! Over the next few pages, we’ll go through the setup process. We’ve also created a number of helpful videos which appear in our Training Videos Dropbox folder. Access the folder any time to view videos on how to use Zuli. We’ve also linked them throughout this document for you. If you have additional questions at any time, please contact Zuli Support by visiting support.zuli.io or emailing [email protected]. Click here to see an overview of our Setup process. 6 SETUP Download App Visit the www.zuli.io/download to download the Zuli App so you can get started. Create Account If this is your first time using Zuli, you will need to create a user account. Open the app and tap “New Account.” Enter your name, your email address and create a password (8 character min). 1. Download the app & create an account 7 SETUP Tour After you’ve set up your account, the app will offer you a quick tour of the app. The Tour is a great way to familiarize yourself with some of the features and nomenclature of the app menu. 2. Take the tour and create a place Create a Place After the Tour, it is time to setup your Smartplugs. Tap ‘CREATE’ to get started. Click here to see how to set up a New Place 8 SETUP 3. Plug in Smartplugs and Scan Select “Start Scanning”. Follow the on-screen instructions on the Zuli app to select the Room, device name, and icon. When prompted, select if the device is an electronic device, non-dimmable light or dimmable light. Please note: Note, dimming a non-dimmable light bulb or an electronic device could have fatal consequences for your device. IF UNSURE IF DEVICE IS DIMMABLE, SET UP AS ELECTRIC DEVICE/NON-DIMMABLE LIGHT. 9 SETUP 4. Set up Additional Smartplugs After you’ve set up your first Smartplug, the app will default to Room view. To set up more Smartplugs, tap the menu button (top left corner) to open the main menu. Once there, tap “Add Devices” and follow the same procedure as you did before to set up all your Smartplugs. Click here to see how to add Additional Smartplugs. Congrats! You are all set up and ready to look at some of Zuli’s features... 10 FEATURES On/Off Dim Schedule Energy Settings: Change plug settings Global controls Room change Change Place/Room name and color Add devices: Nest Thermostat 11 FEATURES On/Off For On/Off control, simply tap the circle to the right of the device name. A connection indicator may appear for a second or two when the Smartplug changes state (from on to off or from off to on). Click here to see the On/Off feature in action. More Features Tap on a device name to access the rest of the device features. 12 FEATURES Dimming To dim your light, tap and hold on the circle and drag it counter-clockwise. To brighten your light, tap and hold on the circle and drag it clockwise. Click here for more on how to Dim. WARNING Our dim feature is ONLY DESIGNED to be used with incandescent bulbs and dimmable CFL/ LED/Halogen bulbs. DO NOT SET UP non- dimmable devices to be dimmable with the Zuli App. This could have catastrophic consequences for your non-dimmable device. Not sure if your bulb is dimmable? Check out this online list for more... 13 FEATURES Energy To view Energy usage of a device, tap the Energy icon and see your kWh, estimated monthly bill, active usage time, and an estimate of your carbon use. See more about Energy here. 14 FEATURES Schedule Select Schedule in the features section and tap “Add Event.” You can customize what you’d like the Smartplug to do and when. Select time, daily repeat options, an event name and then tap done. You’ll then see the scheduled event listed under that device’s Schedule. Edit or add events as you please. Click here for more on Scheduling. 15 FEATURES Settings Tap the Settings tab to change the following: - Name of device - Device Icon - Type of device (remember never to select “Dimmable Light” unless the light is in fact, dimmable) - Delete plug You can also see the firmware version, which will help our support staff diagnose issues if they should arise. Click here to view the Settings video. 16 FEATURES Global Controls There are two types of Global Controls: Room and Place: Room Global Controls can control On/Off and Dim for all Smartplugs in a Room. Swipe down from the Room Screen to get this option. Place Global Controls can control On/Off and Dim for all Smartplugs in a Place. Tap the top right menu then all devices to access these controls. Click here to see how Global Controls work. 17 FEATURES Room Change Want to change rooms? Easy. Just tap the top right icon which will bring up a list of rooms on the right- hand side of the app. Select which room you’d like and then your dashboard will change to the other room. Click here to view the Room Change video. 18 FEATURES Menu Tapping the menu icon on the top left of the screen anywhere in the app will take you to the Main Menu. Here, you can access the following: - “Presence” (update Zuli Presence settings an…

Text truncated - open the document above for the full version.

Quick Start Guide --- Envelope Front --- You’re clearly someone who appreciates comfort. Enjoy. --- Envelope Interior Left --- (Logo Mark) --- Leaflet Front --- To Begin Download the Zuli app from zuli.io/download --- Leaflet Interior Pages --- User Guide & General Support If you would like to review our user guide or have questions regarding the Zuli Smartplug, go to support.zuli.io Federal Communications Commission (FCC) Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Industry Canada Compliant This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Industrie Canada Conforme Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. iBeacon Compliance Use of the iBeacon logo means that a Licensed Product has been designed and certified by the manufacturer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this product with iPod, iPhone, or iPad may affect wireless performance. Safety Zuli only recommends using the Zuli Smartplug according to the recommended usage under the Zuli Smartplug User Guide and Technical Specifications. Please refer to support.zuli.io. Read all safety and operating instructions before using your Zuli Smartplug to avoid injury. Keep these instructions somewhere where you can find them for future reference. Heed all warnings contained herein. This product is not intended to be used to control or monitor, directly or indirectly, industrial equipment or medical equipment of any kind. Do not install your device outdoors or near water, or expose the product to any water or liquid of any kind. Do not install your Zuli Smartplug near any heat sources. Stoves, radiators, registers and other heat producing devices can cause damage that may affect performance. Only install your Zuli Smartplug in accordance with the installation instructions provided to you. Improper installation may result in poor performance. Zuli is not responsible for damages resulting from the improper installation of devices by the user. You assume all risk associated with the suitability, installation and performance of the Zuli Smartplug and other third party components, hardware, software and services that you select. For Indoor Dry Use Only. Technical Specifications MODEL: ZSP101 DESCRIPTION: Zuli Smartplug FOR INDOOR DRY USE ONLY Input 120V 15A 60Hz Output 120V 60Hz Electric Device Mode Resistive 1800W Maximum Incandescent 600W Electronic Ballast 240W Dimmer Mode* 120V 2A Maximum *Dimmer mode only works with dimmable light bulbs. Please refer support.zuli.io for a complete list of recommended and compatible devices. Zuli Hardware Warranty and Disclaimer 1. This Hardware Warranty and Disclaimer (the “Warranty”) represents the sole warranty terms between Zuli, Inc. (“Zuli”) and you pertaining to your purchase of the enclosed Zuli Smartplug device (hereinafter, the “Hardware”) with which this Warranty is included. Any applicable warranties or disclaimers related to any other Zuli service or offering, including those services related to the use of Hardware, are found in the Terms of Service related to that particular service or offering. You should only use the Hardware in accordance with the recommendations and specifications in the Zuli Smartplug User Guide and Technical Specifications (the “Specifications”) available at support.zuli.io 2. Zuli warrants only that the Hardware will be free from defects in material and workmanship for one (1) year (the “Limited Warranty”). Your sole remedy for breach of the Limited Warranty is the return of the allegedly defective Hardware to Zuli at your sole expense, in accordance with instructions provided by Zuli at support.zuli.io You must contact Zuli support before returning any allegedly defective Hardware. If such Hardware is found by Zuli to be defective, Zuli, at Zuli's sole option, will repair or replace the Hardware with a functionally similar Z…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: 12 February 2015 Subject: Confidentiality Request for: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Zuli, Inc has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _______________ (Signature/Title 3 ) (Print name)

Authority to Act as Agent Date: 12 February 2015 To Whom It May Concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Vicky Yuan in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all matters relating to all processes required in FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ___12 months_____ By: Ben Chang (Signature) (Print name) Title: Founder & VP Operations On behalf of: Zuli, Inc. (Company Name) Telephone: (+1) 408-674-9439

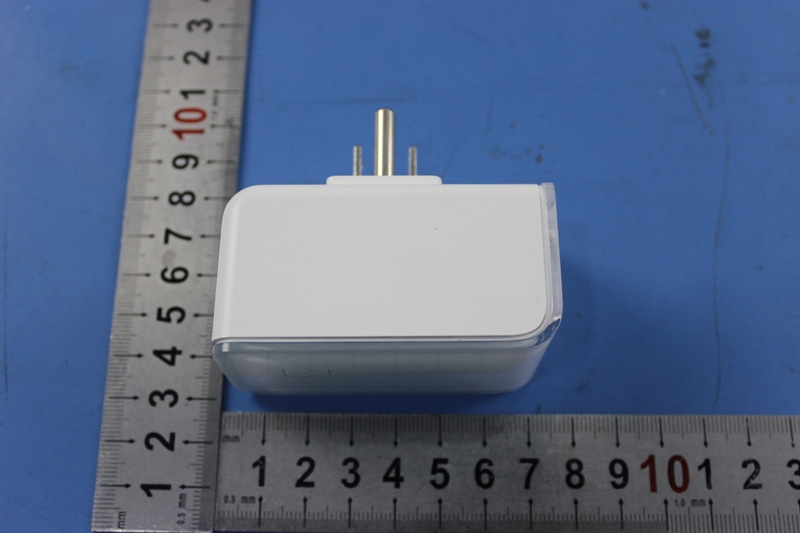

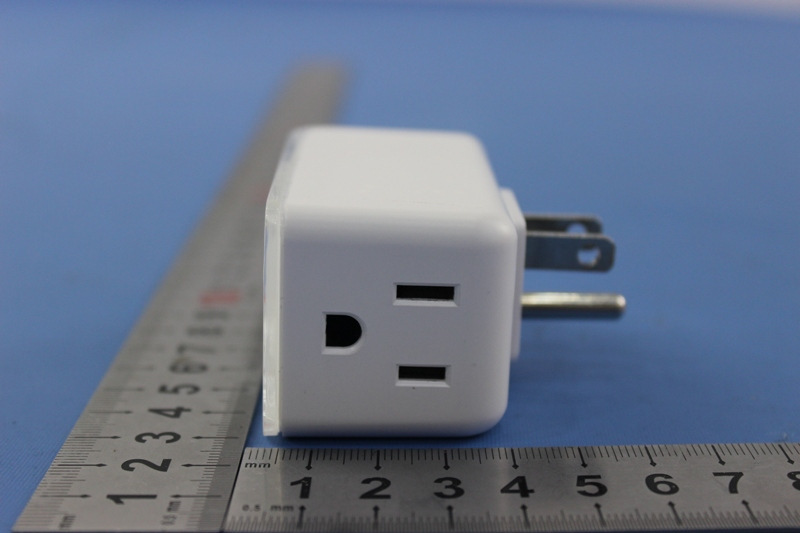

1 Photographs - EUT Constructional Details Test model No.: ZSP101

25mm x 15mm Product markings size and loca7on Product markings

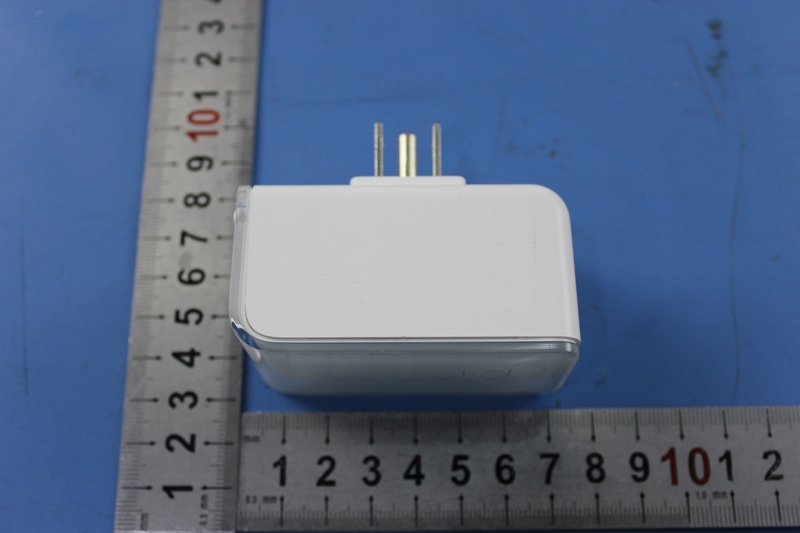

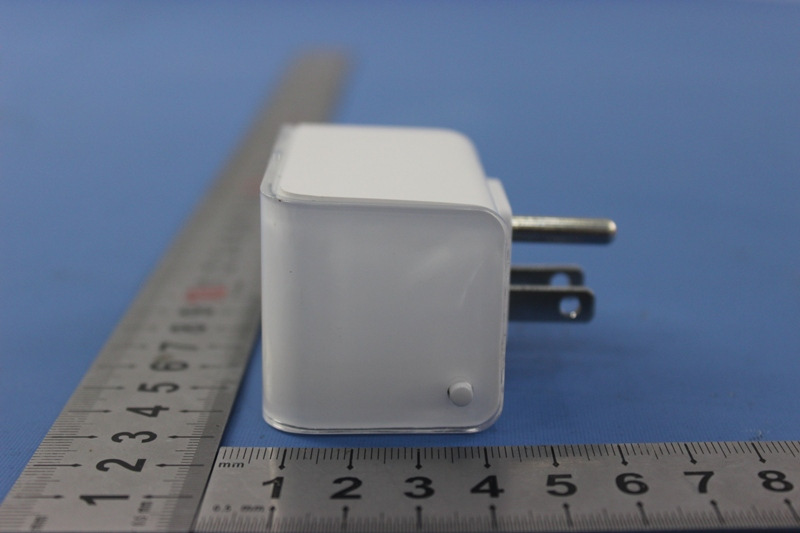

1 Photographs - EUT Constructional Details Test model No.: ZSP101

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM150200086603 Page: 1 of 7 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page SAR Evaluation Report Application No.: SZEM1502000866CR Applicant: Zuli Inc. Manufacturer: Zuli Inc. Factory: DONGGUAN JIEXUN ELECTRONIC CO. LTD. Product Name: Zuli Smartplug Model No.(EUT): ZSP101 Trade Mark: Zuli FCC ID: 2AD9OZSP101 Standards: 47 CFR Part 1.1307 (2014) 47 CFR Part 2.1093 (2014) KDB447498D01 General RF Exposure Guidance v05r02 Date of Receipt: 2015-02-28 Date of Test: 2015-03-02 to2015-05-21 Date of Issue: 2015-06-28 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150200086603 Page: 2 of 7 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-06-28 Original Authorized for issue by: Tested By 2015-05-21 (Eric Fu) /Project Engineer Date Prepared By 2015-06-28 (Jade Chen) /Clerk Date Checked By 2015-06-28 (Owen Zhou) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150200086603 Page: 3 of 7 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAGE .............................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM150200086602 Page: 1 of 78 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1502000866CR Applicant: Zuli Inc. Manufacturer: Zuli Inc. Factory: DONGGUAN JIEXUN ELECTRONIC CO. LTD. Product Name: Zuli Smartplug Model No.(EUT): ZSP101 Trade Mark: Zuli FCC ID: 2AD9OZSP101 Standards: 47 CFR Part 15, Subpart C (2014) Date of Receipt: 2015-02-28 Date of Test: 2015-03-02 to 2015-05-21 Date of Issue: 2015-06-28 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150200086602 Page: 2 of 78 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-06-28 Original Authorized for issue by: Tested By 2015-05-21 (Eric Fu) /Project Engineer Date Prepared By 2015-06-28 (Jade Chen) /Clerk Date Checked By 2015-06-28 (Owen Zhou) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150200086602 Page: 3 of 78 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 200…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup Test model No.: ZSP101 1.1 Conducted Emission 1.2 Radiated Emission 1.3 Radiated Spurious Emission
