2AD9S-GTXGSS01GPS-enabled insole

Global Trek Xploration
GPS-enabled insole - FCC ID 2AD9S-GTXGSS01 - Global Trek Xploration
Click to zoom

Application Details

Equipment Class
PCT - PCS Licensed Transmitter worn on body
Date of Grant
Jun 22, 2015
Application Purpose
Original Equipment
Date of Application
Jun 22, 2015
Equipment Note
GPS-enabled insole
Frequency Range
1850.20000000 - 1909.80000000
Company
Global Trek Xploration
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗
↗
↗
↗

Test Report

↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

0" ! TABLE!OF!CONTENTS! ! SECTION! PAGE! Getting!Started! • Charging( • Charging(Tips( • Battery(Life( • Waking( • Trimming! ! 1! ! ! 2! Monitoring!App!3! Log!in!to!the!GTX!Corp!Monitoring!Portal!4! Mapping!and!Tracking!4! Navigating!the!Sidebar! • Select(a(Date(Range( • Battery(Status! 5! Managing!Geozone!Alerts!6! Generating!Reports! • Detail(Reports( • Summary(Reports( • Performance(Reports! 7! ! 8! ! !! ! WARNINGS!FOR!GPS!SMARTSOLE®! DO!NOT!BEND! DO!NOT!SUBMERGE! DO!NOT!PUNCTURE! DO!NOT!MACHINE!WASH! DO!NOT!APPLY!EXCESSIVE!WEIGHT! ! Failure!to!observe!these!warnings!may!damage!! your!GPS!SmartSole®!and!will!void!your!warranty.! ! 1" GETTING!STARTED! Charging(Your(GPS(SmartSole®( Connect"the"USB"cable" into"the"USB"wall"adapter" and"into"the"USB"port"on" the"GPS" SmartSole®"charging"pad." When"properly"plugged"in" to"a"power"source,"the" charging"pad’s"LED"status" indicator"light"will"display" GREEN"to"indicate"it"is" ready"to"charge." " Place"the"right"GPS"SmartSole®"on"the"charging"pad."Align" the"target"symbol"on"the"underside"of"your"GPS"SmartSole®" with"the"bull’sIeye"logo"on"the"center"of"the"charging"pad." Your"SmartSole"can"be"placed"at"any"angle"without" interfering"charging"capabilities."Adjust"your"SmartSole"until" the"charging"pad"beeps"and"the"status"indicator"light"is" SOLID"BLUE."The"charging"pad"beeps"once"to"indicate"that" charging"has"begun.""""" """ Charging(Tips( Throughout"the"entire"charging"process,"the"status"indicator" light"must"remain"SOLID"BLUE."If"the"status"indicator"flashes" or"if"the"charging"pad"begins"to"beep"repeatedly,"there"is"a" problem"with"alignment."In"this"case,"realign"the"SmartSole" until"the"status"indicator"light"is"SOLID"BLUE"again." GPS"SmartSole®"takes"four"hours"to"fully"charge."There"will" be"no"indication"when"charging"is"complete."However,"once" charging"is"complete,"you"may"continue"to"leave"the" SmartSole"on"the"charging"pad"if"desired,"e.g."overnight."" Battery(Life( Depending"on"your"usage,"your"GPS"SmartSole®"may"be" powered"for"1I2"days"on"a"full"charge."Longer"drives"and" shorter"reporting"intervals"will"reduce"battery"life."In" general,"the"more"tracking"activity,"the"shorter"the"battery" life." You"can"check"your"most"recently"reported"battery"level"on" the"monitoring"portal."This"is"a"great"way"to"ensure"proper" charging."See"page"4." Like"other"mobile"devices,"we"recommend"charging"your"GPS" SmartSole®"daily."Note:&Rechargeable&batteries&do&have&a& limited&number&of&charge&cycles&and may&eventually&lose&capacity.& ( ! 2" Waking(Up(Your(GPS(SmartSole®(Daily( "(Recommended(after(charging)( Your(GPS(SmartSole®(is(equipped(with(a(motion(sensor.(After(6( minutes(of(no(movement,(it(enters(sleep(mode(in(order(to( conserve(power.(When(your(GPS(SmartSole®(has(been(asleep( for(a(prolonged(period(of(time,(e.g.(after(charging,(it(may(need( extra(time(to(update(new(locations.(For(best(results,(we( recommend(waking(up(your(GPS(SmartSole®(when(first( receiving(it,(after(charging(or(after(several(days(of(inactivity.( ( To(Wake(Up(( 1.(Gently(move(the(right(SmartSole((about(5(seconds).(((((((((((((((((((((((((( 2.(Place(it(next(to(an(outsidePfacing(window((about(5(minutes).( If(the(monitoring(portal(does(not(show(a(new(location(after(5( minutes,(gently(move(the(GPS(SmartSole®(again(to(keep(it( awake.(Repeat(steps(1(and(2(until(the(monitoring(portal(displays( a(new(location.( GPS(SmartSole®(may(take(only(a(few(seconds(or(up(to(5(minutes( to(retrieve(the(first(GPS(signal.(We(recommend(a(clear(view(of( the(sky(because(it(is(harder(to(update(locations(when(used( indoors,(around(tall(buildings,(during(inclement(weather(or(in(a( place(with(an(obstructed(view(of(the(sky.(If(your(SmartSole(is( not(connecting(indoors,(try(setting(it(outside.( ( Trimming(Your(GPS(SmartSole®( Do(not(trim(or(wear(your(GPS(SmartSole®(until(you(have(tested( it(for(functionality(and(cellular(connectivity(in(your(area.(Once( you(trim(or(wear(your(GPS(SmartSole®(it(cannot(be(returned.( You(may(need(to(trim(your(SmartSole(to( fit(in(your(footwear.(If(your(footwear(has( manufacturer’s(insoles,(take(them(out( and(place(these(insoles(on(top(of(your( SmartSole(and(align(the(heels.(Lightly( trace(around(the(toes(of(the(original( insoles.(( If(your(footwear(does(not(have(insoles,( place(your(footwear(on(top(of(your( SmartSole(and(align(the(heels.(Lightly( trace(around(the(toes(of(your(footwear.( Carefully(trim(along(the(outside(of(the( traced(line.(You(may(need(to(test(and( repeat(to(find(your(right(fit.(Place(both( insoles,(left(and(right,(inside(the(shoes.( ( Do(not(trim(the(sides(or(anywhere(below( the(line.(You(risk(damaging(your( SmartSole(and(will(void(your(warranty.( ( ( ( ! ! 3" MONITORING!APP! Smart(Locator(App((((((((((((((((((((((((((((((((( Use(of(the(Smart(Locator(monitoring(app(is(included(in(your( service(plan(and(allows(you(to((view(your(GPS(SmartSole®(and( other(GTX(Corp(trackers(from(a(mobile(device.(( Download(GTX(Corp(Smart(Locator((((((((((((((((((Smart&Locator&App&Icon( Search&“Smart&Locator&GTX”&&&download&free.& &&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&&& ((Apple(iOS(Devices(Go(To:( http://appstore.com/gtxcorpsmartlocator(( ((Android(Devices(Go(To:( https://play.google.com/store/apps/details?id=com.gtxcorp.gtx corpsmartlocator( Log(In(to(Smart(Locator(((((((((((((((((& Sign(in(with(the(same(account( info.(as(required(for(the(GTX(Corp( Monitoring(Portal((See(Page(4).((( Please&note&the&password&is&case&sensitive.& Add(your(GPS(SmartSole®(to(track:&& The(“Add(Device”(screen(will(prompt(you(to(add(your(device.( You(will(need(to(enter(in(the(Device(Alias(and(the(Device(ID.( Device(Alias& Any(description(or(nickname(for(your(GPS(SmartSole®.( Device(ID& The(Device(ID(is(“gpv2_”(followed(by(your(15Pdigit(IMEI(number.( The(Device(ID(has(been(provided(to(you(in(your(account(set(up( email,(or(you(can(find(the(IMEI(on(the(label(of(your(GPS( SmartSole®.(If(you(do(not(have(your(IMEI,(find(it(on(the( Monitorin…

Text truncated - open the document above for the full version.

Attestation Statements

To Whom It May Concern: Subject: Validity of Test Results from Testing / Certification of the integrated Module WE, Global Trek Xploration with offices located at 117 West 9 th St, Suite 1214, Los Angeles, CA 90015 confirm that the results from conducted tests applied to the cellular radio module Telit GE865-QUAD, FCC-ID: RI7GE865, IC-ID: 5131A-GE865 which is incorporated in our host equipment: Marketing Name: GPS SmartSole Model: GTX-GSS-01 FCC ID: 2AD9S-GTXGSS01 IC ID: 20166-GTXGSS01 and as reported in module test report #RFI-RPT-RP76937JD03B, issued 2015-09-20 by RFI Global Services for HW version 3H00 of the identified module accurately represent the test results under the new conditions when the identified radio module is integrated in the identified host equipment. By integration of the said radio module into the identified host equipment no changes were made to it or by external adaptation circuitry that impacts the validity of the results of the original module’s test reports. Andrew Duncan Director Signature Dated: GTX Corp 117 West 9 th Street, Suite 1214 Los Angeles CA 90015 gtxcorp.com 213-489-3019 06/19/2015

Attestation Statements

To Whom It May Concern: Subject: attestation regarding valid tune-up document WE, Global Trek Xploration with offices located at 117 West 9 th St, Suite 1214, Los Angeles, CA 90015 attest that the document “Power Tune up procedure for GE865-QUAD, release 3, issued Jan 5, 2011” provides the valid and applicable tune-up procedure for the cellular radio module Telit GE865-QUAD, FCC-ID: RI7GE865, IC-ID: 5131A-GE865 which is used in our below given product for which we apply for FCC/IC radio certification: Marketing Name: GPS SmartSole Model: GTX-GSS-01 FCC ID: 2AD9S-GTXGSS01 IC ID: 20166-GTXGSS01 Andrew Duncan Director Signature Dated: GTX Corp 117 West 9 th Street, Suite 1214 Los Angeles CA 90015 gtxcorp.com 213-489-3019 06/19/2015

Cover Letter(s)

2AD9S-GTXGSS01

Cover Letter(s)

2AD9S-GTXGSS01 180 days from the grant release date

External Photos

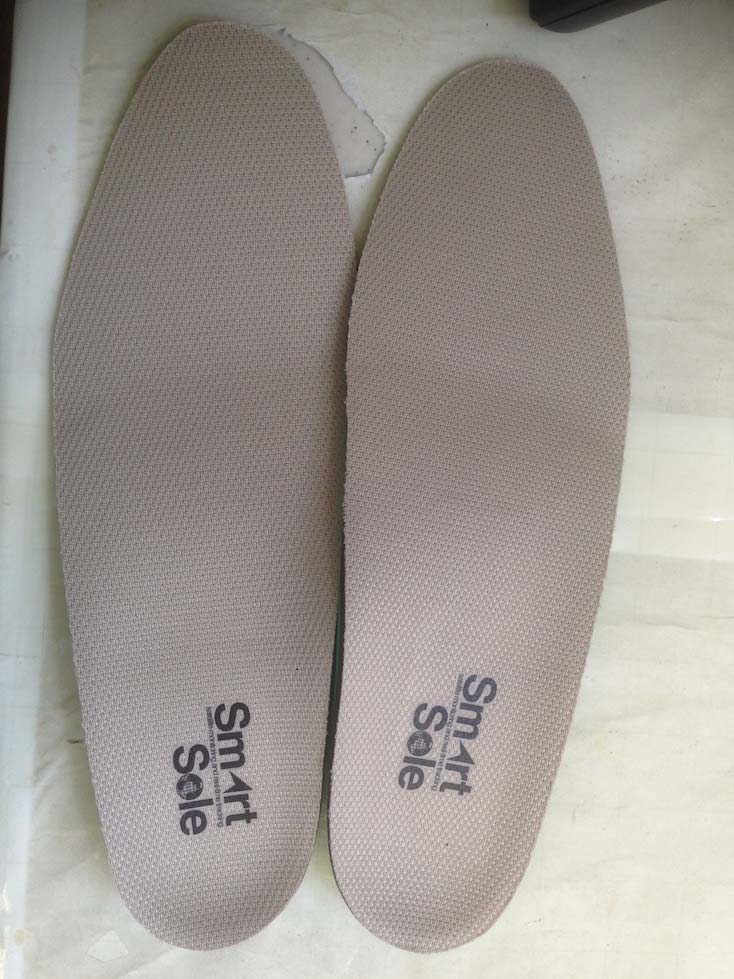

GPS SmartSole Model : GTX‐GSS‐01 FCC ID: 2AD9S‐GTXGSS01

Internal Photos

GPS SmartSole Model : GTX‐GSS‐01 FCC ID: 2AD9S‐GTXGSS01

RF Exposure Info

A2LA Accredited IC Recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.2 2013-02-15 © Copyright by CETECOM SAR Test Report FOR: Manufacturer: Global Trek Xploration Model Number: GTX-GSS-01 FCC ID: 2AD9S -GTXGSS01 IC Certification Number: 20166-GTXGSS01 Test Report #: SAR_GTX Corp_001-14001_FCC-Rev2 Date of Report: June 19, 2015 Test Report #: SAR_GTXCO_001_14001_FCC FCC ID: 2AD9S-GTXGSS01 Date of Report: June 19, 2015 IC Cert. No.: 20166-GTXGSS01 Page 2 of 20 V5.1 2013-01-09 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.  SAR  411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. TABLE OF CONTENTS 1. Assessment ................................................................................................................................................... 4 2. Administrative Data .................................................................................................................................... 5 2.1. Identification of the Testing Laboratory Issuing the SAR Test Report ....................................... 5 2.2. Identification of the Client ................................................................................................................ 5 2.3. Identification of the Manufacturer .................................................................................................. 5 3. Equipment under Test (EUT) .................................................................................................................... 6 3.1. General Specification of the Equipment under Test ...................................................................... 6 3.2. Technical Specification of Supported Radios .................................................................................. 7 3.3. Identification of the Equipment Under Test (EUT) ....................................................................... 8 3.4. Identification of Accessory equipment ............................................................................................. 8 3.5. Maximum SAR values ....................................................................................................................... 8 4. Subject of Investigation .............................................................................................................................. 9 4.1. The IEEE Standard C95.1 , FCC Exposure Criteria, and IC Exposure Criteria ....................... 9 4.2. SAR Limit ........................................................................................................................................... 9 5. Measurement Procedure........................................................................................................................... 10 5.1. General Requirements ..................................................................................................................... 10 5.2. Body-worn and Other Configurations ........................................................................................... 10 5.3. Procedure for assessing the peak spatial-average SAR ................................................................ 11 5.4. Determination of the largest peak spatial-average SAR .............................................................. 12 6. The Measurement System ........................................................................................................................ 13 6.1. Robot system specification .............................................................................................................. 13 6.2. Isotropic E-Field Probe for Dosimetric Measurements ............................................................... 14 6.3. Data Acquisition Electronics .......................................................................................................... 14 6.4. Phantoms .......................................................................................................................................... 14 6.5. Interpolation and Extrapolation schemes...................................................................................... 14 7. Uncertainty Assessment ............................................................................................................................ 15 7.1. Measurement Uncertainty Budget According to IEEE 1528:2013 ............................................. 15 7.2. Measurement Uncertainty Budget According to EN 62209......................................................... 16 8. Test results summary ................................................................................................................................ 17 Test Report #: SAR_GTXCO_001_14001_FCC FCC ID: 2AD9S-GTXGSS01 Date of Report: June 19, 2015 IC Cert. No.: 20166-GTXGSS01 Page 3 of 20 V5.1 2013-01-09 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.  SAR  411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. 8.1. Conducted Average Output Power ................................................................................................ 17 8.2. Test Positions and Configurations.................................................................................................. 18 8.3. SAR Results for Body ...................................................................................................................... 18 8.4. Dipole verification ............................................................................................................................ 18 9. References .................................................................................................................................................. 19 10. Report History ........…

Text truncated - open the document above for the full version.

RF Exposure Info

FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix A - Plots Page 1 of 4 Plot 1 Date/Time: 12/11/2014 12:43:44 PM Test Laboratory: Cetecom Inc. SAR 1 Lab DUT: GTX Corp; Type: GPS Unit; Serial: 356363058411150 Communication System: GPRS-FDD (TDMA, GMSK, TN 0-1); Frequency: 836.6 MHz Medium: MSL900_Batch 100818-1 Medium parameters used: f = 837 MHz; σ = 0.999 mho/m; ε r = 55.092; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 22.3C; Medium Temperature: 21.5C; Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3260; ConvF(6.14, 6.14, 6.14); Calibrated: 3/19/2014;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0  Electronics: DAE4 Sn1265; Calibrated: 1/29/2014  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  DASY52 52.8.1(838); Flat-Section/Top Side_5mm_2TS_Ch 190/Area Scan (9x16x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.276 mW/g Flat-Section/Top Side_5mm_2TS_Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.177 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.379 mW/g SAR(1 g) = 0.236 mW/g; SAR(10 g) = 0.146 mW/g Maximum value of SAR (measured) = 0.286 mW/g Flat-Section/Top Side_5mm_2TS_Ch 190/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.177 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.245 mW/g SAR(1 g) = 0.158 mW/g; SAR(10 g) = 0.101 mW/g Maximum value of SAR (measured) = 0.181 mW/g 0 dB = 0.276 mW/g = -11.19 dB mW/g FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix A - Plots Page 2 of 4 Plot 2 Date/Time: 1/15/2015 6:27:48 PM Test Laboratory: Cetecom Inc. SAR 1 Lab DUT: GTX Corp; Type: GPS Unit; Serial: 3563603058411150 Communication System: GPRS-FDD (TDMA, GMSK, TN 0-1); Frequency: 1880 MHz Medium: MSL1900_Batch 110530-3 Medium parameters used: f = 1880 MHz; σ = 1.544 mho/m; ε r = 51.384; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: Mike; Air Temperature: 22C; Medium Temperature: 21C; Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3260; ConvF(4.69, 4.69, 4.69); Calibrated: 3/19/2014;  Sensor-Surface: 3mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0  Electronics: DAE4 Sn1265; Calibrated: 1/29/2014  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  DASY52 52.8.1(838); Flat-Section/Top Side_5mm_Ch 661/Area Scan (9x19x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.649 mW/g Flat-Section/Top Side_5mm_Ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.442 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.938 mW/g SAR(1 g) = 0.568 mW/g; SAR(10 g) = 0.324 mW/g Maximum value of SAR (measured) = 0.677 mW/g 0 dB = 0.649 mW/g = -3.75 dB mW/g FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix A - Plots Page 3 of 4 Plot 3 Date/Time: 1/15/2015 2:47:33 PM Test Laboratory: Cetecom Inc. SAR 1 Lab DUT: Dipole 1900 MHz - D1900V2 - SN5d135_April 2014; Type: D1900V2; Serial: D1900V2 - SN:5d135 Communication System: CW; Frequency: 1900 MHz Medium: MSL1900_Batch 110530-3 Medium parameters used: f = 1900 MHz; σ = 1.563 mho/m; ε r = 51.329; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 20.7C; Medium Temperature: 21.1C; Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3260; ConvF(4.69, 4.69, 4.69); Calibrated: 3/19/2014;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0  Electronics: DAE4 Sn1265; Calibrated: 1/29/2014  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  DASY52 52.8.1(838); System Performance Check at Frequencies above 1 GHz/d=10mm, Pin=1W, dist=3.0mm (ES- Probe)/Area Scan (4x4x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 32.0 mW/g System Performance Check at Frequencies above 1 GHz/d=10mm, Pin=1W, dist=3.0mm (ES- Probe)/Zoom Scan (7x7x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 182.2 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 65.601 mW/g SAR(1 g) = 37.5 mW/g; SAR(10 g) = 19.8 mW/g Maximum value of SAR (measured) = 47.4 mW/g 0 dB = 32.0 mW/g = 30.09 dB mW/g Plot 4 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix A - Plots Page 4 of 4 Date/Time: 12/11/2014 8:24:41 AM Test Laboratory: Cetecom Inc. SAR 1 Lab DUT: Dipole 835 MHz - D835V2 - SN4d113_April 2014; Type: D835V2; Serial: D835V2 - SN:4d113 Communication System: CW; Frequency: 835 MHz Medium: MSL900_Batch 110614-1 Medium parameters used: f = 835 MHz; σ = 0.996 mho/m; ε r = 55.113; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 21.7C; Medium Temperature: 21.3C; Comments: ; DASY Configuration:  Probe: ES3DV3 - SN3260; ConvF(6.14, 6.14, 6.14); Calibrated: 3/19/2014;  Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0  Electronics: DAE4 Sn1265; Calibrated: 1/29/2014  Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx  DASY52 52.8.1(838); System Performance Check at Frequencies below 1 GHz/d=15mm, Pin=1W, dist=3.0mm (ES- Probe)/Area Scan (4x4x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.1 mW/g System Performance Check at Frequencies below 1 GHz/d=15mm, Pin=1W, dist=3.0mm (ES- Probe)/Zoom Scan (7x7x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 110.7 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 13.997 mW/g SAR(1 g) = 9.75 mW/g; SAR(10 g) = 6.48 mW/g Maximum value of SAR (measured) = 11.3 mW/g 0 dB = 10.1…

Text truncated - open the document above for the full version.

RF Exposure Info

FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 1 of 33 Tissue Parameters Recipe for liquids below 1 GHz: Water 35-58% Sugar 40-60% Salt 0-6% Hydroxyethyl-cellulose <0.3% Preventol-D7 0.1-0.7% Recipe for liquids above 1-3 GHz: Water 52-75% DGBE 25-48% Salt <1.0% SAR measurements were made within 24 hours of the measurement of liquid parameters. Relative permittivity and conductivity are within ±5% of the target. FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 2 of 33 850 MHz Body Liquid Date Temp (°C) Frequency (MHz) Relative Permativity Conductivity (S/m) 82455.25310.984 82555.21660.9867 82655.23550.9863 82755.21280.9882 83555.11310.9956 83655.10750.9978 83755.09220.999 84655.00891.0087 84755.00161.0098 84854.98981.0107 84954.98141.0122 2014/12/1121.3 0.9 0.92 0.94 0.96 0.98 1 1.02 1.04 820840 Conductivity (S/m) Frequency (MHz) Conductivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2014/12/11 51 52 53 54 55 56 57 58 59 820840 Relative Permittivity Frequency (MHz) Permittivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2014/12/11 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 3 of 33 1900 MHz Body Liquid Date Temp (°C) Frequency (MHz) Relative Permativity Conductivity (S/m) 185051.50291.5109 185151.48691.5122 188051.38431.5442 190951.30881.5717 191051.30381.5723 2015/01/1521.1 1.42 1.44 1.46 1.48 1.5 1.52 1.54 1.56 1.58 1.6 18451895 Conductivity (S /m) Frequency (MHz) Conductivity Target Liquid V alue 5% Liquid Tolerance -5% Liquid Tolerance 2015/01/15 50 51 52 53 54 55 56 18451895 Relative Permittivity Frequency (MHz) Permittivity Target Liquid V alue 5% Liquid Tolerance -5% Liquid Tolerance 2015/01/15 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 4 of 33 Test Equipment SAR1 Lab Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Robot Staubli TX90 F10/5D3NA 1/A/01 N/A N/A SAM Twin Phantom SPEAG SM 000 T01 DA 1592 N/A N/A Elliptical Phantom SPEAG QD OVA 001 BB 1092 N/A N/A Software SPEAG Dasy52.6.2.482 N/A N/A N/A Device Holder SPEAG SD 000H01 N/A N/A N/A Data Acquisition Electronics SPEAG DAE4 1233 2014/03/17 2015/03/17 SAR Probe SPEAG ES3DV3 3260 2014/03/19 2015/03/19 Shared Equipment Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) 900 MHz Body Tissue Simulant SPEAG MSL900 Batch 110614-1 12-09-2014 N/A 1900 MHz Body Tissue Simulant SPEAG MSL 1900 Batch 110530-3 1-15-2015 N/A 835 MHz Dipole SPEAG D835V2 4d113 2014/04/07 2015/04/07 1900 MHz Dipole SPEAG D1900V2 5d135 2014/04/09 2015/04/009 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A Dielectric Measurement Kit SPEAG DAK-3.5 1118 2014/04/08 2015/04/08 Synthesized CW Generator Agilent 8371213 US37101255 N/A N/A Power Meter Agilent E4419B MY45101996 2013/06/03 2015/06/03 Power Sensor Agilent E9300A MY41498484 2013/06/04 2015/06/04 Power Sensor Agilent E9300A MY41498492 2013/06/04 2015/06/04 Radio Communications Tester Rohde & Schwarz CMU 200 101821 2013/06 2015/06 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 5 of 33 Equipment Calibration/Performance Documents: Attached: SAR Probe ES3DV3 – SN:3323 Calibration Report 835 MHz Dipole Calibration Report 1900 MHz Dipole Calibration Report FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 6 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 7 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 8 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 9 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 10 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 11 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 12 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 13 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 14 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 15 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 16 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 17 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 18 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 19 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 20 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 21 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 22 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 23 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 24 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 25 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 26 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 27 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 28 of 33 FCC ID: 2AD9S-GTXGSS01 IC Cert. No.: 20166-GTXGSS01 SAR Test Report - Appendix C - Misc Page 29 of 33 FCC ID: 2AD9S-GTXG…

Text truncated - open the document above for the full version.

Test Report

FCC: A2LA Accredited IC recognized # 3462E-1 CETECOM Inc. 6370 Nancy Ridge Drive Suite 101  San Diego, CA 92121  U.S.A. Phone: + 1 (858) 362 2400  Fax: + 1 (858) 587 4809  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 V4.0 2012-09-24 © Copyright by CETECOM FCC / IC Test Report FOR: GTX Corp Model Name: GTX-GSS-01 Product Description: GPS-embedded insoles with 2G/GSM/GPRS technology FCC ID: 2AD9S-GTXGSS01 IC ID: 20166-GTXGSS01 47 CFR Part 2, 22, 24 RSS-GEN Issue 4, RSS-132 Issue 3, RSS-133 Issue 6 TEST REPORT #: EMC_GTXCO_001_14001_FCC22_24_WWAN DATE: 2015-6-18 Test Report #: EMC_GTXCO_001_14001_FCC22_24_WWAN FCC ID: 2AD9S-GTXGSS01 Date of Report: 2015-6-18 IC ID: 20166-GTXGSS01 Page 2 of 32 Table of Contents 1 Assessment ...................................................................................................................................................... 3 2 Administrative Data ......................................................................................................................................... 4 2.1 Identification of the Testing Laboratory Issuing the Test Report ........................................................................... 4 2.2 Identification of the Client ...................................................................................................................................... 4 2.3 Identification of the Manufacturer .......................................................................................................................... 4 3 Equipment under Test (EUT) .......................................................................................................................... 5 3.1 Specification of the Equipment under Test ............................................................................................................. 5 3.2 Identification of the Equipment under Test (EUT) ................................................................................................. 6 3.3 Identification of Accessory equipment ................................................................................................................... 6 3.4 Environmental conditions during Test .................................................................................................................... 6 3.5 Dates of Testing ...................................................................................................................................................... 6 4 Subject of Investigation ................................................................................................................................... 7 5 Summary of Measurement Results .................................................................................................................. 8 6 Measurements ................................................................................................................................................ 10 6.1 RF Power Output and Effective Radiated Power / Effective Isotropic Radiated Power....................................... 10 6.1.1 References ..................................................................................................................................................... 10 6.1.2 Limits: ........................................................................................................................................................... 10 6.1.3 Measurement Procedure: .............................................................................................................................. 11 6.1.4 Measurement Results .................................................................................................................................... 12 6.1.5 Conducted Power Verification:...............................................................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Andrew Duncan(Director)
[email protected]2137846744Fax: 8882895205

Test Firm

CETECOM Inc.Sabrina Sarne
[email protected]408-586-6249Fax: 408 586 6299

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz2 W243KGXW0.03 ppm
Confidentiality
Long Term
Grant Notes
Output power is ERP for Part 22 and EIRP for Parts 24. SAR compliance for body worn operation has been assessed for a minimum distance of 5 mm between the device including its antenna and the users body, according to the documented intended purpose. Users must be informed of the operating requirements for satisfying RF exposure compliance. The highest reported SAR for near-the-body (min. 5mm) transmission use conditions is 1.03W/kg.
