2AD9WRR-1356MA1RFID module

User Manual Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; [for FCC] Contains Transmitter Module FCC ID: 2AD9WRR-1356MA1 or C o n t a i n s F C C I D : 2AD9WRR-1356MA1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. *If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. The following statements must be described on the user manual of the host device of this module; [for FCC] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

with Harness

Model Name Input Voltage Control Number (Fixed) Max.25 ㎜ Max.8 ㎜ Max.42 ㎜ Weight:10g or less

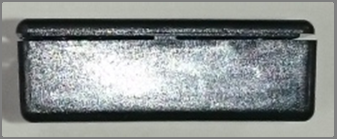

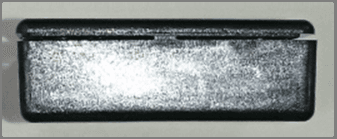

Photo Photo

Test report No. : 10604958M-A-R1 Page : 1 of 30 Issued date : March 16, 2015 Revised date : March 30, 2015 FCC ID : 2AD9WRR-1356MA1 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 TESTING CERTIFICATE 1266.01 RADIO TEST REPORT Test Report No.: 10604958M-A-R1 Applicant : Hitachi Industrial Equipment Systems Co., Ltd. Type of Equipment : RFID module Model No. : RR-1356MA1 FCC ID : 2AD9WRR-1356MA1 Test regulation : FCC Part15 Subpart C: 2014 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: December 24, 26, 2014, January 5, March 30, 2015 Tested by: Kazuhiro Ando EMC/Wireless Group, Consumer Technology Division Approved by : Go Ishiwata Site Manager EMC/Wireless Group, Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10604958M-A-R1 Page : 2 of 30 Issued date : March 16, 2015 Revised date : March 30, 2015 FCC ID : 2AD9WRR-1356MA1 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 CONTENTS Page SECTION 1: Customer information ....................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ......................................................................... 3 SECTION 3: Test specification, procedures & results .......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................... 6 SECTION 5: Conducted emission ........................................................................................... 9 SECTION 6: Radiated emission (Fundamental and Spurious emission) .......................... 10 SECTION 7: 20dB bandwidth & Occupied bandwidth (99%) ........................................... 12 SECTION 8: Frequency tolerances ....................................................................................... 12 Contents of APPENDIXES ...................................................................................................... 13 APPENDIX 1: Data of radio tests .......................................................................................... 14 APPENDIX 2: Test instruments ............................................................................................ 26 APPENDIX 3: Photographs of test setup .............................................................................. 27 REVISION HISTORY Original Test Report No. 10604958M-A Revision Date Page revised Revision Description 00 March 16, 2015 - Original 01 March 30, 2015 P.9 P.24 Correction of Typo Correction of Data Test report No. : 10604958M-A-R1 Page : 3 of 30 Issued date : March 16, 2015 Revised date : March 30, 2015 FCC ID : 2AD9WRR-1356MA1 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 SECTION 1: Customer information Company Name : Hitachi Industrial Equipment Systems Co., Ltd Brand Name : HITACHI Address : 1-1-1, Higashitaga-cho, Hitachi-shi, Ibaraki-ken Telephone Number : +81- 294-36-8684 Facsimile Number : +81- 294-36-8975 Contact Person : Manabu Kato SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RFID module Model Number : RR-1356MA1 Serial Number : Refer to clause 4.2 Rating : DC 3.65 - 6V (Typical DC 5V), 0.5W Country of Mass-production : Taiwan (R.O.C) Condition of EUT : Production prototype (This sample is equivalent to mass-produced items.) Receipt Date of Sample : December 24, 2014 Modification of EUT : No modification by the test lab. 2.2 Product description Model: RR-1356MA1 (referred to as the EUT in this report) is an RFID module. Clock frequency(ies) in the system : 13.56 MHz <Radio part> Equipment type : Transceiver Frequency of operation : 13.56MHz Type of modulation : ASK Antenna type : Printed Loop Coil Antenna connector type : none ITU code : A1D Operation temperature range : -10 to + 60 deg.C. FCC 15.31 (e) The RF Module has its own regulator. The RF Module is constantly provided voltage (DC3.3V) through the regulator regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203/212 It is impossible for end users to replace the antenna, because it is printed on the circuit board. Therefore the equipment complies with the requirement of 15.203/212. Test report No. : 10604958M-A-R1 Page : 4 of 30 Issued date : March 16, 2015 Revised date : March 30, 2015 FCC ID : 2AD9WRR-1356MA1 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2014, final revised on August 15, 2014 and effective October 14, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.215 Additional provisions to the general radiated emission limitations Section 15.225 Operation within the band …

Text truncated - open the document above for the full version.

Test report No. : 10005707S-A Page : 21 of 23 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 APPENDIX 3: Photographs of test setup Conducted emission Front Side Test report No. : 10005707S-A Page : 22 of 23 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 Radiated emission Front Front 9kHz-30MHz (Reference) Rear 30-1000MHz Test report No. : 10005707S-A Page : 23 of 23 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 Worst Case Position X-axis Y-axis Z-axis Test report No. : 10005707S-A Page : 24 of 23 UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 All Tags Used Front Back ISO14443 ISO14443 ISO15693 ISO15693 End of Report
