2ADACJ51-C8MINIX NEO J51-C8

� l'roc:e”町IntelN5105 GPU Intel UHD Graphics Me mory 8GB DDR.4 (upgradeable ta 16G叫 M em。，ySlot 2 x SODIMM slat, support du口lchannel stcrage Pre-Installed 256GB NVMe SSD S阳age缸””’；lon1 x 2280 M 2 slat (M.2 PCle Ge咄 咄陆·抱回Connec:tt州y Wi-Fi2..4G, Bluet。ath5.2 。perotlng抑材emWindows 1 1 Pro ( 6-4-bitl Video。“P川HDMI2.0 (.41::@ 60Hzl, Mir1i DisployPort (41::@ 60H z), USB-C (<lk:@ 60Hz] B丽阳tAudio Output HDMI 2.0. Mini Disp阳yPort A闹闹Aud胁。啕时3.5mmaudio jack Audio Input 3.Smm口udiojack F回pheralInt田阳回 Dual RJ-45 2.5G Ethemet, use 3.2 port x 2 [lOGbp sJ. USB 2.0 x 1, USB-C p。付x1, k:er1sir1gtan L。ckready p。w田DC12V,3A口d口pter(Included) or via USB-C input (DC 12VI FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

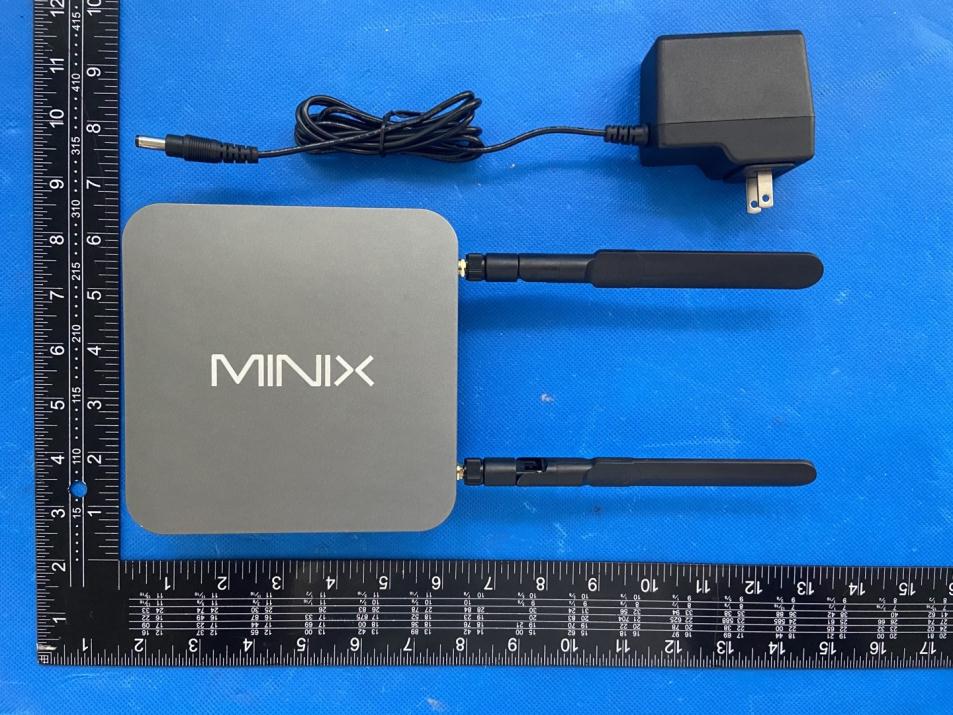

EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Antenna A Antenna B EUT View 3 EUT View 4 EUT View 5 EUT View 6 EUT View 7 EUT View 8 ----------------The end----------------

MINIX NEO J51-C8 FCC ID: 2ADACJ51-C8

EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 EUT Housing and Board View 3 EUT Housing and Board View 4 EUT Housing and Board View 5 EUT Housing and Board View 6 EUT Housing and Board View 7 EUT Housing and Board View 8 EUT Housing and Board View 9 EUT Housing and Board View 10 EUT Housing and Board View 11 EUT Housing and Board View 12 EUT Housing and Board View 13 EUT Housing and Board View 14 EUT Housing and Board View 15 ----------------The end----------------

FCC ID : 2ADACJ51-C8 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result BLE Antenna gain: 0 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 4.43 3 to 5 5 1 0.0006 1 BT Antenna gain: 0 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 8.5 7 to 9 9 1 0.0016 1 Wifi 2.4G Antenna gain: 0 dBi Directional gain: 3 dBi Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 13.68 12 to 14 14 2.0 0.0100 1 CONCLUSION of simultaneous transmitter Both of the WIFI and BT can transmit simultaneously, the formula of calculated the MPE is: CPD1/LPD1+CPD2/LPD2+......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore the worst-case situation is 0.0016 /1.00+0.0100 /1.00 = 0.0116, which is less than “1”, This confirmed that the device comply with FCC 1.1310 MPE limit.

No.：BCTC/RF-EMC-007 Page: 1 of 53 Edition：A.4 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2206586349-1E Applicant: MINIX Technology Limited Product Name: MINIX NEO J51-C8 Model/Type reference: J51-C8 Tested Date: 2022-06-23 to 2022-07-05 Issued Date: 2022-07-18 Report No.: BCTC2206586349-1E No.：BCTC/RF-EMC-007 Page: 2 of 53 Edition：A.4 FCC ID: 2ADACJ51-C8 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: MINIX NEO J51-C8 Trademark: MINIX Model/Type Ref.: J51-C8 J51-C8U, J51-C8 Max, J51-C8U Max, J60-C8 Max, J60-C8U Max Prepared For: MINIX Technology Limited Address: Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong. Manufacturer: MINIX Technology Limited Address: Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong. Prepared By: Shenzhen BCTC Technology Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-06-23 Sample tested Date: 2022-06-23 to 2022-07-05 Issue Date: 2022-07-18 Report No.: BCTC2206586349-1E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2206586349-1E No.：BCTC/RF-EMC-007 Page: 3 of 53 Edition：A.4 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information and Test Setup ...................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement and Restricted Bands Of Operation ...... 24 8.1 Block Diagram Of Test Setup .............................................................................. 24 8.2 Limit .................................................................................................................... 24 8.3 Test Procedure ................................................................................................... 25 8.4 EUT Operating Conditions .................................................................................. 25 8.5 Test Result .......................................................................................................... 26 9. Power Spectral Density Test ............................................................................... 27 9.1 Block Diagram Of Test Setup .............................................................................. 27 9.2 Limit .................................................................................................................... 27 9.3 Test procedure .................................................................................................... 27 9.4 EUT Operating Conditions .................................................................................. 27 9.5 Test Result ........................................…

Text truncated - open the document above for the full version.

No.：BCTC/RF-EMC-005 Page: 1 of 80 Edition：A.4 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2206586349-3E Applicant: MINIX Technology Limited Product Name: MINIX NEO J51-C8 Model/Type reference: J51-C8 Tested Date: 2022-06-23 to 2022-07-05 Issued Date: 2022-07-13 Report No.: BCTC2206586349-3E No.：BCTC/RF-EMC-005 Page: 2 of 80 Edition：A.4 FCC ID: 2ADACJ51-C8 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: MINIX NEO J51-C8 Trademark: MINIX Model/Type reference: J51-C8 J51-C8U, J51-C8 Max, J51-C8U Max, J60-C8 Max, J60-C8U Max Prepared For: MINIX Technology Limited Address: Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong. Manufacturer: MINIX Technology Limited Address: Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong. Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-06-23 Sample tested Date: 2022-06-23 to 2022-07-05 Issue Date: 2022-07-13 Report No.: BCTC2206586349-3E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Brave Zeng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2206586349-3E No.：BCTC/RF-EMC-005 Page: 3 of 80 Edition：A.4 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 4.7 Antenna ............................................................................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test procedure .................................................................................................... 14 6.4 EUT operating Conditions ................................................................................... 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test procedure .................................................................................................... 19 7.4 EUT Operating Conditions .................................................................................. 20 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement and Restricted Bands Of Operation ...... 27 8.1 Block Diagram Of Test Setup .............................................................................. 27 8.2 Limit .................................................................................................................... 27 8.3 Test procedure .................................................................................................... 28 8.4 EUT Operating Conditions .................................................................................. 28 8.5 Test Result .......................................................................................................... 29 9. Power Spectral Density Test ............................................................................... 31 9.1 Block Diagram Of Test Setup .............................................................................. 31 9.2 Limit .................................................................................................................... 31 9.3 Test procedure .................................................................................................... 31 9.4 EUT Operating Conditions ..........................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
