2ADACNEOX6Media hub for Android

Basic Setup OverviewOverview ControlGoogle Play StoreBasic SetupBasic SetupXBMC Basic Setup Specifications Contents HDMI Cable MINIX IR-Remote * Requires two AAA batteries. IR-Remote Functions Call out the options menu for your current screen or running application Return to the home screen (choice of launcher required) To wake up from or put the MINIX NEO X6 into sleep mode Return to the previous screen running or cancelling an activity Adjust the system volume down Adjust the system volume up MENU HOME POWER BACK VOLUME DOWN VOLUME UP Move upward UP Move left LEFT Move right RIGHT Move downward DOWN OK To confirm a particular action, or as an “Enter”key Call out the basic settings menu SETTINGS MINIX NEO X6 Overview USB 2.0 port1 SD/MMC card slot HDMI port Ethernet jack DC 5V Power-in jack Power Button Headphone jack USB 2.0 port2 Overview Power LEDIR Receiver Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. The product should be 20cm away from user in a fixed place.

MINIX TECHNOLOGY LIMITED Address: Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong Tel: (852)-31755678 Fax: (852)-31534189 2014-90-26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD We, MINIX TECHNOLOGY LIMITED declare that this EUT (FCC ID: 2ADACNEOX6) doesn’t have Ad Hoc mode function on“non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Client’s name / title : Kenny Wu/ Vice President Contact information / address : Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong Tel: (852)-31755678 Fax: (852)-31534189

MINIX TECHNOLOGY LIMITED Address: Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong Tel: (852)-31755678 Fax: (852)-31534189 2014-09-26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ADACNEOX6 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Kenny Wu/ Vice President Contact information / address : Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong Tel: (852)-31755678 Fax: (852)-31534189

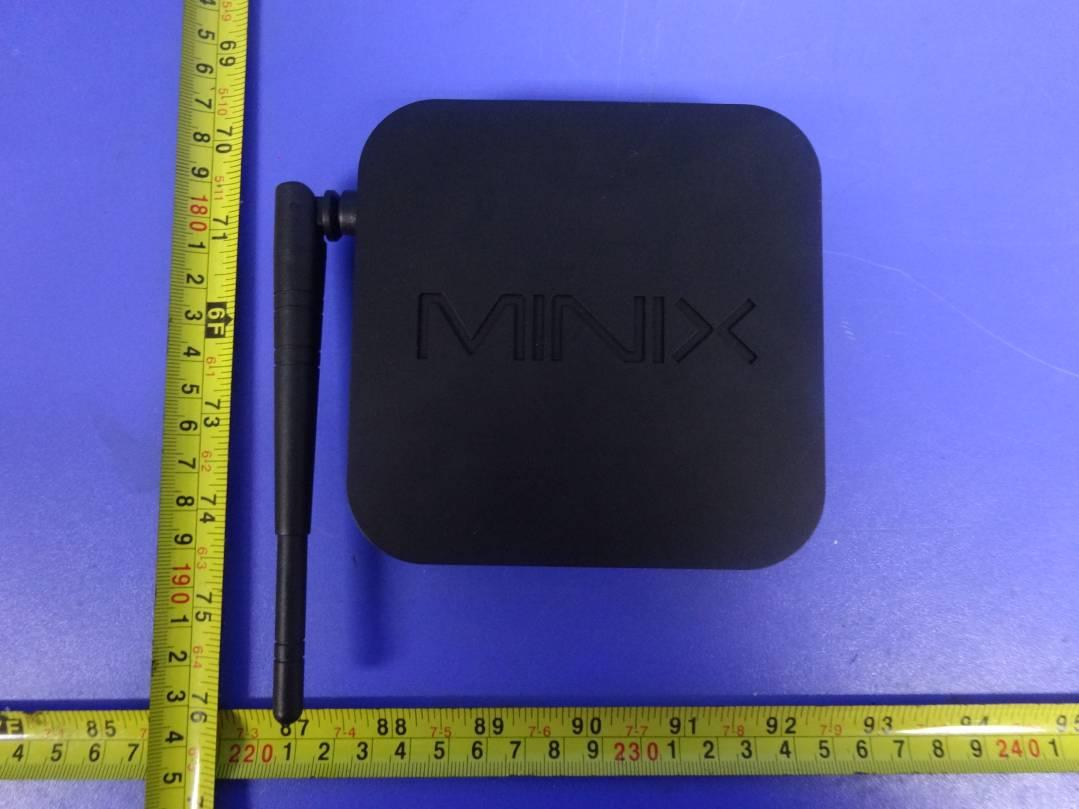

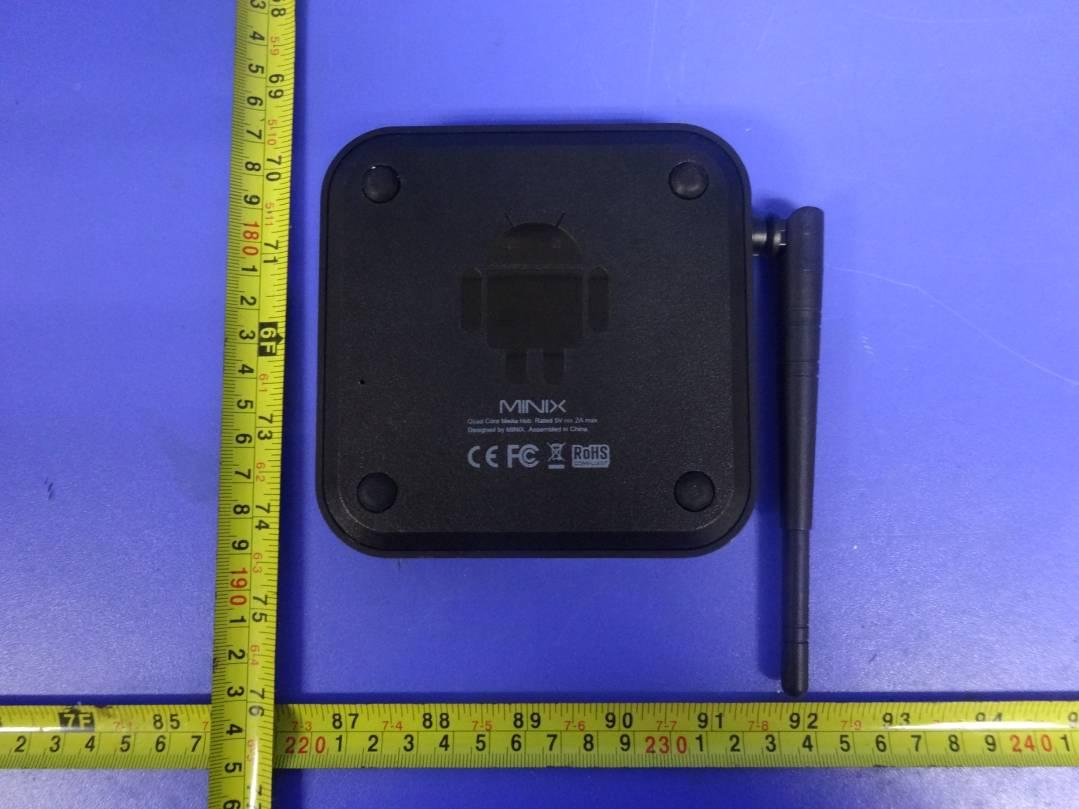

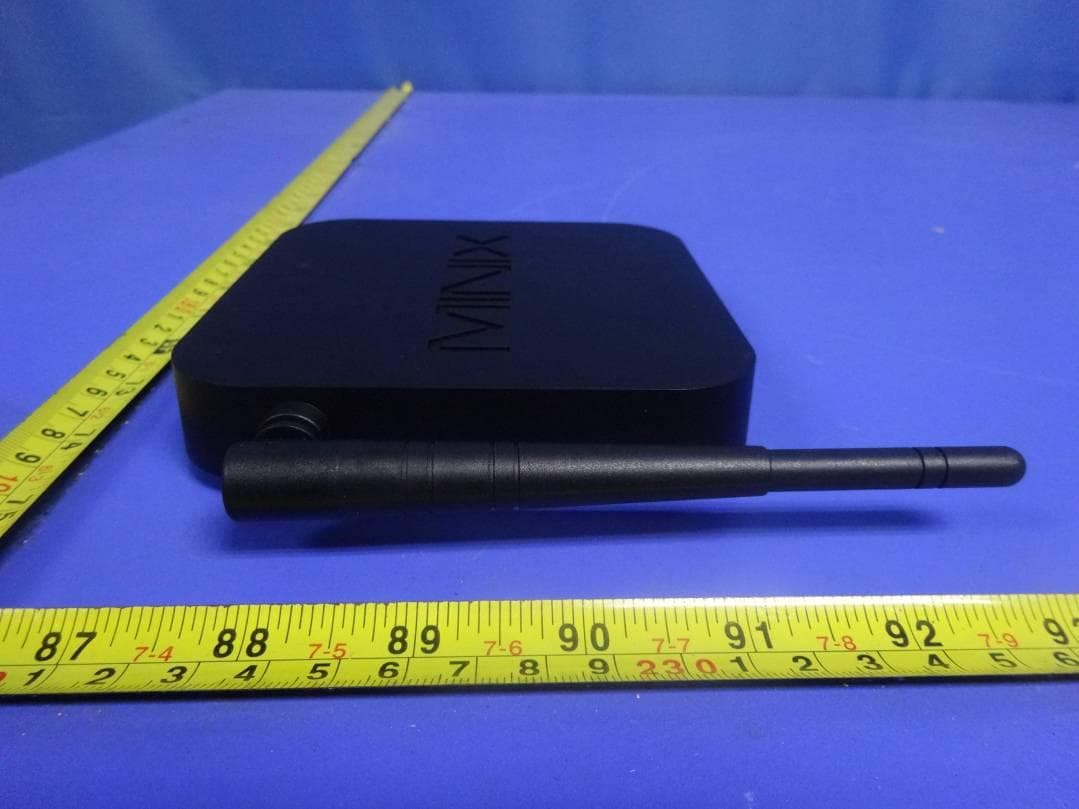

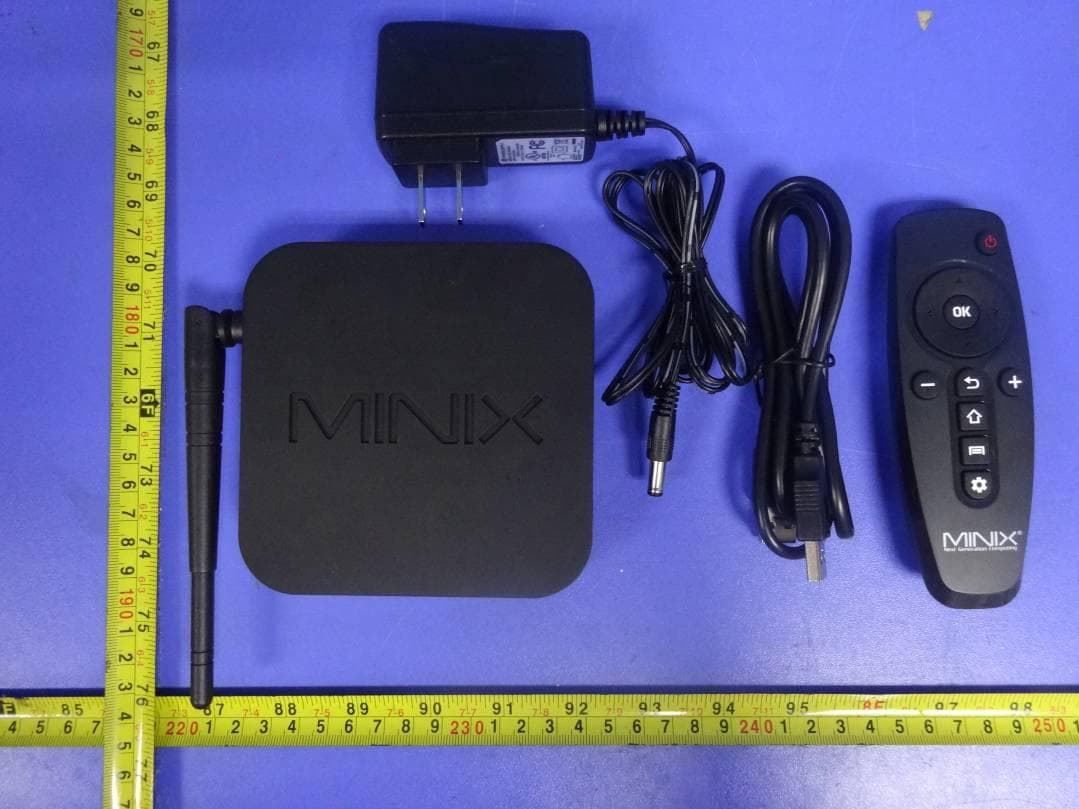

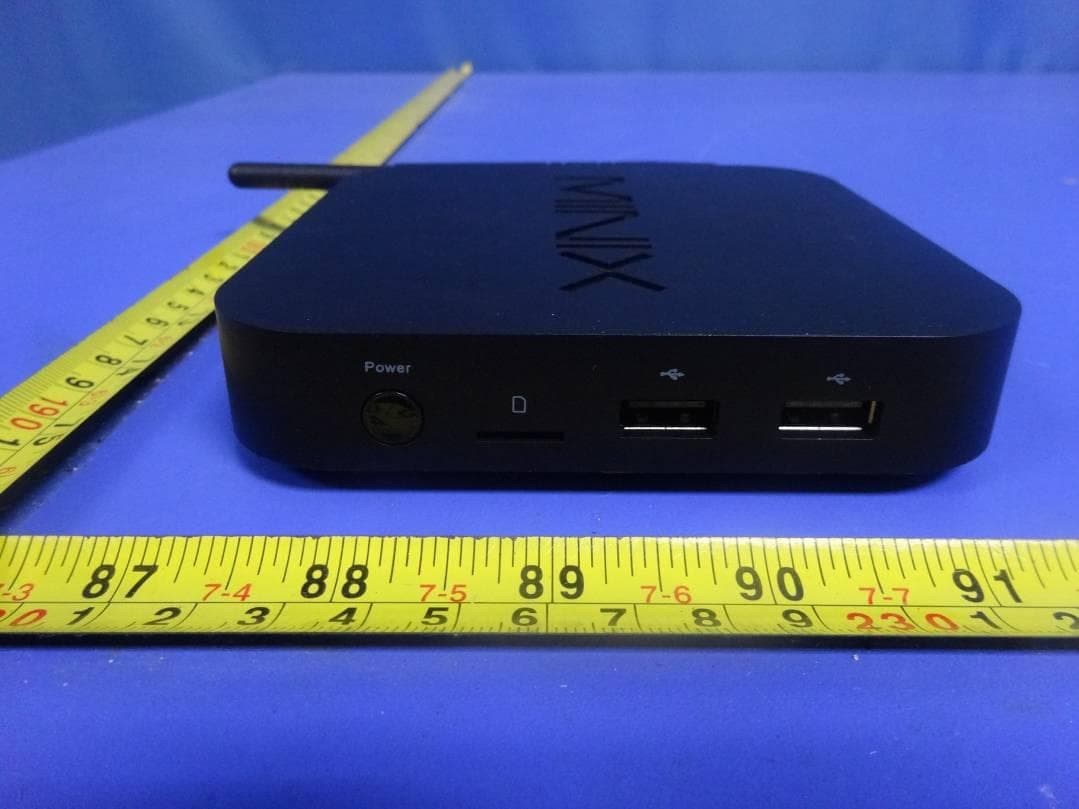

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.:LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1.EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.:LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.:LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.:LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID:2ADACNEOX6 Report No.:LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: 4x3.5cm Label And Location Media hub for Android Model No.: NEO X6 FCC ID:2ADACNEOX6 Brand Name: Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in china

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.:LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1.INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Antenna Cable SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.:LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 Antenna interface SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.:LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.:LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.: LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 8. RADIO FREQUENCY EXPOSURE 8.1．Limit According to §1.1310 and §2.1091 RF exposure is calculated. Table: Limits for General Population/Uncontrolled Exposure F = frequency in MHz * = Plane-wave equivalent power density Maximum Permissible Exposure The MPE was calculated at 20cm to show compliance with the power density limit. S = PG/4πR 2 S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna. Note: 1. Manufacturer declared that the maximum antenna gain is 3.0dBi for TX. 2. Manufacturer declared that the nearest distance between human and the EUT is 20cm. 3. Only record worst case data. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.: LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 802.11b Conducted Peak output Power in dBm 14.74 dBm Max. Conducted Peak output Power in mW 29.7852 mW Prediction distance 20 cm Prediction frequency 2462 MHz Antenna Gain(typical) 3.0 dBi Antenna Gain(numeric) 2.0 Power density at prediction frequency( S) 0.01186 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 802.11g Conducted Peak output Power in dBm 12.53 dBm Max. Conducted Peak output Power in mW 17.9061 mW Prediction distance 20 cm Prediction frequency 2437 MHz Antenna Gain(typical) 3.0 dBi Antenna Gain(numeric) 2.0 Power density at prediction frequency( S) 0.00713 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.: LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 802.11n-HT20 Conducted Peak output Power in dBm 12.44 dBm Max. Conducted Peak output Power in mW 17.5388 mW Prediction distance 20 cm Prediction frequency 2437 MHz Antenna Gain(typical) 3.0 dBi Antenna Gain(numeric) 2.0 Power density at prediction frequency( S) 0.00698 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 802.11n-HT40 Conducted Peak output Power in dBm 8.81 dBm Max. Conducted Peak output Power in mW 7.6033 mW Prediction distance 20 cm Prediction frequency 2437 MHz Antenna Gain(typical) 3.0 dBi Antenna Gain(numeric) 2.0 Power density at prediction frequency( S) 0.00303 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 8.2 Test Results The power density level worst case at 20 cm is below the uncontrolled exposure limit.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.: LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 61 FCC TEST REPORT For MINIX TECHNOLOGY LIMITED Media hub for Android Model No.: NEO X6 Prepared for : MINIX TECHNOLOGY LIMITED Address : Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : September 17, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : September 17, 2014 – September 26, 2014 Date of Report : September 26, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.: LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 61 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2013 Report Reference No. .............. : LCS1409160706E Date of Issue ................................ : September 26, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : MINIX TECHNOLOGY LIMITED Address ........................................ : Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.247): 2013 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Media hub for Android Trade Mark .................................. : Model/ Type reference ................. : NEO X6 Ratings ......................................... : DC 5V, 2A Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.: LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 61 FCC -- TEST REPORT Type / Model........................... : NEO X6 EUT......................................... : Media hub for Android Applicant............................... : MINIX TECHNOLOGY LIMITED Address.................................. : Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong Telephone............................... : (852)-31755678 Fax.......................................... : (852)-31534189 Manufacturer........................ : MINIX TECHNOLOGY LIMITED Address................................... : Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong Telephone............................... : (852)-31755678 Fax.......................................... : (852)-31534189 Factory................................... : MINIX TECHNOLOGY LIMITED Address................................... : Unit 01, 15/F, Chevalier Commercial Center, No.8 Wang Hoi Road, Kowloon Bay, Kowloon, Hong Kong Telephone............................... : (852)-31755678 Fax.......................................... : (852)-31534189 Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1409160706E September 26, 2014 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADACNEOX6 Report No.: LCS1409160706E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 61 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 5 1.3. EXTERNAL I/O CABLE .......................................................................................................................................... 5 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................... 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................ 6 1.6. MEASUREMENT UNCERTAINTY ...............................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ADACNEOX6 Report No.:LCS1409160706E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement (X Position) Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2ADACNEOX6 Report No.:LCS1409160706E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Line Conducted Emissions Measurement Fig.3
