2ADBK93JP2KS8580000COMMUN. CONT. UNIT COMP.

Yamaha Motor Co., Ltd.
COMMUN. CONT. UNIT COMP. - FCC ID 2ADBK93JP2KS8580000 - Yamaha Motor Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Nov 08, 2014
Application Purpose
Original Equipment
Date of Application
Nov 08, 2014
Equipment Note
COMMUN. CONT. UNIT COMP.
Frequency Range
2412.00000000 - 2462.00000000
Company
Yamaha Motor Co., Ltd.
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗
↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual This device is installed in vehicle. Since it is not sold to general end users directly, there is no user manual of this device. The following statements must be described on the user manual of the host vehicle of this device; [for FCC] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). [for IC] This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. [※Cependant, il est souhaitable qu'il devrait être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps.]

External Photos

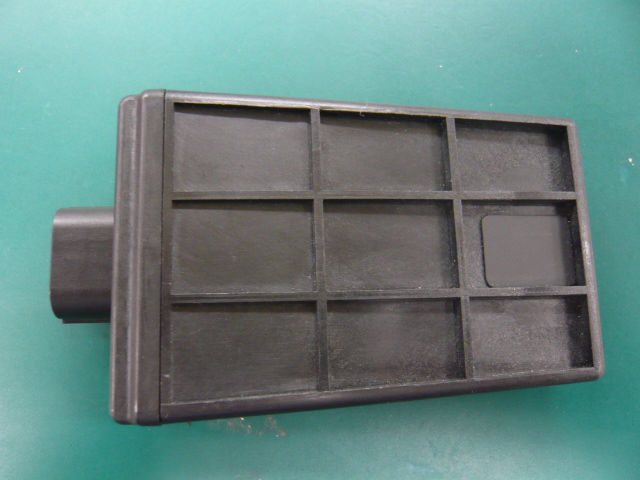

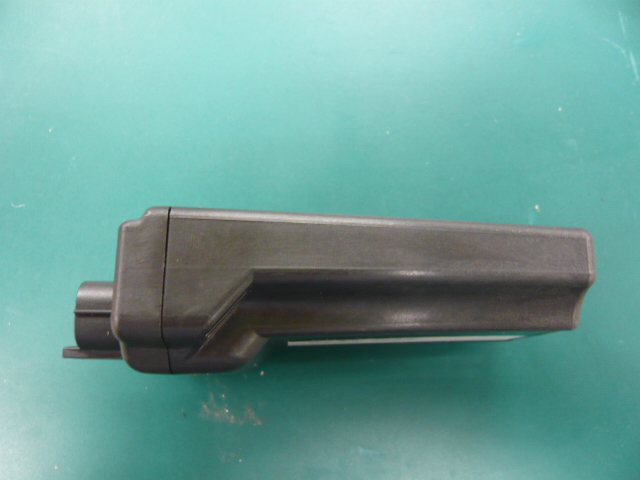

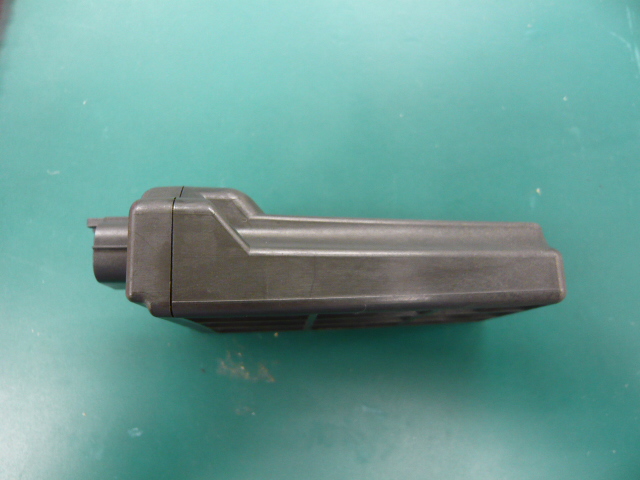

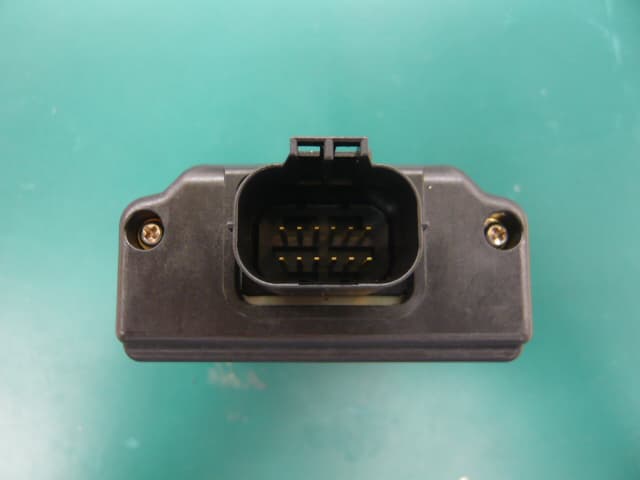

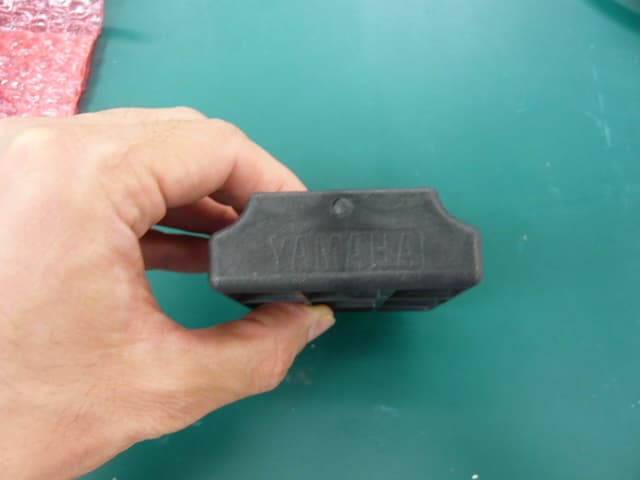

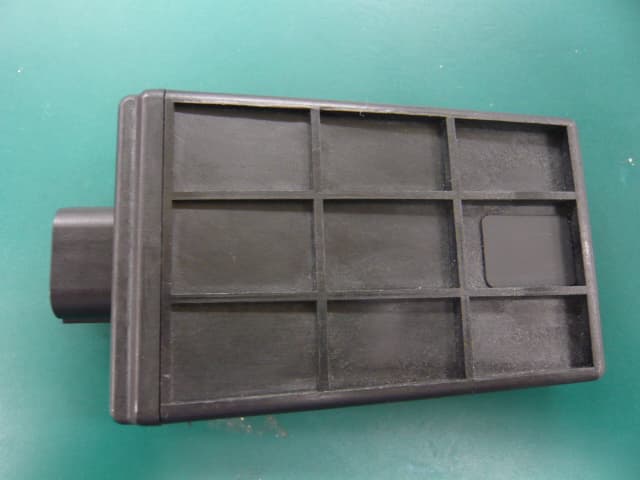

Photo Photo Photo

ID Label/Location Info

Label Location LABEL

Internal Photos

Photo WLAN module BP3580 ANT Photo

Internal Photos

Internal Photo Side A with Shield Side A without Shield Internal Photo Side B

RF Exposure Info

UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Applicant: Yamaha Motor Co., Ltd. Type of Equipment : COMMUN. CONT. UNIT COMP. Model No. : 2KS-85800-00 FCC ID: 2ADBK93JP2KS8580000 Yamaha Motor Co., Ltd. declares that Model : COMMUN. CONT. UNIT COMP. complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “COMMUN. CONT. UNIT COMP.“ as calculate d from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 2.51 mW (Maximum average output power)(Output power in Theory of Operation) G = 1.55 Numerical Antenna gain; equal to1.90 dBi r =20.0 cm For: COMMUN. CONT. UNIT COMP.S =0.00077 mW/cm 2 No. : 10211033H RF Exposure / MPE Calculation

Test Report

Test report No. : 10211033H-A-R1 Page : 2 of 37 Issued date : September 30, 2014 Revised date : November 7, 2014 FCC ID : 2ADBK93JP2KS8580000 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10211033H-A Revision Test report No. Date Page revised Contents - (Original) 10211033H-A September 30, 2014 - - 1 10211033H-A-R1 November 7, 2014 P5 Update of FCC15 version in clause 3.1 1 10211033H-A-R1 November 7, 2014 P21 Correction of data for Radiated Spurious Emission Test report No. : 10211033H-A-R1 Page : 3 of 37 Issued date : September 30, 2014 Revised date : November 7, 2014 FCC ID : 2ADBK93JP2KS8580000 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Radiated Spurious Emission ............................................................................................ 10 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 6dB Bandwidth ................................................................................................................................. 12 Maximum Peak Output Power .......................................................................................................... 15 Average Output Power ...................................................................................................................... 17 Radiated Spurious Emission ............................................................................................................. 18 Conducted Spurious Emission .......................................................................................................... 28 Power Density ................................................................................................................................... 29 99%Occupied Bandwidth ................................................................................................................. 33 APPENDIX 2: Test instruments ............................................................................................................. 35 APPENDIX 3: Photographs of test setup ............................................................................................... 36 Radiated Spurious Emission ............................................................................................................. 36 Worst Case Position (Horizontal: X-axis/ Vertical:Z-axis) .............................................................. 37 Test report No. : 10211033H-A-R1 Page : 4 of 37 Issued date : September 30, 2014 Revised date : November 7, 2014 FCC ID : 2ADBK93JP2KS8580000 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Yamaha Motor Co., Ltd. Address : 2500 Shingai, Iwata-shi, Shizuoka-ken, 438-8501 Japan Telephone Number : +81-538-32-2110 Facsimile Number : +81-538-37-9407 Contact Person : Hideki Fujiwara SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : COMMUN. CONT. UNIT COMP. Model No. : 2KS-85800-00 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12.0V Receipt Date of Sample : January 14, 2014 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 25MHz Operating temperature : -10 to +60 deg. C Radio Specification [WLAN (IEEE802.11b/g/n-20)] Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : DSSS, OFDM Power Supply (inner) : DC 3.3V Antenna type : Chip Antenna Antenna Gain : 1.9dBi [GPS] Radio Type : GPS Receiver Frequency of Operation : 1575.42MHz Modulation : Spread Spectrum modulation Power Supply (inner) : DC 5.0V Antenna type : Patch Antenna Antenna Gain : 3dBic * This report is applied to WLAN part. Test report No. : 10211033H-A-R1 Page : 5 of 37 Issued date : September 30, 2014 Revised date : November 7, 2014 FCC ID : 2ADBK93JP2KS8580000 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2014, final revised on August 15, 2014 and effective October 14, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on August 15, 2014 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 - N/A *1) IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance for Performing Compliance Measurements on Digital Transmission Systems (…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 10211033H-A-R1 Page : 36 of 37 Issued date : September 30, 2014 Revised date : November 7, 2014 FCC ID : 2ADBK93JP2KS8580000 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10211033H-A-R1 Page : 37 of 37 Issued date : September 30, 2014 Revised date : November 7, 2014 FCC ID : 2ADBK93JP2KS8580000 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Z-axis) X-axis Y-axis Z-axis End of Report

Contact Information

Applicant

Hidenori Akatsuka
[email protected]81-538-32-6582Fax: 81-538-32-1019

Technical Contact

UL Japan, Inc.Motoya Imura
[email protected]81-596-24-8999

4383-326 Asama-cho, Ise-shi · Mie-ken · Japan

Test Firm

UL Japan, Inc. Head office EMC Lab.Tetsuya Hashimoto
[email protected]+81-596-24-8116Fax: +81-596-24-8095

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz5.70 mW
Confidentiality
Long Term
Grant Notes
Output power listed is Conducted(Peak). End-users must be provided with specific operating instructions for satisfying RF exposure compliance.

Other Applications from Yamaha Motor Co., Ltd.

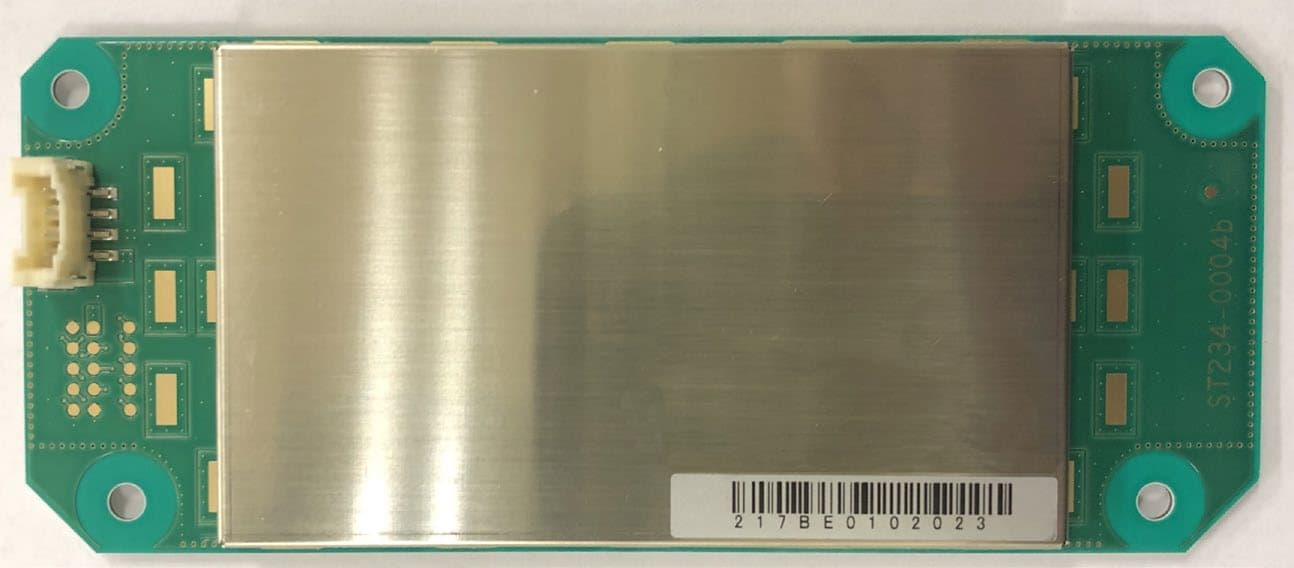

24GHz Radar Sensor Unit - FCC ID 2ADBKFAZRSENSOR01 - Yamaha Motor Co., Ltd.
