2ADC7BBFPSS100PBanana Boat pool sound system

Authenticatii onTestToo .doc User Manual YongChangXingGroupCo.,Limited Trade Name: banana boat Product Name: Banana Boat pool sound system Model Name: BBFPSS100P Vimicro Internal Document for Design Address: Zhongfang Industrial Park, The South Part Of Shatou, Chang’an, Dongguan City, GD, China 5.NextSong(Long press for the volume increase) 4.Previous S ong(Long press for t he v ol ume reduce) 3.Decorative l ight(Before and back each o ne) 1.Play/Pause Key(Long press 3seconds t o switch machine ,after boot t he Bluetooth i ndicator l ight flashing, the state of t he Bluetooth pairing, After the s uccess of the Bluetooth pairing Bluetooth light is normally on) 2.Decorative light switch 7. The Bluetooth Indicator Light 6. Battery Cover, Rotate to open 6 AA batteries FCC Warnings: This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditi ons:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolle d environment. The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance; such change or modification could void the use’s authority to operate the equipment.

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS

FCC ID LABELING AND LOCATION FCC ID Label Model: BBFPSS100P POWER:9V FCC ID: 2ADC7BBFPSS100P Made in China FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS BT ANT

FCC RADIO TEST REPORT FCCID:2ADC7BBFPSS100P Product： Banana Boat pool sound system Trade Name：Banana boat Model Name：BBFPSS100P Prepared for YongChangXing Group Co., Limited Zhongfang Industrial Park, The South Part Of Shatou, Chang’an, Dongguan City, GD, China Prepared by DongGuan Precise Testing Service Co.,Ltd. Building D, Baoding Technology Park, Guangming Road 2, Guangming Community, Dongcheng District, Dongguan, Guangdong, China Report No.: PT1412308102F TEST RESULT CERTIFICATION Applicant’s name ........ YongChangXing Group Co., Limited Address ........................ Zhongfang Industrial Park, The South Part Of Shatou, Chang’an, Dongguan City, GD, China Manufacture's Name... Dongguan YiYong Electronic Science and Technology Co., Ltd. Address ........................ 3rd Floor, No#6th, Ming Road#2, Wusha District, Chang'an Town, Dongguan City, Guangdong Province, China Product description Product name ... ... ........... Banana Boat pool sound system Model and/or type reference ..................... BBFPSS100P In all, the original product and the alternative product are the same. Standards .................... FCC Part15.247 Test procedure ................ ANSI C63.4- 2003 This device described above has been tested by PTS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTS, this document may be altered or revised by PTS, personal only, and shall be noted in the revision of the document. Date of Test .................... ................ .. Date (s) of performance of test s ....... Dec. 20, 2014 ~ Jan. 4, 2015 Date of Issue ..................................... Jan. 4, 2015 Test Result......................................... Pass Testing Engineer : Technical Manager : Authorized Signatory : Assistant Supervisor Chris Du / Manager Report No.: PT1412308102F 2 Test Summary Test Items Test Requirement Result Spurious Radiated Emissions 15.205(a) 15.209 15.247(d) PASS Band edge Emissions 15.247(d) PASS Conducted Emissions 15.207 N/A* 20dB Bandwidth 15.215c 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS N/A*: Due to this EUT is powered by the battery only, this test item is not applicable. Report No.: PT1412308102F DongGuan Precise Testing Service Co., Ltd Page 4 of 56 TABLE OF CONTENTS 2 TEST SUMMARY 3 3 GENERAL INFORMATION 5 3.1 GENERAL DESCRIPTION OF E.U.T. 5 3.2 DETAILS OF E.U.T. 5 3.3 CHANNEL LIST 5 3.4 DESCRIPTION OF SUPPORT UNITS 5 3.5 TEST FACILITY 6 4 EQUIPMENT USED DURING TEST 7 4.1 EQUIPMENTS LIST 7 4.2 MEASUREMENT UNCERTAINTY 7 4.3 TEST EQUIPMENT CALIBRATION 7 5 CONDUCTED EMISSION 8 5.1 E.U.T. OPERATION 8 5.2 EUT SETUP 8 5.3 CONDUCTED EMISSION TEST RESULT 9 6 SPURIOUS RADIATED EMISSIONS 10 6.1 EUT OPERATION : 10 6.2 TEST SETUP 11 6.3 SPECTRUM ANALYZER SETUP 12 6.4 TEST PROCEDURE 13 6.5 CORRECTED AMPLITUDE & MARGIN CALCULATION 13 6.6 SUMMARY OF TEST RESULTS 14 7 BAND EDGE MEASUREMENT 17 7.1 TEST PROCEDURE 17 7.2 TEST RESULT: 18 8 20 DB BANDWIDTH MEASUREMENT 21 8.1 TEST PROCEDURE: 21 8.2 TEST RESULT: 21 9 MAXIMUM PEAK OUTPUT POWER 26 9.1 TEST PROCEDURE: 26 9.2 TEST RESULT: 26 10 HOPPING CHANNEL SEPARATION 32 10.1 TEST PROCEDURE: 32 10.2 TEST RESULT: 32 11 NUMBER OF HOPPING FREQUENCY 38 11.1 TEST PROCEDURE: 38 11.2 TEST RESULT: 38 12 DWELL TIME 40 12.1 TEST PROCEDURE: 40 12.2 TEST RESULT: 40 13 ANTENNA REQUIREMENT 56 Report No.: PT1412308102F DongGuan Precise Testing Service Co., Ltd Page 5 of 56 3 General Information 3.1 General Description of E.U.T. Product Name : Banana Boat pool sound system Model No. : BBFPSS100P Brand Name : banana boat Operation Frequency : 2402MHz ~ 2480MHz,79 channels in total, separated by 1MHz Type of Modulation : GFSK, Pi/4DQPSK, 8DPSK Oscillator : 16 MHz for RF module Antenna installation : PCB Printed Antenna Antenna Gain : 0 dBi 3.2 Details of E.U.T. Technical Data : (1)DC 9V from battery(DC 1.5V*6 batteries) 3.3 Channel List Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) 1 2402 2 2403 3 2404 4 2405 5 2406 6 2407 7 2408 8 2409 9 2410 10 2411 11 2412 12 2413 13 2414 14 2415 15 2416 16 2417 17 2418 18 2419 19 2420 20 2421 21 2422 22 2423 23 2424 24 2425 25 2426 26 2427 27 2428 28 2429 29 2430 30 2431 31 2432 32 2433 33 2434 34 2435 35 2436 36 2437 37 2438 38 2439 39 2440 40 2441 41 2442 42 2443 43 2444 44 2445 45 2446 46 2447 47 2448 48 2449 49 2450 50 2451 51 2452 52 2453 53 2454 54 2455 55 2456 56 2457 57 2458 58 2459 59 2460 60 2461 61 2462 62 2463 63 2464 64 2465 65 2466 66 2467 67 2468 68 2469 69 2470 70 2471 71 2472 72 2473 73 2474 74 2475 75 2476 76 2477 77 2478 78 2479 79 2480 - - 3.4 Description of Support Units No. Equipment Manufacturer Model No. Serial No. 1. N/A N/A N/A N/A Report No.: PT1412308102F DongGuan Precise Testing Service Co., Ltd Page 6 of 56 3.5 Test Facility The test facility has a test site registered with the following organizations: NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 . Report No.: PT1412308102F DongGuan Precise Testing Service Co., Ltd Page 7 of 56 4 Equipment Used during Test 4.1 Equipments List Mains Terminal Disturbance Voltage (Conducted Emission) Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. EMI Test Receiver R&S ESCI 101155 Sep.17,2014 1 Year 2. LISN SCHWARZBECK NSLK 8128 8128-289 Sep.17,2014 1 Year 3. Cable LARGE RF300 - Sep.17,2014 1 Year 3m Semi-anechoic Chamber for Radiation Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1 EMC Analyzer Agilent E740…

Text truncated - open the document above for the full version.

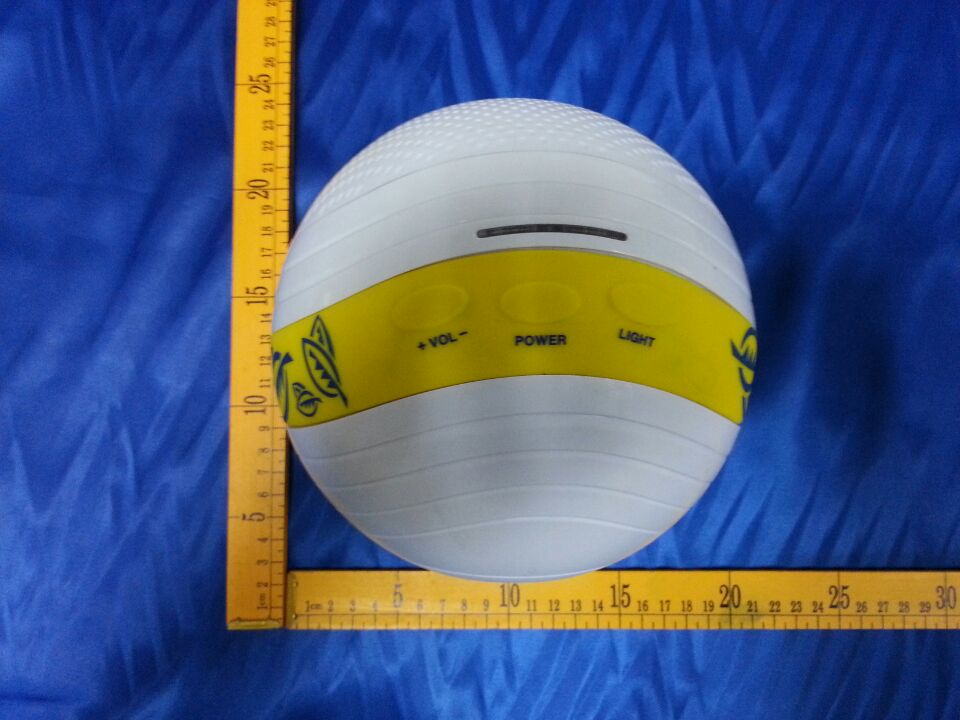

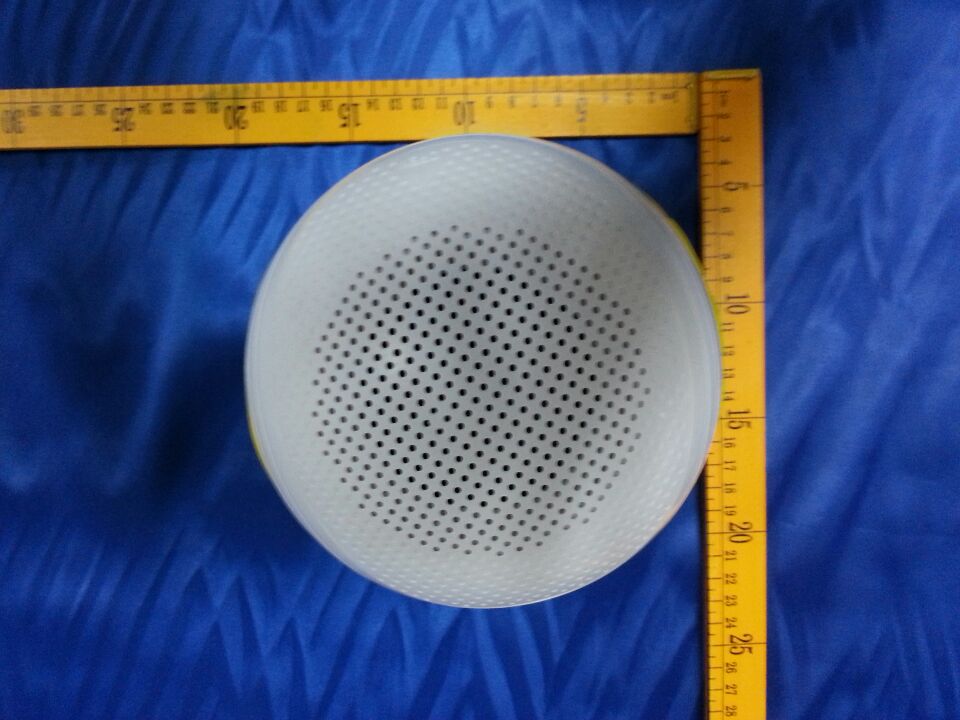

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS
