2ADCISF2015A49TOY RC MONSTER SPINNING CAR

2ADCISF2015A49

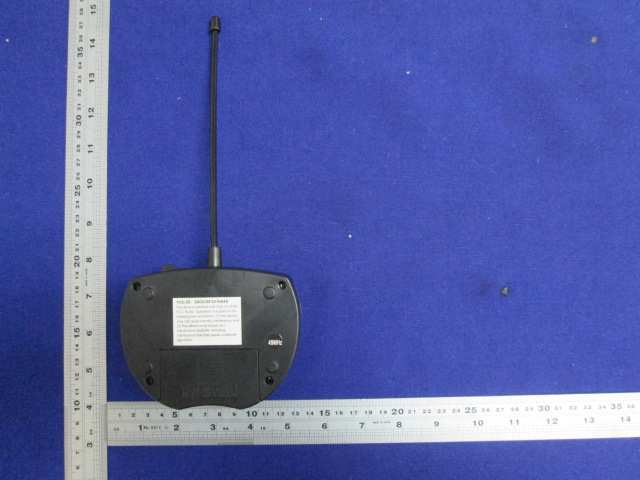

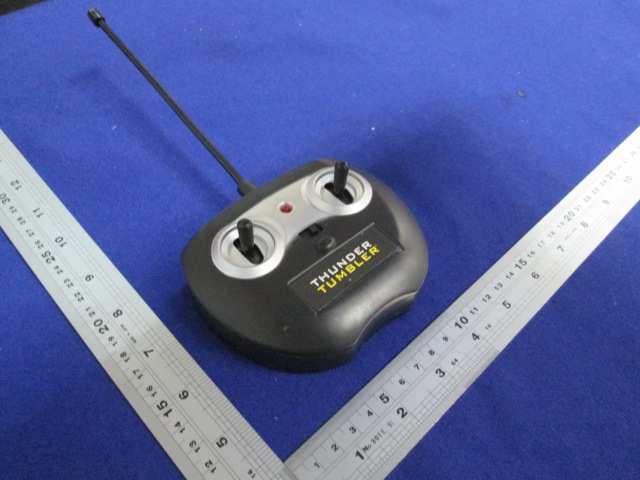

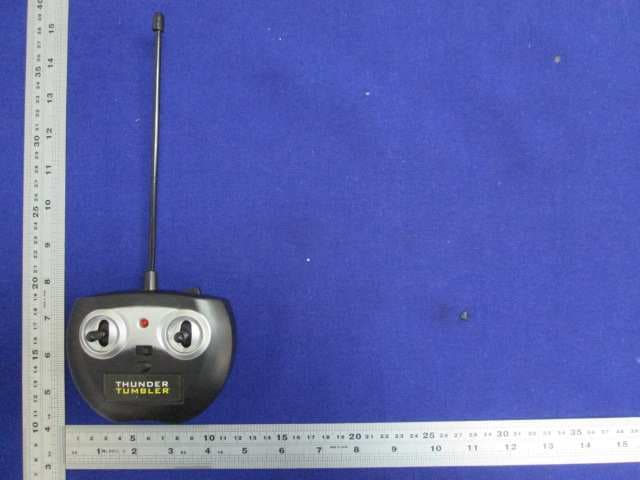

External Photos

Label Artwork and Location SIZE: 40mm (W) x 27mm (H) FCC ID： ：： ：2ADCISF2015A49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a TOY RC MONSTER SPINNING CAR operating at 49.86 MHz which is controlled by a crystal. The EUT is powered by one 9.0V 6F22 size battery. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna with unique antenna connector Antenna Gain: 0dBi The nominal conducted output power specified: -39.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -41.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: The worst-case peak radiated emission for the EUT is 55.8dBμV/m at 3m in the frequency 49.86MHz The EIRP = [(FS*D) ^2 / 30] mW= -39.43dBm The ERP = EIRP – 2.15 = -41.58 dBm which is within the production variation. The maximun conducted output power specified is -36dBm =0.00025mW The source- based time-averaging conducted output power = 0.00025* Duty Cycle mW< 0.1mW (Duty Cycle<100%) The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 308.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 19.20ms Effective period of the cycle = 540.0μs x 10 + 1.560 ms x 4 = 11.64ms DC = 11.64ms / 19.20ms = 0.6063 or 60.63% FCC ID: 2ADCISF2015A49

Ref 107 dBμVAtt 10 dB * * 1 PK MAXH A SGL 3DB RBW 3 MHz VBW 3 MHz SWT 100 ms Center 49.86 MHz10 ms/ 10 20 30 40 50 60 70 80 90 100 Ref 107 dBμVAtt 10 dB * * MAXH A SGL 3DB RBW 3 MHz VBW 3 MHz Center 49.86 MHz3 ms/ SWT 30 ms 1 PK 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 92.45 dBμV 4.200000 ms 1 Delta 1 [T1 ] 0.01 dB 19.200000 ms Ref 107 dBμVAtt 10 dB * * MAXH A SGL 3DB RBW 3 MHz VBW 3 MHz Center 49.86 MHz3 ms/ SWT 30 ms 1 PK 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 92.45 dBμV 4.200000 ms 1 Delta 1 [T1 ] -1.85 dB 1.560000 ms Ref 107 dBμVAtt 10 dB * * AXH A SGL 3DB RBW 3 MHz VBW 3 MHz Center 49.86 MHz3 ms/ SWT 30 ms PK 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 92.10 dBμV 12.720000 ms 1 Delta 1 [T1 ] -0.89 dB 540.000000 μs

A 1 PK M AXH Ref 107 dBμVAtt 10 dB * 10 kHz/Start 49.81 MHzStop 49.91 MHz * * 3DB RBW 1 kHz VBW 3 kHz SWT 100 ms 10 20 30 40 50 60 70 80 90 100 1 Marker 1 [T1 ] 92.19 dBμV 49.859600000 MHz 2 Delta 2 [T1 ] -43.40 dB -49.600000000 kHz 3 Delta 3 [T1 ] -45.07 dB 50.400000000 kHz

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6 F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 SHIFENG CULTURAL DEVELOPMENT CO.,LTD Application For Certification FCC ID: 2ADCISF2015A49 TOY RC MONSTER SPINNING CAR Model: SF2015A Transmitter Report No.: GZHH00166630-001 W e hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] P repared and Checked by: Approved by: Sign on file Powell Bao Engineer Andy Yan Senior Project Engineer Date: January 23, 2015 INTERTEK TESTING SERVICES Report No.: GZHH00166630-001 FCC ID: 2ADCISF2015A49 TRF No.: FCC 15C_TX_b i G ENERAL INFORMATION SHIFENG CULTURAL DEVELOPMENT CO.,LTD MODEL: SF2015A FCC ID: 2ADCISF2015A49 G rantee: SHIFENG CULTURAL DEVELOPMENT CO.,LTD Grantee Address: Chenghua Industrial Zone,Wenguan Road,Chenghai District,Shantou City,Guangdong,China Contact Person: Nancy Huang Tel: 86-754-85877555 Manufacturer: SHIFENG CULTURAL DEVELOPMENT CO.,LTD Manufacturer Address: Chenghua Industrial Zone,Wenguan Road,Chenghai District,Shantou City,Guangdong,China Model: SF2015A Type of EUT: Transmitter Description of EUT: TOY RC MONSTER SPINNING CAR Serial Number: N/A FCC ID : 2ADCISF2015A49 Date of Sample Submitted: January 5, 2015 Date of Test: January 23, 2015 Report No.: GZHH00166630-001 Report Date: January 23, 2015 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: GZHH00166630-001 FCC ID: 2ADCISF2015A49 TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT S HIFENG CULTURAL DEVELOPMENT CO.,LTD MODEL: SF2015A FCC ID: 2ADCISF2015A49 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15 .247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15 .231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15 .231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15 .235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an integral antenna, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: GZHH00166630-001 FCC ID: 2ADCISF2015A49 TRF No.: FCC 15C_TX_b iii T able of Contents 1.0 G eneral Description ....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology ............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software ................................................................................…
