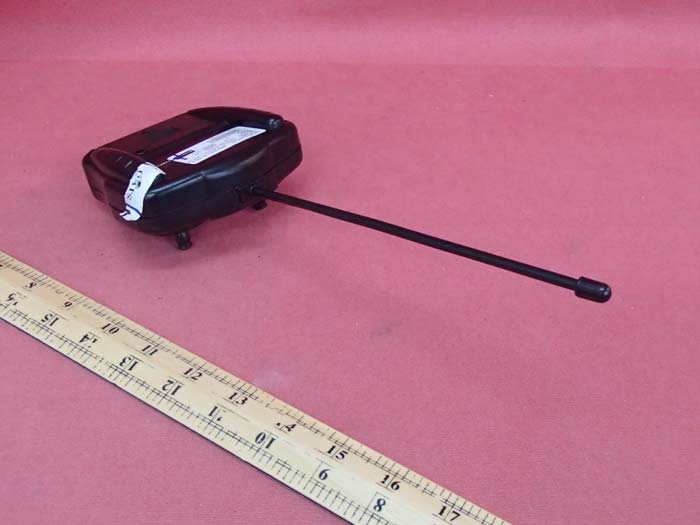

INTERTEK TESTING SERVICE Report No.: 14100122HKG-001 Equipment Photographs Model : SF2015D (External) FCC ID: 2ADCISF2015D49

INTERTEK TESTING SERVICE Report No.: 14100122HKG-001 Equipment Photographs Model : SF2015D (Internal) FCC ID: 2ADCISF2015D49 INTERTEK TESTING SERVICE Report No.: 14100122HKG-001 Equipment Photographs Model : SF2015D (Internal) FCC ID: 2ADCISF2015D49 INTERTEK TESTING SERVICE Report No.: 14100122HKG-001 Equipment Photographs Model : SF2015D (Internal) FCC ID: 2ADCISF2015D49

FCC ID: 2ADCISF2015D49 Model: SF2015D (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: L, R, B, F, U1 (TX-2) 2. A RF Oscillator (49.860MHz) Consisting: X1, Q3 3. A Filter Network Consisting: C6, L3 4. A RF Modulator and Amplifier Consisting: Q4 5. A Power Supply Consisting: 3VDC (2 X “1.5V” AA size batteries) Antenna Gain: 0dBi Nominal rated field strength: 67.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna

Analysis Report Report No.: 14100122HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC boat operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 3.0 V DC source (2 x 1.5V AA size batteries). The EUT has a forward / backward control lever and a left / right control lever. After switching ON the EUT and the receiver of the RC Boat, activating the control levers on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 67.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 70.5dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00337mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00337mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

Valued Qualiry. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specif¡c laboratory act¡vities as listed in the HOKLAS directory of accred¡ted laboratories. TEST REPORT HII= n6( **^# F Report No. : I 41 00122HKG-001 SHIFENG CULTURAL DEVELOPMENT CO., LTD. Application For Certification (Original Grant) (FCC lD: 2ADCISF2Oí 5D49) Transmitter Prepared and Checked by: Approved by: Tse Ying, Cathy Senior Lead EngineerLead Engineer Date: November 10,2014 lntertek's standard Terms and Condit¡ons can be obta¡ned at our website http://ww.¡ntertekæm/terms/. Th¡s report shall not be reproducêd, exæpt ¡n full. Th¡s €port is for the exclusive use of lnlertêks Cl¡ent and is prcvided pursuant to the agræment between lntertêk and its Client. lnterteks respons¡b¡lity and l¡ability arê l¡m¡ted to the terms and conditions of the agreemênt. lntertêk assumês no liabil¡ty to any party, other thân to thê Client in amrdanæ w¡th the agreèment, for any loss, expênse or damage occas¡oned by the use of th¡s rêport. Only the Cliênt ¡s authorized to pem¡t copying or distr¡butim of this report and thên only ¡n its snt¡Ety. Any use of the lntêrtek name or one of its marks for the sale or advertisement of the têsted mater¡al, prcduct or serv¡ce must f¡rst be apprcved in wr¡ting by lntertek. The observations and têst results ¡n this rèport are relevant only to the sample tested. Th¡s report by itself does not ¡mply that the mâterial, producl, or æruice is or has over been under an lntertek certificat¡on progrâm. lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax (852) 2785 5487 Webs¡te: www.hk.intertek-etlsemko.com Ng Mei Nar, Chris Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14100122HKG-001 i FCC ID: 2ADCISF2015D49 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: SHIFENG CULTURAL DEVELOPMENT CO., LTD. Grantee Address: Chenghua Industrial Zone, Wenguan Road, Chenghai District, Shantou City, Guangdong, China. Contact Person: Nancy Huang Tel: 86-754-85877555 Fax: 86-754-85897699 e-mail: N/A Manufacturer: SHIFENG CULTURAL DEVELOPMENT CO., LTD. Manufacturer Address: Chenghua Industrial Zone, Wenguan Road, Chenghai District, Shantou City, Guangdong, China. Brand Name: Blue Hat Model: SF2015D Type of EUT: Transmitter Description of EUT: Toy RC Speedboat Serial Number: N/A FCC ID: 2ADCISF2015D49 Date of Sample Submitted: October 06, 2014 Date of Test: October 06, 2014 to October 15, 2014 Report No.: 14100122HKG-001 Report Date: November 10, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14100122HKG-001 ii FCC ID: 2ADCISF2015D49 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14100122HKG-001 iii FCC ID: 2ADCISF2015D49 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14100122HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : SF2015D FCC ID: 2ADCISF2015D49 INTERTEK TESTING SERVICE Report No: 14100122HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : SF2015D FCC ID: 2ADCISF2015D49
