Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: ELUSIV Hummingbird GPS Tracking System Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014122 26 of 30 Appendix J: Manual Please refer to the following pages. Hummingbird GPS Tracking System Quick Start Guide Hummingbird GPS Tracking System Quick Start Guide Ntrepid Corporation Proprietary InformationELUSIV 1 For more information Detailed user guides for EVE Mobile and EVE Web, and detailed info on the Hummingbird can be found on the USB drive provided in the ELUSIV box. The EVE User Guides explain use of the Hummingbird’s full features, and include a Troubleshooting section for common problems. For issues not resolved through the Troubleshooting guide, contact ELUSIV customer support at: [email protected] Toll-free: 855-489-TRACK Changes or modifications not expressly approved by Ntrepid Corporation could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. this device may not cause harmful interference, and 2. this device must accept any interference received, including interference that may cause undesired operation. This device requires a minimum separation distance of 20 cm from the user. The ELUSIV Hummingbird tracker features a motion sensor, light sensor, GSM cellular, GPS, UHF radio beacon, LED light indicators, and up to two on-board geofences. The Hummingbird is tracked and controlled by EVE ™ , the ELUSIV Visualization Environment. Charging the battery and powering on The Hummingbird internal battery is charged inductively by placing it on the charging pad. The Hummingbird can be used with any Qi-standard compliant charging pad. Use of any other type of charging pad could cause permanent damage to the Hummingbird. 1. Plug in the charging pad and place on a flat surface. 2. Place the Hummingbird on the charging pad, centered as shown below. The Hummingbird power button should be face up. When the charging connection is made the charging pad light will illuminate, and the Hummingbird blue LED will illuminate while it is charging. You may need to move the Hummingbird around slightly to find the center and make the charging connection. Charging pad light LED window Power button Ntrepid Corporation Proprietary InformationNtrepid Corporation Proprietary InformationELUSIV 32 ELUSIV Hummingbird GPS Tracking SystemQuick Start Guide EVE The ELUSIV Visualization Environment (EVE) ™ provides the ability to track, communicate with, and program ELUSIV tracking devices over-the-air. EVE Mobile is pre-installed on a smartphone or tablet. EVE Web is a web browser-based application. Comm modes The Hummingbird can operate in two modes: • Server mode: the Hummingbird communicates with the EVE cloud-based server. EVE Web and EVE Mobile get data to/from the Hummingbird through the server. • SMS mode: the Hummingbird communicates directly with EVE Mobile via SMS text message. EVE Web cannot use SMS mode. Server mode requires cellular data service. If data service is not available to the Hummingbird, the user can switch to SMS mode or wait until the Hummingbird regains data service, at which time it will transmit all data and locations stored while data service was unavailable. The EVE Mobile User Guide has more details about Comm modes and changing mode. Logging in to the EVE server (EVE Mobile or EVE Web) If you use Server mode, your organization’s administrator should provide you with a username and password. In EVE Mobile, you will be prompted for this info when you start the app. To log in to EVE Web, go to https://eve.elusivtracking.com. NOTE: You must use “https” (not just “http”) in the web address, or else you will be unable to log in. 3. When fully charged, the Hummingbird’s blue LED will extinguish. The green LED will then blink for 30 seconds to indicate that the device is in STANDBY. 4. To start tracking with the Hummingbird, press and hold the power button for at least 5 seconds. After 5 seconds, the green LED will begin blinking rapidly while the startup sequence runs. Note: When the Hummingbird makes the charging connection, it will automatically enter standby mode and begin charging. So, even if the Hummingbird was ON when it was placed on the charging pad, you must turn it on before it will start tracking. Hummingbird power states The Hummingbird has two power states: ON and STANDBY. The Hummingbird is only fully “off” if the battery drains completely. In STANDBY mode, the Hummingbird runs only vital processes and battery consumption is extremely low. To check the current mode of the Hummingbird, press the Hummingbird power button briefly (less than 2 seconds). The blue LED should light while the button is depressed. If the light is red or does not come on, the Hummingbird needs to be recharged. Once the button is released, if the green LED blinks slowly for 30 seconds the Hummingbird is in STANDBY mode and ready to be activated. If there is no LED light after the button is released, then the Hummingbird is ON and ready to track. When the Hummingbird is in STANDBY, holding the power button for at least 5 seconds will turn it ON and the green LED will blink rapidly while the startup sequence runs. When the Hummingbird is ON, holding the power button for at least 10 seconds will place it in STANDBY and the green LED will blink slowly for 30 seconds. NOTE: When the Hummingbird is ON, you can quickly put it into STANDBY mode by placing it on the charging pad, and removing it after it makes the charging connection. Ntrepid Corporation Proprietary InformationNtrepid Corporation Proprietary InformationELUSIV 54 ELUSIV Hummingbird GPS Tracking SystemQuick Start Guide Navigating EVE Web EVE Web opens to the Main Map screen. The Device Management window in the top left allows you to select available devices to view on the map or …

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: ELUSIV Hummingbird GPS Tracking System Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014122 18 of 30 Appendix B: FCC Agency Authorization Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: ELUSIV Hummingbird GPS Tracking System Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014122 19 of 30 Appendix C: FCC Confidentiality Request Letter Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: ELUSIV Hummingbird GPS Tracking System Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014122 29 of 30 Appendix L: External Photographs Please refer to the following page. FCC ID:2ADCL-EL2715C001 Contains FCC ID: RI7GE865 2 3 4 5 4 7 6 1 Figure 2 a b c e f g d

Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: ELUSIV Hummingbird GPS Tracking System Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014122 20 of 30 Appendix D: Label Information Please refer to the following page. DETAIL H SCALE 6 : 1 INTERFERENCE FIT FOR SEALING DETAIL G SCALE 6 : 1 .002 INTERFERENCE PER SIDE TYPICAL FOR CRUSH PIN DESIGN .002 DETAIL D SCALE 4 : 1 TO BE MOLDED IN THE OPEN POSITION SECTION A-A 3.15 .80 B B A A ITEM NO. QTY. PART NO.DESCRIPTION 11 101043_04 BASE, EL2715_v2.0 21 101041_04 COVER, EL2715_v2.0 C C OVERMOLD TO BE OVERMOLDED .35 .73 2.11 INSERT MOLDED LIGHTPIPE TO BE GASKET TO BE OVERMOLDED 5 1 42 3 4 SECTION B-B SECTION C-C D REVISIONS ZONEREV.DESCRIPTIONDATEAPPROVED 1RELEASE FOR BUDGETARY QUOTE1/16/14 2INTIAL RELEASE2/12/2014 3UPDATED BASE COMPONENT TO REV 33/7/2014 4UPDATES PER MOLDERS REQUEST3/21/2014 5FIXED DRAFT ANGLE ON LIGHTPIPE3/27/2014 ITEMPART NUMBERDESCRIPTIONCOLORMATERIALFINISH SURFACE TREATMENT 1101043BASEBLACKBAYER BAYBLEND FR3010NONEMT-11020 -OVERMOLDBLACKSANTOPRENE 8191-55B100NONENONE -GASKETBLACKSANTOPRENE 8191-55B100NONENONE 2101041COVERBLACKBAYER BAYBLEND FR3010NONEMT-11020 -LIGHTPIPECLEARLEXAN 241R-111NONENONE SEE CHART D C B A A B C D 1 2 3 45 6 7 8 8 7 6 5 4 321 E F E F 5 ASSY, ENCLOSURE, EL2715_v2.0 TITLE: WPHJ 101039 01/31/14 DO NOT SCALE DRAWING FINISH: MATERIAL: QUAL ENG MFG ENG RESP ENG CHECKED DRAWN APPROVALS DATE REV.SIZE DO NOT MANUALLY UPDATE CAD GENERATED DRAWING, UNLESS OTHERWISE SPECIFIED 1/2 1/64 .XX1 HERDON, VA 20170 PROPRIETARY DWG. NO. D SCALE:SHEET 1 OF 1 CAD FILE: 101039_05 ASSY, ENCLOSURE, El2715_v2.0 .SLDDRW SEE CHART UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: PERSON WITHOUT WRITTEN AUTHORIZATION FROM FRACTIONS DECIMALS ANGLES BY,COPIED BY, OR COMMUNICATED TO, ANY OTHER 12801 WORLD GATE DRIVE THE EXPRESS CONDITION THAT IT IS NOTTO BE USED NTREPID CORPORATION AND CONFIDENTAL AND IS SUPPLIED ONLY ON .01 X THIS DRAWING, IN TOTAL OR IN PART, IS PRIVATE .XXX.005 X.X STANDARD MACHINE FINISH 2.5:1 FCC ID:2ADCL-EL2715C001 Contains FCC ID: RI7GE865 Figure 1

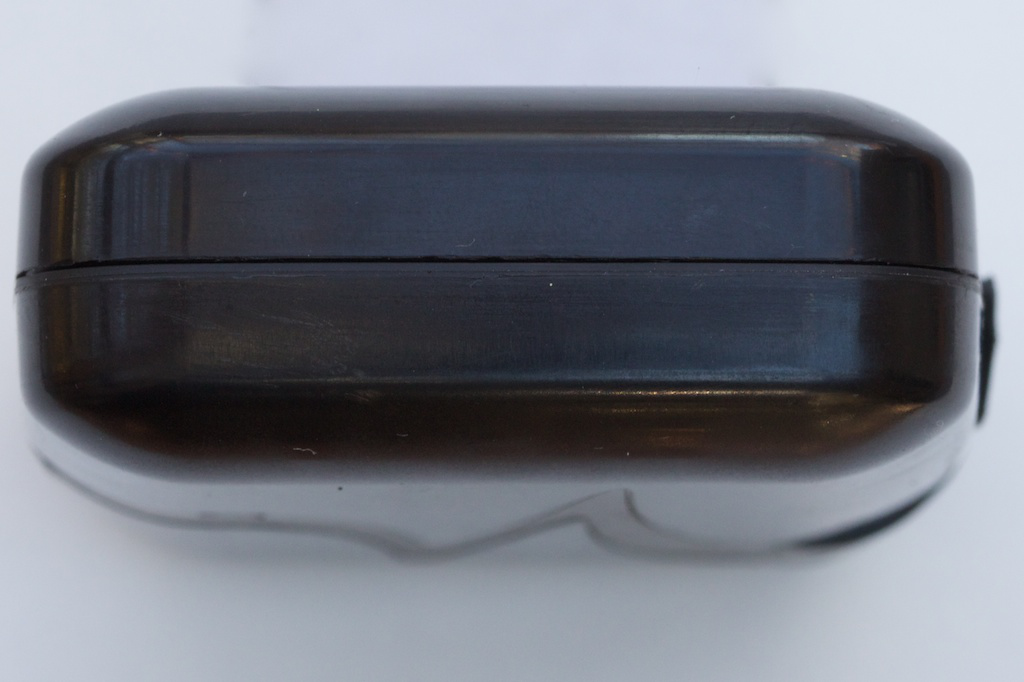

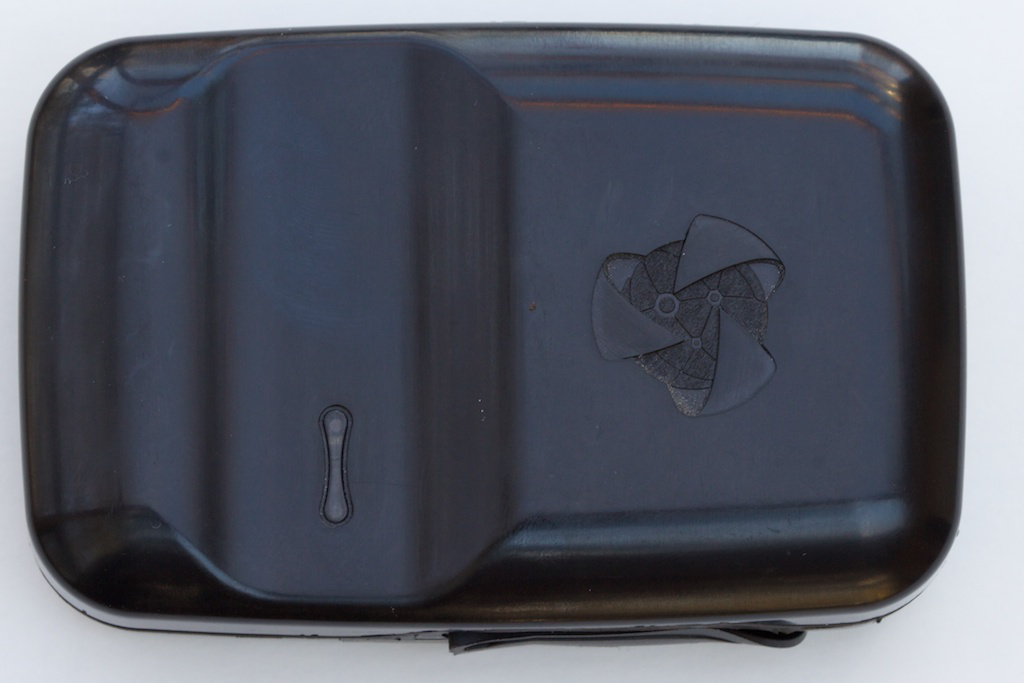

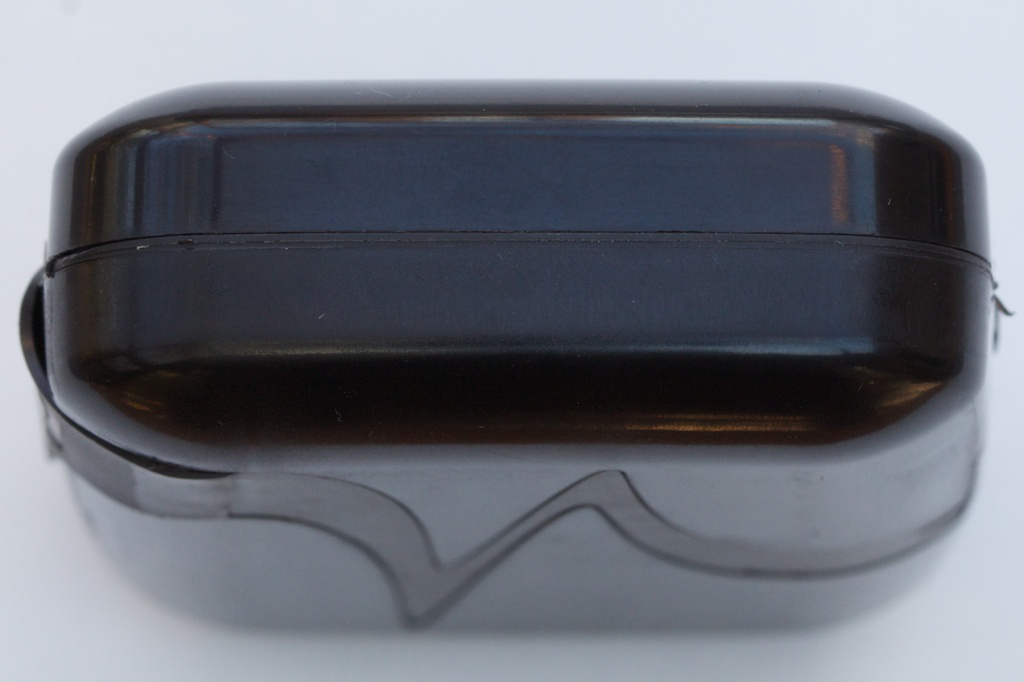

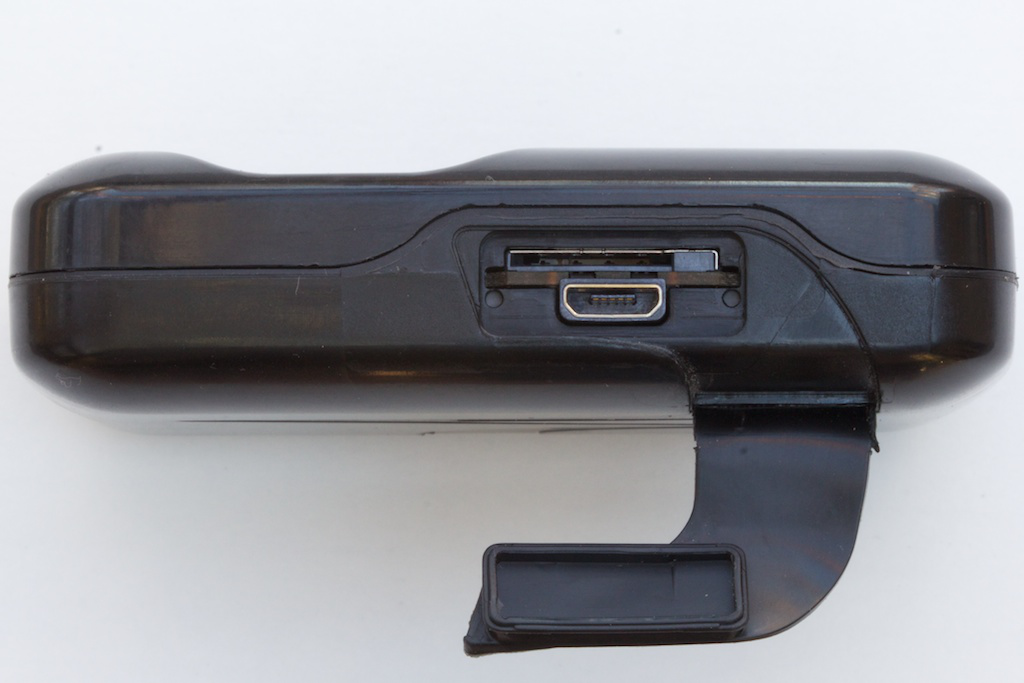

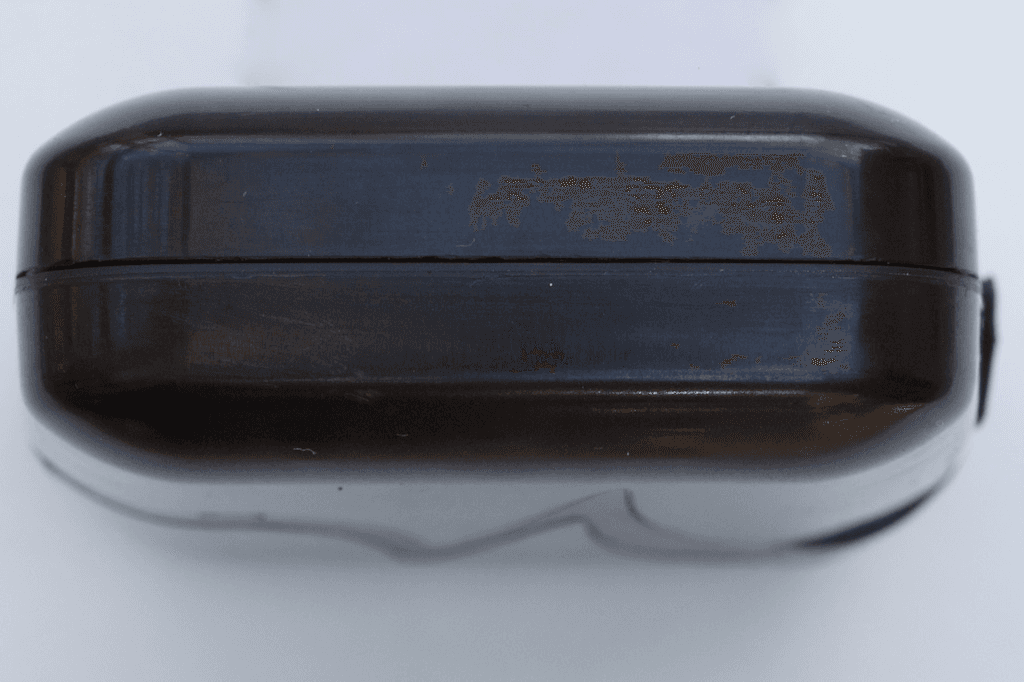

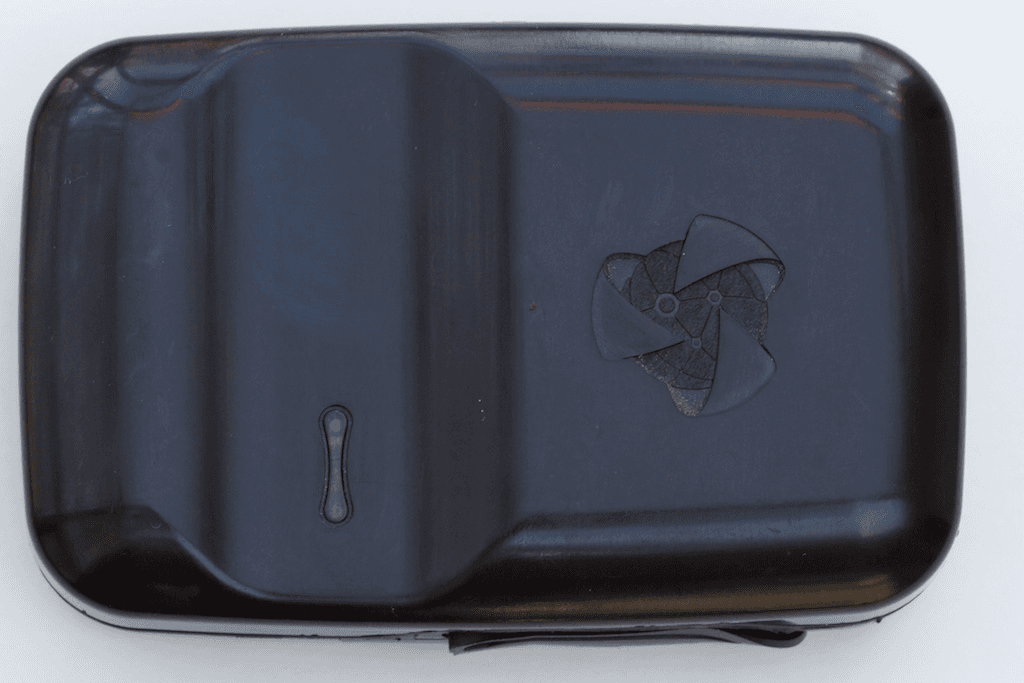

Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: ELUSIV Hummingbird GPS Tracking System Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014122 30 of 30 Appendix M: Internal Photographs Please refer to the following pages. 2 3 4 5 6 7 8 9 1 10 11 a b Figure 3 a b c Figure 4 d 1a 2 3 4 5 6 7 8 9 10 11 12 13 1b 14 Figure Captions! ! Figure 2. ! External product views! a) Left side; b) right side; c) right side, dust cover open; d) bottom view; e) back view; f) top view; g) front view. Key: 1) switch; 2) dust cover; 3) SIM opening; 4) USB connector; 5) dustcover internal face; 6) FCC ID label; 7) LED view window and light sensor window.! Figure 3. ! Location of the main PCB inside the housing, and relative location of the main components relative to housing landmarks. ! Figure 4. ! Detailed views of the electronics and sub-assemblies. Batteries removed in all views.! a) Bottom view; b) Top view, GPS antenna board in place; c) GPS antenna board and GSM shield removed; d) bottom view of the GPS antenna board, J1 in the silkscreen indicates the antenna connector.! Key: 1a) UHF Chip CC1110; 1b) 26 MHz reference oscillator; 2) MAX8903; 3) Flash memory; 4) Accelerometer BMA 150; 5) USB connector; 6) photosensor; 7) GSM antenna; 8) GPS Antenna; 9) GSM module; 10) GPS antenna connector; 11) UHF antenna; 12) GPS Module; 13) MCU MSP430FXXX; 14) SIM holder.

Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: ELUSIV Hummingbird GPS Tracking System Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014122 16 of 30 Appendix A: FCC Part 1.1307, 1.1310, 2.1091, 2.1093; IC RSS-Gen: RF Exposure MPE Calculation – Co-Location of Telit module FCC ID: RI7GE865 and FCC ID: 2ADCL-EL2715C001 Equation from page 18 of OET 65, Edition 97-01: S = EIRP / (4r 2 ) FCC ID: RI7GE865 (for GSM 850) EUT operating frequency range: 824 - 849 MHz. Therefore, limit for uncontrolled exposure: 0.6 mW/cm 2 Conducted power = 31.8 dBm = 1.51 W Antenna gain at 824 MHz = 1.49 dBi = 1.4 (numeric) S = (1510 * 1.4) / (4*3.14*20 2 ) = 0.42 mW/cm 2 at 20 cm separation FCC ID: RI7GE865 (for PCS 1900) EUT operating frequency range: 1850 - 1910 MHz. Therefore, limit for uncontrolled exposure: 1 mW/cm 2 Conducted power = 32.4 dBm = 1.74 W Antenna gain at 1910 MHz = 2.4 dBi = 1.7 (numeric) S = (1740 * 1.7) / (4*3.14*20 2 ) = 0.6 mW/cm 2 at 20 cm separation FCC ID: 2ADCL-EL2715C001 EUT operating frequency: 452 MHz. Therefore, limit for uncontrolled exposure: 0.3 mW/cm 2 Conducted power = 10 mW Antenna gain at 452 MHz = -2.9 dBi = 0.5 (numeric) S = (10 * 0.5) / (4*3.14*20 2 ) = 0.001 mW/cm 2 at 20 cm separation Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: ELUSIV Hummingbird GPS Tracking System Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014122 17 of 30 MPE Summary FCC ID Frequency Range (MHz) MPE (mW/cm 2 ) Limit (mW/cm 2 ) RI7GE865 824 – 849 0.42 0.6 RI7GE865 1850 – 1910 0.6 1.0 2ADCL-EL2715C001 452 0.001 0.3 Case 1 For the GSM 850 band, FCC requirement: MPE1 + MPE2 < 0.6 Combined MPE = 0.421 mW/cm 2 MPE as a fraction of the limit: 0.421 / 0.6 = 0.702 (which is <= 1.0) Case 2 For the PCS 1900 band, FCC requirement: MPE1 + MPE2 < 1.0 Combined MPE = 0.601 mW/cm 2 MPE as a fraction of the limit: 0.601 / 1.0. = 0.601 (which is <= 1.0) Therefore, the uncontrolled exposure limit is met at 20 cm when both transmitters are operating simultaneously.

Engineering Solutions & Electromagnetic Compatibility Services FCC Certification Report Ntrepid Corporation 12801 Worldgate Drive Herndon, VA 20170 Alejandro Purgue Phone: (800) 921-2414 MODEL: ELUSIV Hummingbird GPS Tracking System 452 MHz FSK Beacon FCC ID: 2ADCL-EL2715C001 July 12, 2015 Standards Referenced for this Report Part 2: 2014 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Part 15: 2014 Radio Frequency Devices Part 90: 2014 Private Land Mobile Radio Services TIA-EIA-603-C August 2004 Land Mobile FM or PM Communications Equipment – Measurement and Performance Standards Frequency Range (MHz) Rated Transmit Power (W) (Conducted) Frequency Tolerance (ppm) Emission Designator 452 0.01 3.4 20K2F1D Report Prepared By: Daniel Baltzell Document Number: 2014122 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Ntrepid Corporation. Test results relate only to the item tested. These test(s) are accredited under Rhein Tech Laboratories, Inc. ISO/IEC 17025 accreditation issued by the ANSI-ASQ National Accreditation Board. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: Hummingbird Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC 90/IC RSS-119 http://www.rheintech.com Report #: 2014122 Table of Contents 1 Test Result Summary .............................................................................................................................. 4 2 General Information ................................................................................................................................. 4 2.1 Test Facility ........................................................................................................................................ 4 2.2 Related Submittal(s)/Grant(s) ............................................................................................................ 4 2.3 Grant Notes ........................................................................................................................................ 4 2.4 Tested System Details ....................................................................................................................... 5 3 FCC Rules and Regulations Part 2.1033(C)(8): Voltages and Currents Through The Final ................. 6 Amplifying Stage ............................................................................................................................................. 6 4 FCC Rules and Regulations Part 2.1046(a): RF Power Output: Conducted, Part 90.205: Power and Antenna Height Limits ..................................................................................................................................... 6 4.1 Test Procedure ................................................................................................................................... 6 4.2 Test Data ............................................................................................................................................ 6 5 FCC Rules and Regulations Part 2.1051: Spurious Emissions at Antenna Terminals; Part 90.210: Emission Limitations ....................................................................................................................................... 7 5.1 Test Procedure ................................................................................................................................... 7 5.2 Test Data ............................................................................................................................................ 7 6 FCC Rules and Regulations Part 90.210(g) and Part 2.1053(a): Field Strength of Spurious Radiation, RSS-119 5.8 Transmitter Unwanted Emissions ............................................................................ 9 6.1 Test Procedure ................................................................................................................................... 9 6.2 Test Data ............................................................................................................................................ 9 6.2.1 CFR 47 Part 90.210 Requirements ........................................................................................... 9 7 FCC Rules and Regulations Part 2.1049(c)(1): Occupied Bandwidth; Part 90.210: Authorized Bandwidth...................................................................................................................................................... 11 7.1 Test Procedure ................................................................................................................................. 11 7.2 Test Data .......................................................................................................................................... 12 8 FCC Rules and Regulation Part 2.1055: Frequency Stability; Part 90.213 .......................................... 14 8.1 Test Procedure ................................................................................................................................. 14 8.2 Test Data .......................................................................................................................................... 14 8.2.1 Frequency Stability/Voltage Variation ..................................................................................... 15 9 FCC Part 2.1047: Modulation Characteristics ...................................................................................... 15 10 FCC Part 90.214: Transient Frequency Response .............................................................................. 15 11 FCC Rules and Regulations Part 2.202: Necessary Bandwidth and Emission Bandwidth .................. 15 12 Conclusion ....................................................................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: ELUSIV Hummingbird GPS Tracking System Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014122 27 of 30 Appendix K: Test Configuration Photographs Photograph 1: Radiated Emissions – Front View (above 1 GHz) MOUSE MOUSE Rhein Tech Laboratories, Inc. Client: Ntrepid Corporation 360 Herndon Parkway Model: ELUSIV Hummingbird GPS Tracking System Suite 1400 FCC ID: 2ADCL-EL2715C001 Herndon, VA 20170 Standards: FCC Part 90 http://www.rheintech.com Report #: 2014122 28 of 30 Photograph 2: Radiated Emissions – Front View (below 1 GHz)
