FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF warning statement: the device has been evaluated to meet general RF exposure requirement , The device can be used in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Beijing Zizai Technology Co.,Ltd. 2014/10/16 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ___Beijing Zizai Technology Co.,Ltd._ _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： nut Smart Tracker Trade Name： nut Model Name： F5D Serial Model： F5x (x=a~z) FCC ID： 2ADD5-F5D Sincerely, Signature Name: SHI LI Title: Engineer Address: Room A305,No.17,Cangjingguan Road,Dongcheng District ,Beijing,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Beijing Zizai Technology Co.,Ltd. 2014/10/16 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADD5-F5D We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Name: SHI LI Title: Engineer Address: Room A305,No.17,Cangjingguan Road,Dongcheng District ,Beijing,China

Beijing Zizai Technology Co.,Ltd. Model Difference FCC ID: 2ADD5-F5D Model : F5D , F5x, (x=a~z)x means different appearance and color. All the model are the same circuit and RF module, except the appearance and color, Appearance is refers to the size, enclosure and shape. Regards, Client’s signature Signature Name: SHI LI Title: Engineer Address: Room A305,No.17,Cangjingguan Road,Dongcheng District ,Beijing,China

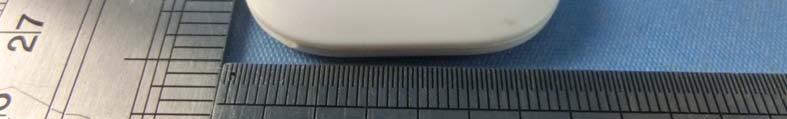

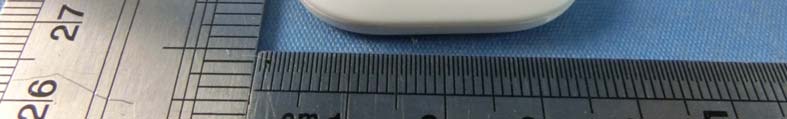

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label nut Smart Tracker Model NO.: F5D Input Rating: DC 3V FCC ID: 2ADD5-F5D FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

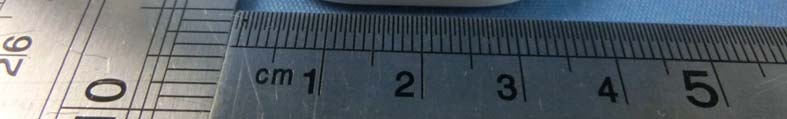

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 ANT Photo 3 Photo 4 Photo 5

FCC ID : 2ADD5-F5D RF EXPOSURE EVALUATION METHOD FCC ID: 2ADD5-F5D SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. BT4.0 Frequency Maximum Conducted Output Power(PK) Maximum Conducted Output Power(PK) Te s t Channe (MHz) (dBm) mW CH00 2402 -2.69 0.538 CH19 2440 -2.60 0.550 CH39 2480 -2.66 0.542 Remark: The best case gain of the antenna is 1.0dBi. 1.0 dBi logarithmic terms convert to numeric result is nearly 1.26 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] FCC ID : 2ADD5-F5D BT4.0: Mode [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit CH00 0.538 5 2.402 0.167 3 CH19 0.550 5 2.440 0.172 3 CH39 0.542 5 2.480 0.171 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

FCC RADIO TEST REPORT-BT 4.0 FCC ID: 2ADD5-F5D Product： nut Smart Tracker Trade Name： nut Model Name： F5D Serial Model： F5x(x=a~z) Report No.： NTEK-2014NT09261625F Prepared for Beijing Zizai Technology Co.,Ltd. Room A305,No.17,Cangjingguan Road,Dongcheng District , Beijing,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 36 Report No.: NTEK-2014NT09261625F TEST RESULT CERTIFICATION Applicant’s name........ Beijing Zizai Technology Co.,Ltd. Address ........................ Room A305,No.17,Cangjingguan Road,Dongcheng District , Beijing,China Manufacture's Name... Beijing Zizai Technology Co.,Ltd. Address ........................ Room A305,No.17,Cangjingguan Road,Dongcheng District , Beijing,China Product description Product name .................nut Smart Tracker Model and/or type reference ..................... F5D Serial Model .................... F5x,x means different appearance and color Standards.................... FCC Part15.247 01 Oct. 2013 Test procedure ................ ANSI C63.4-2003 and KDB 558074: June 5, 2014 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 26 Sep. 2014 ~11 Oct. 2014 Date of Issue...........................................: 11 Oct. 2014 Test Result...............................................: Pass Testing Engineer : (Kyle Xu) Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 36 Report No.: NTEK-2014NT09261625F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 DEVIATION FROM TEST STANDARD 17 3.2.4 TEST SETUP 18 3.2.5 EUT OPERATING CONDITIONS 19 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 20 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 21 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . POWER SPECTRAL DENSITY TEST 24 4.1 APPLIED PROCEDURES / LIMIT 24 4.1.1 TEST PROCEDURE 24 4.1.2 DEVIATION FROM STANDARD 24 4.1.3 TEST SETUP 24 4.1.4 EUT OPERATION CONDITIONS 24 4.1.5 TEST RESULTS 25 5 . BANDWIDTH TEST 27 5.1 APPLIED PROCEDURES / LIMIT 27 5.1.1 TEST PROCEDURE 27 Page 4 of 36 Report No.: NTEK-2014NT09261625F Table of Contents Page TEST SETUP 27 5.1.2 EUT OPERATION CONDITIONS 27 5.1.3 TEST RESULTS 28 6 . PEAK OUTPUT POWER TEST 30 6.1 APPLIED PROCEDURES / LIMIT 30 6.1.1 TEST PROCEDURE 30 6.1.2 DEVIATION FROM STANDARD 30 6.1.3 TEST SETUP 30 6.1.4 EUT OPERATION CONDITIONS 30 6.1.5 TEST RESULTS 31 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 32 7.1 DEVIATION FROM STANDARD 32 7.2 TEST SETUP 32 7.3 EUT OPERATION CONDITIONS 32 7.4 TEST RESULTS 33 8 . ANTENNA REQUIREMENT 35 8.1 STANDARD REQUIREMENT 35 8.2 EUT ANTENNA 35 9 . EUT TEST PHOTO 36 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 36 Report No.: NTEK-2014NT09261625F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 36 Report No.: NTEK-2014NT09261625F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 36 Report No.: NTEK-2014NT09261625F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment nut Smart Tracker Trade Name nut Model Name F5D Serial Model F5x (x=a~z) Model Difference x means different appearance and color. All the model are the same circuit and RF module, except the appearance and color, Appearance is refers to the size, enclosure and shape. Product Description The EUT is a nut Smart Tracker Operation Frequency: 2402~2480MHz Modulation Type: GFSK Number Of Channel 40CH Antenna Designation: Please see Note 3. Output Power(Conducted): -2.60dBm(MAX) Antenna Gain (dBi) 1.0dBi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the Us…

Text truncated - open the document above for the full version.

Page 36 of 36 Report No.: NTEK-2014NT09261625F 9. EUT TEST PHOTO Radiated Measurement Photos
