2ADDH-GM862Collider 60-60 Mechanical Keyboard

Bluetooth® Pairing Instructions: This Bluetooth keyboard can be paired with up to three devices at the same time. The three pairings are saved to Q (default), W, and E. Quickly switch between pairings by holding down the FN key and pressing Q, W, or E. Perform the following steps to pair this keyboard with your device(s). 1. Set switch on the back of the keyboard to the ON position. 2. Press and hold the FN and Q + W + E keys for 3-5 seconds. When R starts flashing, the keyboard is ready to connect. 3. Open the Bluetooth settings on your device and scan for available devices. Locate and select the "Collider 60" entry. 4. Once the keyboard has connected to your device, the R key will cease flashing, indicating that Bluetooth pairing was successful. RGB Backlighting and Animations: FN+I = Static ,Single-on, Single-off. Rotate, Scroll ,Roll FN+O = Fall, Colorful, Glitter, Ripples, Explode, Launch FN+P = Breath, Outward, Spectrum, Pulsate, Flow, Tilt FN+>.= Increase backlight brightness FN+<,= Decrease backlight brightness FN+[{= Increase backlight speed FN+]} = Decrease backlight speed FN+;:= Switch dynamic backlight direction FN+'"= Switch color of the backlight Fn + Z/X/C=Backlight Macro recording key Battery Charging: • Battery Life: Bluetooth - 8 hours. Standby - 3 months. • LED Indicator: Solid Red - Charging, Off - Fully Charged. • FN key will blink repeatedly when the keyboard is low on battery. • After 5 minutes without a keypress the backlighting will turn off to conserve battery. After 30 minutes, the keyboard will enter standby mode and disconnect from Bluetooth. Any keypress will reconnect the keyboard. Custom Backlighting Mode Instructions: 1. Press FN+Z/X/C (Each key can store a custom backlight mode). 2. Press FN+Tab - (The LED will flash blue repeatedly to indicate recording). 3. Press the keys that you wish to set the backlighting for. 4. Press FN+Tab to exit the custom backlighting mode. Hot Keys: FN+WIN: Gaming Mode (Lock Windows® Key) FN+Backspace: Hold for 3 seconds to reset the Keyboard to factory defaults FN+Q/W/E: Switch between Bluetooth Profiles FN+Z/X/C: Swicth between custom backlighting profiles FN+Tab: Entering/Exiting Custom Backlighting Mode FCC STATEMENTS: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two co nditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequence energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.if this equipmemt does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an autlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SCS-F018: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 7.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Website: https://www.cps.bureauveritas.com/ Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 Updated References and Contact info 6.0 7.0 Aug-30-202 SCS-F018: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 7.0 Monoprice, Inc. (2020-11-30) To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Monoprice, Inc. _____ hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: 2ADDH-GM862 Product Description: Collider 60 - 60% Mechanical Keyboard Model: 42313, 42314, 42315, 42316, 42317 Sincerely, David Fuge Monoprice, Inc. 1 Pointe Dr Suite# 400 Brea, CA 92821

SCS-F019: Confidentiality Request Letter Page 1 of 2 Rev 7.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Website: https://www.cps.bureauveritas.com/ Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 Updated References and Contact Info 6.0 7.0 Aug-30-2020 SCS-F019: Confidentiality Request Letter Page 2 of 2 Rev 7.0 Monoprice, Inc. (2020-11-30) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046-1609 Cc: Bureau Veritas Consumer Products Services Inc. 775 Montague Expressway Milpitas, CA 95035 Subject: Confidentiality Request for FCC ID: 2ADDH-GM862 Pursuant to CFR 47 sections 0.457 and 0.459, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application be held confidential: Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagram Short Term External Photos Short Term Permanent i Internal Photos Short Term Permanent Operational Description/ Theory of Operation Short Term Permanent Parts List Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent i User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: To avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of not to exceed 180 days from the Grant Date The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, David Fuge Monoprice, Inc. 1 Pointe Dr Suite# 400 Brea, CA 92821 i Permanent confidentiality may be requested in accordance with FCC KDB 726920

Monoprice, Inc. Declaration on model difference We the undersigned hereby confirm that these models are identical, and all models have the same RF module and antenna, PCB layout , schematics and component. Only the models name are different. Production name Trademark FCC ID Model no. Collider 60 - 60% Mechanical Keyboard Monoprice 2ADDH-GM862 42313, 42314, 42315, 42316, 42317 Sincerely, David Fuge Sr. Director, Program Management Monoprice, Inc. 1 Pointe Dr Suite# 400 Brea, CA 92821

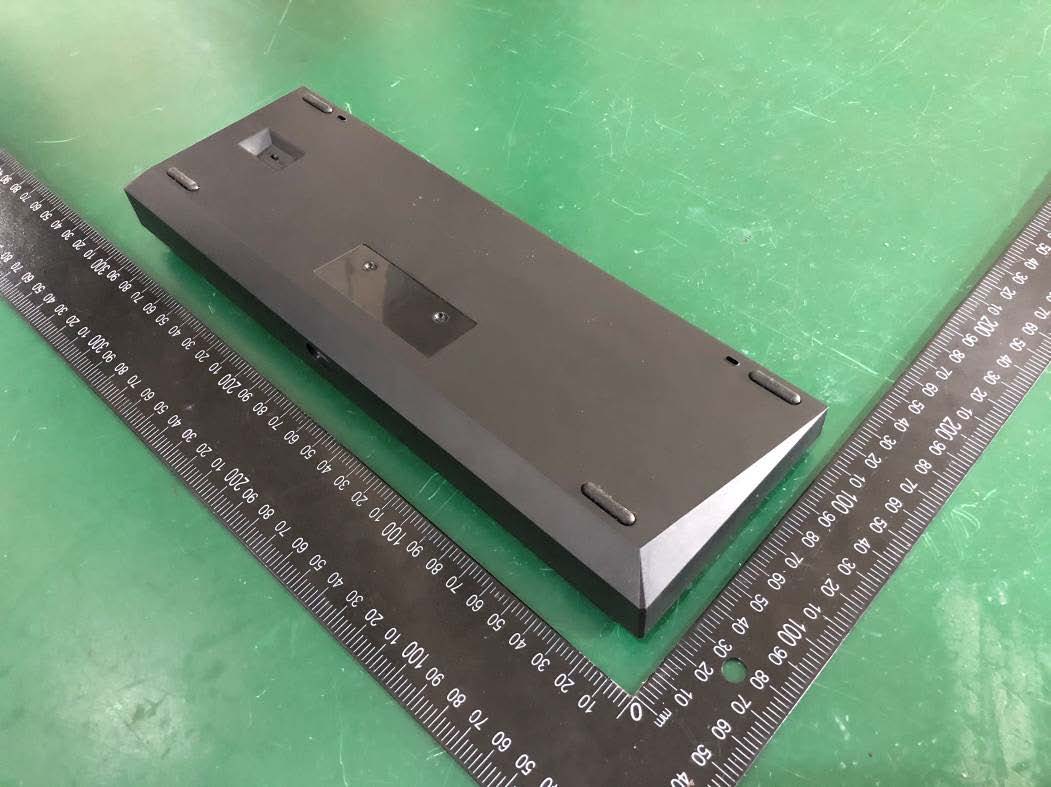

1 Label Location

Antenna

RF EXPOSURE EVALUATION EUT Specification EUT Collider 60 - 60% Mechanical Keyboard Model Number 42313, 42314, 42315, 42316, 42317 FCC ID 2ADDH-GM862 Antenna gain (Max) 1.87dBi Operation Frequency 2402-2480MHz Input Rating DC 5V, 0.5A Classification Per Stipulated Test Standard §15.247(i), §2.1093 Kind of Device: Bluetooth Ver.5.1 BLE Modulation GFSK Max. output power -1.98dBm(0.0006W) Test Requirement: According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to quality for TCB approval. One antenna is available for the EUT. The minimum separation distance is 5mm. BT DTS According to KDB 447498, no stand-alone required for BT antenna, and no simultaneous SAR measurement is required. Signature: Alan He Date: 2020-11- 30 Transmit Frequency (MHz) Mode Measured Power (dBm) Tune up Power (dBm) Max tune up power(dBm) Calculation Result 1-g SAR 2402 GFSK -2.35 -2±1 -1 0.246207 3 2440 GFSK -2.17 -2±1 -1 0.248147 3 2480 GFSK -1.98 -2±1 -1 0.250173 3

Re port No.: EA20100293F01001 1 of 51 TRF No. FCC Part 15.247/A Ver.1.0 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT FCC PART 15 SUBPART C REQUIREMENT OF Collider 60 - 60% Mechanical Keyboard Model No.: 42313, 42314, 42315, 42316, 42317 Trademark: Monoprice FCC ID:2ADDH-GM862 Report No.: EA20100293F01001 Issue Date: Nov. 10, 2020 Pr epared for Monoprice, Inc. 1 Pointe Dr Suite# 400 Brea, CA 92821 Prepared by Dong Guan Anci Electronic Technology Co., Ltd. 1-2 Floor, Building A, No.11, Headquarters 2 Road, Songshan, Lake Hi-tech Industrial Development Zone, Dongguan City, Guangdong Pr., China.. This report shall not be reproduced, except in full, without the written approval of Dong Guan Anci Electronic Technology Co., Ltd. Re port No.: EA20100293F01001 2 of 51 TRF No. FCC Part 15.247/A Ver.1.0 VERIFICATION OF COMPLIANCE Applicant: Monoprice, Inc. 1 Pointe Dr Suite# 400 Brea, CA 92821 Manufacturer: Miller Technology Co.,Ltd F1, No 2 of Jianye Er Road, New Industrial Zone Of Shi Tan Pu ,Tangxia Town, Dongguan city, Guangdong, China Product Description: Collider 60 - 60% Mechanical Keyboard Trade Mark: Monoprice Model Number: 42313, 42314, 42315, 42316, 42317(All of them are the same except for different model names. So we choose 42313 to do all the tests.) We hereby certify that: The above equipment was tested by Dong Guan Anci Electronic Technology Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10-2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247(2020). Date of Test : Oct. 28, 2020 to Nov. 10, 2020 Prepared by : Tomas Yang/Editor Approved & Authorized Signer : Alan He/Manager R eport No.: EA20100293F01001 3 of 51 TRF No. FCC Part 15.247/A Ver.1.0 M odified Information Version Summary Revision Date Report No. Ver.1.0 Original Report / EA20100293F01001 R eport No.: EA20100293F01001 4 of 51 TRF No. FCC Part 15.247/A Ver.1.0 Table of Contents 1. GENERAL INFORMATION ............................................................................................................ 6 1.1 PRODUCT DESCRIPTION .............................................................................................................. 6 1.2 TEST METHODOLOGY .................................................................................................................. 6 2. TEST FACILITY ................................................................................................................................ 7 3. DESCRIPTION OF TEST MODES ................................................................................................ 8 4. SUMMARY OF TEST RESULTS ................................................................................................. 10 6DB BANDWIDTH MEASUREMENT ............................................................................................. 10 5. TEST SYSTEM UNCERTAINTY .................................................................................................. 11 6. CONDUCTED EMISSIONS TEST ............................................................................................... 12 6.1MEASUREMENT PROCEDURE: ..................................................................................................... 12 6.2T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 12 6.3M EASUREMENT EQUIPMENT USED: ............................................................................................. 12 6.4 CONDUCTED EMISSION LIMIT ..................................................................................................... 12 6.5 MEASUREMENT RESULT: ........................................................................................................... 13 7. RADIATED EMISSION TEST ....................................................................................................... 16 7.1MEASUREMENT PROCEDURE ...................................................................................................... 16 7.2T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 18 7.3M EASUREMENT EQUIPMENT USED: ............................................................................................. 19 7.4 RADIATED EMISSION LIMIT .......................................................................................................... 20 7.5 MEASUREMENT RESULT .......................................................................................................... 21 7.6 RADIATED MEASUREMENT PHOTOS: ........................................................................................... 27 8. 6DB BANDWIDTH MEASUREMENT ......................................................................................... 28 8.1MEASUREMENT PROCEDURE ...................................................................................................... 28 8.2T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 28 8.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 28 8.4 LIMIT ........................................................................................................................................ 28 8.5M EASUREMENT RESULTS: .......................................................................................................... 28 9. MAXIMUM PEAK OUTPUT POWER TEST .............................................................................. 31 9.1MEASUREMENT PROCEDURE ...................................................................................................... 31 9.2T EST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..............................................................…
