2ADDT-GT08GPS Vehicle Tracker

GPS Motorcycle/Vehicle Tracker USER MANUAL (Model: GT08) GUANGZHOU TOPTEN ELECTRONICS FACTORY Address: 3/F, Bldg.1, No.11, Tangdong Guangtang West Rd., Guangtang Industrial Zone,Tianhe District, Guangzhou, China. Tel: (+86)20-38351400, 38351401 Fax: (+86)20-38351400 Website:http://www.t10.cn Email: [email protected] Version 2.0 (Date: May 18, 2014) GT08 GPS Motorcycle/Vehicle Tracker User Manual Page 1 CONTENT Preface .............................................................................................................................. 2 I. Features & Functions ..................................................................................................... 3 II. How to Operate it ......................................................................................................... 4 Authorize the Alarm-received Phone No. .................................................................. 4 Arm/Disarm by Phone Calling .................................................................................. 4 Check the Vehicle’s Status ......................................................................................... 5 Arm/Disarm the System by SMS .............................................................................. 5 Check the location by Google Map’s URL ................................................................ 5 Check the Real Physical Address .............................................................................. 6 Check the Real Physical Address Directly without Server ........................................ 6 Change User Password .............................................................................................. 6 Stop the Car by SMS ................................................................................................. 6 Restore the Stopped Car to Normal Status ................................................................ 7 Monitor the Voice around the Car .............................................................................. 7 Check the Location by GSM Base Station Code ....................................................... 8 Over-speed Alert ........................................................................................................ 8 Power Save Mode ...................................................................................................... 8 Define SMS Content in Different Languages. ........................................................... 9 Other SMS Command List ........................................................................................ 9 IV. The Setting for GPRS Connection ............................................................................ 10 III. Alarm Types .............................................................................................................. 12 IV. Installation ................................................................................................................. 13 V . Specifications ............................................................................................................ 15 VI. FAQs & Troubleshooting ......................................................................................... 15 VII. Maintenance ............................................................................................................ 16 GT08 GPS Motorcycle/Vehicle Tracker User Manual Page 2 Preface GT08 GPS Motorcycle/vehicle tracker is the cost-effective solution for security & real-time tracking. It is specially used for motorcycle/car tracking because of its compact size and water-proof design. Read it Firstly: Please read this manual thoroughly before you use the device; please keep it for future reference. Attention: (1) Please keep the device away from heavy water, high temperature, heavy dust or strong magnetism. (2) Please prepare a valid GSM SIM card in advance. (3) For safety reason, do not tell other people the mobile phone number of your GT08. Warning: We strongly suggest user let the professional car electrician to install the system. GT08 GPS Motorcycle/Vehicle Tracker User Manual Page 3 I. Features & Functions 1. Track on command or by time interval. 2. Arm/disarm by SMS or phone call. 3. Check the car‟s real physical address (such as city name, street name.) directly without server's support; 4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc. 5. Check the location directly by the Google map‟s URL; 6. Online website tracking by GPRS data network; 7. Odometer function 8. Over-speed alarm, Geo-fence alarm; 9. Movement alarm which can be used as an alarm; 10. SOS alarm(optional); 11. Built-in shock sensor for power saving & triggering vibration alarm; 12. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alarm immediately; 13. It can upgrade the normal car alarm with remote alarm function; 14. Voice monitoring; 15. Cut off engine to stop the car safely by SMS/GPRS; 16. Support analog input for fuel monitoring; 17. I/O: 4 inputs and 1output; 18. Compact size with water-proof design 19. Wide working voltage range, from 6V-45VDC, suitable for motorcycle, car or some big truck with normal voltage. 20. Friendly SMS operation commands & SMS contents in different languages (English, Chinese, Arabic, Portuguese, Spanish) 21. There are 3 types of working mode for power saving flexibly. GT08 GPS Motorcycle/Vehicle Tracker User Manual Page 4 II. How to Operate it The default user password is 111111. If the user password is changed, user should send the SMS command with the new user password instead of 111111. XXX is the control code, all the letters must be capital letters or in small letters, command with mixed capital letter & small letter is not recognized by system Authorize the Alarm-received Phone No. SMS command: 111111*10 Mobile #1*20 Mobile #2* In case of alarm, if user wants to get the alarm SMS from the tr…

Text truncated - open the document above for the full version.

TOPTEN ELECTRONICS TECHNOLOGY LIMITED Address: 3/F, Bldg.1, No.11, Tangdong Guangtang West Rd., Guangtang Industrial Zone, Tianhe District, Guangzhou, China Tel: 020-38351400 Fax: 020-38351401 2014-10-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ADDT-GT08 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description - BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Kenny Leung / Manager Contact information / address : 3/F, Bldg.1, No.11, Tangdong Guangtang West Rd., Guangtang Industrial Zone, Tianhe District, Guangzhou, China Tel: 020-38351400 Fax: 020-38351401

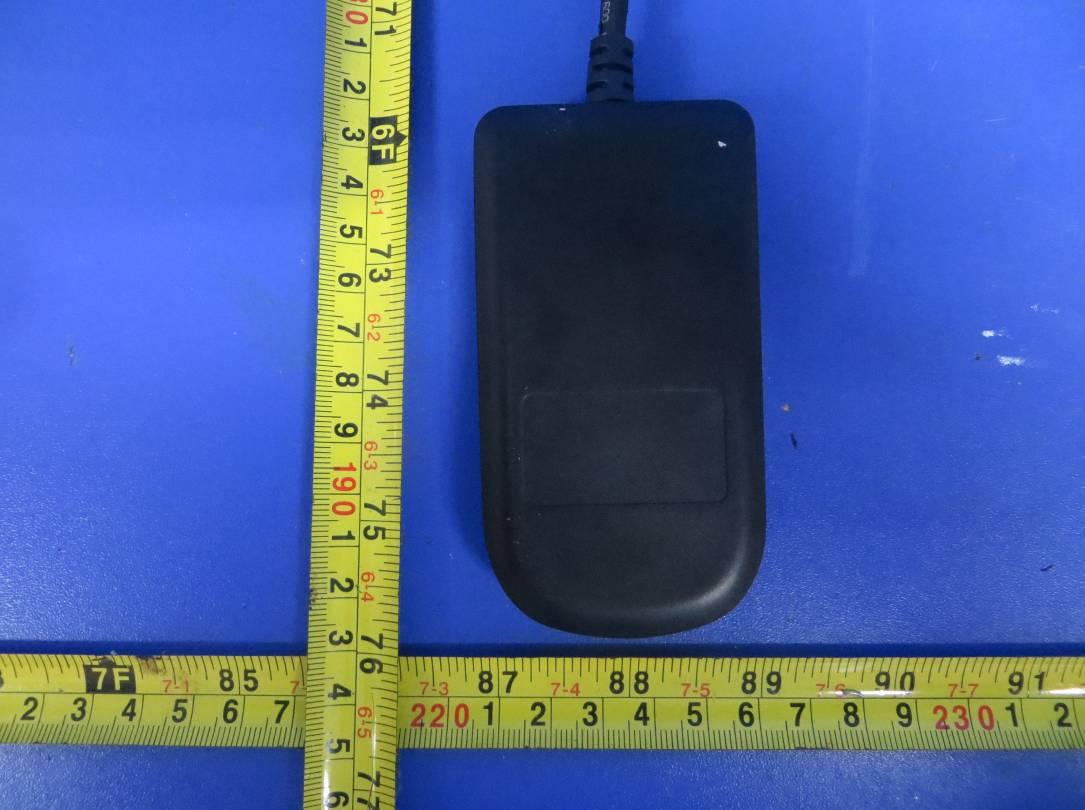

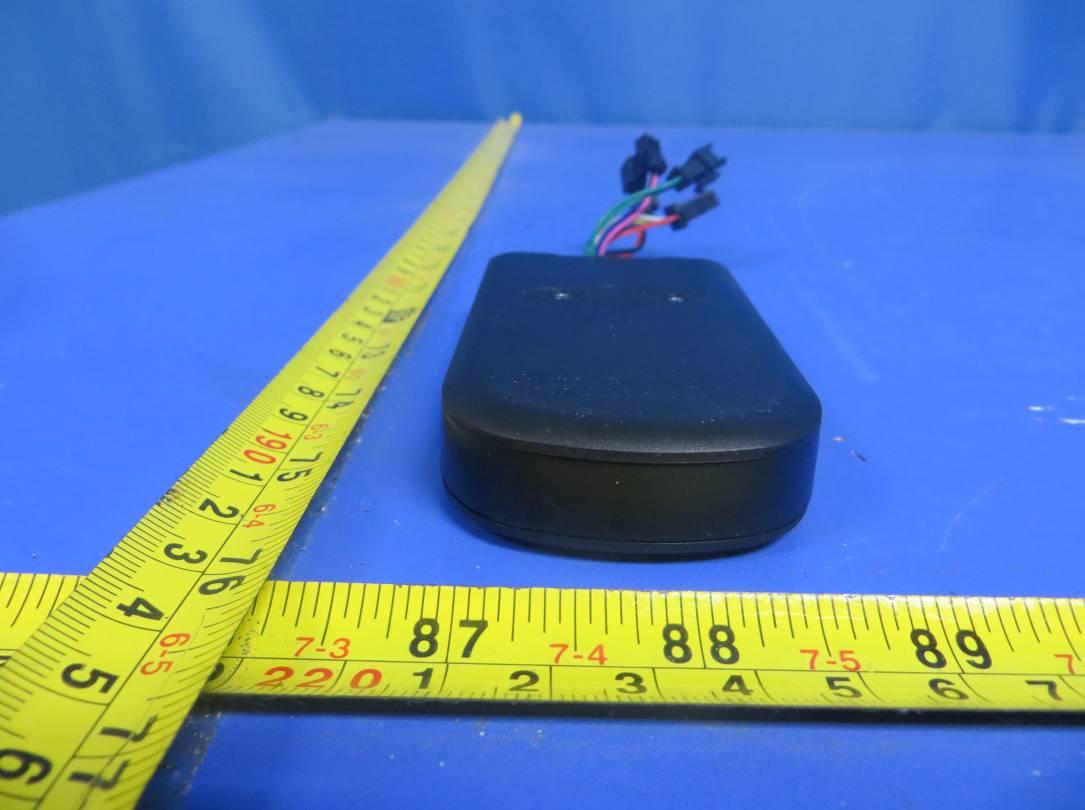

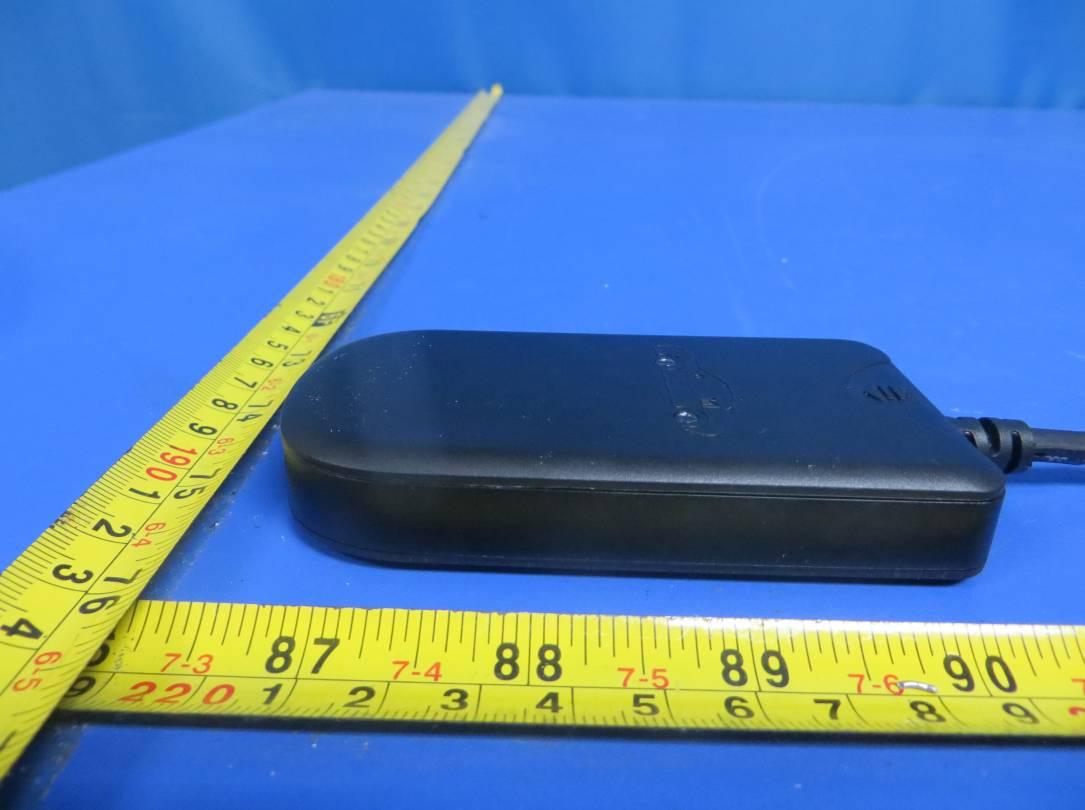

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION Size: 3.5cm(L) x 1.8cm(W) Material: Tagboard Glue: adhesive sticker Font color: Black Label color: White Label Location Model No.: GT08 FCC ID: 2ADDT-GT08

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 6 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 6 Fig.3 Fig.4 GSM Antenna GPS Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 6 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 6 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 6 Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 6 of 6 Fig.11 Fig.12

CT-1612UB CT-1612UB SPECIFICATION GPS Receiver Module 1 SPECIFICATION GPS MOUDLE v1.2 CT-1612UB modules are not designed for life saving or supporting devices or for multipath effects, giving CT-1612UB GPS receivers excellent navigation Their compact architecture and power and memory options make CT-1612UB The CT-1612UB module series is a family CT-1612UB SPECIFICATION GPS Receiver Module 2 General Description of stand-alone GPS receivers featuring the high performance u-blox positioning engine. These flexible and cost effective receivers offer numerous connectivity options in a miniature 16 x 12.2 x 2.4mm package. modules ideal for battery operated mobile devices with very strict cost and space constraints. The 50-channel u-blox positioning engine boasts a Time-To-First-Fix (TTFF) of under 1 second. The dedicated acquisition engine, with over 1 million correlators, is capable of massive parallel time/frequency space searches, enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and mitigates performance even in the most challenging environments. aviation and should not be used in products that could in any way negatively impact the security or health of the user or third parties or that could cause damage to goods. Applications „ LBS (Location Based Service) „ PND (Portable Navigation Device) „ Mobile phone „ Vehicle navigation system „ MID、UMPC、NOTEBOOK „ Car Navigation CT-1612UB Figure 1: CT-1612UB Pin Packag UB-6010 SPECIFICATION GPS Receiver Module 3 Features „ Build on high performance, low-power chipset „ Ultra high sensitivity: -160dBm „ Extremely fast TTFF at low signal level „ Built in high gain LNA „ Low power consumption: Max [email protected] „ NMEA-0183 compliant protocol or custom protocol „ Operating voltage: 2.75V to 3.6V „ Operating temperature range: -40 to 85°C „ SMD type with stamp holes „ Small form factor: 16x12.2x2.4mm „ RoHS compliant (Lead-free) Pin Assignment CT-1612UB SPECIFICATION GPS Receiver Module 4 Performance Specification Parameter Specification Receiver Type L1 frequency band, C/A code, 50-channels SBAS: WAAS, EGNOS, MSAS, GAGAN Sensitivity Tracking -160dBm Acquisition -160dBm Accuracy Position 5m CEP without SA Velocity 0.1m/s without SA Timing (PPS) 10ns RMS Acquisition Time Cold Start 29s Wa r m St a r t 2 8 s Hot Start 1s Re-Acquisition <1s Power Consumption Tracking 35mA @3V Vcc Acquisition 40mA Sleep/Standby TBD NavigationDataUpdate Rate 1Hz Operational Limits Altitude Max 18,000m Velocity Max 515m/s Acceleration Less than 4g improve the acquisition sensitivity. CT-1612UB modules support the u-blox AssistNow Online and CT-1612UBmodulesincludeoneconfigurableUARTinterfaceforserial CT-1612UB modules support a number of peripheral interfaces for serial CT-1612UBmodulescomewithSuperSense,providingultra-fastacquisition/reacquisi tion and CT-1612UB SPECIFICATION GPS Receiver Module 5 Interfaces Configuration 1.1Assisted GPS (A-GPS) Supply of aiding information like ephemeris, almanac, rough last position and time and satellite status and an optional time synchronization signal will reduce time to first fix significantly and AssistNow Offline A-GPS services8 and are OMA SUPL compliant. 1.2 SuperSense Indoor GPS exceptional tracking sensitivity. SuperSense enables best-in-class tracking and navigation in difficult signal environments such as urban canyons or indoor locations. 1.3 KickStart / Oscillators An available feature is KickStart. This functionality uses a TCXO to accelerate weak signal acquisition, enabling faster start and reacquisition times. KickStart is available with the YX-1612UB. 1.4 Protocols and interfaces Protocol Type NMEA Input/output, ASCII, 0183, 2.3 (compatible to 3.0) UBX Input/output, binary, u-blox proprietary Table 3: Available protocols Both protocols are available on UART, USB, DDC and SPI. For specification of the various protocols see the u-blox_5&6 Receiver Description including Protocol Specification [2]. communication. The embedded firmware uses these interfaces according to their respective protocol specifications. For specific applications, the firmware also supports the connection of peripheral devices, such as external memories, to some of the interfaces. 1.5UART communication (for information about configuration see section 1.11). CT-1612UB modules are designed for us An SPI interface is planned for future versions of CT-1612UB modules. The SPI interface allows CT-1612UB CT-1612UB modules provide a USB version 2.0 FS (Full Speed, 12Mbit/s) interface as an SPECIFICATION GPS Receiver Module 6 1.6USB alternative to the UART. The pull-up resistor on USB_DP is integrated to signal a full-speed device to the host. The VDD_USB pin supplies the USB interface, independently from the VDD_IO pin. u-blox providesaMicrosoft®certifiedUSBdriver for Windows XP and WindowsVista operating systems. Windows 7 will also be supported following certification . Operating System Support level Windows XP Certified Windows Vista Certified Windows 7 Certification pending Table 4: Operating systems supported by USB driver 1.7 Serial Peripheral Interface (SPI) for the connection of external devices with a serial interface, e.g. EEPROM or A/D converters, or to interface to a host CPU. The interface can be operated in master or slave mode. In master mode, one chip select signal is available to select external slaves. In slave mode a single chip select signal enables communication with the host. 1.8 Display Data Channel (DDC) The I 2 C compatible DDC interface can be used either to access external devices with a serial interface (e.g. EEPROM or A/D converters) or to interface with a host CPU. It is capable of master and slave operation and communicates at a rate of <100kbit/s. GPS. 1.9Antenna e with passive and active antennas. Parameter Specification Antenna Type Passive and active antenna Active Antenna Recommendations Minimum gain Maximum noise figure Maximum gain 15 - 20 dB (to compensate signal loss in R…

Text truncated - open the document above for the full version.

Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. It must provide an operational voltage to turn on the device and on one certain channel in service mode by means of company proprietary software. spectrum analyzer(Agilent, E440B) and Power meter (R&S,NRVS)measures the 2.4G device specific RF characteristics and Tow way radio device specific RF characteristics. Base station simulator (Agilent 8960) measures the 2G device specific RF characteristics. The maximum gains of each individual device are adjusted until the target value met. Maximum RF Conducted Output Power Frequency Bands Service PCL/Class Target Value(dBm) GSM 850 GSM 5 / Class 4 30.00 ± 1.0 GPRS (Slot 1) 5 / Class 4 30.00 ± 1.0 GPRS (Slot 2) 5 / Class 4 28.00 ± 1.0 PCS 1900 GSM 0 / Class 1 29.00 ± 1.0 GPRS (Slot 1) 0 / Class 1 29.00 ± 1.0 GPRS (Slot 2) 0 / Class 1 27.00 ± 1.0 Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a Agilent 8960 base station simulator, spectrum analyzer(Agilent, E440B) and Power meter. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 8. RADIO FREQUENCY EXPOSURE Limit According to §1.1310 and §2.1091 RF exposure is calculated. Table: Limits for General Population/Uncontrolled Exposure F = frequency in MHz * = Plane-wave equivalent power density Maximum Permissible Exposure The MPE was calculated at 20cm to show compliance with the power density limit. S = PG/4πR 2 S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna. Note: 1. Manufacturer declared that the maximum antenna gain is 3.0dBi. 2. Manufacturer declared that the nearest distance between human and the EUT is 20cm. 3. Only record worst case data. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 GSM 850 Band The Max. Technically Possible Output Power in dBm 31.0 dBm Max. Peak output Power in mW 1258.93 mW Prediction distance 20 cm Prediction frequency 836.6 MHz Antenna Gain(typical) 3.0 dBi Antenna Gain(numeric) 2.0 Power density at prediction frequency( S) 0.501 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5577 mW/cm 2 PCS 1900 Band The Max. Technically Possible Output Power in dBm 30.0 dBm Max. Peak output Power in mW 1000.0 mW Prediction distance 20 cm Prediction frequency 1880.0 MHz Antenna Gain(typical) 3.0 dBi Antenna Gain(numeric) 2.0 Power density at prediction frequency( S) 0.398 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 Test Results The power density level worst case at 20 cm is below the uncontrolled exposure limit.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 52 FCC TEST REPORT For TOPTEN ELECTRONICS TECHNOLOGY LIMITED GPS Vehicle Tracker Model No.: GT08 Additional Model No.: GT08M, GT08S, MT08 Prepared for : TOPTEN ELECTRONICS TECHNOLOGY LIMITED Address : 3/F, Bldg.1, No.11, Tangdong Guangtang West Rd., Guangtang Industrial Zone, Tianhe District, Guangzhou, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : September 25, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : September 25, 2014 – October 15, 2014 Date of Report : October 15, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 52 FCC TEST REPORT FCC CFR 47 PART 22 SUBPART H AND PART 24 SUBPART E Report Reference No. .............. : LCS1409251173E Date of Issue ................................ : October 15, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : TOPTEN ELECTRONICS TECHNOLOGY LIMITED Address ........................................ : 3/F, Bldg.1, No.11, Tangdong Guangtang West Rd., Guangtang Industrial Zone, Tianhe District, Guangzhou, China Test Specification Standard ....................................... : FCC CFR 47 PART 2, FCC CFR 47 PART 22 SUBPART H AND PART 24 SUBPART E Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : GPS Vehicle Tracker Trade Mark .................................. : TOPTEN Model/ Type reference ................. : GT08 Ratings ......................................... : DC 3.7V by build-in battery(500mAh) or DC 12V/DC 24V(any one) by car battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Leo Lee/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 52 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1409251173E October 15, 2014 Date of issue Type / Model........................... : GT08 EUT......................................... : GPS Vehicle Tracker Applicant............................... : TOPTEN ELECTRONICS TECHNOLOGY LIMITED Address.................................. : 3/F, Bldg.1, No.11, Tangdong Guangtang West Rd., Guangtang Industrial Zone, Tianhe District, Guangzhou, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : GUANGZHOU TOPTEN ELECTRONICS FACTORY Address................................... : 3/F, Bldg.1, No.11, Tangdong Guangtang West Rd., Guangtang Industrial Zone, Tianhe District, Guangzhou, China Telephone............................... : / Fax.......................................... : / Factory................................... : GUANGZHOU TOPTEN ELECTRONICS FACTORY Address................................... : 3/F, Bldg.1, No.11, Tangdong Guangtang West Rd., Guangtang Industrial Zone, Tianhe District, Guangzhou, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 52 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................................ 5 1.1. DESCRIPTION OF DEVICE (EUT) ................................................................................................................. 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ................................................................................... 6 1.3. EXTERNAL I/O ............................................................................................................................................ 6 1.4. DESCRIPTION OF TEST FACILITY ................................................................................................................. 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY ..................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS Photo of Radiated Emission Measurement (X Position) Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADDT-GT08 Report No.: LCS1409251173E ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3
