2ADEFAT-DG1HDMI Dongle, model AT-DG1

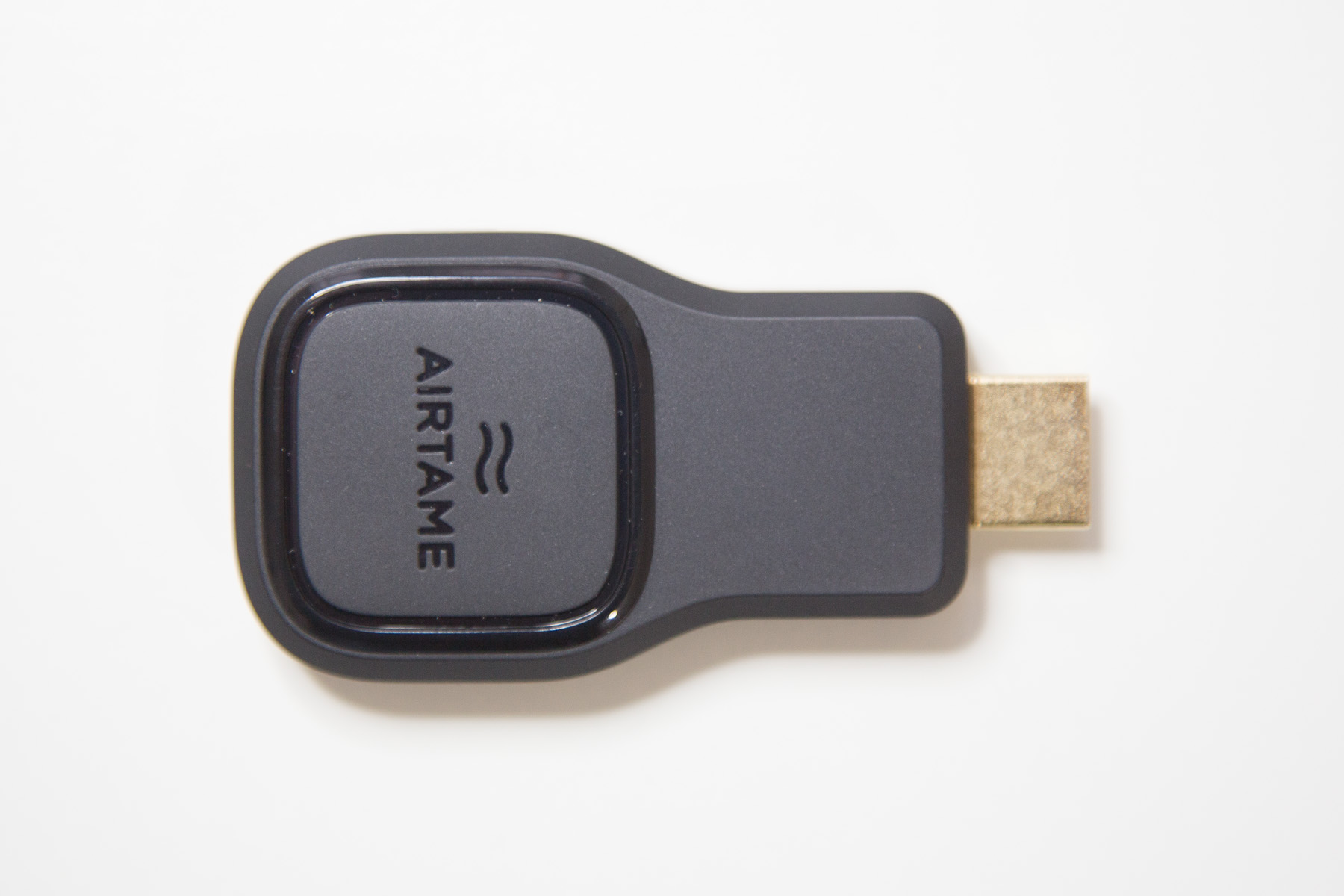

AIRTAME How to use, Safety, Regulatory and Warranty information For more information visit airtame.com/support WHAT’S IN THE BOX? AIRTAME: The AIRTAME Dongle plugs into the HDMI port on your TV Micro USB Cable: To provide power for AIRTAME you need to connect the Micro USB cable between AIRTAME and the AC Adapter HDMI Extension Cord: The HDMI extender can be used if AIRTAME not fit behind the TV because of limited space. Power supply: The provided power supply should be used to power AIRTAME AC power adapter Micro USB cable HDMI extension cable EU power adapter UK power adapter SET UP PROCESS More help can be found at: setup.airtame.com Step 1 Plug AIRTAME into an HDMI port in the back of your TV. Take the included USB cable and plug the smaller end into AIRTAME and the other end into the included power adapter. Power it up. Step 2 On your TV, select the HDMI input source you just plugged AIRTAME in to. You should see an AIRTAME setup screen now. Step 3 Go to setup.airtame.com from your browser on your phone, tablet or computer - and follow further instructions. SAFETY PRECAUTIONS AIRTAME has been designed with high attention to the safety for the user. However if used improperly, AIRTAME have the potential for causing fire, electrical shock or personal injury. To avoid any accident please pay attention to these guidelines: • Use only the power supply and Micro USB cable provided by AIRTAME. Using other cables and power supplies can potentially damage or influence the functionalities during use. • AIRTAME generates heat during use that increases the temperature of the outside of AIRTAME. It should be powered off and cooled before removing from your monitor. • Stop use of AIRTAME imidiately if the device funtions in an abnormal manner, produces unusual sounds or smell and/or becomes to hot to touch. • Do not expose AIRTAME including the Micro USB cable, HDMI extender or power supply to water or extreme conditions (moisture, heat, cold, dust) as it potentially could result in malfunction when exposed to such elements. • Do not attempt to disassemble or repair AIRTAME yourself. Doing so voids the limited warranty and could harm you, your television, and/or the device. • Be careful when using the Power supply and only use in combination with AIRTAME in dry locations to avoid the risk of electric shock. LICENSE AGREEMENT Software license terms related to AIRTAME can be found at airtame.com/support/license When using AIRTAME you accept the agreement to those terms. WARRANTY INFORMATION Warranty information applicable for your country can be found at airtame.com/support/warranty LEGAL NOTICES Model AT-DG1 FCC ID: 2ADEFAT-DG1 IC: 12460A-ATDG1 Federal Communication Commissions Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. Wireless Radio Use: This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz frequency band. IMPORTANT NOTE: FCC Radiation Exposure Statement: To satisfy FCC and IC exposure requirements, a separation distance of at least 20 cm should be maintained between the antenna of this device and persons during device operation. Operations at closer than this distance are not recommended. The antenna used for this transmitter must not be co- located in conjunction with any other antenna or transmitter. Note to US model owner: To comply with US FCC regulation, the country selection function has been completely removed from all US models. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. INDUSTRY CANADA (IC) NOTICES English “Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.” “This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.” French “Conf…

Text truncated - open the document above for the full version.

TRL 51F047 iss04 LETTER OF AGENCY 17/2-2015 TRaC Global Ltd. 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK To Whom It May Concern: We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Yours faithfully AIRTAME ApS Signature Marius Klausen

TRL 51F050 iss04 REQUEST FOR CONFIDENTIALITY IN ACCORDANCE WITH FCC RULE 0.459 2/4-2015 TRaC GLOBAL LTD. 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK RE: Certification Application FCC ID: 2ADEFAT-DG1 To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf of AIRTAME ApS. • Schematic • Blok diagram • Technical description • Part List / Bill of Materials The application contains technical information, which AIRTAME ApS deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully AIRTAME ApS Signature Marius Klausen

AIRTAME AT-­‐DG1 utilized channel number/frequency plan BandChannelFrequencySupportOperating ModeActive ScanningPassive Scanning 365180YesClient/Masterxx 405200YesClient/Masterxx 445220YesClient/Masterxx 485240YesClient/Masterxx 525260DFSClientx 565280DFSClientx 605300DFSClientx 645320DFSClientx 1005500DFSClientx 1045520DFSClientx 1085540DFSClientx 1125560DFSClientx 1165580DFSClientx 1205600DFSClientx 1245620DFSClientx 1285640DFSClientx 1325660DFSClientx 1365680DFSClientx 1405700DFSClientx 1495745YesClient/Masterxx 1535765YesClient/Masterxx 1575785YesClient/Masterxx 1615805YesClient/Masterxx 1655825YesClient/Masterxx BandChannelFrequencySupportOperating ModeActive ScanningPassive Scanning 12412YesClient/Masterxx 22417YesClient/Masterxx 32422YesClient/Masterxx 42427YesClient/Masterxx 52432YesClient/Masterxx 62437YesClient/Masterxx 72442YesClient/Masterxx 82447YesClient/Masterxx 92452YesClient/Masterxx 102457YesClient/Masterxx 112462YesClient/Masterxx 122467No 132472No 142484No U-­‐NII-­‐1 U-­‐NII-­‐2A U-­‐NII-­‐2C U-­‐NII-­‐3 5GHz Bands 2.4GHz Band

SN: DG000000000 SN: DG000000000 M odel: AT- D G1 IC: 12460A-ATDG1 FCC ID: 2ADEFAT-DG1 Designed in Denmark Assembled in Europe M odel: AT- D G1 IC: 12460A-ATDG1 FCC ID: 2ADEFAT-DG1 Designed in Denmark Assembled in Europe 4,23mm 6,5 mm Print is center aligned Label is center aligned 25,47 mm 24,82 mm 6,35 mm 17 mm Label color (cmyk): 75/70/70/90 Text color (cmyk): 50/50/50/20 Print color: PANTONE Cool Grey 11C

TRaC Global Test Report: TRA-021973WUS2 Appendix G: General SAR test reduction and exclusion guidance KDB 447498 Section 4.3 General SAR test reduction and exclusion guidance For Standalone SAR exclusion consideration, when SAR Exclusion Threshold requirement in KDB 447498 is satisfied, standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. In the frequency range below 100 MHz to 6 GHz and test separation distance of 50mm, the SAR Test Exclusion Threshold for operation in the 5150 – 5350 MHz band will be determined as follows SAR Exclusion Threshold NT= { [ (MP/TSD) * √ f GHz ] + (TSD – 50mm) * 10 ] } Where: NT = Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) MP = Max Power of channel (mW) (inc tune up) TSD = Min Test separation Distance (mm) = 50 f GHz = Transmit frequency (or 100MHz if lower) We can transpose this formula to allow us to find the maximum power of a channel allowed and compare this to the measured maximum power. MP= { [ (NT x TSD) / √ f GHz ] + (TSD – 50) * 10] } Operating Frequency 5.180 GHz MP= { [ (3.0 x 50) / √5.180 ] + (50 – 50) * 10 } MP= { [150 / 2.28 ] + (0 * 10 } MP= 65.79mW Operating Frequency 5.260 GHz MP= { [ (3.0 x 50) / √5.260 ] + (50 – 50) * 10 } MP= { [150 / 2.29 ] + (0 * 10 } MP= 65.50mW Operating Frequency 5.320 GHz MP= { [ (3.0 x 50) / √5.320 ] + (50 – 50) * 10 } MP= { [150 / 2.31 ] + (0 * 10 } MP= 64.94mW Channel Frequency (MHz) EIRP (mW) SAR Exclusion Threshold SAR Evaluation 5180 10.00 65.79 Not Required 5260 10.72 65.50 Not Required 5320 14.13 64.94 Not Required Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. 303 TRaC Global Test Report: TRA-021973WUS2 In the frequency range below 100 MHz to 6 GHz and test separation distance of 50mm, the SAR Test Exclusion Threshold for operation in the 5470 – 5725 MHz band will be determined as follows SAR Exclusion Threshold NT= { [ (MP/TSD) * √ f GHz ] + (TSD – 50mm) * 10 ] } Where: NT = Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) MP = Max Power of channel (mW) (inc tune up) TSD = Min Test separation Distance (mm) = 50 f GHz = Transmit frequency (or 100MHz if lower) We can transpose this formula to allow us to find the maximum power of a channel allowed and compare this to the measured maximum power. MP= { [ (NT x TSD) / √ f GHz ] + (TSD – 50) * 10] } Operating Frequency 5.500 GHz MP= { [ (3.0 x 50) / √5.500 ] + (50 – 50) * 10 } MP= { [150 / 2.35 ] + (0 * 10 } MP= 63.83mW Operating Frequency 5.600 GHz MP= { [ (3.0 x 50) / √5.600 ] + (50 – 50) * 10 } MP= { [150 / 2.37 ] + (0 * 10 } MP= 63.29mW Operating Frequency 5.700 GHz MP= { [ (3.0 x 50) / √5.700 ] + (50 – 50) * 10 } MP= { [150 / 2.39 ] + (0 * 10 } MP= 62.76mW Channel Frequency (MHz) EIRP (mW) SAR Exclusion Threshold SAR Evaluation 5500 12.88 63.83 Not Required 5600 14.45 63.29 Not Required 5700 9.55 62.76 Not Required Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. 304 TRaC Global Test Report: TRA-021973WUS2 In the frequency range below 100 MHz to 6 GHz and test separation distance of 50mm, the SAR Test Exclusion Threshold for operation in the 5725 – 5850 MHz band will be determined as follows SAR Exclusion Threshold NT= { [ (MP/TSD) * √ f GHz ] + (TSD – 50mm) * 10 ] } Where: NT = Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) MP = Max Power of channel (mW) (inc tune up) TSD = Min Test separation Distance (mm) = 50 f GHz = Transmit frequency (or 100MHz if lower) We can transpose this formula to allow us to find the maximum power of a channel allowed and compare this to the measured maximum power. MP= { [ (NT x TSD) / √ f GHz ] + (TSD – 50) * 10] } Operating Frequency 5.745 GHz MP= { [ (3.0 x 50) / √5.745 ] + (50 – 50) * 10 } MP= { [150 / 2.39 ] + (0 * 10 } MP= 62.76mW Operating Frequency 5.785 GHz MP= { [ (3.0 x 50) / √5.785 ] + (50 – 50) * 10 } MP= { [150 / 2.41 ] + (0 * 10 } MP= 62.24mW Operating Frequency 5.825 GHz MP= { [ (3.0 x 50) / √5.825 ] + (50 – 50) * 10 } MP= { [150 / 2.41 ] + (0 * 10 } MP= 62.24mW Channel Frequency (MHz) EIRP (mW) SAR Exclusion Threshold SAR Evaluation 5745 8.51 62.78 Not Required 5785 12.88 62.24 Not Required 5825 15.14 62.24 Not Required Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. 305 TRaC Global Test Report: TRA-021973WUS2 Appendix H: MPE exclusion calculation As per KDB 447498 47 CFR §§1.1307 and 2.1091 2.1091 Radio frequency radiation exposure evaluation: Portable devices. For purposes of these requirements mobile devices are defined by the FCC as transmitters designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimetres is normally maintained between radiating structures and the body of the user or nearby persons. These devices are normally evaluated for exposure potential with relation to the MPE limits. As the 20cm separation specified under FCC rules may not be achievable under normal operation of the EUT, an RF exposure calculation is needed to show the minimum distance required to be less than 0.6mW/cm 2 power density limit, as required under FCC rules. Prediction of MPE limit at a given distance Equation from KDB 447498 D01 where: S = power density R = distance to the centre of radiation of the antenna ERP = EUT Maximum power Result: Prediction Frequency (MHz) Maximum ERP (mW) Power density limit (S) (mW/cm 2 ) Distance (R) cm required to be less than 0.6mW/cm 2 (cm) 5180 10.00 0.6 1.5 5260 10.72 0.6 1.5 5320 14.13 0.6 1.8 π π 4 64.1 arranged-re 4 64.1 2 S ERP R R ERP S== 306 TRaC Global Test Report: TRA-021973WUS2 Prediction Frequency (MHz) Maximum ERP (mW) Power density limit (S) (mW/cm 2 ) Distance (R) cm required to be less than 0.6mW/cm 2 (cm) 5500 12.88 0.6 1.7 5600 14.4…

Text truncated - open the document above for the full version.

A Radio Test Report FOR Airtame ApS ON HDMI Dongle DOCUMENT NO. TRA-021973WUS2 TRaC Wireless Test Report:TRA-021973WUS2 Applicant:Airtame ApS Apparatus:HDMI Dongle Specification(s):CFR47 Part 15.407 FCCID:2ADEFAT-DG1 Purpose of Test: Certification Authorised by: : Radio Product Manager Issue Date:9 th April 2015 Authorised Copy Number:PDF Total number of pages : 308 John Charters Digitally signed by John Charters DN: cn=John Charters, o=TRAC Global Ltd, ou=Radio Product Manager, [email protected], c=GB Date: 2015.04.21 12:20:02 +01'00' TRaC Global Test Report: TRA-021973WUS2 Contents Section 1: Introduction4 1.1 General4 1.2 Tests Requested By5 1.3 Manufacturer5 1.4 Apparatus Assessed6 1.5 Test Result Summary7 1.6 Notes Relating To The Assessment8 1.7 Deviations from Test Standards8 Section 2: Measurement Uncertainty9 2.1 Measurement Uncertainty Values9 Section 3: Modifications10 3.1 Modifications Performed During Assessment10 Section 4 General Test Procedures11 4.1 Radiated Test Setup and Procedures11 4.2 AC Powerline Conducted Emissions Test Setup and Procedures12 4.3 Antenna Port Conducted Emissions12 4.4 Power Supply Variation13 4.5 Thermal Variation13 4.6 Time Domain Measurements13 Appendix A: Formal Emission Test Results14 A1 6 dB Bandwidth15 A2 26 dB Bandwidth17 A3 Transmitter Frequency Stability20 A4 Transmitter Peak Output Power25 A5 Transmitter Power Spectral Density29 A6 Radiated Electric Field Emissions outside of the Restricted Band32 A7 Radiated Electric Field Emissions within the Restricted Bands42 A8 Power Line Conducted Emissions51 A9 Antenna Gain53 A10 Unintentional Radiated Electric Field Emissions - 15.10954 Appendix B: Supporting Graphical Data57 Appendix C: Additional Test and Sample Details291 Appendix D: Additional Information297 Appendix E: Calculation of the duty cycle correction factor298 Appendix F: Photographs and Figures299 Appendix G: General SAR test reduction and exclusion guidance303 Appendix H: MPE exclusion calculation306 3 TRaC Global Test Report: TRA-021973WUS2 Section 1:Introduction 1.1General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed at:TRaC Global[X] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone:+44 (0) 1482 801801 Fax:+44 (0) 1482 801806 TRaC Global[ ] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone:+44 (0) 1695 556666 Fax:+44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by:A Longley Report author:A Longley This report must not be reproduced except in full without prior written permission from TRaC Global. 4 TRaC Global Test Report: TRA-021973WUS2 1.2Tests Requested By This testing in this report was requested by : Airtame ApS Vestergade 20C, 2 nd Floor Copenhagen 1456 Denmark 1.3Manufacturer Airtame ApS Vestergade 20C, 2 nd Floor Copenhagen 1456 Denmark 5 TRaC Global Test Report: TRA-021973WUS2 1.4Apparatus Assessed The following apparatus was assessed between 28/10/2014 and 29/01/2015: HDMI Dongle The apparatus was an HDMI Dongle intended for wireless screen duplication between screen and smartphone/tablet or PC using IEEE 802.11 WiFi. The apparatus consisted of a mini PC running Linux connected to any screen using an HDMI Male connector and powered by an external USB AC Adapter connected with a Micro USB cable. The device included a Micro SD card which the OS booted from and which ran the AIRTAME test application. Two WiFi IC’s with individual MAC addresses were integrated at the PCB for 2.4GHz and 5GHz WiFi connection. 6 TRaC Global Test Report: TRA-021973WUS2 1.5Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test TypeRegulation Measurement standard Result Radiated spurious emissions (Restricted bands) Title 47 of the CFR: Part 15 Subpart C; 15.205 & Subpart E; 15.407(b)(7) ANSI C63.10:2009 Pass Radiated spurious emissions (Non-restricted bands) Title 47 of the CFR: Part 15 Subpart E; 15.407(b) ANSI C63.10:2009 Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart C; 15.207 & Subpart E; 15.407(b)(6) ANSI C63.10:2009 Pass Occupied Bandwidth Title 47 of the CFR : Part 15 Subpart E; 15.407(e) ANSI C63.10:2009 Pass Emission Bandwidth Title 47 of the CFR : Part 15 Subpart E; 15.407(a)(5) ANSI C63.10:2009 Pass Conducted Carrier Power Title 47 of the CFR : Part 15 Subpart E; 15.407(a) ANSI C63.10:2009 Pass Power Spectral Density Title 47 of the CFR : Part 15 Subpart E; 15.407(a) ANSI C63.10:2009 Pass Transmitter Frequency Stability Title 47 of the CFR : Part 15 Subpart E; 15.407(g) ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart B; 15.109 ANSI C63.10:2009 Pass Digital Modulation Title 47 of the CFR: Part 15 Subpart C; 15.403 -Pass RF Safety Title 47 of the CFR : Part 15 Subpart E; 15.407(f) -Pass Abbreviations used in the above table: Mod: Modification CFR: Code of Federal RegulationsANSI: American National Standards Institution REFE: Radiated Electric Field EmissionsPLCE: Power Line Conducted Emissions 7 TRaC Global Test Report: TRA-021973WUS2 1.6Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrange…

Text truncated - open the document above for the full version.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408) 748-3585 ● FAX (510) 489-6372 13301 MCCALLEN PASS ● AUSTIN, TX 78753 ● PHONE (512) 287-2500 ● FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory March 6, 2015 TRaC Global Ltd. 8 Century Court, Tolpits Lane, Warford Hertfordshire, WD18 9RS,UK Dear Simon Hindle, Enclosed is the EMC Wireless test report for compliance testing of the TRaC Global Ltd., AIRTAME HDMI Dongle as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Title 47 of the CFR, 15.407, Subpart E DFS Requirements for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\TRaC Global Ltd.\EMC84347-FCC DFS) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408) 748-3585 ● FAX (510) 489-6372 13301 MCCALLEN PASS ● AUSTIN, TX 78753 ● PHONE (512) 287-2500 ● FAX (512) 287-2513 MET Report: EMC84347-FCC DFS © 2015, MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the TRaC Global Ltd. Model AIRTAME HDMI Dongle Tested under the Certification Rules contained in Title 47 of the CFR, Part 15.407 Subpart E DFS Requirements for Intentional Radiators MET Report: EMC84347-FCC DFS March 6, 2015 Prepared For: TRaC Global Ltd. 8 Century Court, Tolpits Lane, Warford Hertfordshire, WD18 9RS,UK Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility TRaC Global Ltd. Introduction AIRTAME HDMI Dongle CFR Title 47, Part 15.407 Subpart E DFS Requirements MET Report: EMC84347-FCC DFS © 2015, MET Laboratories, Inc. Page ii of vi Electromagnetic Compatibility Criteria Test Report for the TRaC Global Ltd. Model AIRTAME HDMI Dongle Tested under the Certification Rules contained in Title 47 of the CFR, Part 15, Subpart B& ICES-003 for Unintentional Radiators and 15.407 Subpart E & & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators Djed Mouda, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Parts 15B, 15.407, of the FCC Rules under normal use and maintenance. Asad Bajwa, Director, Electromagnetic Compatibility Lab Electromagnetic Compatibility TRaC Global Ltd. Introduction AIRTAME HDMI Dongle CFR Title 47, Part 15.407 Subpart E DFS Requirements MET Report: EMC84347-FCC DFS © 2015, MET Laboratories, Inc. Page iii of vi Report Status Sheet Revision Report Date Reason for Revision  March 04, 2015 Initial Issue. Electromagnetic Compatibility TRaC Global Ltd. Table of Contents AIRTAME HDMI Dongle CFR Title 47, Part 15.407 Subpart E DFS Requirements MET Report: EMC84347-FCC DFS © 2015, MET Laboratories, Inc. Page iv of vi Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample .................................................................................................................................5 E. Equipment Configuration ....................................................................................................................................6 F. Support Equipment .............................................................................................................................................6 G. Mode of Operation ..............................................................................................................................................7 H. Method of Monitoring EUT Operation ......................…

Text truncated - open the document above for the full version.

TRaC Global Test Report: TRA-021973WUS2 Appendix F: Photographs and Figures The following photographs were taken of the test samples: 1. Radiated electric field emissions arrangement: front view. 2. Radiated electric field emissions arrangement: rear view. 3. Radiated electric field emissions arrangement: rear view close up. 299 TRaC Global Test Report: TRA-021973WUS2 Photograph 1 300 TRaC Global Test Report: TRA-021973WUS2 Photograph 2 301 TRaC Global Test Report: TRA-021973WUS2 Photograph 3 302

Electromagnetic Compatibility TRaC Global Ltd. DFS Requirements & Radar Waveform AIRTAME HDMI Dongle CFR Title 47, Part 15.407 Subpart E DFS Requirements MET Report: EMC84347-FCC DFS © 2015, MET Laboratories, Inc. Page 14 of 29 Photograph 2. DFS, Test Setup, 1 Photograph 3. DFS, Test Setup, 2
