Universe User Guide STYLE FCC ID: 2ADFBSTYLE ii Thank you for choosing this Spreadtrum Platformphone. This device will offer you unprecedented surprise for it can support GSM cards and multiple cards standby. Meanwhile, this phone is equipped with a 3 megapixel HD digital camera, a MP3 Mobile Musicand a MP4 video player. Enjoy yourself ! Safety Please go through, and comply with, the following considerations before using this phone.   Please take earphone if making or Answer incoming call while driving or after you car is parked.   The phone may interfere with aircraft telecommunication. So please turn if off or switch to flight mode during the flight.   Anyphone may be susceptible to interference, which could affect performance.   Please turn off your phone near the medical equipment or in the medical facility where anyphone must be out of service.   Please use the original battery and accessories in order to have optimal performance and prevent phone damage. Please don’t use unmatched products.   Please turn off yourphone in the gas station or near fuel or chemicals to prevent explosion.   To avoid interference with blasting work, please turn off thephone on the site or where two-way radio must be switched off. Please observe the local rules.   Burning or disposing ofphone battery as usual is prohibited, or it may cause life risk or environmental pollution. Please dispose of and recycle it in compliance with the local environmental regulations.   If yourphone needs to be connected with other device, please read the User Guide of the latter.   Some small components (e.g. memory card, etc.) shall be out of children’s reach; otherwise it may be swallowed or cause other hazards.   Please copy or keep a written copy of the vital information stored in your phone.  SOS  Ensure the phone is turned on and within the service area. Enter the emergency number, press the talking key to tell your location. Please don’t end the call without permission. “Many people mistakenly assume that using a cell phone with a lower reported SAR value necessarily decreases a user’s exposure to RF emissions, or is somehow “safer” than using a cell phone with a high SAR value. While SAR values are an important tool in judging the maximum possible exposure to RF energy from a particular model of cell phone, a single SAR value does not provide sufficient information about the amount of RF exposure under typical usage conditions to reliably compare individual cell phone models.” World Health Organization (WHO) Advice，Organizations such as the World Health Organization and the US Food and Drug Administration have stated that if people are concerned and want to reduce their exposure they could use a hands-free device to keep the phone away from the head and body during phone calls, or reduce the amount of time spent on the phone. i Contents Introduction ....................................................................................................................................................... 9 Insert SIM card and battery ................................................................................................................................... 9 Insert memory card ................................................................................................................................................ 9 Battery charging .................................................................................................................................................... 9 Power on and off ................................................................................................................................................. 10 Idle ................................................................................................................................................................... 11 Switch to Idle Page .............................................................................................................................................. 11 Adding and Delete Application ........................................................................................................................... 11 Wallpaper Settings............................................................................................................................................... 11 Task Manager ...................................................................................................................................................... 11 Notification .......................................................................................................................................................... 11 Search .................................................................................................................................................................. 11 Settings ................................................................................................................................................................ 11 Open Option Menu .............................................................................................................................................. 11 Main menu ...................................................................................................................................................... 12 Use Function Menu of Main Menu ..................................................................................................................... 12 Call ................................................................................................................................................................... 13 Dialpad ................................................................................................................................................................ 13 Making an overseas call. ................................................................................................…

Text truncated - open the document above for the full version.

TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL SUBJECT: FCC Application for (FCC ID: 2ADFBSTYLE) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Company Officer: Neile Faria Telephone Number: 305-715-7338 Email: [email protected]

Date (17/04/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ADFBSTYLE Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Tianyu Technology Co., Ltd. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Neile Faria Telephone Number: 305-715-7338 Email: [email protected]

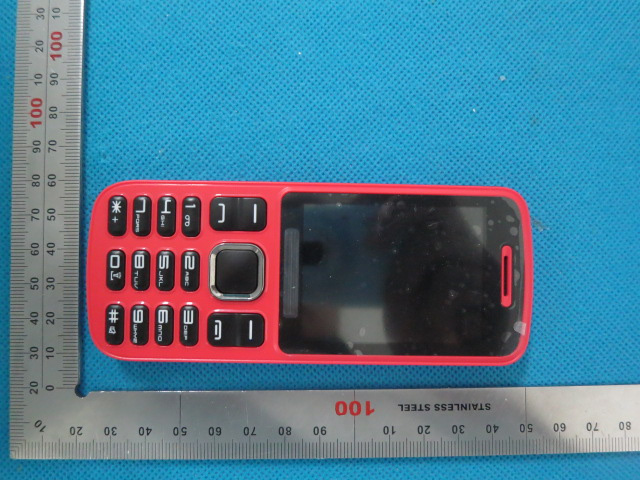

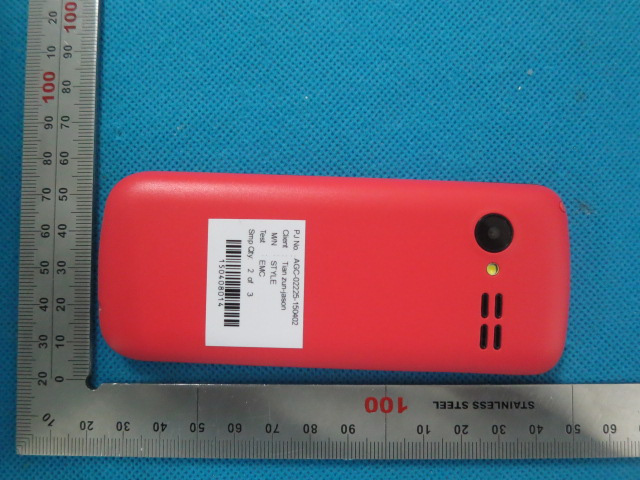

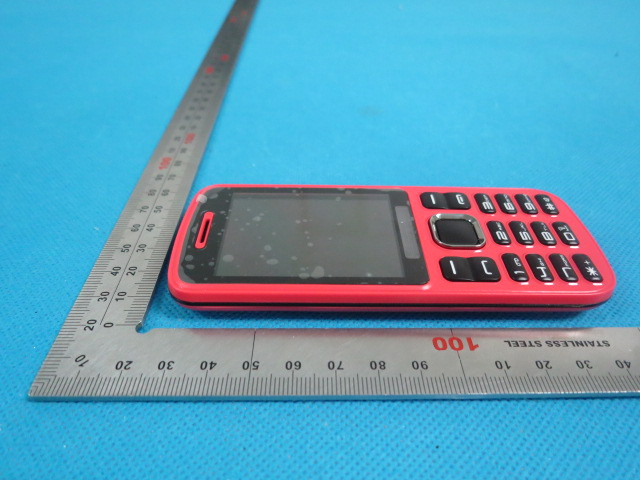

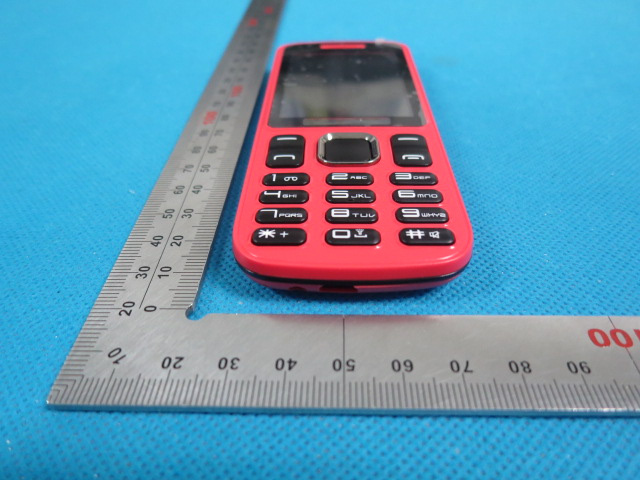

External Photos

FCC ID Mode Trade FCC Label Lo el: STYLE e Name: Gen ID: 2ADFBST ocation nius Touch TYLE

Internal Photos GSM Antenna BT Antenna

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC TEST REPORT Report No: STS1504047F02 Issued for CELL TECH ELECTRONICS, INC. 2678&2680 NW 97TH AVE, DORAL MIAMI 33172 USA Product Name: Mobile phone Brand Name: Genius Touch Model No.: STYLE Series Model: N/A FCC ID: 2ADFBSTYLE Test Standard: FCC Part 15.247(2014) S T L A B S Page 2 of 69 Report No.: STS1504047F02 TEST RESULT CERTIFICATION Applicant’s name ................... : CELL TECH ELECTRONICS, INC. Address .................................... : 2678&2680 NW 97TH AVE, DORAL MIAMI 33172 USA Manufacture's Name .............. : CELL TECH ELECTRONICS, INC. Address .................................... : 2678&2680 NW 97TH AVE, DORAL MIAMI 33172 USA Product description Product name .......................... : Mobile phone Band name .............................. : Genius Touch Model and/or type reference ................................ : STYLE Ratings ...................................... DC 5V/500mA Standards ............................... : FCC Part 15.247(2014) Test procedure .............................. : DA00-705,ANSI C63.10-2009 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ............................................... : Date (s) of performance of tests ................. : 06 Apr. 2015 ~13 Apr. 2015 Date of Issue .............................................. : 15 Apr. 2015 Test Result .................................................. : Pass Testing Engineer : (Jin Ming) Report writing : (Sunny zheng) Authorized Signatory : (Bovey Yang) Page 3 of 69 Report No.: STS1504047F02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.1 DESCRIPTION OF TEST MODES 9 2.2 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 TEST SETUP 14 3.1.4 EUT OPERATING CONDITIONS 14 3.1.5 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS 21 4. CONDUCTED SPURIOUS EMISSIONS 27 4.1 REQUIREMENT 27 4.2 TEST PROCEDURE 27 4.3 TEST SETUP 27 4.4 EUT OPERATION CONDITIONS 27 4.5 TEST RESULTS 28 5. NUMBER OF HOPPING CHANNEL 37 5.1 APPLIED PROCEDURES / LIMIT 37 5.2 TEST PROCEDURE 37 5.3 TEST SETUP 37 Page 4 of 69 Report No.: STS1504047F02 Table of Contents Page 5.4 EUT OPERATION CONDITIONS 37 5.5 TEST RESULTS 38 6. AVERAGE TIME OF OCCUPANCY 39 6.1 APPLIED PROCEDURES / LIMIT 39 6.2 TEST PROCEDURE 39 6.3 TEST SETUP 39 6.4 EUT OPERATION CONDITIONS 39 6.5 TEST RESULTS 40 7. HOPPING CHANNEL SEPARATION MEASUREMEN 46 7.1 APPLIED PROCEDURES / LIMIT 46 7.2 TEST PROCEDURE 46 7.3 TEST SETUP 46 7.4 EUT OPERATION CONDITIONS 46 7.5 TEST RESULTS 47 8. BANDWIDTH TEST 53 8.1 APPLIED PROCEDURES / LIMIT 53 8.2 TEST PROCEDURE 53 8.3 TEST SETUP 53 8.4 EUT OPERATION CONDITIONS 53 8.5 TEST RESULTS 54 9. PEAK OUTPUT POWER TEST 60 9.1 APPLIED PROCEDURES / LIMIT 60 9.2 TEST PROCEDURE 60 9.3 TEST SETUP 60 9.4 EUT OPERATION CONDITIONS 60 9.5 TEST RESULTS 61 10. ANTENNA REQUIREMENT 67 10.1 STANDARD REQUIREMENT 67 10.2 EUT ANTENNA 67 APPENDIX- PHOTOS OF TEST SETUP 68 Page 5 of 69 Report No.: STS1504047F02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(d) Conducted Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 69 Report No.: STS1504047F02 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China. FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±3.18dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.71dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 69 Report No.: STS1504047F02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Mobile phone Trade Name Genius Touch Model Name STYLE Serial Model N/A Model Difference N/A Antenna Gain (dBi) 0 dbi Channel List Please refer to the Note 2. Bluetooth Frequency:2402 – 2480 MHz Modulation: GFSK(1Mbps), π/4-DQPSK(2Mbps), 8-DPSK(3Mbps) Adapter Input: AC 100-240V,50/60Hz,200mA Output:DC…
