2ADFMULTRATABX7ULTRATAB 7

Ultratab X7 Quick Start Guide Product Overview ① Micro USB 2.0 HS ② Earphone 3.5mm Slot ③ Front-Camera ④ Power Key ⑤ Volume Key + ⑥ Volume Key - ⑦ Micro SD Slot ⑧ SIM card Slot ⑨ Speaker ⑩ Rear-Camera Getting Started  Turning the tablet On/Off To turn On the tablet 1. Press and hold the PWR key for a few seconds. 2. Unlock the screen with your finger. To turn Off the tablet 1. Press and hold the PWR key, select Power Off. 2. Tap OK. The tablet will be off in a few seconds.  Unlocking screen The screen is locked by default when you turn on the tablet. To unlock the screen, 1. Press the PWR key. 2. Drag the inner ring to the edge of the circle to unlock the screen. Draw a pattern if the screen is protected by pattern lock. Enter a PIN or a password if the screen is locked by a PIN or a password.   Locking screen To lock the screen, press the PWR key. It is recommended to lock the screen to protect information in the tablet and reduce battery usage. You can also configure your tablet to automatically lock after a certain period of time. Tap → Settings → Display → Sleep to set the sleep time from 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, or 30 minutes.  Using touch screen All of the functions of the tablet, except for power and volume, are performed on the touch screen. Therefore, it is essential to know how to use the touch screen. The following finger actions might help you easily understand how to use the touch screen.  Tap: Touch an item (e.g. application or widget) once that appears on the screen with your finger to run it or access a menu or an option  Double tap: Tap an item twice with your finger  Drag: Tap and hold your finger on an item and move it without losing contact with the screen  Flick: Place a finger on an empty space of the screen and move the screen up or down, or left or right  Pinch: Place two fingers on the screen and move them apart to zoom in a picture, a document or a web page, or move them together to zoom out  Select and tap: Tap an item in the list of options available  Press and hold: Press a key or any item for a few seconds until a list of options appears Cautions:  Do not use sharp tools that can scratch the touch screen.  Do not allow the touch screen to come in contact with chemicals. The screen may malfunction in chemicals.  Do not sit on the tablet: the touch screen can be damaged.  Status bar The status bar at the top of the screen notifications from various apps, time, and the states of various devices such as battery status, WLAN status, Signal status and so on. 1. Notification panel displays notification icons to inform you of new Email, messages, and so on. Slide the panel down to view the notifications and then tap a notification icon to view details of the notification. 2. Status panel displays status icons to show the current state of your tablet, such as battery charging progress, alarms, Bluetooth, and so on. Slide the panel down to access more settings and configuration options.  Screen orientation For optimal viewing experience, the screen orientation changes automatically depending on how you hold the tablet. NOTE: To enable or disable auto-rotate, slide down the status panel and tap the Auto-rotate icon.  Keys and functions 1. Back key  Tap to return to the previous screen and exit the running application.  Tap to close the on-screen keyboard in text input mode. 2. Home key  Tap to return to the main screen.  Tap and hold to open the Google search. 3. Menu key  Tap to open the applications list used recently.  Apps and widgets  Apps: Software that allows you to perform a specific task. Your tablet is preloaded with a variety of applications, and additional applications can be downloaded from the Play Store.  Widgets: A small application which resides on the home screen and provides quick and easy access to information. Connecting to the Internet using WLAN NOTE: The range and quality of the WLAN signal is affected by the distance between the tablet and the wireless router, the number of connected devices, infrastructure, and objects through which the signal is transmitted. 1. Tap→ Settings→ WIRELESS & NETWORKS→ WLAN. 2. Enable WLAN by moving the slider to On position. The tablet scans for WLAN networks in range. 3. Tap the network you want to connect to. 4. Type a password (if connecting to a secure network) and tap Connect to connect to the selected WLAN network. NOTE: To connect to a secured WLAN network, you must provide the security key. If you do not have the security key, contact the person who manages your WLAN network or the router manufacturer. NOTE: To start a new search for available WLAN networks, on the WLAN screen, tap → Scan Connecting to the Internet using mobile broadband 1. Tap Settings→ WIRELESS & NETWORKS→ WLAN, then touch WLAN to disable it. 2. The tablet automatically searches for the carrier signal and connects to the network. When the tablet is connected to a mobile broadband network, the network type appears in the status bar. NOTE: On the LTE/HSPA+ models, if both WLAN and mobile broadband networks are available, the tablet gives priority to WLAN connection. Safety Information The following list shows how to maintain your tablet, together with precautions to take.  Keep your tablet and its accessories out of the reach of pets.  Do not allow children to use your tablet. If children use the device, make sure that they use the tablet properly.  Maintain your tablet in dry conditions and keep it within normal operating temperatures. Temperatures higher than 40°C or lower than -20°C may damage your tablet.  Do not try to dry your tablet in a microwave oven. If you do, sparks can occur and cause an explosion or fire.  Do not use or store your tablet in dusty or dirty areas.  Do not attempt to disassemble your tablet.  Do not drop or cause severe impact to your tablet.  Do not use chemical products, cleaning solvents or detergents to clean your tablet.  If your …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 Breldyng s.a. 2015.2.2 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Breldyng s.a. (client’s company name) hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): Product description: ULTRATAB 7 model name: Ultratab X7 FCC ID: 2ADFMULTRATABX7 Sincerely, Client’s signature : Xavier Baquerizo Ribas Client’s name / title: CEO Applicant company：Breldyng s.a. address：AVENIDA SEPTIMA Y EMILIO ROMERO, BODEGAS TRASINVERSA #8, Guayaquil, Guayas, Ecuador.

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 4.0 Breldyng s.a. 2015.3.27 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADFMULTRATABX7 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Xavier Baquerizo Ribas Client’s name & title :CEO Contact information / address: Breldyng s.a. / AVENIDA SEPTIMA Y EMILIO ROMERO, BODEGAS TRASINVERSA #8, Guayaquil, Guayas, Ecuador

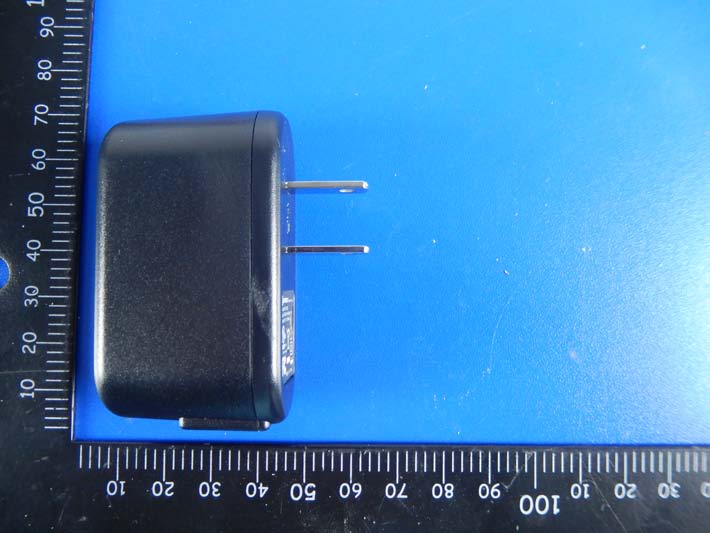

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

Label ULTRATAB 7 Model name: Ultratab X7 Brand name: ULTRATECH PC FCC ID: 2ADFMULTRATABX7 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. label

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 BT/WIFE ANTENNA GSM/WCDMA ANTENNA Photo 3 Photo 4

Ref : ACR.262.1.14.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING 2, ZHUOKE SCIENCE PARK, CHONGQING ROAD FUYONG, BAO’ AN DISTRICT, SHENZHEN,CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 17/14 EP221 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 09/01/2014 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 2/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 9/19/2014 Checked by : Jérôme LUC Product Manager 9/19/2014 Approved by : Kim RUTKOWSKI Quality Manager 9/19/2014 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 9/19/2014 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 3/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ...................................................................................................... 9 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 4/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 17/14 EP221 Product Condition (new / used) New Frequency Range of Probe 0.4 GHz- 6 GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.179 M Dipole 2: R2=0.167 M Dipole 3: R3=0.178 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 5/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid,…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No: STS1502043H01 Issued for Breldyng s.a. avenida séptima y Emilio romero, bodega trasinversa #8 Product Name: ULTRATAB 7 Brand Name: ULTRATECH PC Model No.: Ultratab X7 Series Model: N/A FCC ID: 2ADFMULTRATABX7 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. SAR (1g): Body:1.343 W/kg S T L A B S Page 2 of 65 Report No.: STS1502043H01 Test Report Certification Applicant’s name ................. : Breldyng s.a. Address ................................. : avenida séptima y Emilio romero, bodega trasinversa #8 Manufacture's Name ............ : Bluebank Communication Technology Co.Ltd Address ................................. : No. 13-2, Jiang Ying Road, Nan An District, Chongqing, P.R. China Product description Product name ........................ : ULTRATAB 7 Trademark ........................... : ULTRATECH PC Model and/or type reference : Ultratab X7 Serial Model： N/A Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 14 Apr. 2015 Date of Issue .......................................... : 15 Apr. 2015 Test Result.............................................. : Pass Testing Engineer : (Allen Chen) Technical Manager : (John Zou) Authorized Signatory : (Bovey Yang) Page 3 of 65 Report No.: STS1502043H01 TABLE OF CONTENS 1. General Information 4 1.1 EUT Description 4 1.2 Test Environment 5 1.3 Test Facility 5 2. Test Standards And Limits 6 3. SAR Measurement System 7 3.1 Definition Of Specific Absorption Rate (SAR) 7 3.2 SAR System 7 3.2.1 Probe 8 3.2.2 Phantom 9 3.2.3 Device Holder 9 4. Tissue Simulating Liquids 10 4.1 Simulating Liquids Parameter Check 10 5. SAR System Validation 11 5.1 Validation System 11 5.2 Validation Result 11 6. SAR Evaluation Procedures 12 7. EUT Antenna Location Sketch 13 7.1 SAR TEST EXCLUSION CONSIDER TABLE 14 8. EUT Test Position 16 8.1 Define Two Imaginary Lines On The Handset 16 8.2 Hotspot mode exposure position condition 17 9. Measurement Uncertainty 18 10. Conducted Power Measurement 20 11. EUT And Test Setup Photo 25 11.1 EUT Photo 25 11.2 Setup Photo 28 12. SAR Result Summary 31 12.1 Body SAR And Hotspot 31 12.3 The ratio of the repeated SAR and Original Measured SAR 32 13. Equipment List 35 Appendix A. System Validation Plots 36 Appendix B. SAR Test Plots 42 Appendix C. Probe Calibration And Dipole Calibration Report 65 Page 4 of 65 Report No.: STS1502043H01 1. General Information 1.1 EUT Description Equipment ULTRATAB 7 Brand Name ULTRATECH PC Model No. Ultratab X7 Serial Model N/A FCC ID 2ADFMULTRATABX7 Model Difference N/A Adapter Input: AC100-240V,200m A, 50/60 Hz Output: DC 5V, 1000mA Battery Rated Voltage: 3.7V Charge Limit: 4.2V Capacity: 3100mAh Hardware Version N/A Software Version N/A Frequency Range GSM 850: 824.2 ~ 848.8 MHz PCS1900: 1850.2 ~ 1909.8 MHz WCDMA II: 1852.4~1907.6 MHz WCDMA V: 826.4~846.6 MHz WLAN 802.11 b/g/n(HT20):2412-2462 MHz WLAN 802.11 n(HT40):2422-2452 MHz Bluetooth：2402~2480MHz Transmit Power(MAX): GSM 850: 32.10dBm GSM 1900: 27.52dBm WCDMA II: 20.23dBm WCDMA V: 21.63dBm 802.11b: 16.26dBm 802.11g:13.08dBm 802.11 n(HT20): 13.24dBm 802.11 n(HT40): 12.64dBm Bluetooth:-4.511dBm Max. Reported SAR(1g): Body: GSM 850: 1.343 W/kg GSM 1900: 0.616 W/kg WCDMA II: 1.272 W/kg WCDMA V: 0.809 W/kg WIFI: 0.246 W/kg Operating Mode: GSM: GSM Voice/GPRS/EGPRS Class 12; WCDMA: RMC/HSDPA/HSUPA Release 6; WLAN: 802.11 b/g/n; Bluetooth: V4.0 Antenna Specification: GSM/WCDMA: PIFA Antenna BT/WIFI: PIFA Antenna SIM Card Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time Hotspot Mode: Support DTM Mode: Not Support Page 5 of 65 Report No.: STS1502043H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Actual Temperature (°C) 18-25 22~23 Humidity (%RH) 30-70 55~65 1.3 Test Facility Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China FCC Registration No.: 842334;IC Registration No.: 12108A-1 Page 6 of 65 Report No.: STS1502043H01 2. Test Standards And Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D01 v05r02 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 5 FCC KDB 865664 D01 v01r03 SAR Measurement 100 MHz to 6 GHz 6 FCC KDB 865664 D01 v01r03 SAR Measurement 100 MHz to 6 GHz 7 FCC KDB 941225 D01 SAR Measurement Procedures for 3G Devices 8 FCC KDB 248227 D01 SAR Measurement Procedures for 802.11 a/b/g Transmitters This device belongs to portable device category because its radiating structure is allowe…

Text truncated - open the document above for the full version.

GPS/BT/WIFI ANTENNA GSM/WCDMA ANTENNA 6.6CM 1.45CM 6.27CM 1.4CM 18.45CM

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC RADIO REPORT Report No: STS1502043F01 Issued for Breldyng s.a. avenida séptima y Emilio romero, bodega trasinversa #8 Product Name: ULTRATAB 7 Brand Name: ULTRATECH PC Model No.: Ultratab X7 Series Model: N/A FCC ID: 2ADFMULTRATABX7 Test Standard: FCC Part 22H and 24E S T L A B S 2 of 113 Report No.: STS1502043F01 Testing Engineer : (Jin Ming) Report writing : (Fern Feng) Authorized Signatory : (Bovey Yang) TEST RESULT CERTIFICATION Applicant’s name ................. : Breldyng s.a. Address ................................. : avenida séptima y Emilio romero, bodega trasinversa #8 Manufacture's Name ............ : Bluebank Communication Technology Co.Ltd Address ................................. : No. 13-2, Jiang Ying Road, Nan An District, Chongqing, P.R. China Product name ........................ : ULTRATAB 7 Band name .......................... : ULTRATECH PC Model and/or type reference .. : Ultratab X7 Standards ............................. : FCC Part 22H and 24E Test procedure ............................ : TIA 603 C This device described above has been tested by STS and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date of performance of tests .................. : 05 Feb. 2015 ~09 Feb. 2015 Date of Issue .......................................... : 09 Feb. 2015 Test Result .............................................. : Pass 3 of 113 Report No.: STS1502043F01 TABLE OF CONTENTS Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 PRODUCT DESCRIPTION 6 2.2 RELATED SUBMITTAL(S) / GRANT (S) 7 2.3 SPECIAL ACCESSORIES 7 2.4 EUT CONFIGURATION 7 2.5 EUT EXERCISE 7 2.6 CONFIGURATION OF EUT SYSTEM 7 2.7 MEASUREMENT INSTRUMENTS 8 3. DESCRIPTION OF TEST MODES 9 4. OUTPUT POWER 10 4.1 CONDUCTED OUTPUT POWER 10 4.2 PEAK-TO-AVERAGE RADIO (PAR) OF TRANSMITTER 16 4.3 RADIATED OUTPUT POWER 21 5. SPURIOUS EMISSION 25 5.1 SPURIOUS EMISSION 25 5.2 RADIATED SPURIOUS EMISSION 27 6. FREQUENCY STABILITY 33 6.1 MEASUREMENT METHOD 33 6.2 PROVISIONS APPLICABLE 34 6.3 MEASUREMENT RESULT 35 7. OCCUPIED BANDWIDTH 40 7.1 MEASUREMENT METHOD 40 7.2 PROVISIONS APPLICABLE 40 7.3 MEASUREMENT RESULT 40 8. EMISSION BANDWIDTH 43 8.1 MEASUREMENT METHOD 43 8.2 PROVISIONS APPLICABLE 43 8.3 MEASUREMENT RESULT 43 9. BAND EDGE 46 9.1 MEASUREMENT METHOD 46 9.2 PROVISIONS APPLICABLE 46 4 of 113 Report No.: STS1502043F01 9.3 MEASUREMENT RESULT 46 APPENDIX I 47 TEST PLOTS FOR CONDUCTED SPURIOUS EMISSION 47 APPENDIX II 77 TEST PLOTS FOR OCCUPIED BANDWIDTH (99%) 77 EMISSION BANDWIDTH (-26DBC) 77 APPENDIX III 101 TEST PLOTS FOR BAND EDGES 101 APPENDIX IV 113 PHOTOS OF TEST SETUP 113 5 of 113 Report No.: STS1502043F01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: The radiated emission testing was performed according to the procedures of ansi C63.10: 2009; TIA 603 C and fcc cfr 47 rules of 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057 Item Number Item Description FCC Rules 1 Output Power Conducted output power 22.913(a) / 24.232 (b) Radiated output power 2 Spurious Emission Conducted spurious emission 2.1051 / 22.917 / 24.238 Radiated spurious emission 3 Frequency Stability 2.1055 /24.235 4 Occupied Bandwidth 2.1049 (h)(i) 5 Emission Bandwidth 22.917(b) / 24.238 (b) 6 Band Edge 22.917(b) / 24.238 (b) NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China. FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 6 of 113 Report No.: STS1502043F01 2. GENERAL INFORMATION 2.1 PRODUCT DESCRIPTION A major technical description of EUT is described as following: Product Designation: ULTRATAB 7 Hardware version: N/A Software version: N/A Frequency Bands: GSM 850 PCS 1900 (U.S. Bands) GSM 900 DCS 1800 (Non-U.S. Bands) U.S. Bands: UMTS FDD Band II UMTS FDD Band V Non-U.S. Bands: UMTS FDD Band I UMTS FDD Band VIII Max RF Output Power: GSM850:32.41dBm,GSM1900:27.74dBm WCDMA Band V:21.89dBm,WCDMA Band II:20.52dBm Type of Emission: GSM(850):245KGXW: GSM(1900):247KGXW GPRS(850):247KGXW; GPRS(1900):248KGXW EDGE(850):250KG7W: EDGE(1900):247KG7W WCDMA850:4M17F9W WCDMA1900:4M18F9W SIM CARD Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time Antenna: Extenal Antenna Antenna gain: 0 dBi Power Supply: DC 5.0V supplied by adapter Adapter Input: AC100-240V, 50-60Hz, 0.20A Adapter Output: DC 5V, 1000mA GPRS/EDGE Class Multi-Class12 Extreme Temp. Tolerance -30°C to +50°C ** Note: The High Voltage 4.35V and Low Voltage 3.4V was declared by manufacturer, The EUT couldn’t be operate n…

Text truncated - open the document above for the full version.

PCESetup photo PCEradiation L PCEradiation H PCE RF conduction test photos PCE High and low temperature test photos
