2ADFS-LR01QuattroPod

Winner Wave Limited

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Jun 15, 2020
Application Purpose: Original Equipment
Date of Application: Jun 15, 2020
Equipment Note: QuattroPod
Frequency Range: 5745.00000000 - 5825.00000000
Company: Winner Wave Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

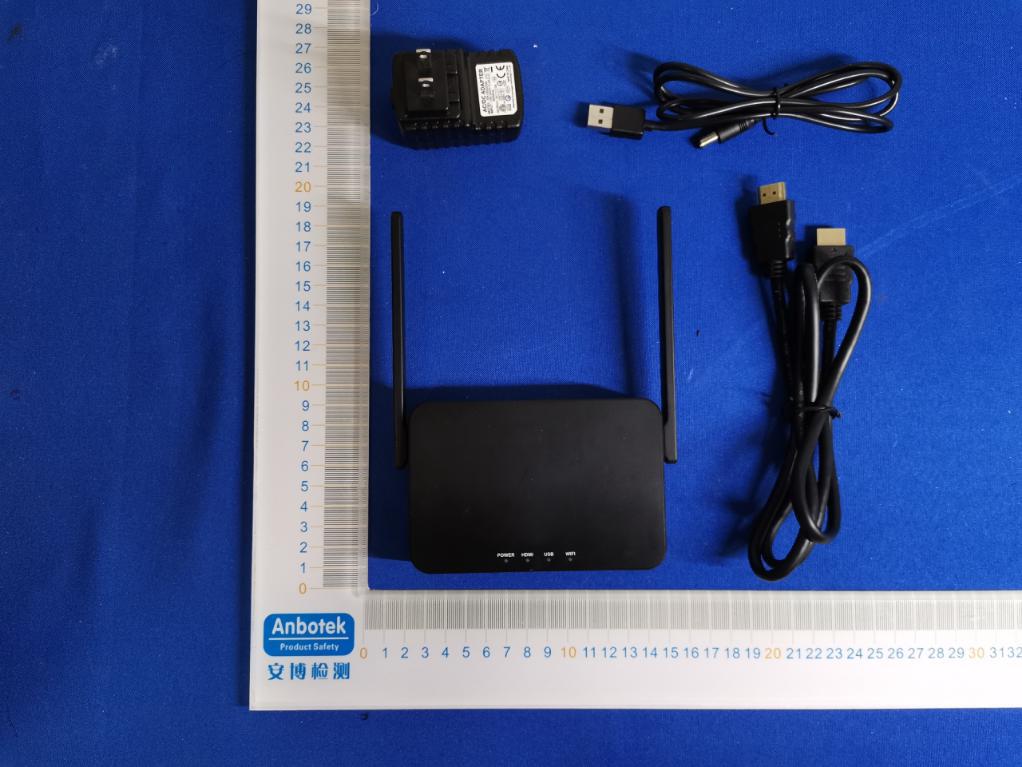

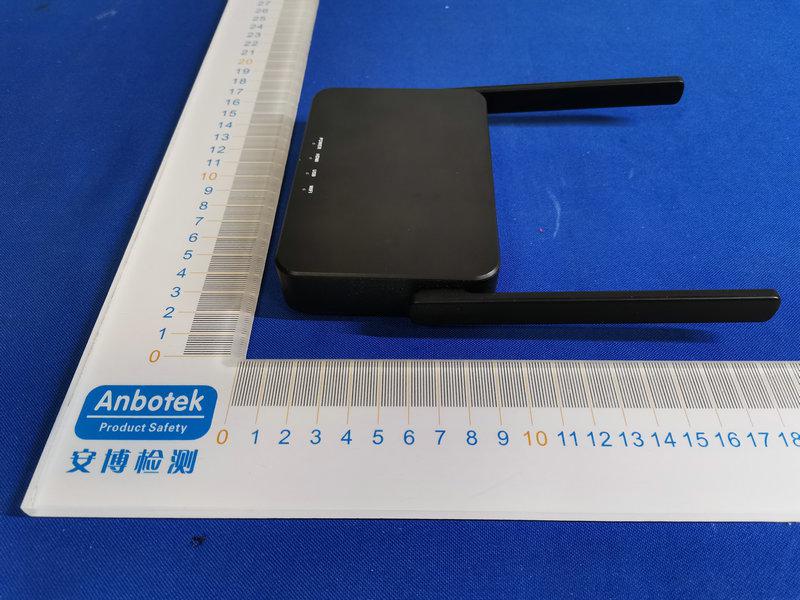

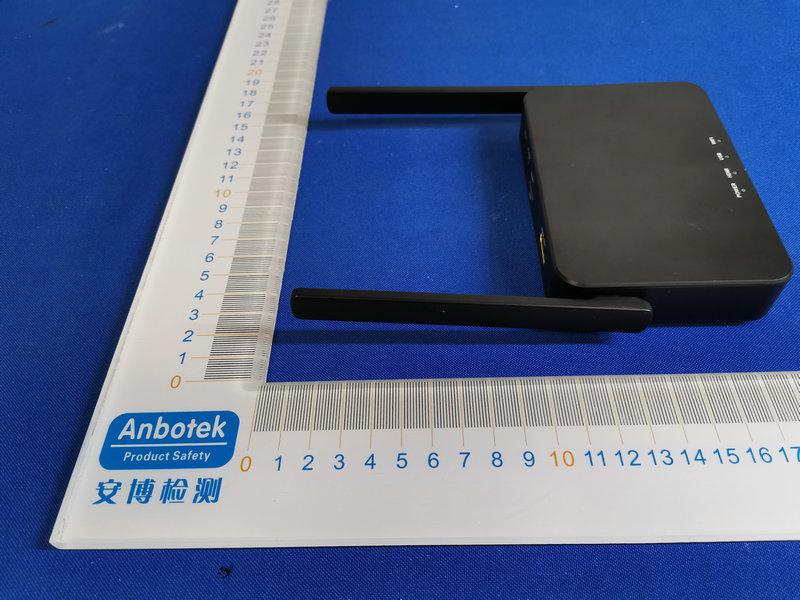

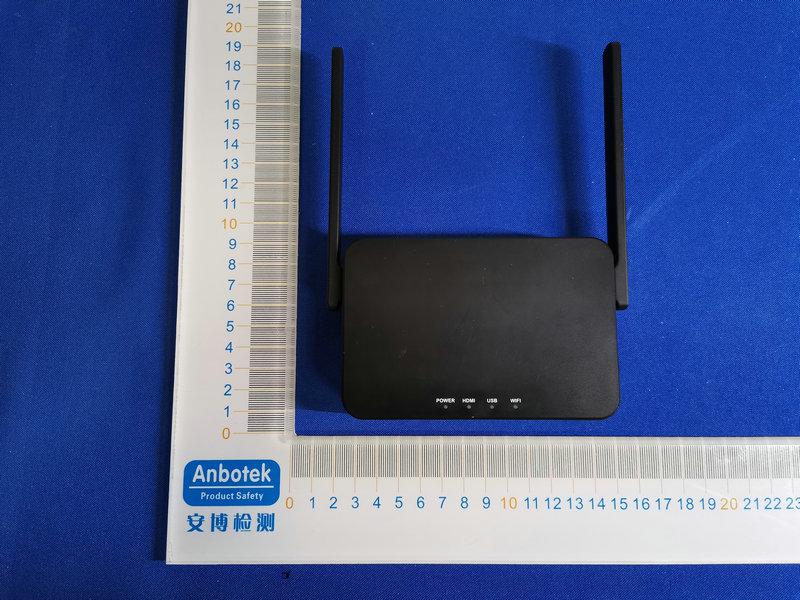

External Photos

FCCID:2ADFS-LR01

ID Label/Location Info

LabelLocationOnEUT Label ProductName:QuattroPod ModelNo.:LR01 FCCID:2ADFS-LR01 ThisdevicecomplieswithPart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.

Internal Photos

FCCID:2ADFS-LR01 ANTAANTB

Operational Description

Winner Wave Limited Declaration concerning Antenna Specification It is hereby declared that the product Model No.: LR01 FCC ID: 2ADFS-LR01 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: Antenna A: Model No. of antenna: LR01 Type of antenna: Columnar Antenna Gain of the antenna: 2.78 dBi Frequency range: 5180MHz~5240MHz(5.1G) Gain of the antenna: 2.83 dBi Frequency range: 5745MHz~5825MHz(5.8G) Antenna B: Model No. of antenna: LR01 Type of antenna: Columnar Antenna Gain of the antenna: 2.78 dBi Frequency range: 5180MHz~5240MHz(5.1G) Gain of the antenna: 2.83 dBi Frequency range: 5745MHz~5825MHz(5.8G) The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Winner Wave Limited Address: 4F-5, No.736, Jhongjheng Road, Jhonghe Dist., New Taipei City, Taiwan City: Taipei ZIP / Postal code: N/A Country: China Place: China Date: 2020-06-08 Signature: version01

RF Exposure Info

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2ADFS-LR01 EUT Specification EUTQuattroPod Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.24GHz WLAN: 5.745GHz ~ 5.825GHz Others: 2.402GHz~2.480GHz (BLE) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classificationOccupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversitySingle antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power5.1GHz WIFI: 15.55dBm (0.0359W) 5.8GHz WIFI: 15.48dBm (0.0353W) Antenna gain (Max)WiFi 5.1G: 2.78dBi WiFi 5.8G: 2.83dBi Evaluation appliedMPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500----F/3006 1500-100000----56 (B) Limits for General Population/Uncontrol Exposures 300-1500----F/15006 1500-100000----130 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result 5.1GHz &5.8GHz WiFi: ANT A: Operating Mode Channel Frequency Measured Power Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (mW/cm2 ) (MHz)(dBm)(dBm)(dBm)(dBi)(mW/ cm2 ) 802.11a 518011.1811.18±112.182.780.00621 520011.5311.53 ± 112.532.780.00681 524011.6711.67 ± 112.672.780.00701 802.11n20 518010.8710.87±111.872.780.00581 520011.4311.43 ± 112.432.780.00661 524011.9911.99 ± 112.992.780.00751 802.11ac20 518011.1411.14±112.142.780.00621 520011.7111.71 ± 112.712.780.00701 524012.5612.56 ± 113.562.780.00861 802.11n40 519012.8912.89±113.892.780.00921 523012.6312.63 ± 113.632.780.00871 802.11ac40 519012.1012.10 ± 113.102.780.00771 523012.3612.36±113.362.780.00821 802.11ac80 521011.9011.90 ± 112.902.780.00741 802.11a 574512.1412.14 ± 113.142.830.00791 578511.8611.86±112.862.830.00741 582511.5911.59 ± 112.592.830.00691 802.11n20 574512.6112.61 ± 113.612.830.00881 578512.3512.35±113.352.830.00831 582511.9911.99 ± 112.992.830.00761 802.11ac20 574512.5312.53 ± 113.532.830.00861 578512.2112.21±113.212.830.00801 582511.9811.98 ± 112.982.830.00761 802.11n40 575512.3812.38 ± 113.382.830.00831 579511.9711.97±112.972.830.00761 802.11ac40 575512.3412.34 ± 113.342.830.00821 579512.3412.34 ± 113.342.830.00821 802.11ac80 577511.8411.84±112.842.830.00731 5.1GHz &5.8GHz WiFi: ANT B: Operating Mode Channel Frequency Measured Power Tune up tolerance Max. Tune up Power Antenna Gain Power density at 20cm Power density Limits (mW/cm2 ) (MHz)(dBm)(dBm)(dBm)(dBi)(mW/ cm2 ) 802.11a 518011.0511.05±112.052.780.00601 520011.2911.29 ± 112.292.780.00641 524011.7211.72 ± 112.722.780.00711 802.11n20 518011.3811.38±112.382.780.00651 520011.9411.94 ± 112.942.780.00741 524012.3412.34 ± 113.342.780.00811 802.11ac20 518011.3611.36±112.362.780.00651 520011.9511.95 ± 112.952.780.00741 524012.3512.35 ± 113.352.780.00821 802.11n40 519011.7211.72±112.722.780.00711 523012.4512.45 ± 113.452.780.00841 802.11ac40 519011.9911.99 ± 112.992.780.00751 523011.9811.98±112.982.780.00751 802.11ac80 521011.8511.85 ± 112.852.780.00731 802.11a 574512.1012.10 ± 113.102.830.00781 578511.5811.58±112.582.830.00691 582511.3611.36 ± 112.362.830.00661 802.11n20 574512.3212.32 ± 113.322.830.00821 578512.2012.20±113.202.830.00801 582512.2112.21 ± 113.212.830.00801 802.11ac20 574512.1812.18 ± 113.182.830.00791 578512.2312.23±113.232.830.00801 582511.9111.91 ± 112.912.830.00751 802.11n40 575512.2112.21 ± 113.212.830.00801 579511.9811.98±112.982.830.00761 802.11ac40 575512.5512.55 ± 113.552.830.00861 579512.5812.58 ± 113.582.830.00871 802.11ac80 577512.4012.40±113.402.830.00841 ANT A+ANT B: 5.1GHz WiFi 5.8GHz WiFi: Note: 5.1G WiFi +5.8G WiFi simultaneous ( worst case ): 0.0092(802.11n40)+0.0087(802.11ac40)=0.0179 < 1 Operating Mode Channel Frequency ANT A Power density at 20cm ANT B Power density at 20cm ANT A+ANT B Power density at 20cm Power density Limits (MHz)(mW/ cm2 )(mW/ cm2 )(mW/ cm2 )(mW/cm2 ) 802.11n20 51800.00580.00650.01231 52000.00660.00740.01401 52400.00750.00810.01561 802.11ac20 51800.00620.00650.01271 52000.00700.00740.01441 52400.00860.00820.01681 802.11n40 51900.00920.00710.01631 52300.00870.00840.01711 802.11ac40 51900.00770.00750.01521 52300.00820.00750.01571 802.11ac80 52100.00740.00730.01471 Operating Mode Channel Frequency ANT A Power density at 20cm ANT B Power density at 20cm ANT A+ANT B Power density at 20cm Power density Limits (MHz)(mW/ cm2 )(mW/ cm2 )(mW/ cm2 )(mW/cm2 ) 802.11n20 57450.00880.00820.01701 57850.00830.00800.01631 58250.00760.00800.01561 802.11ac20 57450.00860.00790.01651 57850.00800.00800.01601 58250.00760.00750.01511 802.11n40 57550.00830.00800.01631 57950.00760.00760.01521 802.11ac40 57550.00820.00860.01681 57950.00820.00870.01691 802.11ac80 57750.00730.00840.01571

Test Report

Report No.: 18220WC00038901FCC ID: 2ADFS-LR01Page 1 of 117 Code:AB-RF-05-a FCC Test Report Client Name: Winner Wave Limited Address: 4F-5, No.736, Jhongjheng Road, Jhonghe Dist., New Taipei City, Taiwan, R.O.C. Product Name: QuattroPod Date: Jun. 08 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00038901FCC ID: 2ADFS-LR01Page 2 of 117 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 6 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 7 1.6. Description Of Test Setup ......................................................................................................................... 8 1.7. Test Equipment List .................................................................................................................................... 9 1.8. Measurement Uncertainty ....................................................................................................................... 10 1.9. Description of Test Facility ...................................................................................................................... 10 2. Summary of Test Results ................................................................................................................................... 11 3. Conducted Emission Test ................................................................................................................................... 12 3.1. Test Standard and Limit .......................................................................................................................... 12 3.2. Test Setup .................................................................................................................................................. 12 3.3. Test Procedure .......................................................................................................................................... 12 3.4. Test Data .................................................................................................................................................... 12 4. Radiation Spurious Emission and Band Edge ................................................................................................ 17 4.1. Test Standard and Limit .......................................................................................................................... 17 4.2. Test Setup .................................................................................................................................................. 17 4.3. Test Procedure .......................................................................................................................................... 18 4.4. Test Data .................................................................................................................................................... 19 5. Maximum Peak Output Power Test .................................................................................................................. 54 5.1. Test Standard and Limit .......................................................................................................................... 54 5.2. Test Setup .................................................................................................................................................. 54 5.3. Test Procedure .......................................................................................................................................... 54 5.4. Test Data .................................................................................................................................................... 54 6. Occupy Bandwidth Test ...................................................................................................................................... 58 6.1. Test Standard ............................................................................................................................................ 58 6.2. Test Setup .................................................................................................................................................. 58 6.3. Test Procedure .......................................................................................................................................... 58 6.4. Test Data .................................................................................................................................................... 58 7. Power Spectral Density Test .............................................................................................................................. 89 7.1. Test Standard and Limit .......................................................................................................................... 89 7.2. Test Setup .................................................................................................................................................. 89 7.3. Test Procedure .......................................................................................................................................... 89 7.4. Test…

Text truncated - open the document above for the full version.

Test Report

Report No.: 18220WC00038902FCC ID: 2ADFS-LR01Page 1 of 102 Code:AB-RF-05-a FCC Test Report Client Name: Winner Wave Limited Address: 4F-5, No.736, Jhongjheng Road, Jhonghe Dist., New Taipei City, Taiwan, R.O.C. Product Name: QuattroPod Date: Jun. 08 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00038902FCC ID: 2ADFS-LR01Page 2 of 102 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 4 1.1. Client Information ....................................................................................................................................... 4 1.2. Description of Device (EUT) ..................................................................................................................... 4 1.3. Auxiliary Equipment Used During Test ................................................................................................... 5 1.4. Description of Test Modes ........................................................................................................................ 5 1.5. List of channels ........................................................................................................................................... 6 1.6. Description Of Test Setup ......................................................................................................................... 7 1.7. Test Equipment List .................................................................................................................................... 8 1.8. Measurement Uncertainty ......................................................................................................................... 9 1.9. Description of Test Facility ........................................................................................................................ 9 2. Summary of Test Results ................................................................................................................................... 10 3. Conducted Emission Test ................................................................................................................................... 11 3.1. Test Standard and Limit .......................................................................................................................... 11 3.2. Test Setup .................................................................................................................................................. 11 3.3. Test Procedure .......................................................................................................................................... 11 3.4. Test Data .................................................................................................................................................... 11 4. Radiation Spurious Emission and Band Edge ................................................................................................ 16 4.1. Test Standard and Limit .......................................................................................................................... 16 4.2. Test Setup .................................................................................................................................................. 16 4.3. Test Procedure .......................................................................................................................................... 17 4.4. Test Data .................................................................................................................................................... 18 5. Maximum Peak Output Power Test .................................................................................................................. 47 5.1. Test Standard and Limit .......................................................................................................................... 47 5.2. Test Setup .................................................................................................................................................. 47 5.3. Test Procedure .......................................................................................................................................... 47 5.4. Test Data .................................................................................................................................................... 47 6. Occupy Bandwidth Test ...................................................................................................................................... 51 6.1. Test Standard ............................................................................................................................................ 51 6.2. Test Setup .................................................................................................................................................. 51 6.3. Test Procedure .......................................................................................................................................... 51 6.4. Test Data .................................................................................................................................................... 51 7. Power Spectral Density Test .............................................................................................................................. 82 7.1. Test Standard and Limit .......................................................................................................................... 82 7.2. Test Setup .................................................................................................................................................. 82 7.3. Test Procedure .......................................................................................................................................... 82 7.4. Te…

Text truncated - open the document above for the full version.

Test Setup Photos

FCCID:2ADFS-LR01 PhotoofPowerLineConductedEmissionTest PhotoofRadiationEmissionTest
