2ADI6-41-3200APP Controlled LED Lantern

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip- ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Avertissement: Toute modification ou tout changement apporté à cet appareil et qui n’est pas expressément approuvé par les entités responsables de la conformité pourraient entraîner la révocation de l’autorisation d’utiliser l’équipement. REMARQUE: Cet équipement a été testé et respecte les limites des dispositifs numériques de Classe B, en vertu de la Partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences dangereuses dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de l’énergie radio électrique s’il n’est pas installé et utilisé en accord avec les instructions; il peut également générer des interférences néfastes pour les communications radio. Cependant, il n’existe aucune garantie qu’aucune interférence ne sera produite dans une installation particulière. Si cet équipement cause une interférence néfaste à la réception des ondes radio ou télévisuelles, ce qui peut être vérifié en allumant et en éteignant l’équipement, nous suggérons à l’utilisateur de tenter de corriger le problème d’interférence à l’aide d’une ou de plusieurs des mesures suivantes: • Changer l’orientation de l’antenne de réception ou la déplacer. • Augmenter l’espace entre l’équipement et le récepteur. • Brancher l’équipement à une autre prise sur un circuit distinct de celui sur lequel le récepteur est branché. • Consulter le détaillant ou un technicien expérimenté en radio/TV pour obtenir de l’aide. 345678910 Press on the time and set it to the desired hour you want the lantern to shut off. Then move the slider over to show green. The timer has now been set. If you wish to operate the lantern from another phone, you will need to disconnect the lantern from the current phone. In order to do this you need to press the disconnect icon featured at the top right of the APP page. 13. Si vous souhaitez faire fonctionner la lanterne de un autre téléphone , vous devez déconnecter la lanterne du courant téléphone. Pour ce faire, vous devez appuyez sur l'icône de déconnexion vedette à en haut à droite de la page APP . 13.

Date: 2 Jan, 2015 To whom it may concern: We the undersigned, hereby authorize CMA Industrial Development Foundation Limited (Andrew Wong) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to those matters. Any and all acts carried out by authorize CMA Industrial Development Foundation Limited on our behalf shall have the same affect as acts of our own. Sincerely, Name: SPENCER YEUNG Title ACCOUNT MANAGER Company Name Dorcy International (H.K.) Ltd .

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ADI6-41-3200. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram 2ADI6-41-3200 Blk.pdf Operational Description 2ADI6-41-3200 OpDes.pdf Schematics 2ADI6-41-3200 Schem.pdf PCB Layout 2ADI6-41-3200 PCB.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, DORCY INTERNATIONAL (HK) LTD ------------------------------- SPENCER YEUNG ACCOUNT MANAGER

FCC ID: 2ADI6-41-3200 POWER OF ATTORNEY 2 Jan, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize CMA Industrial Development Foundations Limited (Andrew Wong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by CMA Industrial Development Foundation Limited (Andrew Wong) on our behalf shall have the same effect as acts of our own. This authorization expires one year from original date. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (Dorcy International (HK) Ltd ), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Dorcy International (HK) Ltd ------------------------------- SPENCER YEUNG ACCOUNT MANAGER

Label Sample

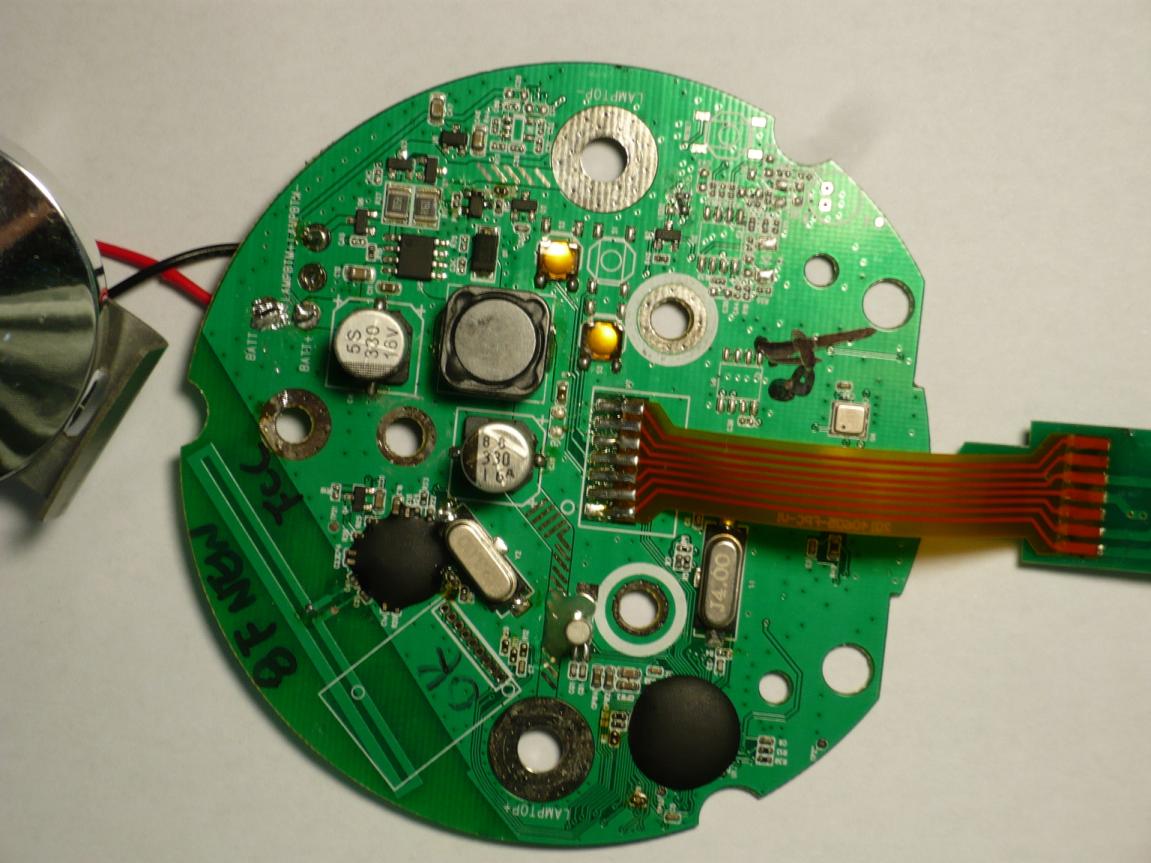

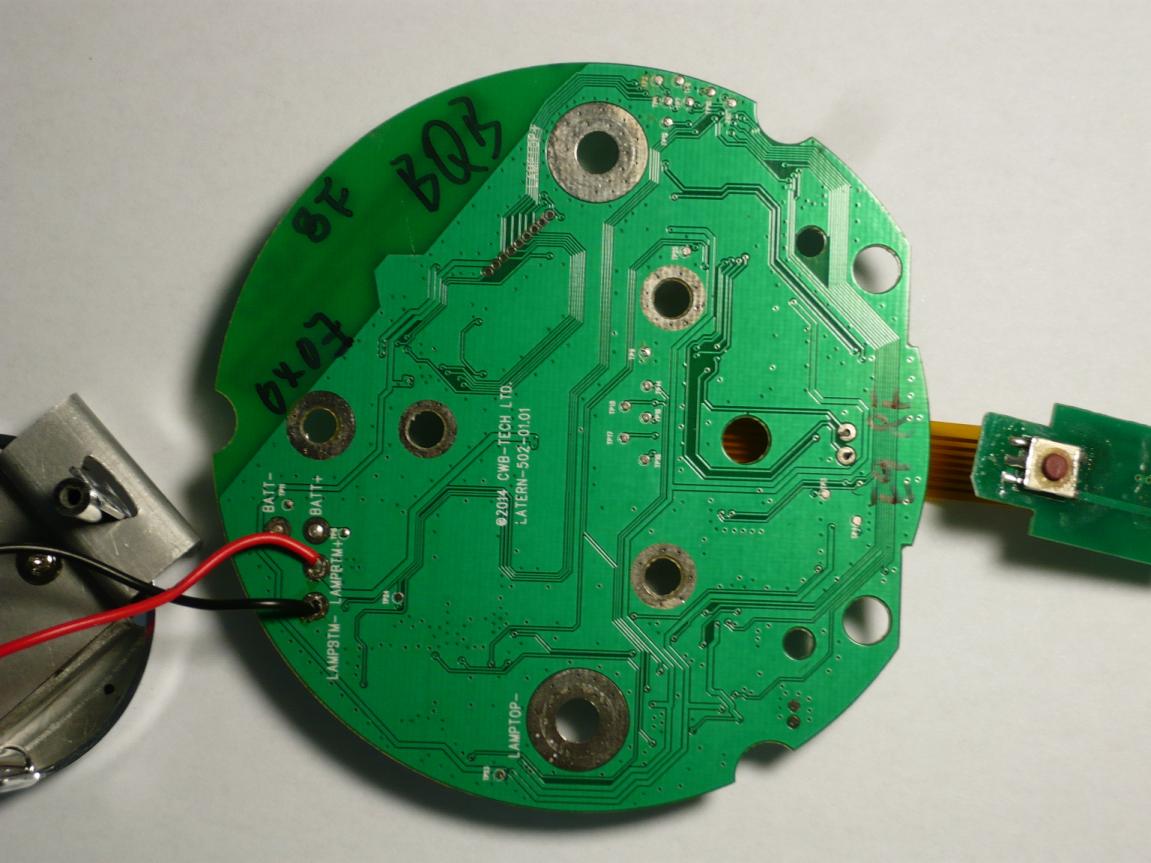

Internal Photo

TEST REPORT Report No. : AT0003659(1) Date : 16 Jan 2015 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 27 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: 2ADI6 -41-3200 Application No. : LS038639(7) Applicant : Dorcy International (HK) Ltd 21/F Excel Centre 483A Castle Peak Road, Cheung Sha Wan, Hong Kong Client : Tung Fat Industries Ltd 21/F Excel Centre 483A Castle Peak Road, Cheung Sha Wan, Hong Kong Sample Description : One(1) item of submitted sample stated to be APP Controlled LED Lantern of Model No. 41-3200 Sample registration No. : RS043388-001, RS052000-001 Radio Frequency : 2402MHz – 2480 MHz Transceiver Rating : 6 x 1.5V D size batteries No. of submitted sample : One (1) piece (s) Date Received : 17 Oct 2014, 01 Dec 2014 Test Period : 22 Oct 2014 to 15 Dec 2014. Test Requested : FCC 47CFR Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-12 Edition) ANSI C63.4 – 2009 Test Result : See attached sheet(s) from page 2 to 27. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AT0003659(1) Date : 16 Jan 2015 Page 2 of 27 FCC ID: 2ADI6 -41-3200 Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 6 2 Description of the radiated emission test ................................................................................................... 7 2.1 Test Procedure .................................................................................................................................... 7 2.2 Test Result .......................................................................................................................................... 8 2.3 Radiated Emission Measurement Data ............................................................................................... 9 3 Description of the Line-conducted Test ................................................................................................... 11 3.1 Test Procedure .................................................................................................................................. 11 3.2 Test Result ........................................................................................................................................ 11 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 11 4 Photograph ............................................................................................................................................... 12 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 12 4.2 Photographs of the External and Internal Configurations of the EUT .............................................. 12 5 Supplementary document ......................................................................................................................... 13 5.1 Bandwidth ......................................................................................................................................... 13 5.2 Duty cycle ......................................................................................................................................... 13 5.3 Transmission time ............................................................................................................................. 13 5.4 Power Spectral Density ..................................................................................................................... 13 5.5 Average on time ................................................................................................................................ 13 6 Appendices ............................................................................................................................................... 14 TEST REPORT Report No. : AT0003659(1) Date : 16 Jan 2015 Page 3 of 27 FCC ID: 2ADI6 -41-3200 1 General Information 1.1 General Description The equipment under test (EUT) is a transceiver for App Controlled LED Lantern. The EUT is power by 6 x 1.5V D size batteries. It operates at 2402MHz – 2480MHz. There is button to turn on the LED light. The button can also use to pair other wireless device for the lantern control. The brief circuit description is listed as follows: - U1 and its associated circuit act as MCU - U9 and its associated circuit act as flash memory - U6 and its associated circuit act as RF module - Y2, Y3 and its associated circuit act as oscillator - U3 and its associated circuit act as LED driver - U5, U8 and its associated circuit act as power regulator - R41 and its associated circuit act as humidity sensor - R42 and its associated circuit act as thermistor - S1, S2, S3, Q2, LED2 and its associated circuit act as key and indicator TEST REPORT Report No. : AT0003659(1) Date : 16 Jan 2015 Page 4 of 27 FCC ID: 2ADI6 -41-3200 1.2 Location of the test site FCC Registered Test Site Number: 552221 Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Sh…

Text truncated - open the document above for the full version.

Test Setup Photo Front view (30MHz – 1GHz) Rear view (30MHz – 1GHz) Front view (9kHz – 30MHz) Rear view (9kHz – 30MHz) Front view (1GHz – 25GHz) Rear view (1GHz – 25GHz)
