2ADII-L8Phone screen magnifier

Key Function 1.Hold down the for 3seconds to enter Bluetooth mode. 2.Wait for 'L2-L8' to appear on your Bl uetooth device list, click it to pai r wit h your cellphone. 3.Short press Last song, Hold down the for 3seconds Volume down. 4.Short press Next song,Ho ld down the for 3seconds Vol um e up. 5. When in coming call s ri ng,short press answer in c oming cal ls,speaker through the built-in mic.The cal ler ’ s voice w il l come through the speaker. Music pauses during the call and plays again at the end of the c all. 6. Only can recharge mobil e phone through USB 2.0 port when supplying power by Mi cro USB cable on front panel. pairing Instructions for use Two charging methods: 1. It can be charged directly with an Micro-USB charging cable. 2. Install a 18650 rechargeable battery, use it directly. The Phone Screen Magnifier (With Bluetooth Speaker), enjoy a high definition stereo sound with an impressive volume whether you watch TV or listen to music. The can keep avoid scratching of the screen Lens protection platethe magnifier clean . If you have any questions about this product, please contact us in time, we will promptly answer you. Thank you. Volume-/Last Charging interface Volume+/Next Answer the call Switch/Music play / Pause Recharge the phone Lens protection plate Paste your favorite photo Silicone Sucker Speaker Battery cover Microphone Android USB Rechargeable Lithium Battery (18650) Mega bass Bluetooth speaker Handsfree Mobile Screen Magnifier Thank you for purchasing our product. In order to get the most out of your new Phone screen Magnifier (With Bluetooth Speaker) ,we kindly invite you to read these instructions prior to use. Model:L8 (With Bluetooth Speaker) 为了充分利用您的新手机屏幕放大镜（带蓝牙扬声器),我们诚挚邀请 您在使用前阅读这些说明. 感谢您购买我们的产品。 按键功能 硅胶吸盘 扬声器 音量+/下一曲 音量-/上一曲 接听电话 咪头 开关/播放/暂停 充电接口 粘贴你最喜欢的照片 镜片保护板 手机充电接口 电池壳 Product Parameters 产品参数 Product name : 产品名称 Phone screen magnifier(With Bluetooth Speaker)手机 屏幕放大器(带蓝牙音响) Item No.:L8 型号:L8 Bluetooth Name:L2-L8 蓝牙名称:L2-L8 Material:High Definition Acrylic Lens+ABS Frame材 质：高清亚克力镜片+ABS壳料 Size:19x17x3.1cm 产品尺寸： 19x17x3.1cm Size of screen:8in 屏幕尺寸： 8英寸 Net weight of product:242g 产品净重:242g Item of battery :18650 电池类型：18650 Charging time:2h-3h 充电时间：2小时-3小时 Suitable for:All mobile phone 适用于：所有手机 使用说明 前面充电口在充电的情况下,方可以通过后面的USB充电口给手机充电 . 来电响铃时,短按 接听来电,扬声器通过内置麦克风.该来电者的声音将通 过扬声器传来,通话过程中音乐暂停,并在通话结束时再次播放. 短按 上一曲,长按住 3秒音量减小. 等待“L2-L8”出现在您的蓝牙设备列表中,.点击它与你的手机配对 按住按键 3秒钟进入蓝牙.配对模式 短按 下一曲,长按住 3秒音量增加. 可以直接用 Micro-USB充电 充电线。 两种充电方式： 安装一节18650可充电电池，直接使用。 手机屏幕放大镜（带蓝牙扬声器） 立体声音效,令人印象深刻. 无论您是看电视还是听音乐,都享受高清 镜头保护板可以保持放大镜清洁避免划伤屏幕。 你可以在镜头保护上粘贴你最喜欢的照片,如相框。 And you can pasted your favorite photo on the Lens protection plate like Photo frame . 如果您对本产品有任何疑问,请及时联系我们,我们会及时回复您.谢谢. 安卓USB 可充电锂电池18650 免提 重低音 蓝牙扬声器 手机屏幕放大器带蓝牙扬声器 说明书 Instruction manual 4 3 7 6 8 1 2 5 10 11 9 4 4 1 1 1 1 2 2 2 2 3 3 10 10 5 11 FCC WARNING STATEMENT Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Model Difference Declaration To Whom It May Concern, We, Shenzhen Kingamei Technology Co., Ltd. Product: Phone screen magnifier Trademark: N/A Model Number: L8, F8, L1, L2, L3, L5, L6, L7, L9, L10, L11, L12, L13, L15, L16, L17, L18, L19, L20, L21, L22, L23, L25, L26, L27, L28, L29, L30 All model’s the function, software and electric circuit are the same, only the colour different. Test sample model: L8 Please contact me if you have any question. Name: Wei Liang Liu Date: Feb. 24, 2020 Title: Project Director Signature of applicant:

Date: Feb. 24, 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADII-L8 Product Name: Phone screen magnifier Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Wei Liang Liu Title: Project Director Company: Shenzhen Kingamei Technology Co., Ltd.

Date: Feb. 24, 2020 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen CTB Testing Technology Co., Ltd. Add: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Shenzhen Kingamei Technology Co., Ltd. Add: 3rd Floor, Building No. 2, Shunchengji Industrial Park, Langkou Community, Dalang Sub- District, Longhua New District, Shenzhen, Guangdong China <Signature> Name: Wei Liang Liu Title: Project Director Company: Shenzhen Kingamei Technology Co., Ltd.

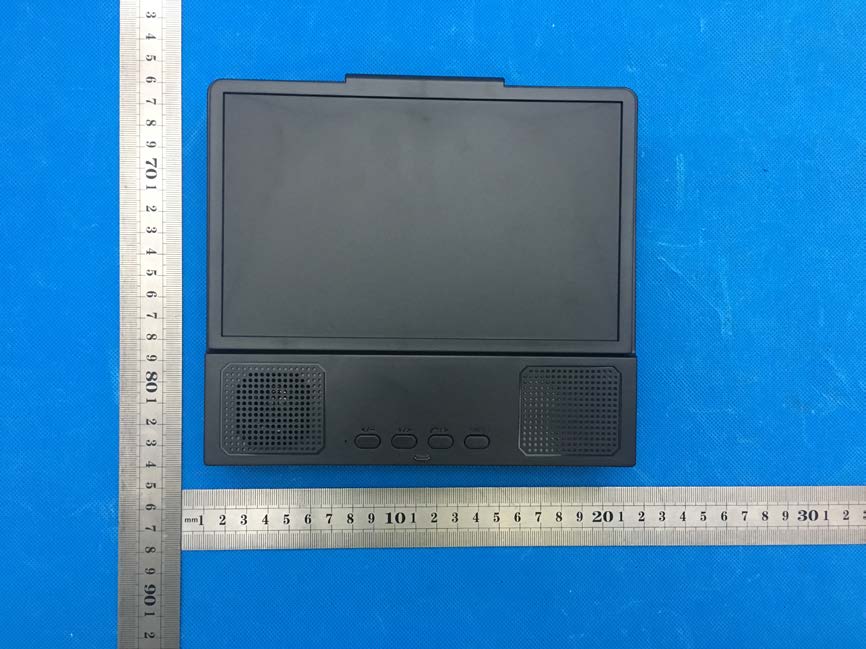

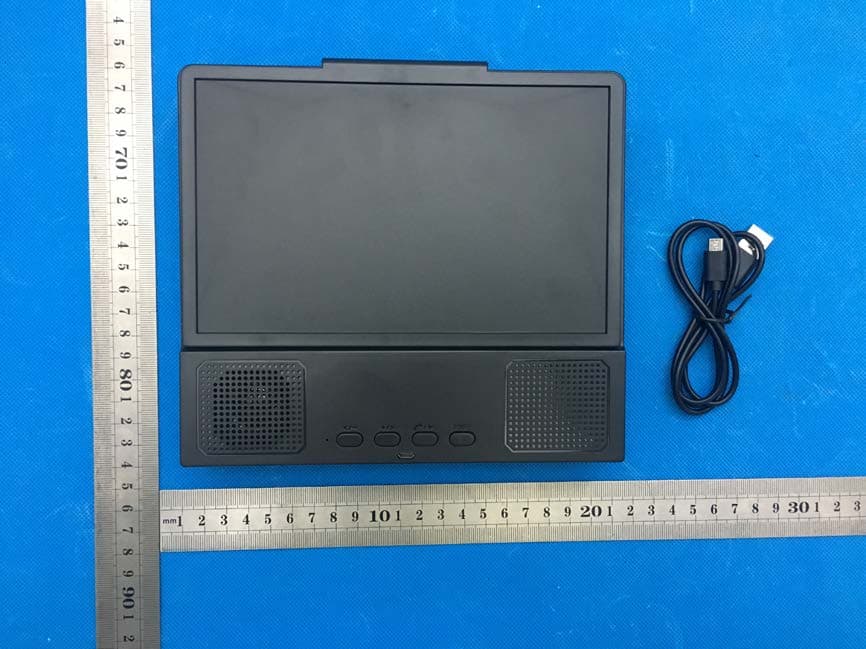

M/N: L8 M/N: L8 M/N: L8 M/N: L8

FCC ID LABEL: Label Location: FCC ID: 2ADII-L8 Product name: Phone screen magnifier Model No.: L8 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Long:3cm Width:2cm

M/N: L8 M/N: L8 Internal A N T. M/N: L8

RF EXPOSURE EVALUATION 1. Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1- g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 2. Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] .[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 3. Test Result The max conducted power including tune-up tolerance is 5.161dBm(3.282mW). [(max.power of channel, mw)/(min. test separation distance, mm)][ √f(GHz)] =3.282/5*(√2.441)=1.0<3.0 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTS202001000048F01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 47 1 Cover Page TEST Report (Bluetooth) Applicant: Shenzhen Kingamei Technology Co., Ltd. Address of Applicant: 3rd Floor, Building No. 2, Shunchengji Industrial Park, Langkou Community, Dalang Sub-District, Longhua New District, Shenzhen, Guangdong China Manufacturer/Factory: Shenzhen Kingamei Technology Co., Ltd. Address of Manufacturer/Factory: 3rd Floor, Building No. 2, Shunchengji Industrial Park, Langkou Community, Dalang Sub-District, Longhua New District, Shenzhen, Guangdong China Equipment Under Test (EUT) Product Name: Phone screen magnifier Model No.: L8, F8, L1, L2, L3, L5, L6, L7, L9, L10, L11, L12, L13, L15, L16, L17, L18, L19, L20, L21, L22, L23, L25, L26, L27, L28, L29, L30 Trade Mark: N/A FCC ID: 2ADII-L8 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Jan. 02, 2020 Date of Test: Jan. 02, 2020 Jan. 09, 2020 Date of report issued: Jan 09, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202001000048F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 47 2 Version Version No. Date Description 00 Jan. 09, 2020 Original Prepared By: Date: Jan. 09, 2020 Project Engineer Check By: Date: Jan. 09, 2020 Reviewer Report No.: GTS202001000048F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 47 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 TEST FACILITY .................................................................................................................................... 7 5.4 TEST LOCATION .................................................................................................................................. 7 5.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 5.6 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.7 ADDITIONAL INSTRUCTIONS ................................................................................................................. 8 6 TEST INSTRUMENTS LIST ..................................................................................................................... 9 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 11 7.1 ANTENNA REQUIREMENT ................................................................................................................... 11 7.2 CONDUCTED EMISSIONS ................................................................................................................... 12 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 15 7.4 20DB EMISSION BANDWIDTH ............................................................................................................. 19 7.5 CARRIER FREQUENCIES SEPARATION ................................................................................................ 23 7.6 HOPPING CHANNEL NUMBER ............................................................................................................. 27 7.7 DWELL TIME ..................................................................................................................................... 28 7.8 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................... 30 7.9 BAND EDGE ...................................................................................................................................... 31 7.9.1 Conducted Emission Method ..................................................................................................... 31 7.9.2 Radiated Emission Method ........................................................................................................ 35 7.10 SPURIOUS EMISSION ......................................................................................................................... 37 7.10.1 Conducted Emission Method .....................................…

Text truncated - open the document above for the full version.

M/N: L8 Radiated Emission test M/N: L8 Conducted Emission test
