2ADIOP103TSleep Tracker

90*160mm 32 User Manual Sleep Tracker P103T Operation guide Device Description Pillow Front View LED Indicator USB-connection for charging cable Power Button Cable Connector Controller Box Contents: 1 *Smart Pillow 1 *USB charging cable 1 *User Manual Product introduction Step 2: Connect smart pillow to APP. P200 is used to track your sleep data including heart rate, respiratory rate, turning over, sleep cycle etc and provides a comprehensive sleep analysis and sleep advice to help improve your sleep quality. Step 1: Download the' SleeNote' APP and register an account. 1Fully charge the controller until green LED indicator is ON. 2Plug the cable in the controller. 3Power on the controller by pressing the power button for 3 seconds. Connect the smart pillow with the app and start monitoring. 4Put the controller into the side pocket. Make sure the controller and your smart phone are switched on and Bluetooth is activated on your smart phone. Follow the instructions given by the app to connect the device. Step 3: Start Sleep monitoring. Click'Start Sleep' in the homepage of APP to start sleep monitoring. During short interruptions of sleep (e.g. going to the bathroom) the device keeps on recording. If longer interruptions (more than 60 minutes) occur, the pillow will stop monitoring and switch itself off. You may have to re-activate it. Step 4: Read Sleep report. Click ' Get Up' to stop sleep monitoring after awakening, the recorded data will automatically be transferred to the app and the app offers comprehensive sleep report including heart rate, respiratory rate, sleep time and sleep cycle; analyzes your sleep quality and offer personal sleep guidance. If not clicking 'Get Up',the pillow will stop monitoring automatically after 60 minutes of leaving bed. Connect the app with the pillow again to sync the sleep data for sleep report. 1.You can check your real-time data on the homepage of the App. 2.Sleep for one night, and check the report on the homepage of the App after getting up the next day. If you want to check the report in time, click "Sync" to get the report. Sleep monitoring Sleep on backSleep on side 241356 Warranty Please contact your dealers for warranty service. For more information about the product, warranty or service, please go to www.sleepace.com. Pillow size600*320*110 mm Controller size125 *40 *12 mm Controller weight50g Communication modeBluetooth 4.2 Bluetooth Transmission range max. 10 meters Battery Re-chargeabl Lithium-ion-battery3.7V, 900mAH. (Charging current 5.0V 1A) Battery lifeAbout 20 days Compatibility Bluetooth 4.0 and up, iOS 10.0 or later, Android 8.0 or later LED Indicator Status Display Power On （Press the Power button for 3 seconds） Power Off （Press the Power button for 3 seconds） Green LED indicator is ON for 5 seconds Red LED indicator is ON for one second Low battery Red LED indicator fleshes every two seconds, please charge the device immediately Charging deviceRed LED indicator stays ON Charging completeGreen LED indicator stays ON V1.0 20230317 说明书 在《P201-6英文说明书V1.1_20230316》基础上建立V1.0。冰小月 变更记录 产品部件 版本号变更人日期 文件名称 P103T英文说明书V1.0_20230317 Shenzhen Medica Technology Development Co., Ltd. www.sleepace.com Add: 12F, Building A, Block 7, Vanke Cloud City, Xingke 1st Street, Nanshan District, Shenzhen, China. ©2015 Shenzhen Medica Technology Development Co.,Ltd. All rights reserved. Sleepace™ is a registered trademark of Shenzhen Medica Technology Development Co.,Ltd. in the U.S. and other countries. All other trademarks included herein are the property of their respective owners. V1.0 Technical Specifications Do not touch the metal end of the power adapter when it is plugged into a power socket. Please do not use this device in place where the use of wireless devices is expressly prohibited, otherwise it will interfere with other electronic devices or cause other dangers. In line with the principle of continuous improvement and sustainable development, the Company reserves the right to modify and improve the products described in the document without prior notice. In the process of using this product, you must strictly abide by and implement the requirements including but not limited to the user manual, disclaimer, important instructions and safety precautions. For all personal injuries, accidents, property or other losses and related legal disputes caused by any violation of this product manual and safety instructions or force majeure, the user shall bear the relevant responsibilities and losses. The content of this manual is protected by copyright laws and regulations. Without the written permission of the company, it is strictly prohibited to copy, transfer, Please do not overbend the monitor. The monitor has a built-in sensor, excessive bending may damage the sensor. Don’t use the product while charging, which may shorten its service life. Pillow case: washable Pillow inner: unwashable This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Please keep in mind that this device is neither a medical device nor a device to prevent sudden death. Users should not completely rely on it and neglect the monitored person. For users with pre-existing conditions, family members should check the condition of the monitored person personally from time to time. This sleep monitoring device is not suitable for …

Text truncated - open the document above for the full version.

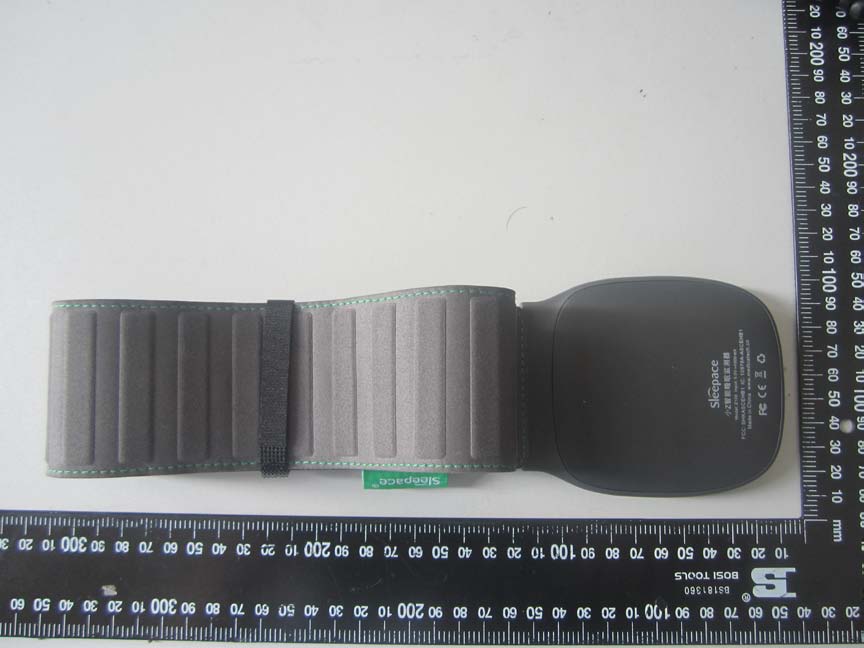

ReportNo.:EED32P80442301Page 34 of 41 10PHOTOGRAPHSOFEUTConstructionalDetails ViewofProduct-1 ViewofProduct-2 ReportNo.:EED32P80442301Page 35 of 41 ViewofProduct-3 ViewofProduct-4 ReportNo.:EED32P80442301Page 36 of 41 ViewofProduct-5 ViewofProduct-6 ReportNo.:EED32P80442301Page 37 of 41 ViewofProduct-7 ViewofProduct-8

Model：P103T Input：5V 1A Manufacturer: ShenZhen Medica Technology Development Co.,Ltd. FCC ID：2ADIOP103T Sleep Tracker Label location

ReportNo.:EED32P80442301Page 38 of 41 ViewofProduct-9 ViewofProduct-10 ReportNo.:EED32P80442301Page 39 of 41 ViewofProduct-11 ViewofProduct-12 ReportNo.:EED32P80442301Page 40 of 41 ViewofProduct-13 ViewofProduct-14 ReportNo.:EED32P80442301Page 41 of 41 ViewofProduct-15 ViewofProduct-16 Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthis reportreferonlytothesample(s)tested.WithoutwrittenapprovalofCTI,thisreportcan’tbereproduced exceptinfull. ***EndofReport***

ReportNo.:EED32P80442302Page1of7 1COVERPAGE RFExposureEvaluationReport Product:SleepTracker Trademark:N/A Model/Typereference:P103T,P10XT(XcanbeanyOf 1-9andA-Z) SerialNumber:N/A ReportNumber:EED32P80442302 FCCID:2ADIOP103T DateofIssue:Apr.17,2023 TestStandards: 47CFRPart1.1307 47CFRPart1.1310 47CFRPart2.1091 47CFRPart2.1093 447498D04InterimGeneralRF ExposureGuidancev01 Testresult:PASS Preparedfor: ShenzhenMedicaTechnologyDevelopmentCo.,Ltd Floor12,BlockA,Building7,VankeYuncity,XingKeonestreet, NanShanDistrict,ShenzhenCity. Preparedby : CentreTestingInternationalGroupCo.,Ltd. HongweiIndustrialZone,Bao’an70District, Shenzhen,Guangdong,China TEL:+86-755-33683668 FAX:+86-755-33683385 Compiledby:Reviewedby: MarkChen TomChen Approvedby:Date:Apr.17,2023 AaronMa CheckNo.:8438211222 ReportNo.:EED32P80442302Page2of7 2Version VersionNo.DateDescription 00Apr.17,2023Original ReportNo.:EED32P80442302Page3of7 3Contents Page 1COVERPAGE....................................................................................................................................................................1 2VERSION............................................................................................................................................................................2 3CONTENTS........................................................................................................................................................................3 4GENERALINFORMATION..............................................................................................................................................4 4.1C LIENT I NFORMATION ...................................................................................................................................................4 4.2G ENERAL D ESCRIPTIONOF EUT...................................................................................................................................4 4.3P RODUCT S PECIFICATIONSUBJECTIVETOTHISSTANDARD ...........................................................................................4 4.4T EST L OCATION .............................................................................................................................................................5 4.5D EVIATIONFROM S TANDARDS ......................................................................................................................................5 4.6A BNORMALITIESFROM S TANDARD C ONDITIONS ..........................................................................................................5 4.7O THER I NFORMATION R EQUESTEDBYTHE C USTOMER ................................................................................................5 5SAREVALUATION...........................................................................................................................................................6 5.1RFE XPOSURE C OMPLIANCE R EQUIREMENT .................................................................................................................6 5.1.1Limits....................................................................................................................................................................6 5.1.2TestProcedure....................................................................................................................................................6 5.1.3EUTRFExposureEvaluation..........................................................................................................................7 ReportNo.:EED32P80442302Page4of7 4GeneralInformation 4.1ClientInformation Applicant: ShenzhenMedicaTechnologyDevelopmentCo.,Ltd AddressofApplicant: Floor12,BlockA,Building7,VankeYuncity,XingKeonestreet, NanShanDistrict,ShenzhenCity. Manufacturer: ShenzhenMedicaTechnologyDevelopmentCo.,Ltd AddressofManufacturer: Floor12,BlockA,Building7,VankeYuncity,XingKeonestreet, NanShanDistrict,ShenzhenCity. Factory: ShenzhenMedicaTechnologyDevelopmentCo.,Ltd AddressofFactory: Floor12,BlockA,Building7,VankeYuncity,XingKeonestreet, NanShanDistrict,ShenzhenCity. 4.2GeneralDescriptionofEUT ProductName: SleepTracker ModelNo.(EUT): P103T,P10XT(XcanbeanyOf1-9andA-Z) TestModelNo.: P103T TradeMark: N/A 4.3 ProductSpecificationsubjectivetothisstandard FrequencyRange: 2402MHz~2480MHz ModulationType: GFSK TestPowerGrade: Default TestSoftwareofEUT: SYDTEKStudioRelease AntennaType: ChipAntenna AntennaGain: 5.05dBi PowerSupply: BatteryDC3.7V SampleReceivedDate: Mar.31,2023 SampletestedDate: Mar.31,2023toApr.10,2023 CompanyNameandAddressshownonReport,thesample(s)andsampleInformationwas/wereprovided bytheapplicantwhoshouldberesponsiblefortheauthenticitywhichCTIhasn’tverified. ModelNo.:P103T,P10XT(XcanbeanyOf1-9andA-Z) OnlythemodelP103Tistested.Theelectricalcircuitdesign,layout,componentsusedandinternalwiringare identical,onlymodelname,appearanceandcoloraredifferent. ReportNo.:EED32P80442302Page5of7 4.4TestLocation Alltestswereperformedat: CentreTestingInternationalGroupCo.,Ltd BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,China Telephone:+86(0)75533683668Fax:+86(0)75533683385 Notestsweresub-contracted. FCCDesignationNo.:CN1164 4.5DeviationfromStandards None. 4.6AbnormalitiesfromStandardConditions None. 4.7OtherInformationRequestedbytheCustomer None. ReportNo.:EED32P80442302Page6of7 5SAREvaluation 5.1RFExposureComplianceRequirement 5.1.1Limits TheSAR-basedexemptionformulaof§1.1307(b)(3)(i)(B),repeatedhereasFormula(B.2),appliesfor singlefixed,mobile,andportableRFsourceswithavailablemaximumtime-averagedpoweroreffective radiatedpower(ERP),whicheverisgreater,oflessthanorequaltothethresholdPth(mW). Thismethodshallonlybeusedatseparationdistancesfrom0.5cmto40cmandatfrequenciesfrom 0.3GHzto6GHz(inclusive).PthisgivenbyFormula andfisinGHz,distheseparationdistance(cm),andERP20cmisperFormula(B.1). The1mWBlanketExemptionof§1.1307(b)(3)(i)(A)appliesforsinglefixed,mobile,andportableRF sourceswithavailablemaximumtime-a…

Text truncated - open the document above for the full version.

ReportNo.:EED32P80442301Page1of24 Appendix:BluetoothLE ReportNo.:EED32P80442301Page2of24 Contents Contents.....................................................................................................................................................................................................2 DutyCycle..................................................................................................................................................................................................3 MaximumPeakConductedOutputPower..................................................................................................................................................6 -6dBBandwidth..........................................................................................................................................................................................9 OccupiedChannelBandwidth..................................................................................................................................................................12 MaximumPowerSpectralDensityLevel..................................................................................................................................................15 BandEdge................................................................................................................................................................................................18 ConductedRFSpuriousEmission............................................................................................................................................................21 ReportNo.:EED32P80442301Page3of24 DutyCycle ConditionModeFrequency(MHz)AntennaDutyCycle(%)CorrectionFactor(dB)1/T(kHz) NVNTBLE1M2402Ant164.151.932.61 NVNTBLE1M2440Ant164.051.932.61 NVNTBLE1M2480Ant164.051.932.61 ReportNo.:EED32P80442301Page4of24 TestGraphs DutyCycleNVNTBLE1M2402MHzAnt1 DutyCycleNVNTBLE1M2440MHzAnt1 ReportNo.:EED32P80442301Page5of24 DutyCycleNVNTBLE1M2480MHzAnt1 ReportNo.:EED32P80442301Page6of24 MaximumPeakConductedOutputPower ConditionModeFrequency (MHz) AntennaConductedPower (dBm) Limit (dBm) Verdict NVNTBLE1M2402Ant1-2.2630Pass NVNTBLE1M2440Ant1-230Pass NVNTBLE1M2480Ant1-1.6530Pass ReportNo.:EED32P80442301Page7of24 TestGraphs PeakPowerNVNTBLE1M2402MHzAnt1 PeakPowerNVNTBLE1M2440MHzAnt1 ReportNo.:EED32P80442301Page8of24 PeakPowerNVNTBLE1M2480MHzAnt1 ReportNo.:EED32P80442301Page9of24 -6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant10.7330.5Pass NVNTBLE1M2440Ant10.7130.5Pass NVNTBLE1M2480Ant10.7220.5Pass ReportNo.:EED32P80442301Page10of24 TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt1 -6dBBandwidthNVNTBLE1M2440MHzAnt1 ReportNo.:EED32P80442301Page11of24 -6dBBandwidthNVNTBLE1M2480MHzAnt1 ReportNo.:EED32P80442301Page12of24 OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99%OBW(MHz) NVNTBLE1M2402Ant11.095 NVNTBLE1M2440Ant11.094 NVNTBLE1M2480Ant11.094 ReportNo.:EED32P80442301Page13of24 TestGraphs OBWNVNTBLE1M2402MHzAnt1 OBWNVNTBLE1M2440MHzAnt1 ReportNo.:EED32P80442301Page14of24 OBWNVNTBLE1M2480MHzAnt1 ReportNo.:EED32P80442301Page15of24 MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaConductedPSD (dBm/3kHz) DutyFactor (dB) TotalPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTBLE1M2402Ant1-17.120-17.128Pass NVNTBLE1M2440Ant1-17.10-17.18Pass NVNTBLE1M2480Ant1-16.220-16.228Pass ReportNo.:EED32P80442301Page16of24 TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 ReportNo.:EED32P80442301Page17of24 PSDNVNTBLE1M2480MHzAnt1 ReportNo.:EED32P80442301Page18of24 BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-41.75-20Pass NVNTBLE1M2480Ant1-42.25-20Pass ReportNo.:EED32P80442301Page19of24 TestGraphs BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission ReportNo.:EED32P80442301Page20of24 BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission ReportNo.:EED32P80442301Page21of24 ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-45.34-20Pass NVNTBLE1M2440Ant1-45.25-20Pass NVNTBLE1M2480Ant1-44.69-20Pass ReportNo.:EED32P80442301Page22of24 TestGraphs Tx.SpuriousNVNTBLE1M2402MHzAnt1Ref Tx.SpuriousNVNTBLE1M2402MHzAnt1Emission ReportNo.:EED32P80442301Page23of24 Tx.SpuriousNVNTBLE1M2440MHzAnt1Ref Tx.SpuriousNVNTBLE1M2440MHzAnt1Emission ReportNo.:EED32P80442301Page24of24 Tx.SpuriousNVNTBLE1M2480MHzAnt1Ref Tx.SpuriousNVNTBLE1M2480MHzAnt1Emission ***EndofReport***

ReportNo.:EED32P80442301Page1of41 1 COVERPAGE TESTREPORT Product:SleepTracker Trademark:N/A Model/Typereference:P103T,P10XT(XcanbeanyOf 1-9andA-Z) SerialNumber:N/A ReportNumber:EED32P80442301 FCCID: 2ADIOP103T DateofIssue:Apr.17,2023 TestStandards: 47CFRPart15SubpartC Testresult:PASS Preparedfor: ShenzhenMedicaTechnologyDevelopmentCo.,Ltd Floor12,BlockA,Building7,VankeYuncity,XingKeonestreet, NanShanDistrict,ShenzhenCity. Preparedby : CentreTestingInternationalGroupCo.,Ltd. HongweiIndustrialZone,Bao’an70District, Shenzhen,Guangdong,China TEL:+86-755-33683668 FAX:+86-755-33683385 Compiledby:Reviewedby: MarkChen TomChen Approvedby:Date:Apr.17,2023 AaronMa CheckNo.:8438211222 ReportNo.:EED32P80442301Page 2 of 41 2Content 1COVERPAGE.....................................................................................................................................................................1 2CONTENT............................................................................................................................................................................2 3VERSION.............................................................................................................................................................................3 4TESTSUMMARY...............................................................................................................................................................4 5GENERALINFORMATION...............................................................................................................................................5 5.1C LIENT I NFORMATION ....................................................................................................................................................5 5.2G ENERAL D ESCRIPTIONOF EUT.................................................................................................................................5 5.3T EST C ONFIGURATION ..................................................................................................................................................6 5.4T EST E NVIRONMENT .....................................................................................................................................................7 5.5D ESCRIPTIONOF S UPPORT U NITS ...............................................................................................................................7 5.6T EST L OCATION .............................................................................................................................................................7 5.7M EASUREMENT U NCERTAINTY (95% CONFIDENCELEVELS , K =2).............................................................................8 6EQUIPMENTLIST..............................................................................................................................................................9 7TESTRESULTSANDMEASUREMENTDATA.........................................................................................................12 7.1A NTENNA R EQUIREMENT ............................................................................................................................................12 7.2C ONDUCTED E MISSIONS .............................................................................................................................................13 7.3M AXIMUM C ONDUCTED O UTPUT P OWER ..................................................................................................................16 7.4DTSB ANDWIDTH ........................................................................................................................................................17 7.5M AXIMUM P OWER S PECTRAL D ENSITY .....................................................................................................................18 7.6B AND E DGEMEASUREMENTSAND C ONDUCTED S PURIOUS E MISSION ...................................................................19 7.7R ADIATED S PURIOUS E MISSION &R ESTRICTEDBANDS ...........................................................................................20 8APPENDIXBLE................................................................................................................................................................31 9PHOTOGRAPHSOFTESTSETUP..............................................................................................................................32 10PHOTOGRAPHSOFEUTCONSTRUCTIONALDETAILS...................................................................................34 ReportNo.:EED32P80442301Page 3 of 41 3Version VersionNo.DateDescription 00Apr.17,2023Original ReportNo.:EED32P80442301Page 4 of 41 4TestSummary TestItemTestRequirementResult AntennaRequirement 47CFRPart15SubpartCSection 15.203/15.247(c) PASS ACPowerLineConducted Emission 47CFRPart15SubpartCSection 15.207 PASS DTSBandwidth 47CFRPart15SubpartCSection 15.247(a)(2) PASS MaximumConductedOutput Power 47CFRPart15SubpartCSection 15.247(b)(3) PASS MaximumPowerSpectral Density 47CFRPart15SubpartCSection15.247(e)PASS BandEdgeMeasurements 47CFRPart15SubpartCSection 15.247(d) PASS ConductedSpurious Emissions 47CFRPart15SubpartCSection 15.247(d) PASS RadiatedSpuriousEmission& Restrictedbands 47CFRPart15SubpartCSection 15.205/15.209 PASS Remark: CompanyNameandAddressshownonReport,thesample(s)andsampleInformationwereprovidedbythe applicantwhoshouldberesponsiblefortheauthenticitywhichCTIhasn’tverified. ModelNo.:P103T,P10XT(XcanbeanyOf1-9andA-Z) OnlythemodelP103Tistested.Theelectricalcircuitdesign,layout,componentsusedandinternalwiringare identical,onlymodelname,appearanceandcoloraredifferent. ReportNo.:EED32P80442301Page 5 of 41 5GeneralInformation 5.1ClientInformation Applicant:ShenzhenMedicaTechnologyDevelopmentCo.,Ltd AddressofApplicant:Floor12,BlockA,Building7,VankeYuncity,XingKeonestreet, NanShanDistrict,ShenzhenCity. Manufacturer:ShenzhenMedicaTechnologyDevelopm…

Text truncated - open the document above for the full version.

DATA SHEET WIRELESS COMPONENTS Ceramic Chip Antenna ANT3216LL00R2400A 2.4 - 2.5 GHZ 3216 Serie s Product Specification – March 27, 2013 V.0 www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 2 6 Product specification Ceramic Chip Antenna FEATURES z Compact size z Omni-directional radiation z Tape & reel automatic mounting z Reflow process compatible z RoHS compliant APPLICATIONS z 2.4 GHz WiFi device z Bluetooth gadget z Zigbee device z ISM band equipment ORDERING INFORMATION All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. PART NUMBER ANT 3216 L L00 R 2400A (1) (2) (3) (4) (5) (6) ( 1 ) PRODUCT ANT = Antenna ( 2 ) SIZE 3216 = 3.2 × 1.6 mm ( 3 ) ANTENNA TYPE L,F,A = Chip Antenna ( 4 ) SERIAL NO. L00 ( 5 ) PACKING TYPE R = Tape and Reel ( 6 ) WORKING FREQUENCY 2400 = 2.4GHz PHYCOMP CTC CAN4311712002453K 12NC 431171200245 www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 3 6 Product specification Ceramic Chip Antenna SPECIFICATION DESCRIPTION VALUE Working Frequency 2.4 - 2.5 GHz Bandwidth 160 MHz Polarization Linear Azimuth Beamwidth Omni-directional Peak Gain 5.05 dBi (Typ.) Impedance 50Ω Operating Temperature -40 ~105°C Maximum Power 1W Termination Ni / Sn (Environmentally-Friendly Leadless) Resistance to Soldering Heats 260°C , 10sec. NOTE 1. The specification is defined on Yageo evaluation board Ta b l e 1 O O U U T T L L I I N N E E S S YNH0010 Side ViewTop View Bot t om View T W L C S1S2 Fig. 1 Antenna outlines DIMENSIONS DIMENSION L (mm) 3.20 ±0.15 W (mm) 1.60 ±0.15 T (mm) 1.20 ±0.15 C (mm) 0.40 ±0.20 Table 2 Machinical Dimension TERMINAL NAME FUNCTION S1 Feeding Point S2 Soldering Point Table 3 Termination configuration www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 4 6 Product specification Ceramic Chip Antenna YNH0011 Bottom Layer Top Layer 2.5 2.0 3.5 0.4 Matching Circuit 1.8 Unit : mm Unit : mm 1030 18 Fig. 2 Outlook and dimension of evaluation board REFERENCE DESIGN OF EVALUATION BOARD Fig. 3 Details of soldering Pad www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 5 6 Product specification Ceramic Chip Antenna 2.0 2.13.0 f (GHz) Return loss (dB) −50 −30 −10 10 30 50 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 YNH0012 1 2 3 Fig. 4 Return loss ELECTRICAL PERFORMANCES YNH0013 Y X Z Z axle X axleY axle Gain (dBi) 5.00 − 0.00 − − 5.00 − − 10.00 − − 15.00 − − 20.00 − − 25.00 − − 30.00 − − 35.00 − Fig. 5 Radiation pattern Max gain = 5.05 dBi, at (180, 60) MEG (mean effective gain)= 0.45dBi Directivity (dB) = 7.15 Efficiency = -1.50dB, 70.74% Evaluation board and XYZ direction Marker data 1. 2.37GHz, -10dB 2. 2.45GHz, -27.3dB 3. 2.53GHz, -10dB www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 6 6 Product specification Ceramic Chip Antenna REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 0 Mar. 27, 2013 - - New datasheet for Ceramic Chip Antenna, 2.4-2.5 GHz application, size 3216 series

ReportNo.:EED32P80442301Page 32 of 41 9PHOTOGRAPHSOFTESTSETUP RadiatedspuriousemissionTestSetup-1 (Below1GHz) RadiatedspuriousemissionTestSetup-2( Above1GHz) ReportNo.:EED32P80442301Page 33 of 41 RadiatedspuriousemissionTestSetup-3( Above1GHz) Thereareabsorbingmaterialsundertheground. ConductedEmissionsTestSetup
