2ADJ4CL-821Bluetooth keyboard

User Manual FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter. The device has been evaluated to meet general RF exposure requirement. The device can beused in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Shenzhen Congli Electronic Co.,ltd 2015/4/11 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Shenzhen Congli Electronic Co.,ltd, hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description: Bluetooth keyboard model name: CL-821 FCC ID: 2ADJ4CL-821 Sincerely, Client’s signature Client’s name / title : Sarah Shu/ Manager Contact information / address: 3/F, NO.7 building,The second road of Zhuangbian Industry, Xixiang Street,Bao'an district, Shenzhen,China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen Congli Electronic Co.,ltd 2015/4/11 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADJ4CL-821 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : Sarah Shu/ Manager Contact information / address: 3/F, NO.7 building,The second road of Zhuangbian Industry, Xixiang Street,Bao'an district, Shenzhen,China

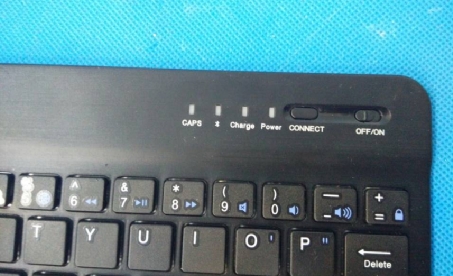

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-150100525 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page1 of 6 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-150100525 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page2 of 6 Photo 3 Photo 4 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-150100525 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page3 of 6 Photo 5 Photo 6

Model: CL-821 FCC ID: 2ADJ4CL-821 Shenzhen Congli Electronic Co.,ltd This device complies with Part 15 of the FCC Rules. Operationis s ubject to the following two conditions: (1)This device may not cause harmful interference, and (2) this de vice must accept anyinterference received, including interference t hatmaycauseundesiredoperation.

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-150100525 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page3 of 6 Photo 5 Photo 6 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-150100525 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page4 of 6 Photo 7 Photo 8 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-150100525 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page5 of 6 Photo 9 Photo 10 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-150100525 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page6 of 6 Photo 12 Photo 11 BT ANT

FCC ID: 2ADJ4CL-821 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2ADJ4CL-821 BT/1Mbps: max possible output power (PK,conducted)/2402 ：-1±1dbm max possible output power (PK,conducted)/2441 ：-2±1dbm max possible output power (PK,conducted)/2480 ：-2±1dbm BT/2Mbps: max possible output power (PK,conducted)/2402 ：-1±1dbm max possible output power (PK,conducted)/2441 ：-2±1dbm max possible output power (PK,conducted)/2480 ：-2±1dbm BT/3Mbps: max possible output power (PK,conducted)/2402 ：-1±1dbm max possible output power (PK,conducted)/2441 ：-2±1dbm max possible output power (PK,conducted)/2480 ：-2±1dbm 2402MHz: 0dbm=1mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1/5*√2.402=0.310≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. FCC ID: 2ADJ4CL-821 2441MHz: -1dbm=0.794mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.794/5*√2.441=0.247≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2480MHz: -1dbm=0.794mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.794/5*√2.480=0.250≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm.. Conclusion: No SAR is required.

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020023 FCC Part 15C Test Report FCC ID: 2ADJ4CL-821 Product Name: Bluetooth keyboard Trademark: N/A Model Name : CL-821 Prepared For : Shenzhen Congli Electronic Co.,ltd Address : 3/F, NO.7 building,The second road of Zhuangbian Industry, Xixiang Street,Bao’an district, Shenzhen,China Prepared By : Shenzhen BCTC Technology Co., Ltd. Address : No.101,Yousong Road,Longhua New District, Shenzhen,China Test Date: Apr. 04 - Apr. 13, 2015 Date of Report : Apr. 13, 2015 Report No.: BCTC-15020023 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020023 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 2 of 67 VERIFICATION OF COMPLIANCE Applicant’s name ................. : Shenzhen Congli Electronic Co.,ltd Address ................................. : 3/F, NO.7 building,The second road of Zhuangbian Industry, Xixiang Street,Bao’an district, Shenzhen,China Manufacture's Name ............ : Shenzhen Congli Electronic Co.,ltd Address ................................. : 3/F, NO.7 building,The second road of Zhuangbian Industry, Xixiang Street,Bao’an district, Shenzhen,China Product description Product name ........................... : Bluetooth keyboard Trademark: N/A Model Name: N/A Test procedure FCC Part15.247 Standards ANSI C63.4-2003 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Test Result ............................................... : Pass Testing Engineer : (Eric Yang) Technical Manager : (Sophia Lee) Authorized Signatory : (Carson. Zhang) Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020023 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 3 of 67 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 12 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3 . EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 3.1.2 TEST PROCEDURE 15 3.1.3 DEVIATION FROM TEST STANDARD 15 3.1.4 TEST SETUP 15 3.1.5 EUT OPERATING CONDITIONS 15 3.1.6 TEST RESULTS 16 3.2 RADIATED EMISSION MEASUREMENT 18 3.2.1 RADIATED EMISSION LIMITS 18 3.2.2 TEST PROCEDURE 19 3.2.3 DEVIATION FROM TEST STANDARD 19 3.2.4 TEST SETUP 20 3.2.5 EUT OPERATING CONDITIONS 21 3.2.6 TEST RESULTS 22 4 . NUMBER OF HOPPING CHANNEL 27 4.1 APPLIED PROCEDURES / LIMIT 27 4.1.1 TEST PROCEDURE 27 4.1.2 DEVIATION FROM STANDARD 27 4.1.3 TEST SETUP 27 4.1.4 EUT OPERATION CONDITIONS 27 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020023 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 4 of 67 Table of Contents Page 4.1.5 TEST RESULTS 28 5 . AVERAGE TIME OF OCCUPANCY 29 5.1 APPLIED PROCEDURES / LIMIT 29 5.1.1 TEST PROCEDURE 29 5.1.2 DEVIATION FROM STANDARD 29 5.1.3 TEST SETUP 30 5.1.4 EUT OPERATION CONDITIONS 30 5.1.5 TEST RESULTS 31 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 37 6.1 APPLIED PROCEDURES / LIMIT 37 6.1.1 TEST PROCEDURE 37 6.1.2 DEVIATION FROM STANDARD 37 6.1.3 TEST SETUP 37 6.1.4 EUT OPERATION CONDITIONS 37 6.1.5 TEST RESULTS 38 7 . BANDWIDTH TEST 44 7.1 APPLIED PROCEDURES / LIMIT 44 7.1.1 TEST PROCEDURE 44 7.1.2 DEVIATION FROM STANDARD 44 7.1.3 TEST SETUP 44 7.1.4 EUT OPERATION CONDITIONS 44 7.1.5 TEST RESULTS 45 8 . PEAK OUTPUT POWER TEST 51 8.1 APPLIED PROCEDURES / LIMIT 51 8.1.1 TEST PROCEDURE 51 8.1.2 DEVIATION FROM STANDARD 51 8.1.3 TEST SETUP 51 8.1.4 EUT OPERATION CONDITIONS 51 8.1.5 TEST RESULTS 52 9 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 59 9.1 DEVIATION FROM STANDARD 59 9.2 TEST SETUP 60 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020023 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 5 of 67 Table of Contents Page 9.3 EUT OPERATION CONDITIONS 60 9.4 TEST RESULTS 61 10 . ANTENNA REQUIREMENT 65 10.1 STANDARD REQUIREMENT 65 10.2 EUT ANTENNA 65 11 . EUT TEST PHOTO 66 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020023 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 6 of 67 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020023 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 7 of 67 1.1 TEST FACILITY Shenzhen BCTC Technology Co., Ltd. Add.:No.101,Yousong Road,Longhua New District, Shenzhen,China FCC Registration No.:187086 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Shenzhen BCTC Technology Co., Ltd. Report No.: B…

Text truncated - open the document above for the full version.

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020023 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 67 of 68 11. EUT TEST PHOTO Radiated Measurement Photos Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15020023 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page 68 of 68 CONDUCTED EMISSION Photos
