2ADJW-FI-3A2WFault Indicator

FI-3A2W Introduction Contents 1 General Information ....................................................................................................................... 2 2 Pinciple .......................................................................................................................................... 2 3 Operation ........................................................................................................................................ 2 3.1 Installation ........................................................................................................................... 2 3.2 Removal .............................................................................................................................. 3 3.3 Manual test ......................................................................................................................... 3 4 Features .......................................................................................................................................... 3 5 Ratings ........................................................................................................................................... 3 2 1 General Information FI-3A2W Fault Indicator are used under 35KV Distribution System to faster locate the fault in distribution systems by flashing to indicate the path of fault current, help the crews to trace the path of fault current and to locate the fault more efficiently, greatly reduce the time and cost of fault location, and enhance the reliability of power supply. 2 Pinciple The fault indicator detects and identifies fault current with induced coil and logical identification circuit.Once the indicator is triggered it will begin to flash which indicates the location of the fault,at the same time, it will transmit the fault information to the Sub-transmitter which is installed nearby. The Sub-transmitter is about 30 meter far from the fault indicator. FI：Fault Indicator ST： Sub-transmitter CS：Center Station MS：Monitor Control Station 3 Operation FI-3A2W operation process with Installation and Removal. 3.1 Installation FI-3A2W the initial state as pic-A. Pull open the split coil CT using both hand carefully 3 minding your fingers, when the CT has been cocked, the line holding springs will automatically engage, locking the unit in the “open” position.Use the shotgun stick to install. 3.2 Removal Use the shotgun stick to removal the FCI. Open the shotgun stick, attach the hot stick ring, with a sudden forceful downward movement, removal the FCI from the line. 3.3 Manual test “Test” are marked respectively on on side of the indicator. When placing a magnet close the side marked “Test”.LEDs on the either side will flash and the FCI will transmit information. To reset, simply place the magnet close the side marked “TEST”. The LEDS will stop flashing. 4 Features 4.1 Live line installation and removal can be installed or removed on live line, adapted to overhead line. 4.2 Be made with fully-sealed structure and of waterproof, rustproof material, suit able for installation on the line. 4.3 Automatically sets the maximum trip current based on load. 4.4 Automatic inrush restrain 4.5 Flashing indicate, for easy night observation 4.6 Automatic Reset 4.7 Manual test and reset can test the condition of the indicator and reset it manually with a magnet 4.8 Battery Self-indicate and Replaceable 4.9 Rugged: Test materials from the 10 m high fell to the ground and not damaged 5 Ratings Item Description Ratings Environment ratings Environment Temperature -35 – 75 C Relative Humidity <= 100% Altitude <2000m Thermoelectric <=30 C System Ratings Communication Frequency 2．4GHz Communication distance 〉30M Line Voltage <=35kv System Frequency 50Hz, 60Hz Operating Mode Single power source or radial supply Minimum Load Current <= 0A for overhead bare conductor <= 4A for cable or insulated line Maximal load current <630A Minimum fault Current Addition >120A Max. Feedback Current <80A Delay of the relay protection <10S 4 The interval of the reclose operation at the substation >0.2S Product Ratings Operation power 2 lithium cell of 3.6V/2.7AH Power consume Operation power <20uA Flash Indication 50ms per 2S Short time withstand current 40KA/2S Weight <0.5kg Permanent withstand current 630A FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Creative Distribution Automation Co., Ltd. 2014-11-06 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ___ Creative Distribution Automation Co., Ltd. _ _hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product： Fault Indicator Trade Name： N/A Model Name： FI-3A2W Serial Model： N/A FCC ID： 2ADJW-FI-3A2W Sincerely, Signature Client’s name / title : Hao Haizhen/ Manager Contact information / address : The 4th floor, Building No.3, No.8 Chuangye Road, Shangdi, Haidian, Beijing, 100085 China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Creative Distribution Automation Co., Ltd. 2014-11-06 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADJW-FI-3A2W We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Client’s name / title : Hao Haizhen/ Manager Contact information / address : The 4th floor, Building No.3, No.8 Chuangye Road, Shangdi, Haidian, Beijing, 100085 China

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label Fault Indicator Model NO.: FI-3A2W FCC ID: 2ADJW-FI-3A2W Creative Distribution Automation Co., Ltd. Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

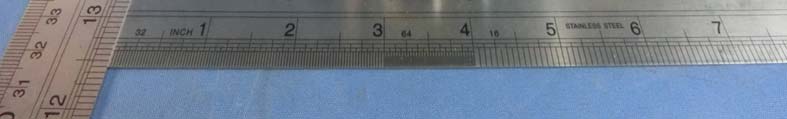

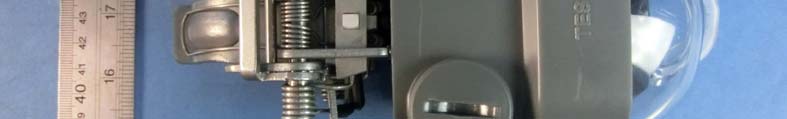

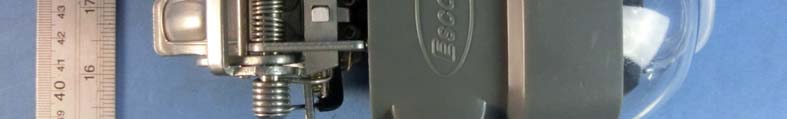

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Antenna Photo 9

FCC RADIO TEST REPORT FCC ID: 2ADJW-FI-3A2W Product： Fault Indicator Trade Name： N/A Model Name： FI-3A2W Serial Model： N/A Report No.： NTEK-2014NT0918442F Prepared for Creative Distribution Automation Co., Ltd. The 4th floor, Building No.3, No.8 Chuangye Road, Shangdi, Haidian, Beijing, 100085 China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 33 Report No.: NTEK-2014NT0918442F ` TEST RESULT CERTIFICATION Applicant’s name ................. : Creative Distribution Automation Co., Ltd. Address ................................. : The 4th floor, Building No.3, No.8 Chuangye Road, Shangdi Haidian, Beijing, 100085 China Manufacture's Name ............ : Creative Distribution Automation Co., Ltd. Address ................................. : The 4th floor, Building No.3, No.8 Chuangye Road, Shangdi Haidian, Beijing, 100085 China Product description Product name ........................... : Fault Indicator Model and/or type reference : FI-3A2W Serial Model： N/A Rating(s) ................................ : DC 7.2V Standards ............................. : FCC Part15.249: 01 Oct. 2013 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 18 Sep. 2014 ~22 Oct. 2014 Date of Issue ........................................... : 22 Oct. 2014 Test Result ............................................... : Pass Testing Engineer : Denny Huang Technical Manager : (Brown Lu) Authorized Signatory : (Bill Yao) Page 3 of 33 Report No.: NTEK-2014NT0918442F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . ANTENNA REQUIREMENT 12 3.1 STANDARD REQUIREMENT 12 3.2 EUT ANTENNA 12 3.3 CONDUCTED EMISSION MEASUREMENT 13 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.3.2 TEST PROCEDURE 14 3.3.3 DEVIATION FROM TEST STANDARD 14 3.3.4 TEST SETUP 14 3.2.5 TEST RESULT 15 3.4 RADIATED EMISSION MEASUREMENT 16 3.4.1 RADIATED EMISSION LIMITS 16 3.4.2 TEST PROCEDURE 17 3.4.3 DEVIATION FROM TEST STANDARD 17 3.4.4 TEST SETUP 18 3.4.5 TEST RESULTS (BLOW 30MHZ) 20 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 21 3.4.7 TEST RESULTS (ABOVE 1000 MHZ) 23 3.4.8 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 26 4 . BANDWIDTH TEST 30 4.1 TEST PROCEDURE 30 4.2 DEVIATION FROM STANDARD 30 4.3 TEST SETUP 30 4.4 TEST RESULTS 31 5 . EUT TEST PHOTO 33 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 33 Report No.: NTEK-2014NT0918442F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.203 Antenna Requirement Pass 15.249 Radiated Spurious Emission Pass 15.205 Band Edge Emission Pass 15.249 Occupied Bandwidth Pass Page 5 of 33 Report No.: NTEK-2014NT0918442F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC FRN Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 33 Report No.: NTEK-2014NT0918442F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Fault Indicator Trade Name N/A Model Name FI-3A2W Serial Model N/A Model Difference N/A Product Description The EUT is a Fault Indicato r Operation Frequency: 2403.375MHz-2479.750MHz Modulation Type: 2-FSK Antenna Designation: Ceramic chip Antenna Antenna Gain(Peak) 1.5 dBi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Adapter N/A Battery DC 3.6V*2 cell ”AA” alkaline battery Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 33 Report No.: NTEK-2014NT0918442F ` 2. Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 2403.375 16 2429.37531 2455.375 02 2405.500 17 2431.00032 2457.000 03 2406.625 18 2432.62533 2458.625 04 2408.250 19 2434.25034 2460.250 05 2409.875 20 2435.87535 2461.875 06 2411.500 21 2437.50036 2463.500 07 2413.125 22 2439.12537 2465.125 08 2414.750 23 2440.75038 2466.750 09 2416.375 24 2442.37539 2468.375 10 2419.625 25 2445.62540 2471.625 11 2421.250 26 2447.25041 2473.250 12 2422.875 27 2448.87542 2474.875 13 2424.500 28 2450.50043 2476.500 14 2426.125 29 2452.12544 2478.125 15 2427.750 30 2453.75045 2479.750 3. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connec…
