2ADK7-ARISOTXGPIO Contactless Coupler

Data Sheet ARISO M30 GPIO 116-19004 Rev. A3 21 January 2014 ARISO M30 General GPIO Contactless Coupler Pair TE Connectivity * Trademark | Indicates change  Copyright 2014 by TE Connectivity Ltd. All rights reserved 1 of 17 Data Sheet ARISO M30 GPIO 116-19004 Rev. A3 21 January 2014 Rev 6 2 of 17 Notes and statements: Intended use: Coupler to transfer 12W power and data (digital GPIO link), integrated in a control system. This device complies with Industry Canada licence-exempt RSS standard(s) and part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The interference potential of the device is low as it is a low frequency device with a near field antenna, designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment and accordingly tested. If this equipment does cause harmful interference, which can be determined by turning the equipment off and on by disconnecting the couplers from the power and signal source, the user is encouraged to try to correct the interference by one or more of the following measures:  Increase the separation between this equipment and the disturbed one  Consult the dealer or an experienced technician for help No maintenance of the device is needed, once installed and used in accordance with the instruction manual. Notes et declarations: Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Data Sheet ARISO M30 GPIO 116-19004 Rev. A3 21 January 2014 Rev 6 3 of 17 1. PRODUCT PART NUMBERS, MARKING AND LABELING 1.1 Product marking and labeling  Product name ARISO 12 Watt  Identification number TXM030S012PNP2A / RXM030S012PNP2A o Tx / Rx Transmitter / Receiver o M Form factor, M = Circular o 030 Diameter o S Product type, S = Standard o 012 Power level, 12W o PNP Data type, PnP variant o 2/8 Number of PNP channels o a/b Coding option 1.2 Part number  2287598-1: ARISO TXM030S012PNP2A  2287598-3: ARISO TXM030S012PNP8A  2287598-2: ARISO RXM030S012PNP2A  2247598-4: ARISO RXM030S012PNP8A  2247598-5: ARISO RXM030S012PNP8B 2. GENERAL 2.1 Design and Construction Product shall be of the design, construction and physical dimensions specified on the applicable customer product drawing (C-2287598) and product specification (108-19484). The following variants are available.  M30, 4 pos variant, 2 PNP Channels: o ARISO TXM030S012PNP2A M30 Power Transmitter / Data Receiver. o ARISO RXM030S012PNP2A M30 Power Receiver / Data Transmitter.  M30, 12 pos variants, 8 PNP Channels o ARISO TXM030S012PNP8A Power Transmitter / Data Receiver. o ARISO RXM030S012PNP8A Power Receiver / Data Transmitter. Optimized for connection to distribution boxes 2273161-1 (S1 only), 273146-1, 2273139-1 and 2273134-1. o ARISO RXM030S012PNP8B Power Receiver / Data Transmitter. Optimized for connection to distribution box 2273161-1 (S2 supported at sockets 1 and 2, sockets 7 and 8 not connected). 2.2 Features The product has the following features:  Power input reverse polarity protection: The product switches off in case the power connected to the Tx has wrong polarity.  Power output short circuit protection/ Data output short circuit protection: The product switches off the power / data in case the outputs are short circuited or in case the load is above specification.  Data input / output reverse polarity protection: The product is protected against reversed connections of the data inputs and data outputs.  Over-temperature protection: The product switches off in case the temperature becomes too high. Data Sheet ARISO M30 GPIO 116-19004 Rev. A3 21 January 2014 Rev 6 4 of 17  Foreign Object Protection: The product switches off in case metal is put in between the power transmitter and power receiver.  Dynamic Pairing: The ARISO Couplers are interchangeable.  Status OK/ In operating range Indication: The ARISO Tx has two status signals indicating either normal operation or incorrect behavior (like over- temperature or the presence of a foreign object), see section 5. 2.3 Characteristics overview  Rated input voltage Tx 24V DC  Rated output voltage Rx 24V DC  Power Transfer capability 12.0W @ Rx side, -20 to +55 °C ambient temperature, maximum 7.0 mm distance between Tx and Rx  Operating ambient temperature -20°C to 55°C  Ingress Protection IP67  Dimensions Tx M30 x 80  Dimensions Rx M30 x 80  Number of Digital GPIO Link “PNP” 2287598-1 / -3: 2 PNP Channels Digital GPIO Link, 2287598-2/ -4/-5: 8 PNP Channels Digital GPIO Link  Freedom of rotation no performance degradation of power and data up to 1250 rpm 2.4 Mechanical Data See customer drawings C-2287598 for full details. Parameter Value Units Tolerance Conditions Diameter 30 mm…

Text truncated - open the document above for the full version.

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 02.01.2012 Datum: 00.00.0000 Seite 1 von 1 Long/Short-term Confidentiality Request PHOENIX TESTLAB GmbH Date: 08 December 2014 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: 2ADK7-ARISOTX To Whom it may concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. Signatory B. Sc. Uwe DOLLITZ Graduated Certification Specialist PHOENIX TESTLAB GmbH

Federal Communications Commission 7345 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner / Review Engineer Subject: Modification declaration To The Commission: We, Phoenix Testlab GmbH, declare in the name of TE connectivity, that the following product derivatives contain equal PCBAs, the only difference between the variants are the connector type: TXM030S012PNP8A TXM030S012PNP2A Signatory B. Sc. Uwe DOLLITZ Graduated Certification Specialist PHOENIX TESTLAB GmbH

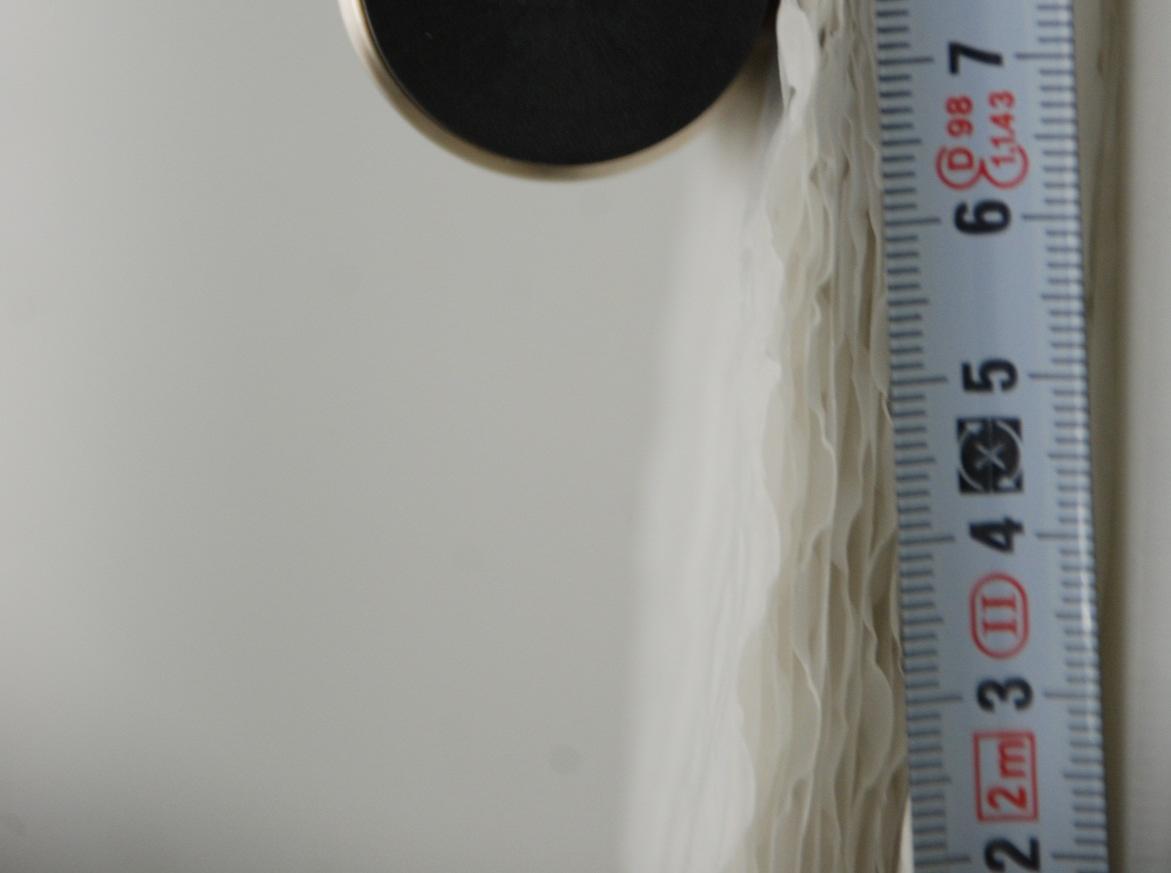

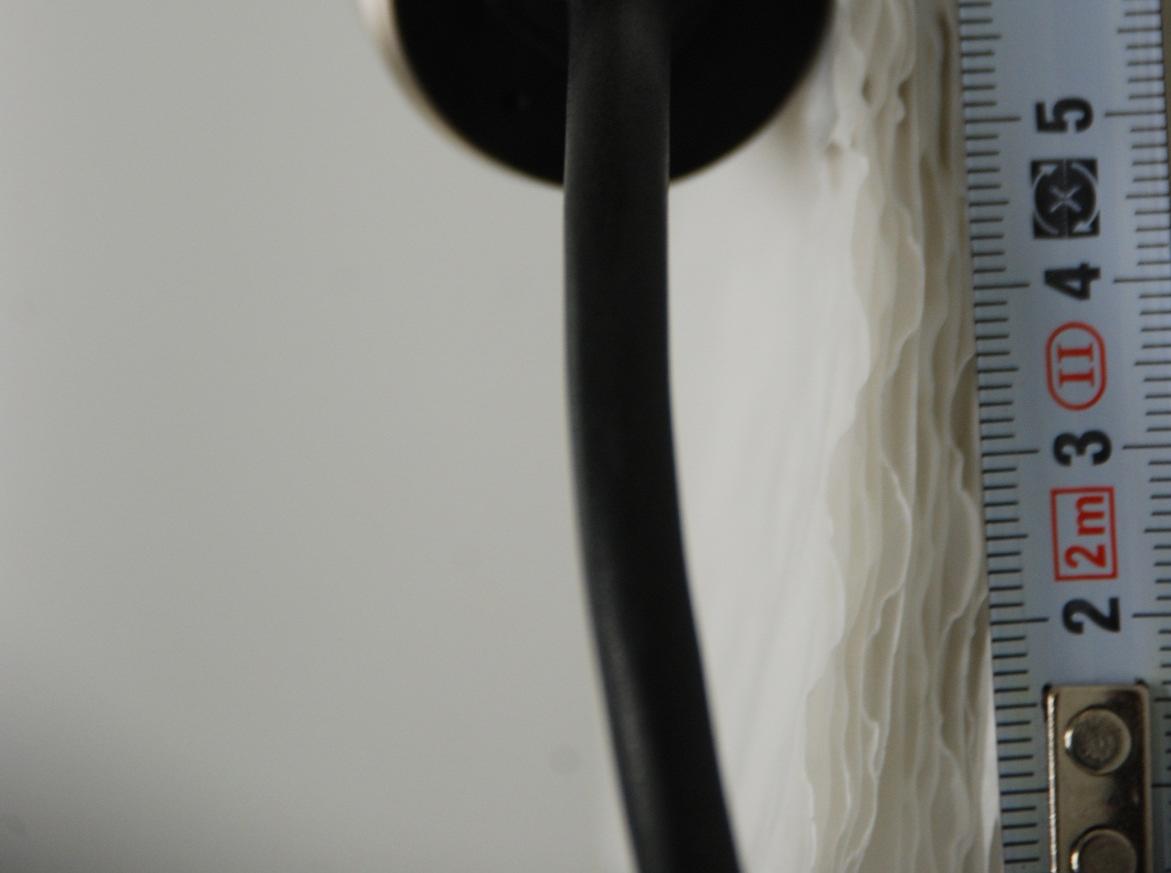

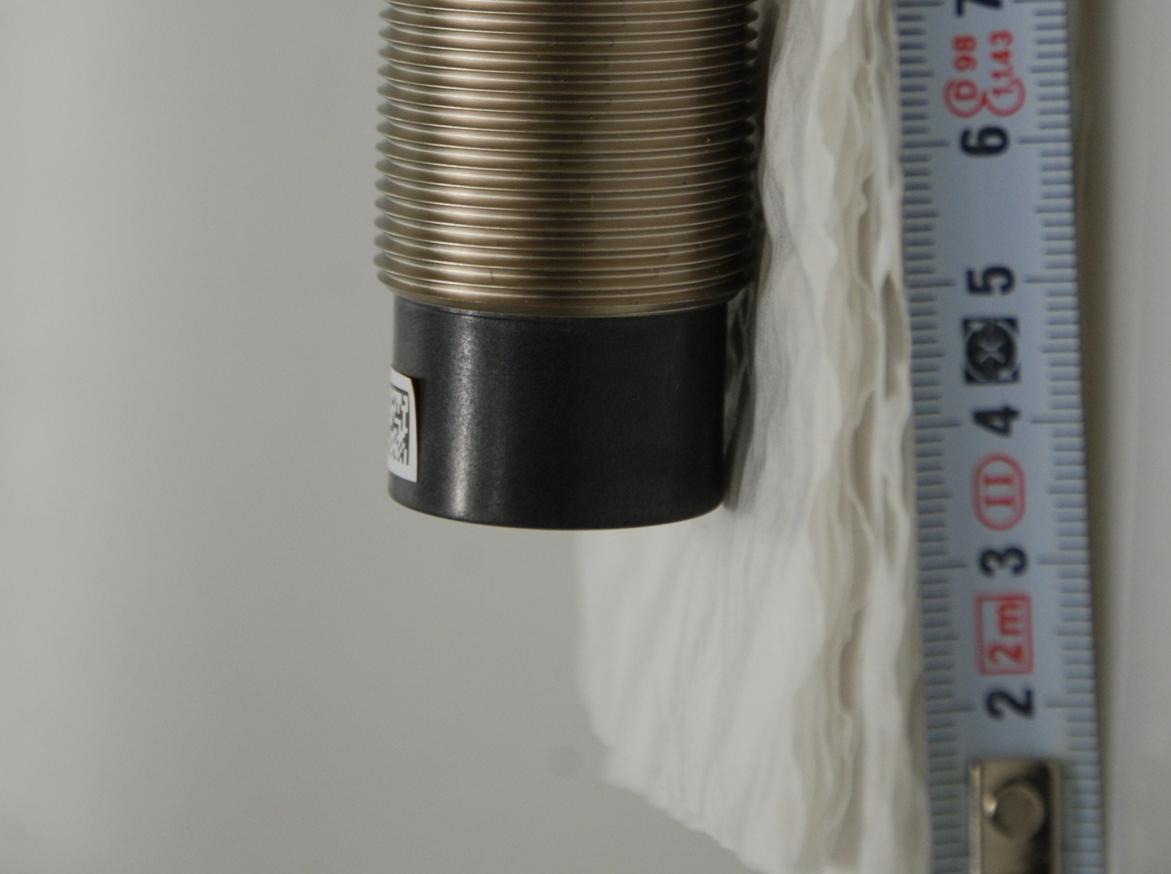

Annex B: EXTERNAL PHOTOGRAPHS Test engineer: Thomas KÜHN Report Number: F145554E3 Date of issue: 26 November 2014 Order Number: 14-115554 page 1 of 3 145554_o.JPG: TXM030S012PNP8A, front view Annex B: EXTERNAL PHOTOGRAPHS Test engineer: Thomas KÜHN Report Number: F145554E3 Date of issue: 26 November 2014 Order Number: 14-115554 page 2 of 3 145554_p.JPG: TXM030S012PNP8A, side view Annex B: EXTERNAL PHOTOGRAPHS Test engineer: Thomas KÜHN Report Number: F145554E3 Date of issue: 26 November 2014 Order Number: 14-115554 page 3 of 3 145554_r.JPG: TXM030S012PNP8A, rear view

MODEL TXM030S012PNP2A FCC ID 2ADK7-ARISOTX IC: 12496A-ARISOTX 204-410008

MODEL TXM030S012PNP8A FCC ID 2ADK7-ARISOTX IC: 12496A-ARISOTX 204-410008

Annex C: INTERNAL PHOTOGRAPHS Test engineer: Thomas KÜHN Report Number: F145554E3 Date of issue: 26 November 2014 Order Number: 14-115554 page 1 of 4 145554_j.JPG: TXM030S012PNP8A, internal view Annex C: INTERNAL PHOTOGRAPHS Test engineer: Thomas KÜHN Report Number: F145554E3 Date of issue: 26 November 2014 Order Number: 14-115554 page 2 of 4 145554_l.JPG: TXM030S012PNP8A, PCB, top view Annex C: INTERNAL PHOTOGRAPHS Test engineer: Thomas KÜHN Report Number: F145554E3 Date of issue: 26 November 2014 Order Number: 14-115554 page 3 of 4 145554_n.JPG: TXM030S012PNP8A, PCB, bottom view Annex C: INTERNAL PHOTOGRAPHS Test engineer: Thomas KÜHN Report Number: F145554E3 Date of issue: 26 November 2014 Order Number: 14-115554 page 4 of 4 145554_i.JPG: TXM030S012PNP8A, antenna view
