1 User Manual for DSF-214P Secure TAG FSY-171 920MHz Band Active Tag System DSF-214 Series Ueda Japan Radio Co., Ltd. ©2014 Ueda Japan Radio Co., Ltd. All rights reserved. 1. Introduction ···························································································· 1 2. Overview ································································································6 3. Specifications ·························································································6 4. Functions ·······························································································7 5. How to Use ·····························································································8 6. Name of each part ··················································································10 1. Introduction [FCC Part 15] ・This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ・FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 [FCC Part 15 subpartB ClassB(§15.105(b)) ] Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Please be sure to read before use (Important safety instructions) ●Please read this manual carefully before using this equipment. ●Specifications, designs, and other contents are subject to change without notice. ●About picture indications The following marks are indication for using this equipment correctly and preventing a damage to humans and properties. Please read this manual after understanding contents well. WARNING This indicates an extent for which user death or severe injury are assumed when handling is mistaken. CAUTION This indicates an extent for which user injury is assumed or an occurrence of physical damage is assumed when handling is mistaken. Such a kind of indications are “prohibited” contents which must not be done. Such a kind of indications are “compulsory” contents which must be kept. 3 Please be sure to confirm ●In the following usage environments, a communication range may become short or the equipment may not operate. ・When the barrier which hardly passes a radio wave such as metals or reinforced-concretes are between this equipment and receiver at the time of communication. ・When using this equipment at a place which is surrounded with metals. ・When it is in strong electric field area near the transmitting station of television or radio, or when it is near the various radio stations. ●Please note that there is a weak place of radio waves under the influence of the reflected wave. Please be sure to read (Important safety instructions) WARNING ●Do not wet this equipment with water. There is a danger of a fire, an electric shock, or a failure of the equipment. If water went into inside, remove a battery immediately, and stop using the equipment. ●Do not give a strong vibration, a shock or rapid temperature change. There is a danger of a failure of the equipment. ●Do not use a battery that are not specified in this manual. There is a danger of a fire or a failure of the equipment. ●Do not use this product with wet hands. There is a danger of an electric shock or a failure of the equipment. ●If you felt abnormalities (such as smoke, smell), remove a battery immediately and stop using this equipment. 4 Please be sure to read (Precautions for use) CAUTION ●Ueda Japan Radio Co., Ltd. assumes no responsibility for injuries or damages which occurred when using this equipment. ●Avoid use of this equipment to the following uses for which reservation of high reliability or safety is needed. ・various safety equipment or safety devices ・systems to affect a human life, or medical equipment ・security devices or emergency devices ●Do not use this equipment in a humid place. It may cause a fire, an electric shock or a failure of the equipment. ●Do not install this equipment in an unstable place or a place with much vibration. It may cause an injury or a failure of the equipment if it falls. If a failure of the equipment occurs, remove the battery and contact us. ●When using this equipment in intense temperature difference, it may dew, if temperature changes rapidly and it may cause a malfunction or a failure of the equipment. ●When you insert a battery at the time of a first time setup and battery exchange, please carry out after checking the attachment direction of the battery. If direction of the battery is wrong, it may cause a fire or a failure of the equipment. ●Do not thrust a nail into a switch when using the push-button switch of this equipment. It may cause a failure of the equipment or a performance degradation. ●This equipment has electrostatic protectio…

Text truncated - open the document above for the full version.

DSF-214P ・ Product external Photos Ｆｒｏｎｔ Top Bottom RightLeft Back

DSF-214P ・ Label layout drawing The label is attached inside of the battery cover which is removed without tools, thus FCC ID can be easily recognized by users. Tag rearview Tag rearview Battery cover

DSF-214P ・ Label Figure

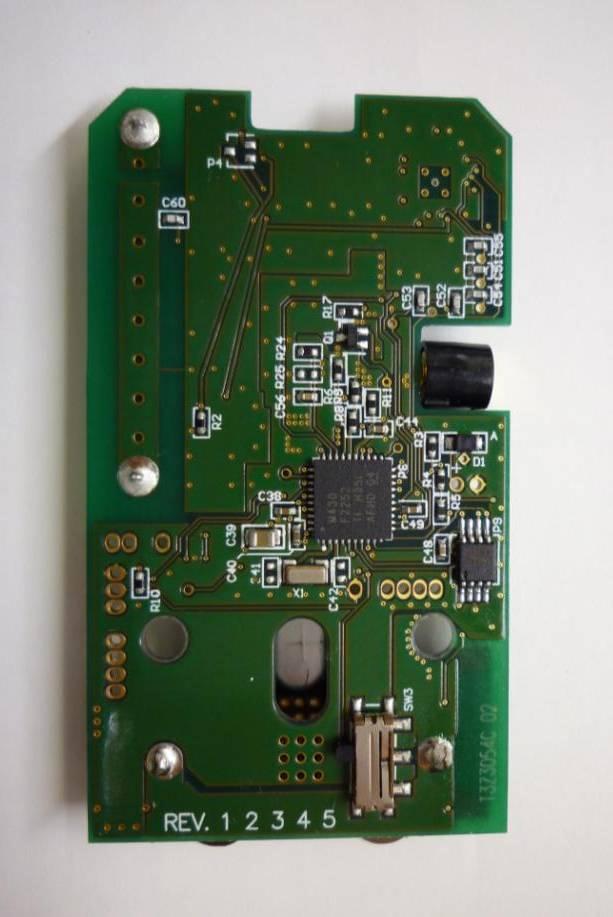

DSF-214P Product internal Photos ・ Module Front ・Module Back

Test report No. : 10532071S Page : 1 of 19 Issued date : December 3, 2014 Revised date : December 18, 2014 FCC ID : 2ADKKDSF214 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No. : 10532071S Applicant : Ueda Japan Radio Co., Ltd. Type of Equipment : Secure Tag Model No. : DSF-214P FCC ID : 2ADKKDSF214 Test regulation : FCC Part15 Subpart C: 2014 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: November 6 to 7, 2014 Representative test engineer: Akio Hayashi Engineer Consumer Technology Division Approved by: Toyokazu Imamura Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10532071S Page : 2 of 19 Issued date : December 3, 2014 Revised date : December 18, 2014 FCC ID : 2ADKKDSF214 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10532071S Revision Test report No. Date Page revised Contents - (Original) 10532071S December 3, 2014 - - 1 10532071S December 18, 2014 4 Correction of Frequency of operation Test report No. : 10532071S Page : 3 of 19 Issued date : December 3, 2014 FCC ID : 2ADKKDSF214 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................... 7 SECTION 5: Radiated emission ............................................................................................... 8 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ........................................... 10 Contents of APPENDIXES ...................................................................................................... 11 APPENDIX 1: Data of radio tests .......................................................................................... 12 APPENDIX 2: Test instruments ............................................................................................. 17 APPENDIX 3: Photographs of test setup .............................................................................. 18 Test report No. : 10532071S Page : 4 of 19 Issued date : December 3, 2014 Revised date : December 18, 2014 FCC ID : 2ADKKDSF214 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Ueda Japan Radio Co., Ltd. Address : 2-10-19 Fumiiri, Ueda-shi, Nagano, 386-8608 Japan Telephone Number : +81-268-26-2059 Facsimile Number : +81-268-26-2072 Contact Person : Kiyoharu Yamadera SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Secure Tag Model No. : DSF-214P Serial No. : Refer to 4.2 of this report. Rating : DC3V (2.3 to 3.3V) Receipt Date of Sample : November 6, 2014 Country of Mass-production : Japan Condition of EUT : Production model Modification of EUT : No modification by the test lab. 2.2 Product description Model: DSF-214P (referred to as the EUT in this report) is a Secure Tag. Clock frequency(ies) in the system : CPU: 32.768kHz, RF: 26MHz Radio specification: Equipment type : Transmitter Frequency of operation : 923.6-927.4MHz Type of modulation : FSK Antenna type : Loop Antenna connector type : Soldering Antenna gain : -17 dBi Operation temperature range : -10 to +50 deg.C. ITU code : F1D Equipment type : Receiver Frequency of operation : 125kHz FCC 15.31 (e) The test was performed with new battery. Therefore, the EUT complies with the requirement. FCC 15.203 The antenna is not removable from the EUT. Therefore, the EUT complies with the requirement Test report No. : 10532071S Page : 5 of 19 Issued date : December 3, 2014 FCC ID : 2ADKKDSF214 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2014, final revised on August 15, 2014 and effective October 14, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.249 Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz, and 24.0-24.25GHz 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.207 - N/A *1) N/A N/A 20dB bandwidth ANSI C63.4:2009 13. Measurement of intentio…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front Rear 9kHz-30MHz 30-1000MHz above 1GHz Test Report No 10532071S 18 of 19 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis Test Report No 10532071S 19 of 19
