2ADLV1002023RFID Reader

RFID 1AC User / Installation Manual ACLARIS GmbH, Lindau, Zweigniederlassung Rebstein, Balgacherstrasse 20, 9445 Rebstein, Schweiz, T +41 (0)71 7759-240, [email protected], www.aclaris.com 1 User / Installation Manual Version 1.2 RFID Reader-Module: • RFID 1AC ST • RFID 1AC FX CWU • RFID 1AC FX WA • RFID 1AC KF • RFID 1AC MI RFID 1AC User / Installation Manual ACLARIS GmbH, Lindau, Zweigniederlassung Rebstein, Balgacherstrasse 20, 9445 Rebstein, Schweiz, T +41 (0)71 7759-240, [email protected], www.aclaris.com 2 1 BEFORE USAGE ........................................................................................................................... 3 2 SAFETY INSTRUCTIONS ............................................................................................................... 4 3 INSTALLATION REQUIREMENTS ................................................................................................... 5 4 INSTALLATION ............................................................................................................................ 5 4.1 TYPICAL INSTALLATION ........................................................................................................................ 5 5 FIRST USAGE ............................................................................................................................... 7 6 SPECIFICATIONS .......................................................................................................................... 7 6.1 RFID READER TYPE ............................................................................................................................. 7 6.2 INTERFACE ......................................................................................................................................... 7 6.3 SECURITY .......................................................................................................................................... 7 6.4 USED FREQUENCIES ............................................................................................................................ 7 7 MAXIMUM RATINGS ................................................................................................................... 7 8 RECOMMENDED OPERATING CONDITIONS .................................................................................. 8 9 MODULE REVISION HISTORY ....................................................................................................... 8 10 TROUBLESHOOTING ................................................................................................................ 8 10.1 SYMBOL FOR WORKING RFID MODULE IS MISSING ............................................................................... 8 10.2 SYMBOL FOR WORKING RFID MODULE IS ON BUT IT IS STILL NOT WORKING .............................................. 8 11 REGULATORY INFORMATION ................................................................................................... 9 11.1 USA / CANADA .............................................................................................................................. 9 RFID 1AC User / Installation Manual ACLARIS GmbH, Lindau, Zweigniederlassung Rebstein, Balgacherstrasse 20, 9445 Rebstein, Schweiz, T +41 (0)71 7759-240, [email protected], www.aclaris.com 3 1 Before usage - Unpack the parts and check for any damages and full content - Read the user manual carefully before first usage RFID 1AC ST RFID 1AC FX y RFID 1AC FX WA 1 2 1 2 1 2 RFID 1AC User / Installation Manual ACLARIS GmbH, Lindau, Zweigniederlassung Rebstein, Balgacherstrasse 20, 9445 Rebstein, Schweiz, T +41 (0)71 7759-240, [email protected], www.aclaris.com 4 RFID 1AC KF RFID 1AC MI Figure 1: RFID antenna and module (for all different types) 1 – RFID antenna 2 – RFID module 2 Safety instructions Well-educated experts must install the RFID module to avoid any damage on the module and the host device. Please contact the manufacturer in case of any problem during the installation! Make sure that the host device is disconnected from the mains during installation to avoid any damage! 1 2 1 2 RFID 1AC User / Installation Manual ACLARIS GmbH, Lindau, Zweigniederlassung Rebstein, Balgacherstrasse 20, 9445 Rebstein, Schweiz, T +41 (0)71 7759-240, [email protected], www.aclaris.com 5 3 Installation Requirements Antenna: RFID Antenna 1AC ST use Antenna Aclaris 30mm (60.900.938) only. RFID Antenna 1AC FX use Antenna 75mm (1001443) only RFID Antenna 1AC FX WA use Antenna 75mm (1001443) only RFID Antenna 1AC KF Antenna 75mm (1001443) only RFID Antenna 1AC MI Antenna 54mm use (1001620) only. • Cable length: Maximum length of digital cable is 100cm. Antenna must be directly connected to the module (no extension is allowed). • Module/Antenna placement: distance between module or antenna to human body must be at least 20cm. 4 Installation Please follow the instructions below to install the RFID antenna and module in the host device: a) Open the machine to access the filter area b) Place the RFID antenna in the machine next to the filter c) Connect the RFID antenna to the module (plug in the 2 pin connector) d) Place the RFID module in the machine next to the RFID antenna e) Connect the RFID module to the machine (plug in the 5 pin connector RFID 1AC ST) f) Make sure that every part is in place and secure them with the plastic clips g) Close the machine Check for proper function after the installation process. 4.1 Typical Installation The pictures below show the typical installation situation in the host device. Machine RFID 1AC User / Installation Manual ACLARIS GmbH, Lindau, Zweigniederlassung Rebstein, Balgacherstrasse 20, 9445 Rebstein, Schweiz, T +41 (0)71 7759-240, [email protected], www.aclaris.com 6 Figure 2: RFID Antenna and RFID Module Figure 3: Placement below filter and RFID tag RFID 1AC ST Antenna 30mm Filter RFID 1AC ST Antenna 30mm RFID 1AC User / Installation Manual ACLARIS GmbH, Lindau, Zweigniederlassung Re…

Text truncated - open the document above for the full version.

Page 1 of 29 Annex D Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Testing Laboratory cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.cetecomadvanced.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12047-01-00. Appendix with Calibration data, Phantom certificate and system check information 2012-01-16 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 2 of 29 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 Calibration report “Probe EX3DV4” – SN: 7635 ..................................................................................... 3 3 Calibration report “13 MHz System validation dipole” ........................................................................ 13 4 Calibration certificate of Data Acquisition Unit (DAE4ip) – SN: 1842 ................................................ 19 5 Certificate of “SAM Twin Phantom V4.0, V5.0, V8.0’’ .......................................................................... 20 6 Certificate of “ELI Phantom V8.0’’ ......................................................................................................... 22 7 Application Note System Performance Check ..................................................................................... 23 7.1 Purpose of system performance check ..................................................................................... 23 7.2 System Performance check procedure ...................................................................................... 23 7.3 Uncertainty Budget ...................................................................................................................... 24 7.4 Power set-up for validation ......................................................................................................... 28 7.5 Laboratory reflection ................................................................................................................... 29 7.6 Additional system checks ........................................................................................................... 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 3 of 29 2 Calibration report “Probe EX3DV4” – SN: 7635 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 4 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 5 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 6 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 7 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 8 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 9 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 10 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 11 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 12 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 13 of 29 3 Calibration report “13 MHz System validation dipole” Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 14 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 15 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 16 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 17 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 18 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 19 of 29 4 Calibration certificate of Data Acquisition Unit (DAE4ip) – SN: 1842 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 20 of 29 5 Certificate of “SAM Twin Phantom V4.0, V5.0, V8.0’’ Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 21 of 29 Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 22 of 29 6 Certificate of “ELI Phantom V8.0’’ Appendix No.: 1-7159-23-01-04_TR1-A201-R01 Page 23 of 29 7 Application Note System Performance Check 7.1 Purpose of system performance check The system performance check verifies that the system operates within its specifications. System and operator errors can be detected and corrected. It is recommended that the system performance check is performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the result depends on the proper functioning of many components and the correct settings of many parameters. Faulty results due to drift, failures or incorrect parameters might not be recognized, since they often look similar in distribution to the correct ones. The Dosimetric Assessment System DASY incorporates a system performance check procedure to test the proper functioning of the system. The system performance check uses normal SAR measurements in a simplified setup (the flat section of the SAM Twin Phantom) with a well characterized source (a matched dipole at a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g., probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g., positioning uncertainty of the device holder). The system performance check does not replace the calibration of the components. The accuracy of the system performance check is not sufficient for calibration purposes. It is possible to calculate the field quite accurately in this simple setup; however, due to the open field situation some factors (e.g., laboratory reflections) cannot be accounted for. Calibrations in the flat phantom are possible with transfer calibration methods, using either temperature probes or calibrated E-field probes. The system performance check also does not test the system performance for arbitrary field situations encountered during real measu…

Text truncated - open the document above for the full version.

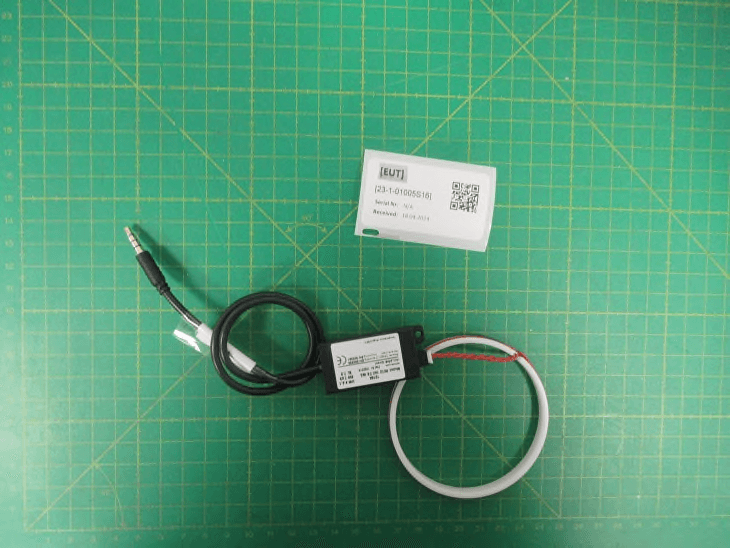

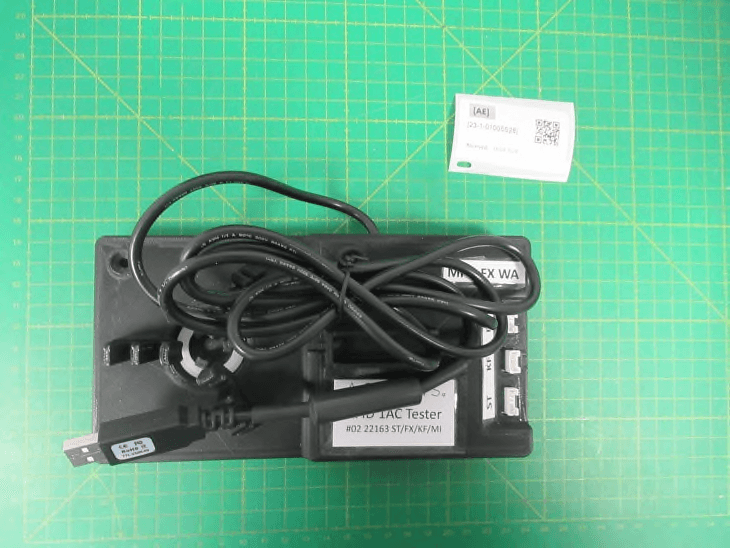

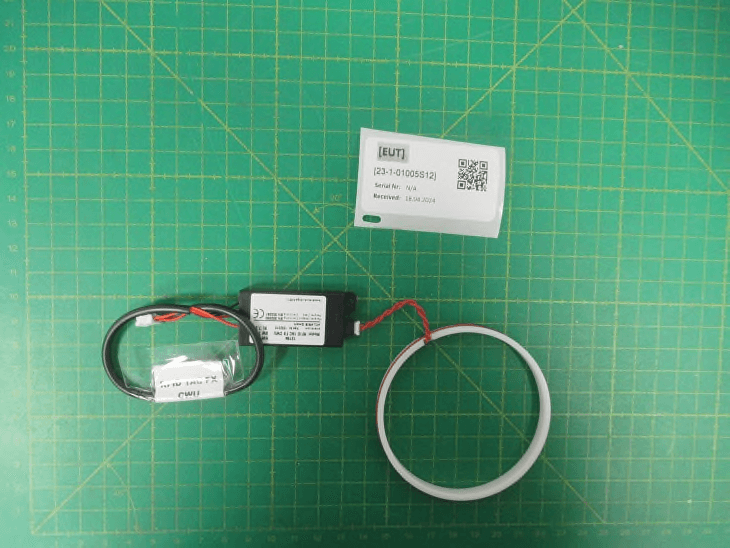

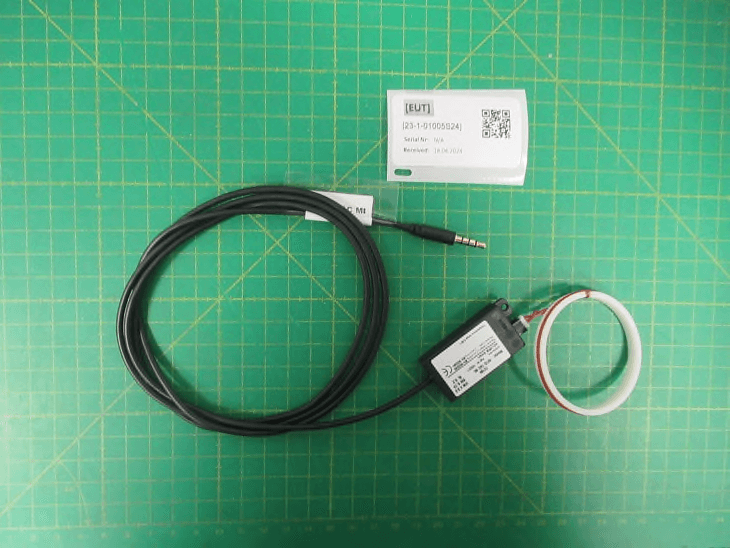

Page 1 of 13 Annex C Photo documentation Appendix No.: 1-7159-24-01-04_TR1-A101-R01 Testing Laboratory cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.cetecomadvanced.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12047-01-00. Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 2 of 13 Photo 1: Measurement System DASY Photo 2: DUT – ST with 30mm Antenna Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 3 of 13 Photo 3: DUT – KF with 75mm Antenna Photo 4: DUT – MI with 54mm Antenna Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 4 of 13 Photo 5: DUT – FX CWU with 75mm Antenna Photo 6: DUT – FX WA with 75mm Antenna Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 5 of 13 Photo 7: DUT – RFID 1AC (Base device) Photo 8: Label – RFID 1AC (Base device) Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 6 of 13 Photo 9: Label - ST Photo 10: Label - KF Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 7 of 13 Photo 11: Label - MI Photo 12: Label – FX CWU Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 8 of 13 Photo 13: Label – FX WA Photo 14: Test position – ST – front with 0mm distance Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 9 of 13 Photo 15: Test position – ST – back with 0mm distance Photo 16: Test position – KF – front with 0mm distance Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 10 of 13 Photo 17: Test position – KF – back with 0mm distance Photo 18: Test position – MI – front with 0mm distance Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 11 of 13 Photo 19: Test position – MI – front with 0mm distance Photo 20: Test position – FX CWU – front with 0mm distance Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 12 of 13 Photo 21: Test position – FX CWU – back with 0mm distance Photo 22: Test position – FX WA – front with 0mm distance Test report no.: 1-7159-24-01-04_TR1-A101-R01 Page 13 of 13 Photo 23: Test position – FX WA – back with 0mm distance

Annex A104 - Photographs No.1-7159-23-01-01_TR1-A104-R01 July 24, 2024 DescriptionTest set-up photographs This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized Hans-Joachim Wolsdorfer Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 1 of 17 Photo 1: 1AC FX CWU Photo 2: 1AC FX CWU cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 2 of 17 Photo 3: 1AC FX CWU Photo 4: 1AC FX CWU cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 3 of 17 Photo 5: 1AC FX CWU Photo 6: 1AC FX CWU cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 4 of 17 Photo 7: 1AC FX CWU Photo 8: 1AC FX WA cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 5 of 17 Photo 9: 1AC FX WA Photo 10: 1AC FX WA cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 6 of 17 Photo 11: 1AC FX WA Photo 12: 1AC FX WA cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 7 of 17 Photo 13: 1AC FX WA Photo 14: 1AC MI cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 8 of 17 Photo 15: 1AC MI Photo 16: 1AC MI cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 9 of 17 Photo 17: 1AC MI Photo 18: 1AC MI cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 10 of 17 Photo 19: 1AC MI Photo 20: 1AC ST cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 11 of 17 Photo 21: 1AC ST Photo 22: 1ACX ST cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 12 of 17 Photo 23: 1AC ST Photo 24: 1AC ST cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 13 of 17 Photo 25: 1AC ST Photo 26: 1AC ST cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 14 of 17 Photo 27: 1AC KF Photo 28: 1AC KF cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 15 of 17 Photo 29: 1AC KF Photo 30: 1AC KF cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 16 of 17 Photo 31: 1AC KF Photo 32: 1AC KF - END OF DOCUMENT - cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7159-23-01-01_TR1-A104-R01 Release 1 - Page 17 of 17

The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by cetecom advanced GmbH Annex 4: Test setup photographs 23-1-0100501T006a-A4 Number of pages: 9 Date of Report: 2024-Aug-05 Testing company: cetecom advanced GmbH Untertuerkheimer Str. 6-10 66117 Saarbruecken GERMANY Applicant: ACLARIS GmbH Product: RFID Reader RFID 1AC ST RFID 1AC FX Model: RFID 1AC KF RFID 1AC MI FCC ID: -- IC: -- Testing has been carried out in accordance with: FCC Regulations Title 47 CFR, Chapter I, Subchapter A, Part 15 Subpart BUnintentional Radiators § 15.107 Conducted limits § 15.109 Radiated emission limits ISED-Regulations Radio Standards Specification RSS-Gen, Issue 5 General Requirements for Compliance of Radio Apparatus ICES-003, Issue 7 Information Technology Equipment (including Digital Apparatus) 23-1-0100501T006a-A4 TR23-1-0100501T006a-A4 2 / 9 1Test set up photographs (EUT/DUT) Photograph 1: Conducted Emission, setup 1 Photograph 2: Conducted Emission, setup 2 23-1-0100501T006a-A4 TR23-1-0100501T006a-A4 3 / 9 Photograph 3: Conducted Emission, setup 3 Photograph 4: Conducted Emission, setup 4 23-1-0100501T006a-A4 TR23-1-0100501T006a-A4 4 / 9 Photograph 5: Conducted Emission, setup 5 Photograph 6: Radiated Emission, setup 01, close up view 23-1-0100501T006a-A4 TR23-1-0100501T006a-A4 5 / 9 Photograph 7: Radiated Emission setup 01, overall view Photograph 8: Radiated Emission setup 02, overall view 23-1-0100501T006a-A4 TR23-1-0100501T006a-A4 6 / 9 Photograph 9: Radiated Emission setup 02, close up view Photograph 10: Radiated Emission, setup 03, close up view 23-1-0100501T006a-A4 TR23-1-0100501T006a-A4 7 / 9 Photograph 11: Radiated Emission, setup 03, overall view Photograph 12: Radiated Emission, setup 04, close up view 23-1-0100501T006a-A4 TR23-1-0100501T006a-A4 8 / 9 Photograph 13: Radiated Emission, setup 04, overall view Photograph 14: Radiated Emission, setup 05, close up view 23-1-0100501T006a-A4 TR23-1-0100501T006a-A4 9 / 9 Photograph 15: Radiated Emission, setup 05, overall view End Of Annex 4

TEST REPORT Test report no.: 1-7159-23-01-06_TR1-R06 Testing laboratory Applicant cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://cetecomadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12047-01-00 ACLARIS GmbH Balgacherstrasse 20 9445 Rebstein / Switzerland Phone: +49 160 96457501 Contact: Christian Daume e-mail: [email protected] Manufacturer same as applicant Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 210 Issue 11 Spectrum Management and Telecommunications Radio Standards Specification - Licence-Exempt Radio Apparatus: Category I Equipment For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: RFID Reader Model name: RFID 1AC FX CWU RFID 1AC FX WA RFID 1AC MI RFID 1AC ST 430 RFID 1AC KF Frequency: 13.553 MHz – 13.567 MHz Technology tested: RFID Antenna: external antenna Power supply: 5.0 V DC through USB cable Temperature range: -20°C to +55°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Christoph Schneider Hans-Joachim Wolsdorfer Lab Manager Lab Manager Radio Labs Radio Labs Test report no.: 1-7159-23-01-06_TR1-R06 © cetecom advanced GmbH Page 2 of 55 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information ................................................................................................................................... 3 2.1 Notes and disclaimer ....................................................................................................................... 3 2.2 Application details ........................................................................................................................... 3 2.3 Test laboratories sub-contracted ..................................................................................................... 3 3 Test standard/s ......................................................................................................................................... 4 4 Reporting statements of conformity – decision rule .................................................................................. 5 5 Test environment ...................................................................................................................................... 6 6 Test item ................................................................................................................................................... 6 6.1 General description .......................................................................................................................... 6 6.2 EUT information ............................................................................................................................... 7 6.3 Additional information ..................................................................................................................... 7 7 Description of the test setup ...................................................................................................................... 8 7.1 Shielded semi anechoic chamber ..................................................................................................... 9 7.2 Shielded fully anechoic chamber ................................................................................................... 11 7.3 AC conducted ................................................................................................................................ 12 7.4 Conducted measurements ............................................................................................................. 13 7.5 Frequency error ............................................................................................................................. 14 8 Sequence of testing ................................................................................................................................. 15 8.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ................................................................ 15 8.2 Sequence of testing radiated spurious 30 MHz to 1 GHz................................................................ 16 9 Measurement uncertainty ........................................................................................................................ 17 10 Summary of measurement results ..................................................................................................... 18 11 Additional comments ......................................................................................................................... 18 12 Measurement results ......................................................................................................................... 19 12.1 Occupied bandwidth .................................................................................................................. 19 12.2 Field strength of the fundamental .............................................................................................. 23 12.3 Field strength of the harmonics and spurious ............................................................................ 24 12.4 Conducted limits..............................…

Text truncated - open the document above for the full version.

70,2 ~2 cutted, stripped and tinned (2x) twisted 47 + 2 0 6,8 max. 75,5 inkl. Windung X 1 2 X (3 : 1) follow assembling instructions; Stückliste/BOM 1001443 - Kerzenantenne 75mm PosPart no.QtyDescription 1Description 2 110013801Spulenkörper RFID 20154071Kabel SumitomoMat: 75.900.510 123 1234 A B D C F E A B C D E F 015410 c / A4 ( ) Released Status JW 1 (1) Kerzenantenne 75mm -0.1 -0.3+0.3 Edges acc. to DIN ISO 13715 Replaces JW 25.04.2023 Benennung, Zulassungc CS08.09.2025 -- 27.01.2021 c1001443 1:1 Index Description Material Name Sheet Index General Tolerances according to CAD Drawn Check Date Surface Treatment Scale Change Drawing Number Refer to protection notice ISO 16016 GmbH

© cetecom advanced GmbH Page 1 of 39 TEST REPORT Test Report No.: 1-7159-23-01-04_TR1-R04 Testing Laboratory Applicant cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken/Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.cetecomadvanced.com e-mail: [email protected] Accredited Test Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12047-01-00. ACLARIS GmbH Balgacherstrasse 20 9445 Rebstein SWITZERLAND Contact: Christian Daume e-mail: [email protected] phone: +41 71 7759-280 mobile: +49 160 964 575 01 Manufacturer Aclaris GmbH Balgacherstrasse 20 9445 Rebstein SWITZERLAND Combined Test report, applicable for: EC FCC ISED Test Standard/s IEC/IEEE 62209-1528, FCC – CFR 47 §2.1093, Safety Code 6, RSS - 102.SAR.MEAS Issue 2 Test Item Kind of test item: RFID Reader Device type: fixed device Model name: 1AC Frequency: 13.56 MHz RFID Antenna: Loop antenna with 3 turns of track for the small antenna and 2 turns for the medium and large antennas. RFID Module information: em4094, Max. power dissipation:89 to 100Mw (acc. customer spec) Power supply: 5 V DC via USB Test sample status: identical prototype Exposure category: general population / uncontrolled environment Model Name Type HW SW FCC ID ISED ID PMN HVIN FVIN RFID 1AC ST RFID 1AC ST 430 HW 4.1 SW 6.13 2ADLV60900936 12057A-60900936 RFID 1AC ST HW 4.1 SW 6.13 RFID 1 AC FX RFID 1 AC FX CWU HW 4.411 SW 7.03 2ADLV1002018 12057A-1002018 RFID 1 AC FX CWU HW 4.411 SW 7.03 RFID 1AC FX RFID 1 AC FX WA HW 4.412 SW 7.03 2ADLV1002019 12057A-1002019 RFID 1 AC FX WA HW 4.412 SW 7.03 RFID 1AC KF RFID 1AC KF HW 4.2 SW 6.13 2ADLV1002023 12057A-1002023 RFID 1AC KF HW 4.2 SW 6.13 RFID 1AC MI RFID 1AC MI HW 4.3.0 SW 6.13 2ADLV1002011 12057A-1002011 RFID 1AC MI HW 4.3.0 SW 6.13 This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test Report authorised: Test performed: Alexander Hnatovskiy Marco Scigliano Coordinator Area Testing Manager Regulatory Services Radio Regulatory Services Radio Test report no.: 1-7159-23-01-04_TR1-R04 © cetecom advanced GmbH Page 2 of 39 1 Table of contents 1 Table of contents ....................................................................................................................................... 2 2 General information .................................................................................................................................. 3 2.1 Notes and disclaimer ..................................................................................................................... 3 2.2 Application details ......................................................................................................................... 3 2.3 Statement of compliance ............................................................................................................... 3 2.4 Technical details ............................................................................................................................ 4 3 Test standard/s: ......................................................................................................................................... 5 3.…
