Thank you for purchasing the Dual True Wireless Earbuds. This manual provides more information about the wireless earbuds, please read the instructions before using. INSTRUCTION MANUAL WITH PORTABLE CHARGING CASE DUAL TRUE WIRELESS EARBUDS Pair the wireless earbuds with your mobile device 1. Keep the distance between the earbuds and mobile device within 32.8 feet. 2. De-activate the Bluetooth function on your mobile device. 3. Power on both earbuds simultaneously by pressing the On/Off buttons for 3 seconds and wait for 3 to 5 seconds for auto pairing. The Left earbud has indicator blinking alternatively in Red and Blue. The Right earbud will blinking in Blue slowly when auto pairing is successfully on L/R earbuds.. 4. Activate the Bluetooth function on your mobile device and select “DUAL TWS” from the list shown. 5. After pairing successfully, both earbuds will start blinking slowly in blue. *Attention: If the auto pairing is not successful, manual pairing between earbuds is essential by following below procedures: 1. Make sure the earbuds are charged. 2. De-activate the Bluetooth function on your mobile device. (if you had been paired the earbuds to some other mobile device(s) nearby, please sure to de-activate those device(s) too). 3. Power on both earbuds simultaneously by pressing the On/Off buttons for 3 seconds and wait for 3 to 5 seconds for auto pairing. (Keep the Bluetooth function off on your mobile device before this operation.) 4. Activate the Bluetooth function on your mobile device and select “DUAL TWS” from the list shown. 5. After pairing successfully, both earbuds will start blinking slowly in blue. Reconnect the wireless earbuds to your mobile device Disconnect the wireless earbuds from your mobile device Power off the wireless earbuds; or Switch off the Bluetooth on your mobile phone; or Leave the earbuds 60ft away from your mobile phone or further. Answer / Reject a call When receive a call, press the On/Off Button once ( on either earbud) to accept the call, or answer the call normally via your moblie phone. Press and hold 2 seconds to reject it. End a call To end the call, just press On/Off button at any side of earbud with Beep sound to end it. Functions Pause / Play Music: Short Press on On/OFF Button Go back to previous song: Press Left On/Off Button for 1 second. Advance to next song: Press Right On/Off Button for 1 second. Volume up: Double click Right On/Off button to increase Volume down: Double click Left On/Off to reduce Recharge Charging Case 1. Open the charging case cover. 2. Insert the Dual Earbuds into the charging case. 3. The earbuds will start the charge when you press the button on the front of the charging case. 4. LED indicator light of the charging case will be turned Blue when charging your earbuds. 5. Once fully charged, the LED will be off. Charging your Earbuds If the wireless earbuds cannot be paired with your device, please try the following: Ensure that your earbuds are in pairing mode or reconnection mode Ensure that Bluetooth search function of your mobile device is activated. If the wireless earbuds will not turn on: Make sure the earbuds are fully charged. Can I change the battery for the earbuds? The wireless earbuds use a built-in non-detachable battery which cannot be removed. If the wireless earbuds cannot be recharged: If you use a power outlet, ensure that the power supply is connected securely and the outlet works. If you use a computer, ensure that it is connected and the USB port is powered. FAQ Product OverviewPower On/Off Package Contents -The input voltage to the product is 5V 1A. -In order to charge the product in safe manner and reliable conditions, please only adopt certified appropriate charger/ adapter for charging the product. -Only charge the product at ambient temperatures between 10 deg °C/ 50 deg °F and 40 deg °C/104 deg °F. - Do not heat above 70 deg °C/158 deg °F, eg. Do not expose to sunlight or throw into fire. -Switch off the product after use. -Please note that we won’t take any responsibility for any wrong operation (eg. Voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user using this product. -In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat generation, fire development or smoke development. Safety instructions for the lithium battery and charging the product 3 4 5 1. On/Off Button/ Play/Pause Music Answer/End Call 2. LED Indicator 3. On/Off Button 4. LED Indicator 5. Micro USB Charging Port USB PlugMicro USB Plug Dual True Wireless Earbuds x 1 pair Portable Charging Case x 1 Micro USB Charging Cable x 1 Instruction Manual x 1 Power On Press and hold down the On/Off Button of earbuds for 3 seconds and the LED will flash. Power Off Press and hold down the On/Off Button of earbuds for 4 seconds and the LED will turn off. When powered on, the wireless earbuds will automatically connect with the last successfully paired device. Specifications Driver Diameter: 10 mm Impedance: 32 Ohms Frequency Response: 20 Hz – 20 KHz Sensitivity: 96 ± 3dB Power Supply: Li-ion Battery 3.7V 35 mAh (per Earbud) Li-ion Battery 3.7V 500 mAh (Charging Case) Play Time: Total 10 Hours (Earbuds playing time is 2 Hours and the Charging Case can provide 4 times for the earbuds charging) Charging Time: 2-2.5 Hours Bluetooth Range: 32.8 Feet Micro USB cable included Instruction Manual Micro USB Charging Cable Instruction Manual FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to…

Text truncated - open the document above for the full version.

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road,Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] Date: 05/15/2020 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Zeeva International Limited hereby declare that： Product Name: BT TWS PRO AST Model No: EP-0616 FCC ID: 2ADM5-EP-0616 For BT Mode: BLE are disable by software For Below are activated: Bluetooth BDR(GFSK) , EDR(π/4‐DQPSK), EDR(8DPSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Akshay P Butani Tiltle: Vice President

power amplifier Antenna 26M crystal oscillator Battery

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] FCC ID Cover Letter We, Zeeva International Limited hereby declare that we have a product named as BT TWS PRO AST （FCC ID:2ADM5-EP-0616 ; Model: EP-0616 ）was tested by BACL ,which has left earbud and right earbud. we would like to declare that the product has two units which are electrically identical.We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] FCC Authorization 04/24/2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Zeeva International Limited the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President QA-FR-170-B

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] FCC ID Cover Letter The Zeeva International Limited here by submits justification for placing the FCC ID in the Associated User Manual. According to the FCC Regulation and Guidance (KDB Publication 784748 D01 v09r01) allows for the FCC ID to be moved to the User’s manual if the device is unquestionably too small for the FCC ID to be printed. Referring to the above quote, as the device is too small (2ADM5-EP-0616 ) to be printed. The FCC ID will be moved to the last page of user’s manual and charging case. The details are as below: A. Side surface (A): The curvature shape of the silicone sleeve back cover is not flat, so it’s hard to affix thelabel on the surface of the earbuds. B. Top cover (B): The plastic logo of the top cover does not provide enough physical space to fit the printing of the FCC ID according to below reference picture. Conclusion： Based on the above description of area A to B, we conclude that the device is unquestionably too samll for enabling the FCC ID to be printed onto any surface, We therefore request to move the FCC ID to the User manual and charging case Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President

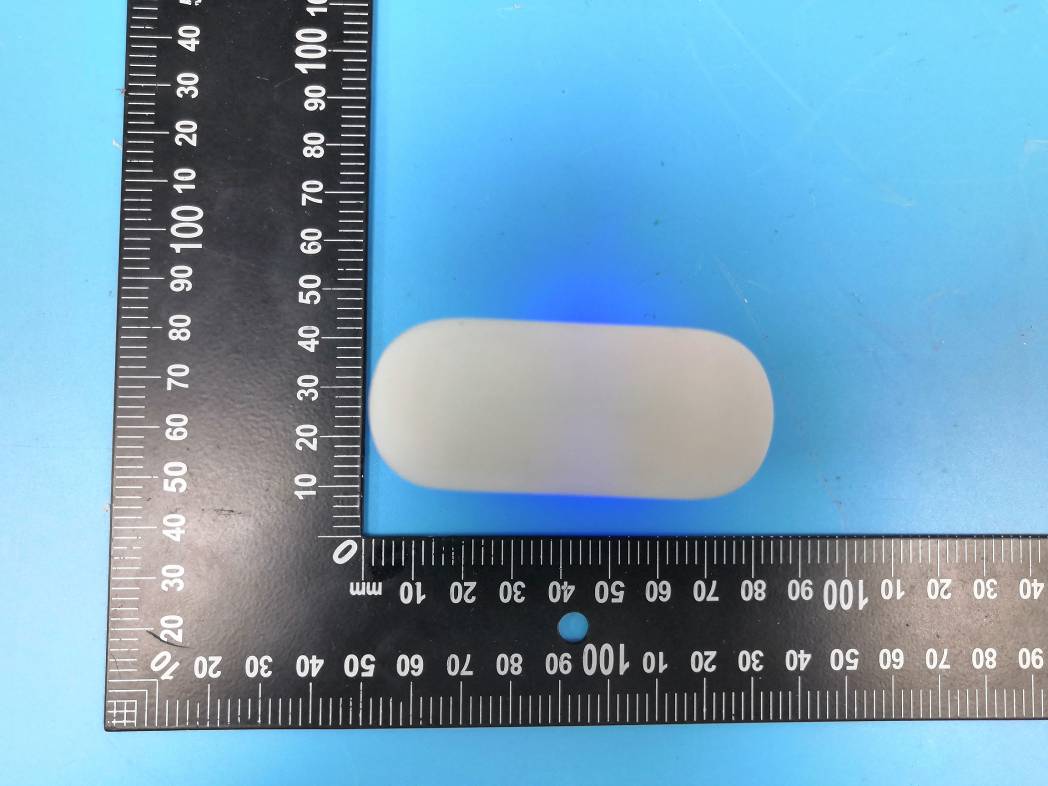

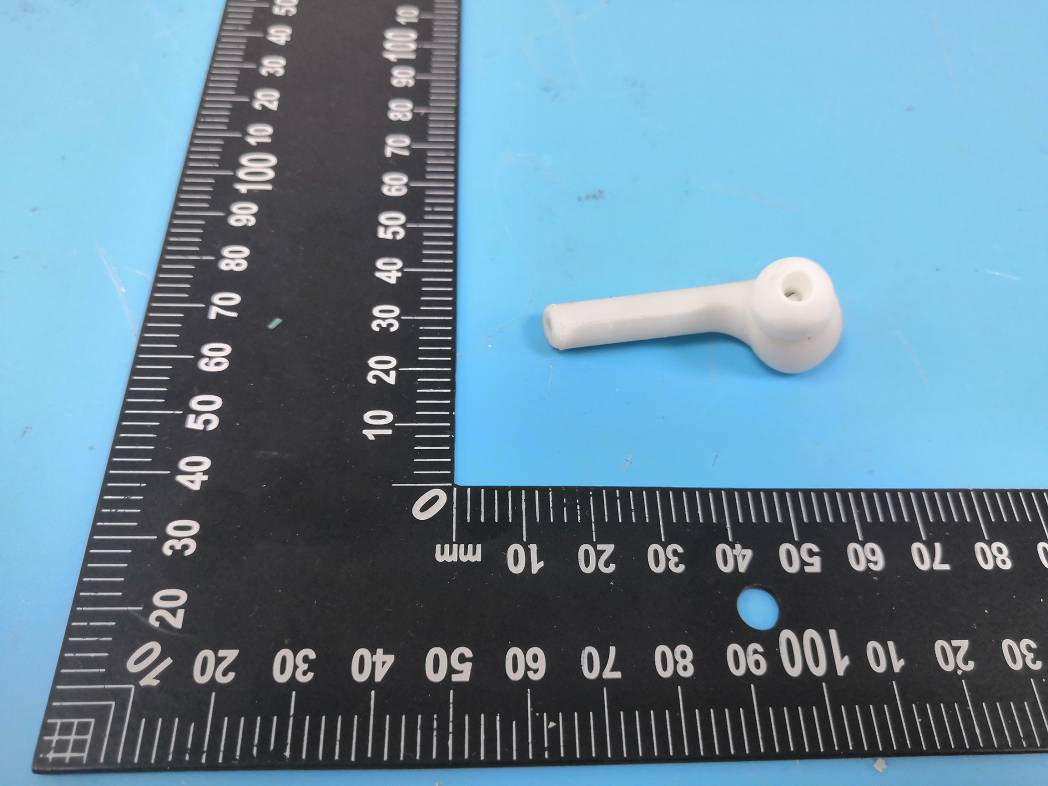

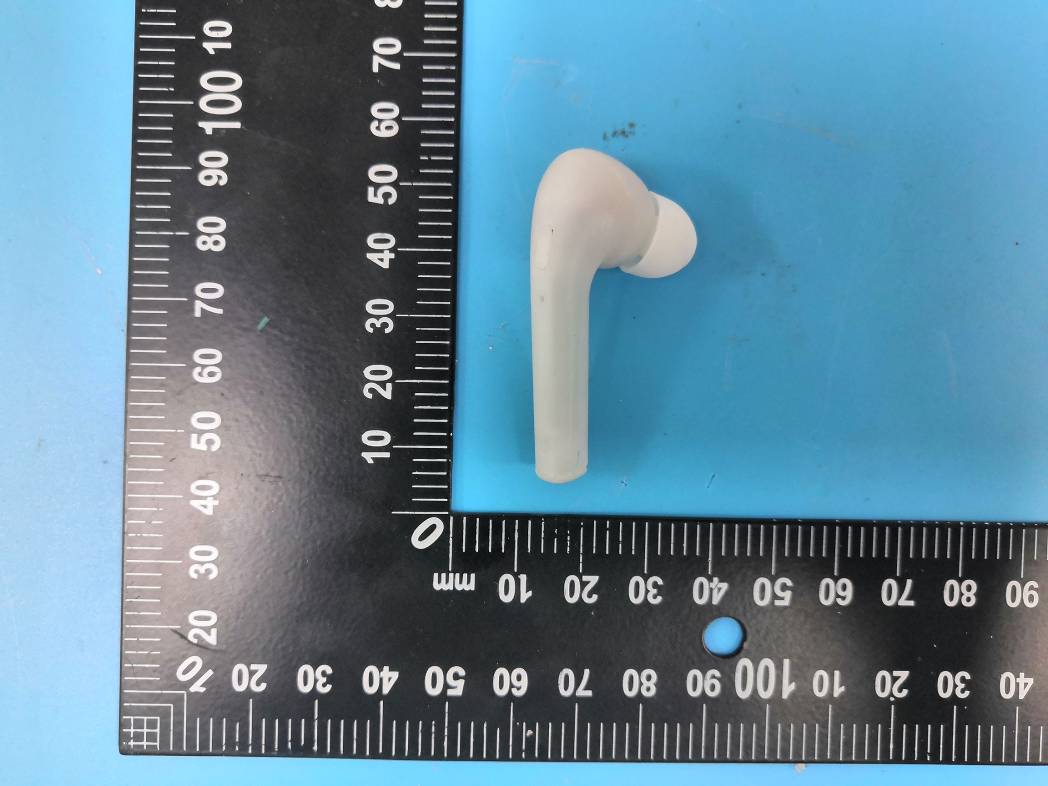

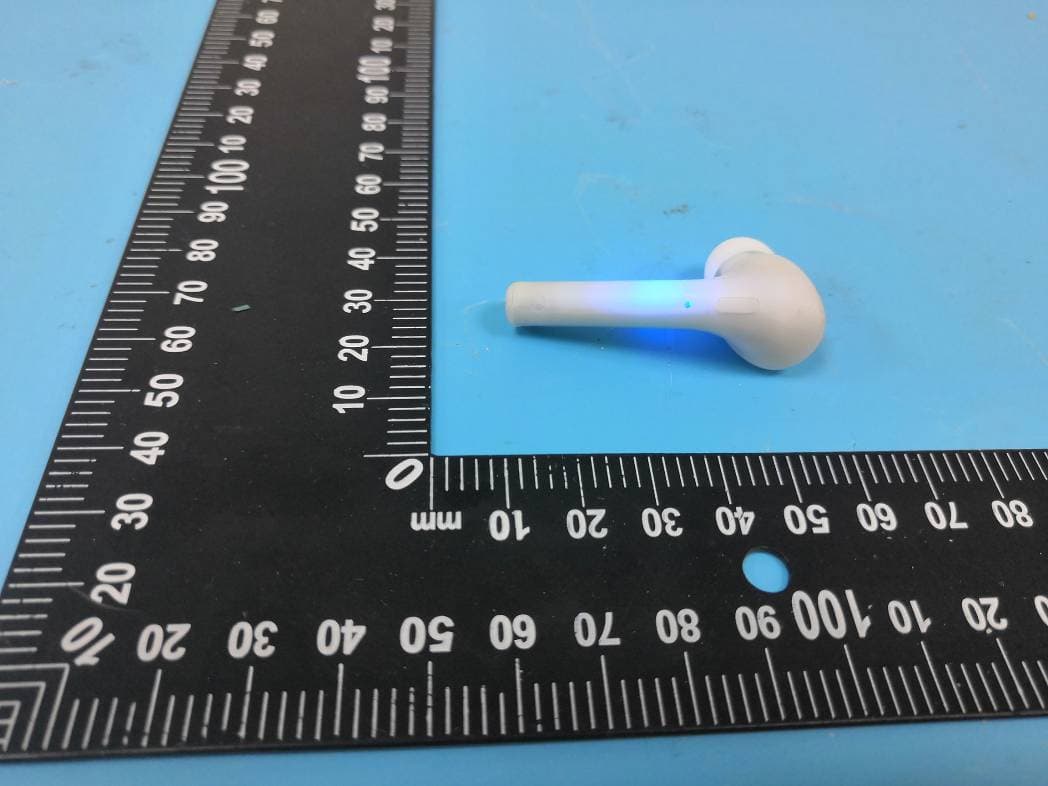

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Charger Right Ear Left Ear

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Charger Left Ear BT Antenna Right Ear BT Antenna

AB5377 26MHz CircuitDescription 1.Battery(3.7V)providesenergyfortheBluetoothchip( ) ;Crystal oscillator()providestheclocksignalfortheBluetoothchip.Bluetoothsignals getthroughamatchingcircuit,andthentransmittedtothespacethroughthe antenna（2402MHz‐2480MHz）.Whentheproductisconnected,theproductcanbe intwo‐waycommunicationwithotherBluetoothdevices,andthenthedevice's BluetoothmodulesendsBluetoothsignalsintospace,theproductreceivesthe Bluetoothsignalthroughanantenna,transmissiontotheBluetoothchipvia matchingcircuit.
