2ADM5-EP-0676S23 TRANSPARENT TWS

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road,Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] Date: 12/14/2022 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Zeeva International Limited hereby declare that： Product Name: S23 TRANSPARENT TWS Model No.: EP-0676 FCC ID: 2ADM5-EP-0676 For BT Mode: BLE 1M/2M ; are disable by software For Below are activated: Bluetooth BDR(GFSK) , EDR(π/4‐DQPSK), EDR(8DPSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Akshay P Butani Tiltle: Vice President

AC6969A-SOC CRYSTAL 24.00MHZ Battery MIC RF-2402MHZ-2480M HZ charge key Speaker LED

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road,Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] 12/14/2022 Product Similarity Declaration FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern, We, Zeeva International Limited hereby declare that we have a product named as S23 TRANSPARENT TWS (Model No.:EP-0676) FCC ID: 2ADM5-EP-0676 was tested by Shenzhen Accurate Technology Co., Ltd, meanwhile, for our marketing purpose, we would like to list a series products on reports and certificate, all the Products are identical schematics, except for the difference of color appearance. No other changes are made to them. We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] FCC ID Cover Letter Date:12/14/ 2022 The Zeeva International Limited here by submits justification for placing the FCC ID in the Associated User Manual and base charger. According to the FCC Regulation and Guidance (KDB Publication 784748 D01 v09r01) allows for the FCC ID to be moved to the User’s manual if the device is unquestionably too small for the FCC ID to be printed. Referring to the above quote, as the device is too small (FCC ID:2ADM5-EP-0676 ) to be printed. The FCC ID will be moved to the last page of user’s manual and charging case. The details are as below: A. Side surface (A): The curvature shape of the silicone sleeve back cover is not flat, so it’s hard to affix thelabel on the surface of the earbuds. B. Top cover (B): The plastic logo of the top cover does not provide enough physical space to fit the printing of the FCC ID according to below reference picture. Conclusion： Based on the above description of area A to B, we conclude that the device is unquestionably too samll for enabling the FCC ID to be printed onto any surface, We therefore request to move the FCC ID to the User manual and charging case Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] 12/14/2022 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Declaration letter We, Zeeva International Limited hereby declare that we have a product named as S23 TRANSPARENT TWS ( FCC ID:2ADM5-EP-0676; Model No.: EP-0676)was tested by Shenzhen Accurate Technology Co., Ltd ,which has left earbud and right earbud. we would like to declare that the product has two units which are electrically identical.We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President

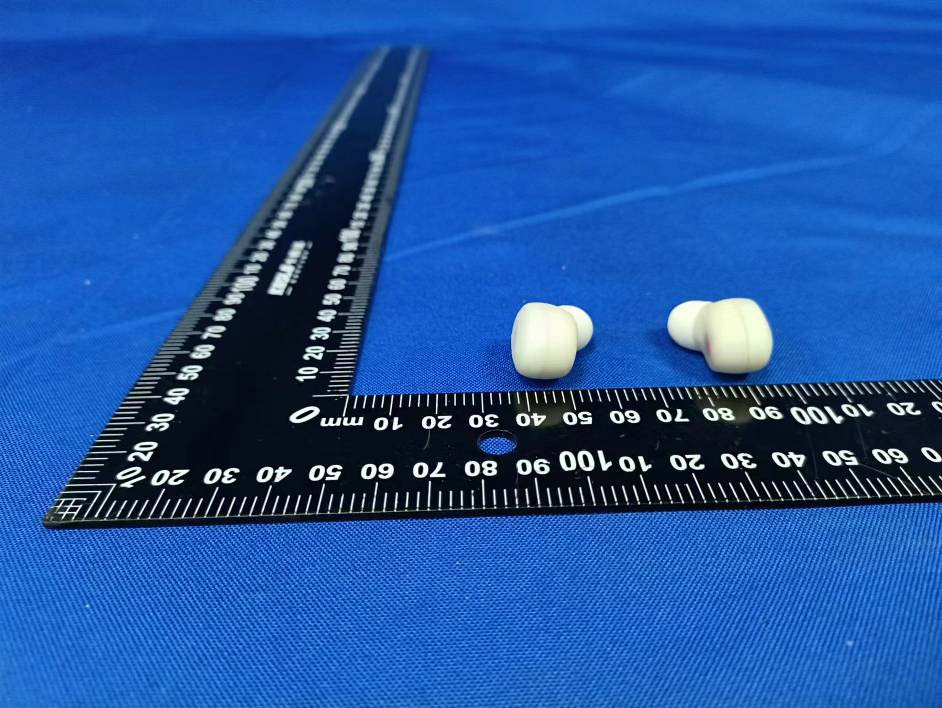

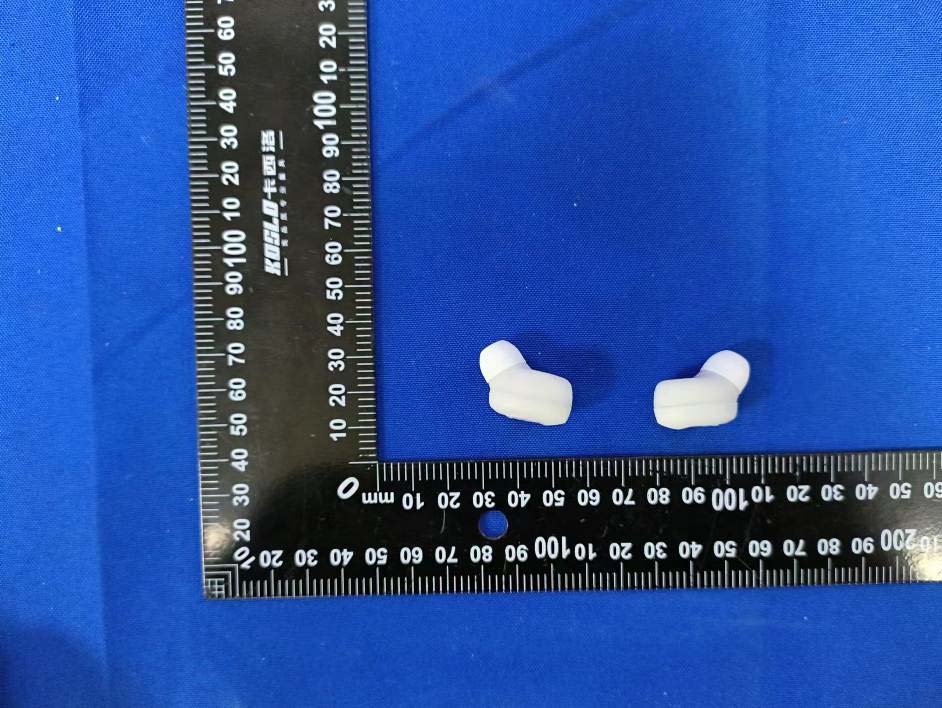

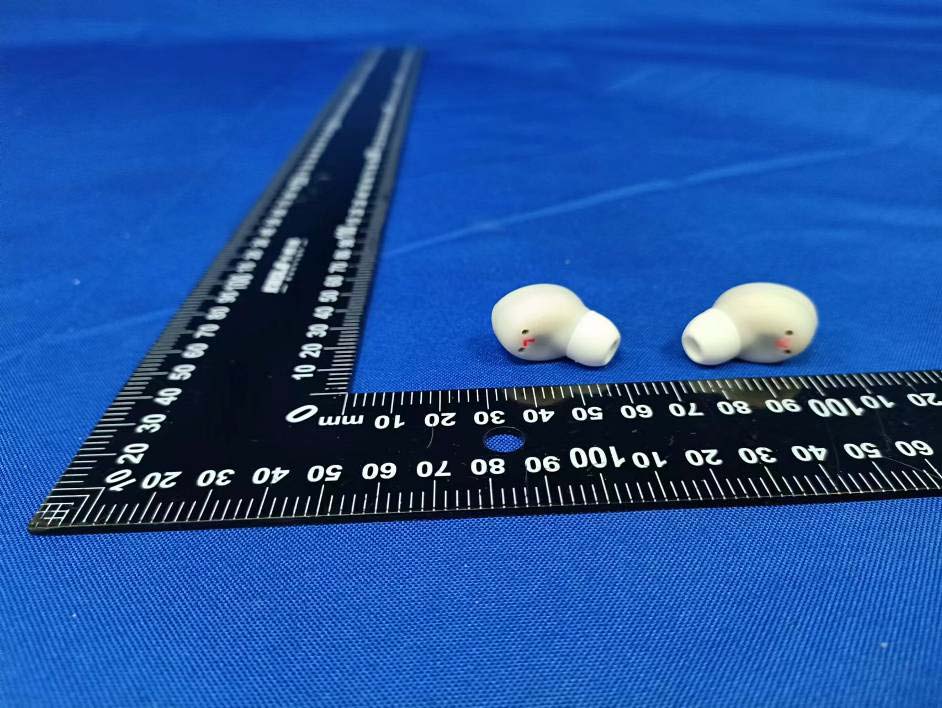

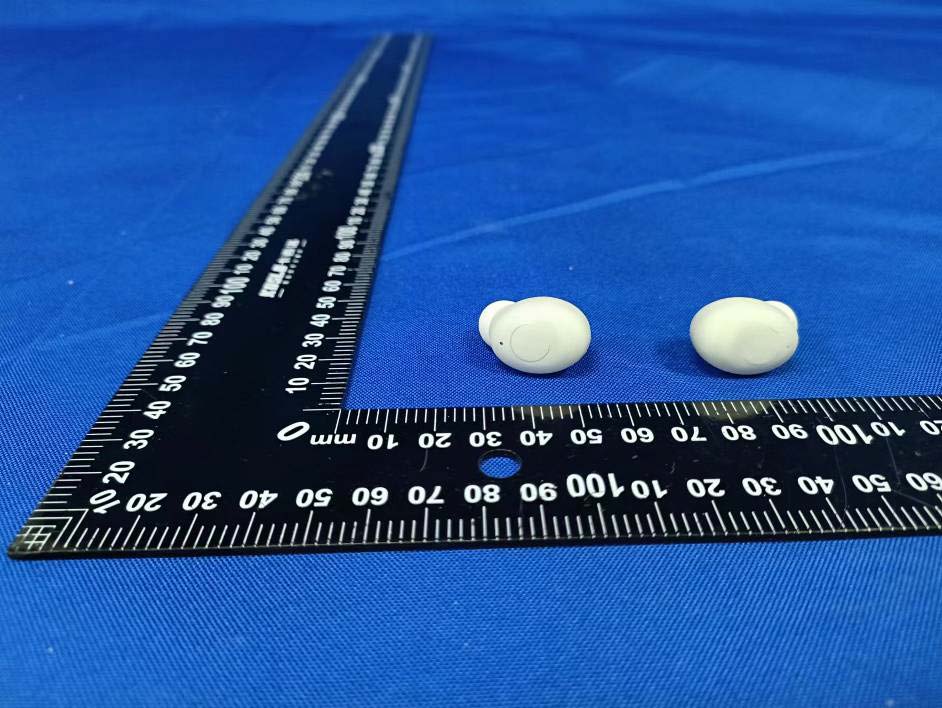

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF External Photos Page 1 of 7 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF External Photos Page 2 of 7 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF External Photos Page 3 of 7 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF External Photos Page 4 of 7 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF External Photos Page 5 of 7 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF External Photos Page 6 of 7 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF External Photos Page 7 of 7

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF LABEL AND LOCATION Page 1 of 1 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF Internal Photos Page 1 of 3 Internal Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF Internal Photos Page 2 of 3 BT Antenna Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF Internal Photos Page 3 of 3

Circuit Description Battery (DC 3.7V) provides energy for the Bluetooth chip (AC6969A); Crystal oscillator (24MHz) provides the clock signal for the Bluetooth chip. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna (2402-2480MHz). When the product is connected, the product can in two-way communication with other Bluetooth Devices, and then the device’s Bluetooth module sends Bluetooth signals into space, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit. Modulation technique BDR(GFSK)/EDR(π/4-D QPSK), EDR(8DPSK)

A B C DD C B A MCU PowerEarphone、MIC、LED C3222/16V AGND BT_OSCO BT_OSCI +3.3V VBAT GND C1105 C2NC/10V C8 2.7P BT_ANT L1 NC L2 NC BT_RF BT_ANT DC5V D1 BLUE D2 RED BT_OSCOBT_OSCI Y124M J1 Earphone DACL DACR BAT 3.4V~4.2V VBAT GND、AGND +5V 1 DM 2 DP 3 ID 4 6 GND 6 6 66 J2 USB(MICRO) DACL DACR MIC P/P/POWER LED_B/R C4105 BT_AVDD +3.3V LED_B/R T2DM T1DP USB S1 P/P/POWER/TALK P/P/POWER KEY LDO_IN OC/OD 1 GND 2 TCH 3 AHLB 4 VDD 5 TOG 6 U2 VM6233 Touch PAD P/P/POWER +3.3V C13 NC/105 C12 1pF~50pF Touth_KEY VDDIO 1 VBAT 2 PB1/ADC5 6 DACVSS 15 ADC1/MIC/PA1 16 ADC14/USBDM 11 MIC_BIAS/PA2/PA3/USBDP 12 BT_OSCI 9 BT_OSCO 10 BT_RF 7 VSSIO 8 PB3/ADC6 5 DACL 14 LDO_IN/PB5 3 BT_AVDD 4 DACR 13 U1 AC6969A_SOP16 DC5V R1 2.7R +5V (0603) + M1 MIC4013 C6 NC MIC T1VBAT T2DM T3DP T4GND T5VDDIO VBAT +3.3V VBAT，VDDIO，DP，DM，GND USBDP USBDM GND USBDP USBDM

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 11: 2021-11-09 Page 1 of 58 FCC-BT TEST REPORT Applicant Name : Zeeva International Limited Address : Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Report Number : RA221110-53019E-RF FCC ID: 2ADM5-EP-0676 Test Standard (s) FCC PART 15.247 Sample Description Product Type: S23 TRANSPARENT TWS Test Model: EP-0676 Trade Mark: Date Received: 2022-11-10 Date of Test: 2022-11-17 Report Date: 2022-11-20 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Roger.Ling Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA221110-53019E-RF Version 11: 2021-11-09 Page 2 of 58 FCC-BT TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC §1.1307 (b) & §2.1093 – RF EXPOSURE ......................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST RESULT: ............................................................................................................................................................ 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS ........................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 13 TEST PROCEDURE ...................................................................................................................................................... 13 FACTOR & MARGIN CALCULATION .............................................................................................................…

Text truncated - open the document above for the full version.

Maximum Antenna Gain: 0 dBi model number：BZ-05 Application Information O4Version5.245.351 TotalTime9m 46s 28ms AdditionalInfor414295827F7A 03978 240224412480 -0.890.32 -0.14 -0.890.32 -0.14 1.152.52.11 1.152.52.11 -7.17 -6.09 -6.43 44.2744.1 44.47 43.7743.6 44.03 Result Frequency (MHz) TRP(dBm) TestBluetooth TRP Attenuation Horizonta l Attenuation Vertical NHPRP(dBm) 45 MAX(dBm) EIRP peak Min(dBm)

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53019E-RF Test Photos Page 1 of 1 Radiated Spurious Emissions Test View (Below 1GHz) Radiated Spurious Emissions Test View (Above 1GHz)
