2ADM5-GA-0071GAMING SOUNDBAR

AB5368E BAT 3.7V LED BT IC LTK5208 TYPE-C 4056 IC LED SPEAKER KEY Charge indicator light charging Seven colored lights Bluetooth indicator light ANT Crystal 26M 2402-2480MHz

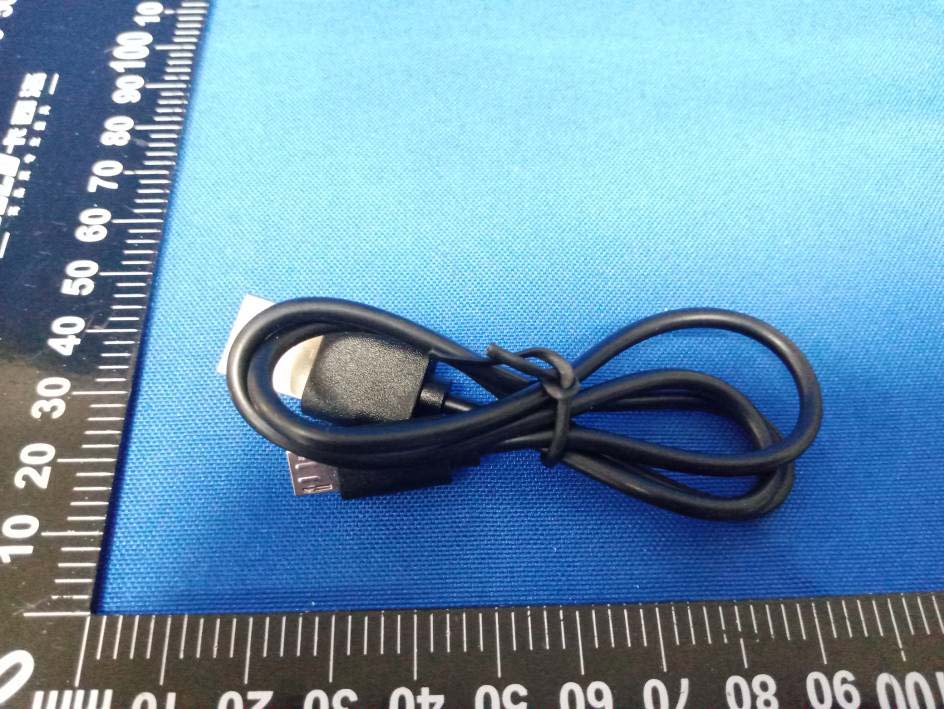

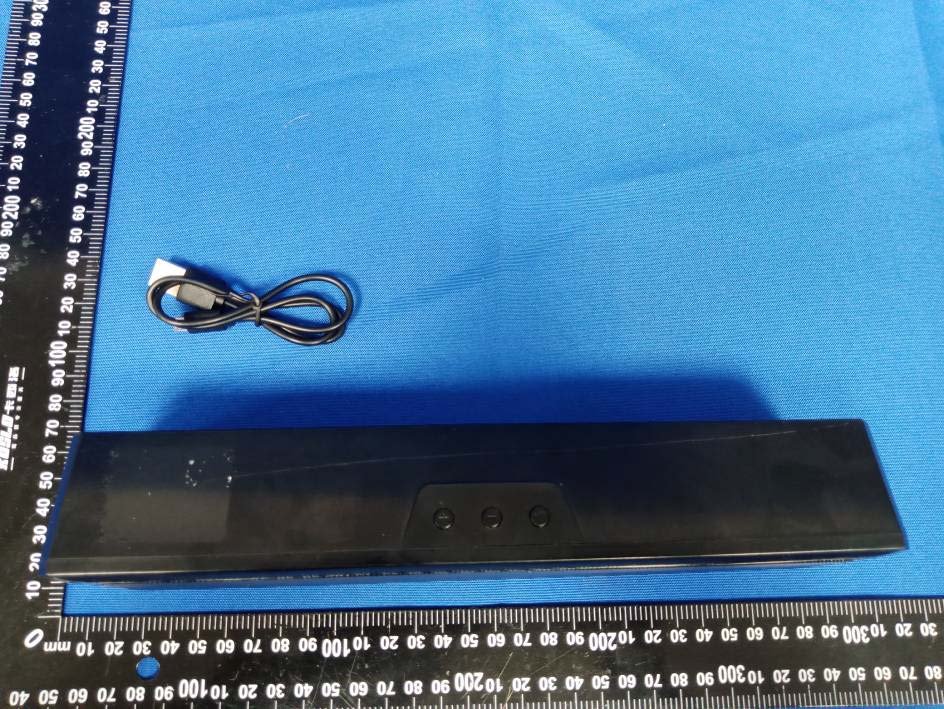

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53015E-RF External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53015E-RF External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53015E-RF External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53015E-RF External Photos Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53015E-RF Internal Photos Page 1 of 4 Internal Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53015E-RF Internal Photos Page 2 of 4 BT Antenna Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53015E-RF Internal Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53015E-RF Internal Photos Page 4 of 4

Circuit Description Battery (DC 3.7V) provides energy for the Bluetooth chip (AB5368E); Crystal oscillator (26MHz) provides the clock signal for the Bluetooth chip. Bluetooth signals get through a matching circuit, and then transmitted to the space through the antenna (2402-2480MHz). When the product is connected, the product can in two-way communication with other Bluetooth Devices, and then the device’s Bluetooth module sends Bluetooth signals into space, the product receives the Bluetooth signal through an antenna, transmission to the Bluetooth chip via matching circuit. Modulation Technique

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221110-53015E-RF Version 11: 2021-11-09 Page 10 of 63 FCC-BT FCC§15.247 (i) §1.1307 (b) – RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D04 Interim General RF Exposure Guidance v01, clause 2.1.2 – 1- mW test Exemption: Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. Test Result For worst case: Mode Frequency Maximum Tune-up Conducted Power 1-mW test Exemption (MHz) (dBm) (mW) BDR/EDR 2402-2480 -2 0.63 Yes Note 1: The tune-up power was declared by the applicant. Result: Compliant.

B 11 REV:SIZE:CODE: DRAWN:DATED: DATED:CHECKED: QUALITY CONTROL:DATED: DATED:RELEASED: COMPANY: TITLE: DRAWING NO: SHEET: OFSCALE: REVISION RECORD APPROVED:ECO NO: A B D DATE: 123456 D C A B C LTR LTK5208 PA POWER 7-LED KEY LED C2105 C1105 12 ANTENNA_PIFA 14 VDDIO 15 VBAT 11 GND 8 PF2/MICL/PA7/SDDAT 9 MICL/PF3 1 BT_ANT 2 OSCI 3 OSCO 10 DACL 13 VUSB/PB5 16 PWRKEY 5 PB3/USBDP 4 PB4/USBDM/SDDAT 12 PE7/AUX/FMANT 7 PA5/SDCMD 6 PA6/SDCLK U1 AB5368E 12 Y1 XT26M L 2 0 R L3 NC L1 NC T 1 S1 POWER 1 GND 2 VBUS 3 CC1 4 CC2 5 VBUS 6 GND 789 1 0 U4 TYPE-C-6PIN D1 BLUE S2 PREV/V- S3 NEXT/V+ R447K R5 12K 1 2 SP1 SIP_2P R122R R2 2K R310K 1 2 SP2 SIP_2P 1 TEMP 2 ISET 3 GND 4 VIN 5 VBAT 6 DONE 7 CHRG 8 CE 9 G N D U5 4056H D2 REDR121K C 8 1 0 5 R11 2K 1 PVDD 2 INL 3 MODE 4 INR 5 BYPASS 6 EN 7 OUTNR 8 OUTPR 9 OUTPL 10 OUTNL 1 1 G N D C6106 C5 153 C4153 R7 82K R8 82K C7 105 1 1 2 2 SP4 1 1 2 2 SP3 R9 51K T 2 2 3 1 Q2 9014 T 3 T 4 CE1 OSCI SDDAT DAC PWRKEY VDDIO VBAT BLUE LED MUTE MIC SDCLK DP PWRKEY BLUE VBAT LED VBAT +5V VBAT+5V SDCMD V B A T DAC AGND L- L+ R+ R- M U T E V B A T V B A T

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 11: 2021-11-09 Page 1 of 58 FCC-BT TEST REPORT Applicant Name : Zeeva International Limited Address : Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Report Number : RA221110-53015E-RF FCC ID: 2ADM5-GA-0071 Test Standard (s) FCC PART 15.247 Sample Description Product Type: GAMING SOUNDBAR Test Model: GA-0071 Trade Mark: N/A Date Received: 2022-11-10 Date of Test: 2022-11-14 to 2022-11-17 Report Date: 2022-11-20 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Audy.Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA221110-53015E-RF Version 11: 2021-11-09 Page 2 of 58 FCC-BT TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 FCC§15.247 (i) §1.1307 (b) – RF EXPOSURE.......................................................................................................... 10 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 11 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 13 FACTOR & MARGIN CALCULATION ........................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.205, §15.209 & §15.247(d) – RADIATED EMISSIONS ........................................................…

Text truncated - open the document above for the full version.

Product specification Quick Reference Date All the technical data and information contained herein are subject to change without prior notice AntennaLayout&moduleonthesystemboard AntennaGain Antenna module on the system board Antenna typePCB Frequency2.45GHz *1 Ant. Port Input Pwr. (dBm)0 (Typ. BT class 2 output power) Tot. Rad. Pwr. (dBm)-2.3 (Input pwr – loss pwr) Peak EIRP(dBm)1.3 Directivity (dBi)1 (all direction antenna) Efficiency (dB)-2.3 (58.5%) Gain (dBi)1.3 (Peak Gain XY-plane) Maximum Power (dBm)1.3 (XY-plane) Minimum Power (dBm)-4(XY-plane) Avg. Power (dBm)-0.5(XY-plane) Max/Min Ratio (dB)5.3(XY-plane) Max/Avg Ratio (dB)1.8(XY-plane) Min/Avg Ratio (dB)-3.5(XY-plane) Average Gain (dB)-0.5 (Avg Gain XY-plane) Unit in dBi @2.44GHz XY-planeXZ-planeYZ-plane Efficiency PeakAvg.PeakAvg.PeakAvg. Module Board 1.3-0.51.7-3.81.1-3.058.5% ReturnLoss The Environment of Antenna Radiation Pattern 3Dradiationpatterndiagram XY-planeXZ-planeYZ-plane

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53015E-RF Test Photos Page 1 of 2 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: RA221110-53015E-RF Test Photos Page 2 of 2 Radiated Spurious Emissions Test View (Below 1GHz) Radiated Spurious Emissions Test View (Above 1GHz)
