2ADM5-HP-1228BT RING HEADPHONE AST

INSTRUCTION MANUAL Congratulations, and thank you for choosing the Genesis Wireless Headphones. This manual will help you operate the Genesis Wireless Headphones, but firstly you should familiarize yourself with the Bluetooth functionality of your mobile phone or other devices before using the Genesis Wireless Headphones. 1 X Micro USB Cable 1 X Instruction Manual To use your Bluetooth headphones, you must first pair your headphones with a mobile phone or other Bluetooth device. Once your Bluetooth headphones is paired to a specific mobile phone, they will remain paired and automatically recognize each other whenever they are within range. Use a mobile phone with Bluetooth function or other Bluetooth devices to perform necessary pairing action. After pairing, the LED indicator slowly blinks with blue. Plug the Micro USB to the Micro USB port. When charging, the LED indicator turns red. After full charging, the LED indicator turns off. Answering a Call 5. Product Specification 6. FAQ Turn on your phone and ensure the Bluetooth function is activated. Turn on the headphones, enter the pairing mode. Search your Bluetooth devices on your phone by following the phone’s instructions. Refer to your phone’s user manual for more information. After a few seconds the phone will list the “BT GENESIS HP” as a discover device. Select it and follow your phone’s instructions to select this pairing. Your phone will confirm the pairing, and then press Yes/OK. Use the Micro USB cable accessory provided with this headphones. Connect the Micro USB plug to the Micro USB charging port on the headphones positioned at in headphones diagram on page 2. Connect the USB plug to a USB port on a computer or wall adapter to activate charging. For your safety, please always use an appropriate 5V input charger/Adapter to charge the product. DO NOT USE Quick Charging USB Adapter to charge the product, as it might damage the product. **Make sure to keep the headphones charging for a minimum of 2 hours before initial use. USB PlugMicro USB Plug 1 Please follow the rules depicted in this manual closely to ensure your safety. Before using this Bluetooth headphones, we would strongly encourage you to read through this user manual. Do not modify, repair or dismantle this Bluetooth headphones. Doing so may result in fires, electric shocks, complete breakdown of this Bluetooth headphones, etc. All are not covered under warranty. Be more wary of any edges, uneven surfaces, metal parts, accessories and its packaging so as to prevent any possible injury or damage. Do not use an diluent or volatile liquid to clean the Bluetooth headphones. Do not use the Bluetooth headphones in a hazardous location. 1 X Genesis Wireless Headphones Press and hold the On / Off Button for 3 seconds. After turning on, the LED indicator flashes red/blue. Press and hold the On / Off Button for 3 seconds. Play / Pause Music Press On / Off button to play music and press it again to pause music. Press On / Off button to answer phone call, press On / Off button again to end call. Press and hold 2 seconds to reject call. Double click to redial last call. 4.2. Pairing to Mobile phone or other device4.3. Charging your headphones FCC ID: 2ADM5-HP-1228 7. FCC Statement 3. Connection Diagram Charging Turn off Pairing Turn on & Enter the pairing mode 2. Packaging Contents4. How to use1. Introduction Table of Contents 1 Introduction································ 2 Packaging Contents····················· 3 Connection Diagram····················· 4 How To Use······························· 4.1 General Function··················· 4.2 Pairing To Mobile Phone·········· 4.3 Charging Your Product············ 5 Product Specification··················· 6 FAQ········································· 7 FCC Statement··························· Battery Statement······················· 1 2 2 3 3 4 5 6 6 7 8 -The input voltage to the product is 5V 1A. -In order to charge the product in safe manner and reliable conditions, please only adopt certified appropriate charger/ adapter for charging the product. -Only charge the product at ambient temperatures between 10 deg °C/ 50 deg °F and 40 deg °C/104 deg °F. - Do not heat above 70 deg °C/158 deg °F, e.g. Do not expose to sunlight or throw into fire. -Switch off the product after use. -Please note that we won’t take any responsibility for any wrong operation (e.g. Voltage higher than 5V) as this may result in severe injury or loss of property, and we cannot control the operating process during the time the user using this product. -In extreme cases, abuse or misuse of Lithium battery pack can lead to explosion, heat generation, fire development or smoke development. Safety instructions for the lithium battery and charging the product Keep all relevant information for future reference Warning: • You must select a qualified charger from a regular manufacturer. • You must charge the Bluetooth headphones if it has not been used for more than 6 months. 1 1. Why is there no power even when the headphones is turned on ? Ans: Ensure the battery has been charged up to 1 hour for initial use. 2. There is no sound when playback. Ans: Check the connection between headphones with phone or computer, if the connection is not established, please connect again. Make sure the headphones is paired and connected with your target phone or other master device. Microphone On / O Button LED Indicate Micro USB Charging port GENESIS WIRELESS HEADPHONES FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a …

Text truncated - open the document above for the full version.

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road,Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] Date: 04/13/2020 To: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Zeeva International Limited hereby declare that： Product Name: BT RING HEADPHONE AST Model No: HP-1228 FCC ID: 2ADM5-HP-1228 For BT Mode: BLE and EDR(8DPSK) are disable by software For Below are activated: Bluetooth BDR(GFSK) , EDR(π/4‐DQPSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Akshay P Butani Tiltle: Vice President

Main Processor AC 6959B Charging Manage IC : TP4054 Battery Socket USB SocketDC In=5V Indicate LED Power Switch Speaker L Speaker R Microphone Socket Earphone Socket RF Atenna Crystal Oscillator Frequency=24M Play/Pause/Call

Zeeva International Limited Suite 1007B, 10th Floor, Exchange Tower, 33 Wang Chiu Road, Kowloon Bay, Hong Kong Tel: +852-2868 0511 | Fax: +852-2524 1986 E-mail: [email protected] FCC Authorization 03/17/2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Zeeva International Limited the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Akshay P Butani Title: Vice President QA-FR-170-B

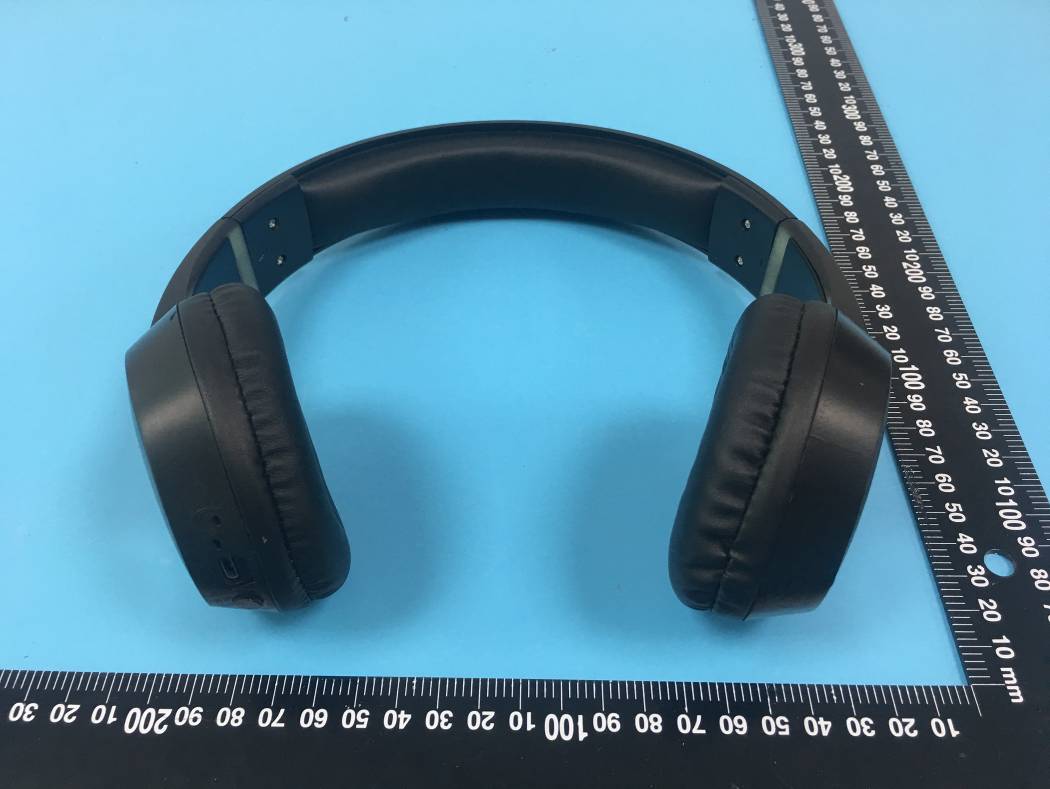

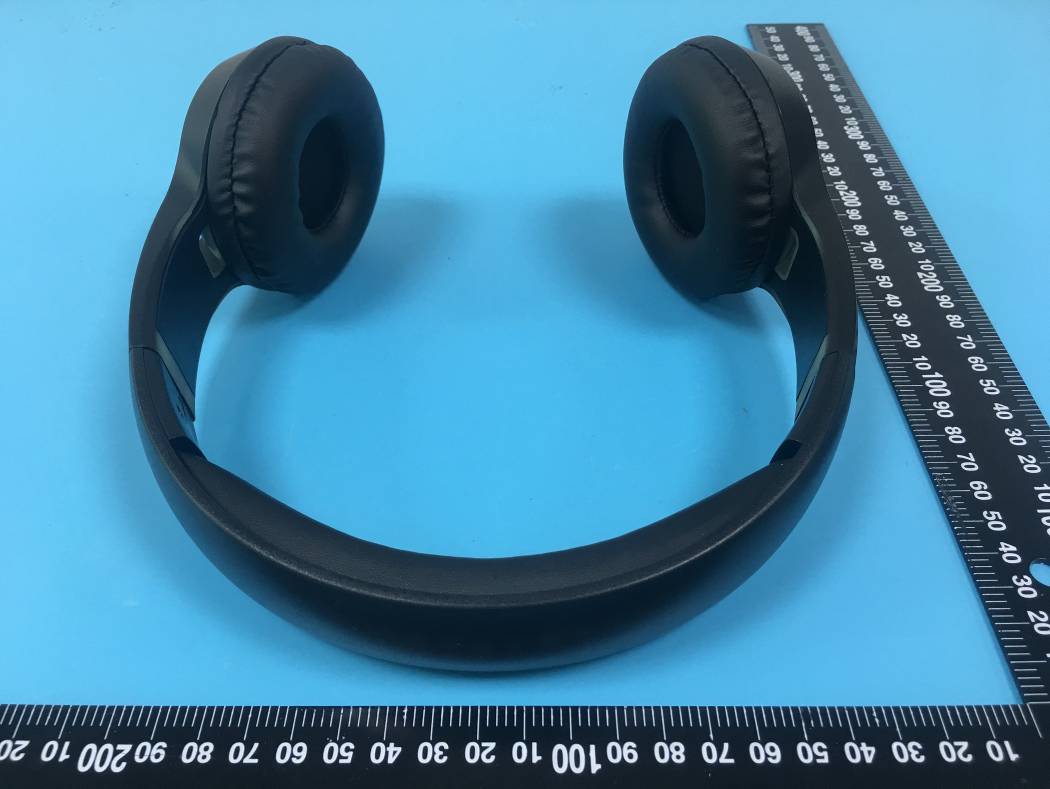

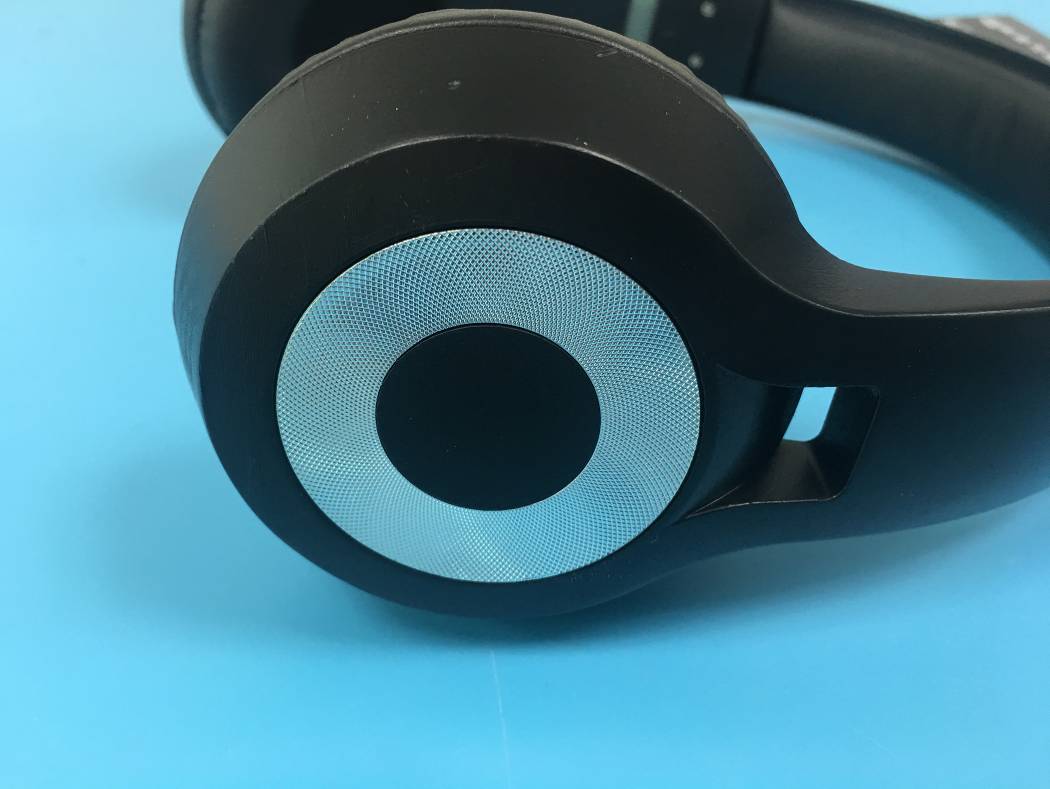

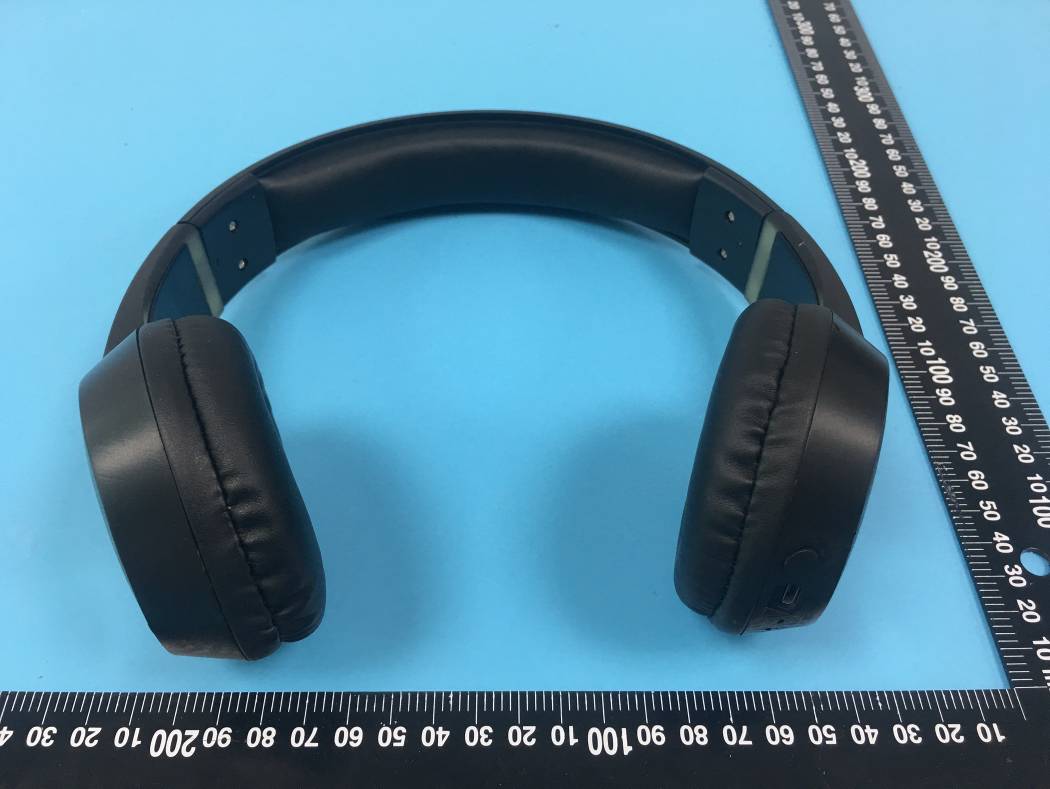

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bluetooth Antenna

Operation Descriptions 1、The main procesor is AC6959B It is made of JIELI Electronics Inc. The BT antenna gain is -0.6dBi, frequency range is 2402-2480MHz 2、The crystal oscilator's frequency is 24MHz. 3、The Red and Blue LEDs are indicating the state of the Bluetoorh. 4、The DC power suppply IC change the voltage from 5V to 4.2V. It is indicated by the LED. 5、There is a Key at the PCB for "power on & off,play,pause,call" function 6、The microphone socket. 7、The earphone socket. 8、Two speaker's connectors(no op amp). 9、The USB socket for charge.
